DIGITUS FTTx Installation Kit — 4-fibre, LC/APC, 30 m, pre-assembled
Pre-assembled30 m · 4 fibresLC/APCWall / DIN box
The DIGITUS DN-948030-2 is a complete FTTx installation kit for bringing fiber into a flat or house: a 30 m, 4-fibre single-mode drop cable pre-terminated with LC/APC at one end, plus a white surface-mount connection box with two LC/APC duplex couplers. It is for installers and operators who want to wire the in-home section (from the building distributor to the ONT location) quickly, with no field termination.
The cable is 2.4 mm, bend-optimised G.657A2, with 900 µm buffered fibres, aramid strain relief and a white LSOH jacket (I-V(ZN)H, CPR class B2ca). A sturdy pull eye protects the connectors while the cable is pulled through conduit; the open end is spliced or routed at the home distribution panel.
Before you order: Single-mode with APC (green, angled) connectors. The ONT patch cord and the building-side hand-over must also be single-mode LC/APC; UPC or multimode cords will not give a usable link.

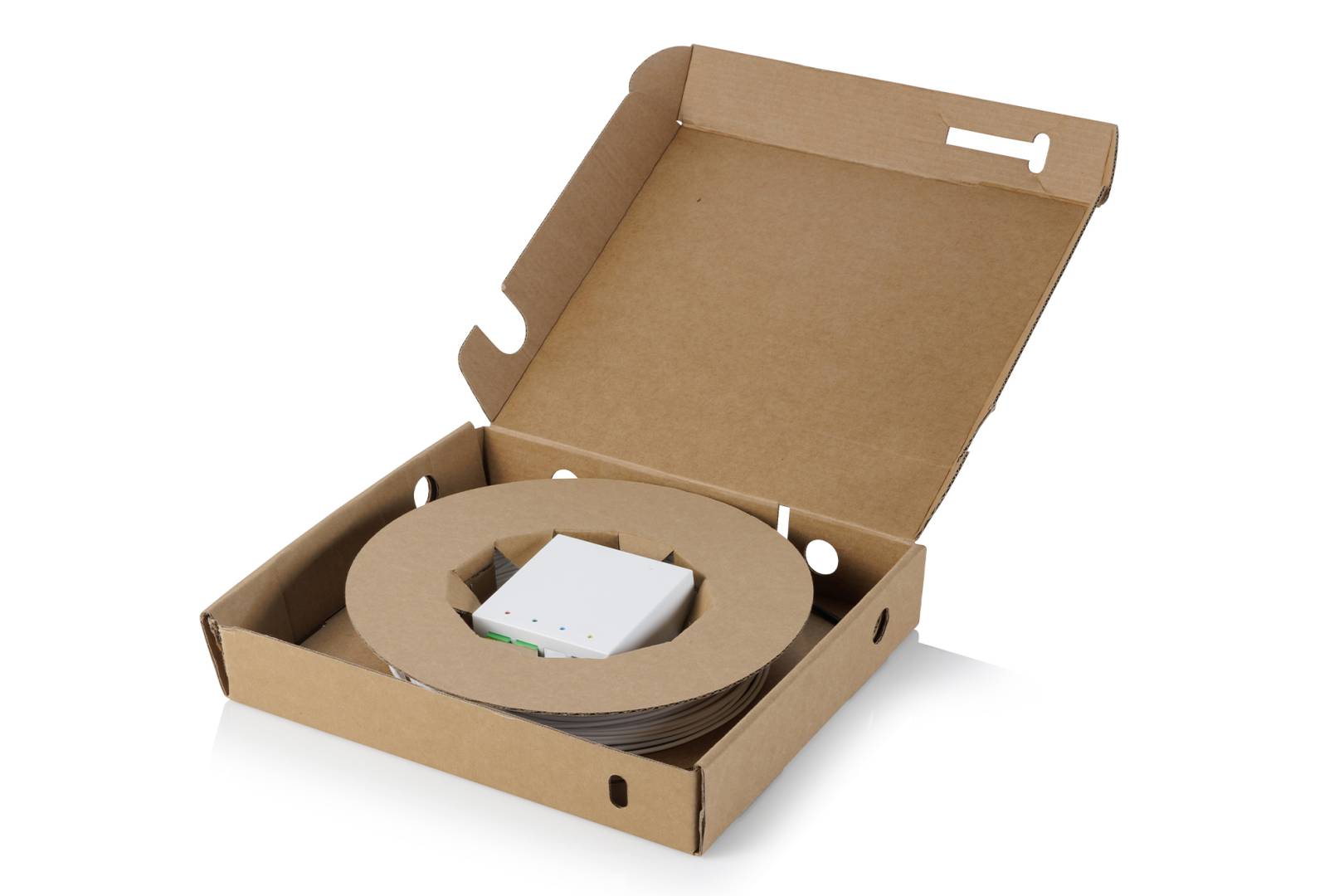

What's in the Box

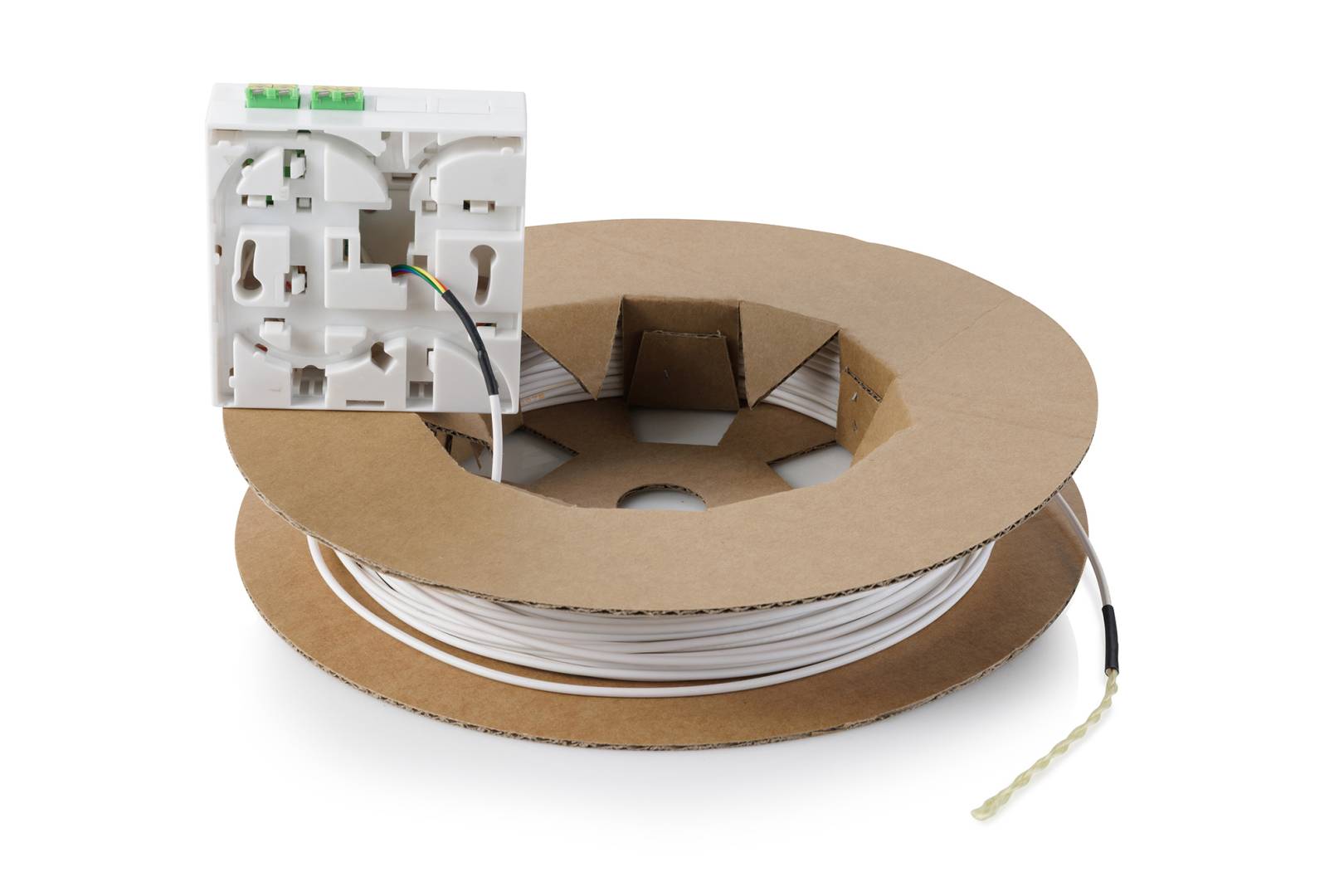

- 1x pre-assembled 4-fibre drop cable, 30 m, LC/APC on one end, with pull eye

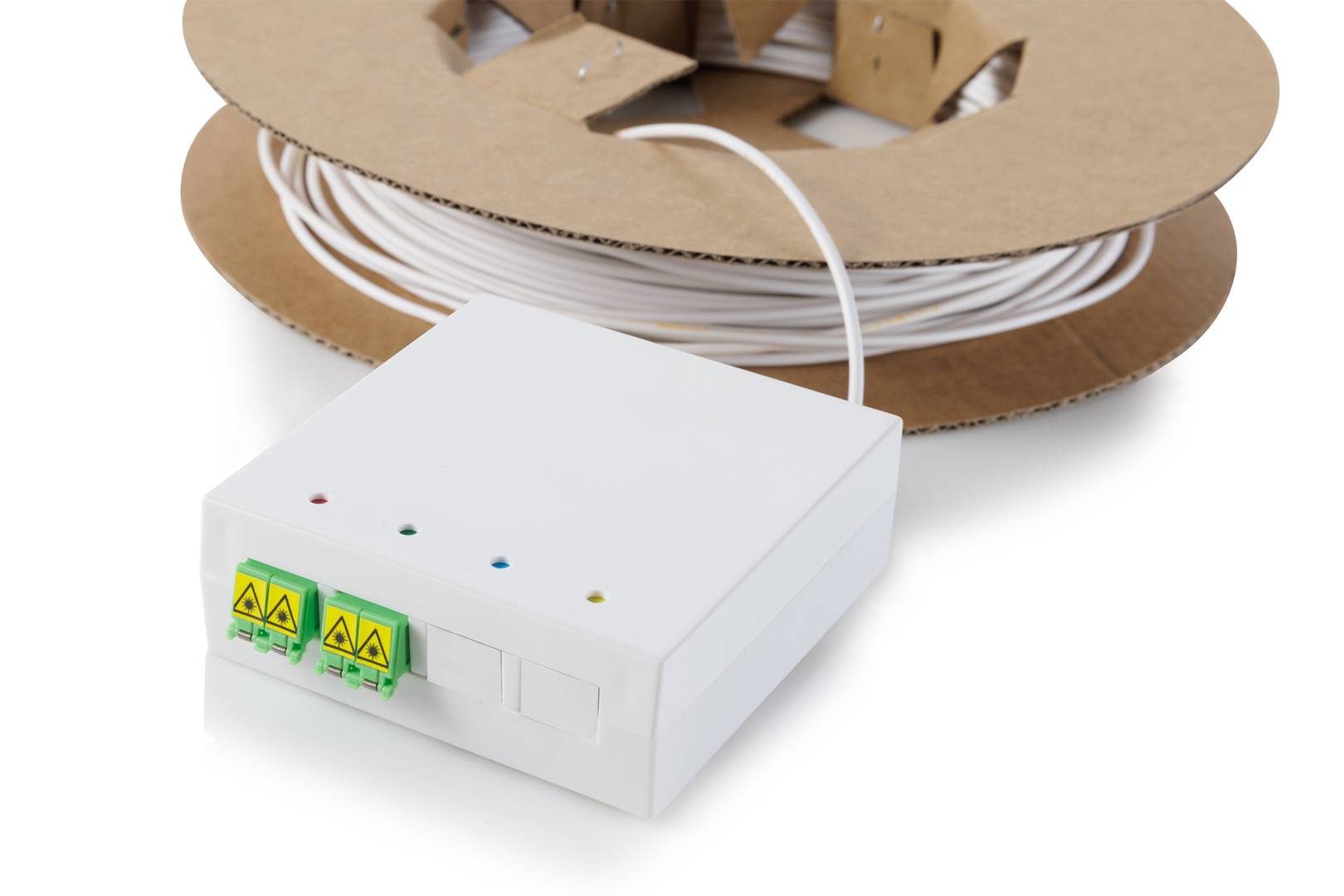

- 1x surface-mount connection box (wall or DIN rail), white, 2x LC/APC duplex couplers with laser/dust shutters, integrated splice cassette
- Installation supplies (screws and anchors)
What It Means in Practice
- Pull the pre-terminated end to the flat, fit it in the connection box, and the ONT connects with a short LC/APC patch cord.
- The open end goes to the building distributor, where it is spliced or stored.
- Choose the length to cover the full conduit route plus some slack — 30 m cannot be extended without a splice.
- Box: 4 ports, 2 equipped (2x LC/APC duplex), integrated splice cassette, smooth cable feed.
What Will Not Work
- UPC (blue) or multimode patch cords will not mate correctly with LC/APC.
- The open cable end still needs to be spliced or terminated at the building side.
- No ONT or patch cord is included.
- Indoor cable (I-V(ZN)H) — not for direct outdoor or buried installation.
Key Features
No field termination
Factory LC/APC on the in-home end.
Laser-safe box
Tamper-proof shutters on the LC/APC couplers protect eyes and dust caps.
Bend-insensitive fibre
G.657A2 for tight corners in conduit.
Pull eye
Protects the connectors when pulling through ducts.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Pre-terminated kits remove the most error-prone step of an FTTH install — field connectorisation — and the B2ca cable meets stricter fire-safety requirements in multi-storey buildings. On the active side, see our routers.
✓ Buy it if you are wiring a flat or house for FTTH with LC/APC single-mode and want a ready-made 30 m cable plus box.
✕ Skip it if your operator uses SC/APC or UPC, or the route is outdoors.
→ Also consider DN-948050-2 (50 m) for longer routes. DN-949103 FTTH home distribution unit for the building entry.
Send us the operator requirements and route length and we will confirm the right kit before you order.
Features - Digitus - DN-948030-2
Colour
white
More Details
Product Code
04:594423
EAN Code
4016032508809
Manufacturer
Digitus
