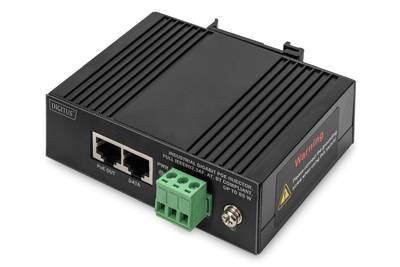

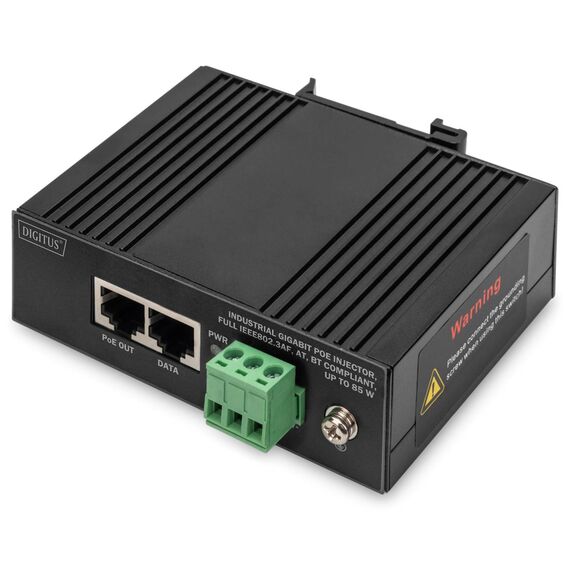

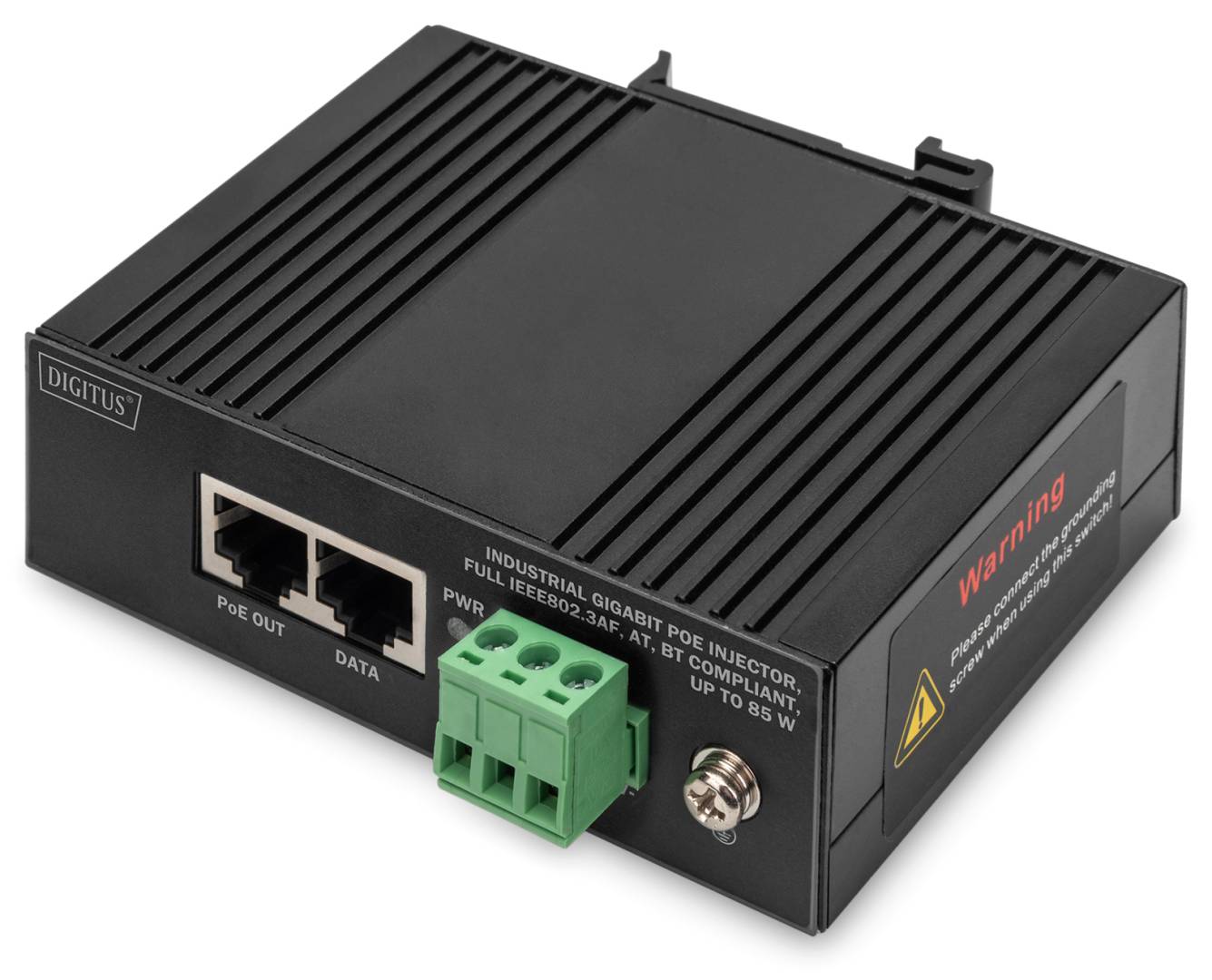

Digitus DN-651141 Industrial Gigabit PoE++ Injector 802.3bt up to 85 W, DIN-Rail, 45–56 V DC Input, -40 to 75°C
Brand:
Digitus
Digitus DN-651141 Industrial Gigabit PoE++ Injector 802.3bt up to 85 W, DIN-Rail, 45–56 V DC Input, -40 to 75°C
€121.51 inc. VAT
DN-651141
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus DN-651141 — 802.3bt PoE++ injector for DIN-rail cabinets
IEEE 802.3bt · up to 85 WGigabitDIN rail-40 °C to 75 °C
The Digitus DN-651141 is an industrial single-port Gigabit PoE++ injector that adds IEEE 802.3bt Type 3 or Type 4 power — up to 85 W — to an Ethernet link inside a DIN-rail cabinet. It is aimed at system integrators powering PTZ cameras, Wi-Fi 6/7 access points, small-cell radios or displays from an industrial control panel where only a DC bus is available.
Unlike desktop injectors, it does not plug into the mains: it is fed from an external 45–56 V DC power supply through a 3-contact terminal block. Data passes through shielded RJ45 ports at 10/100/1000 Mbps, and power is delivered on all four pairs (Alternative A and B). It operates from -40 °C to 75 °C.
Before you order: No power supply is included. You need a separate 45–56 V DC DIN-rail power supply sized for the load (for 85 W output, plan roughly 100 W of PSU capacity). Without it the injector does nothing.
What's in the Box
- DN-651141 PoE++ injector

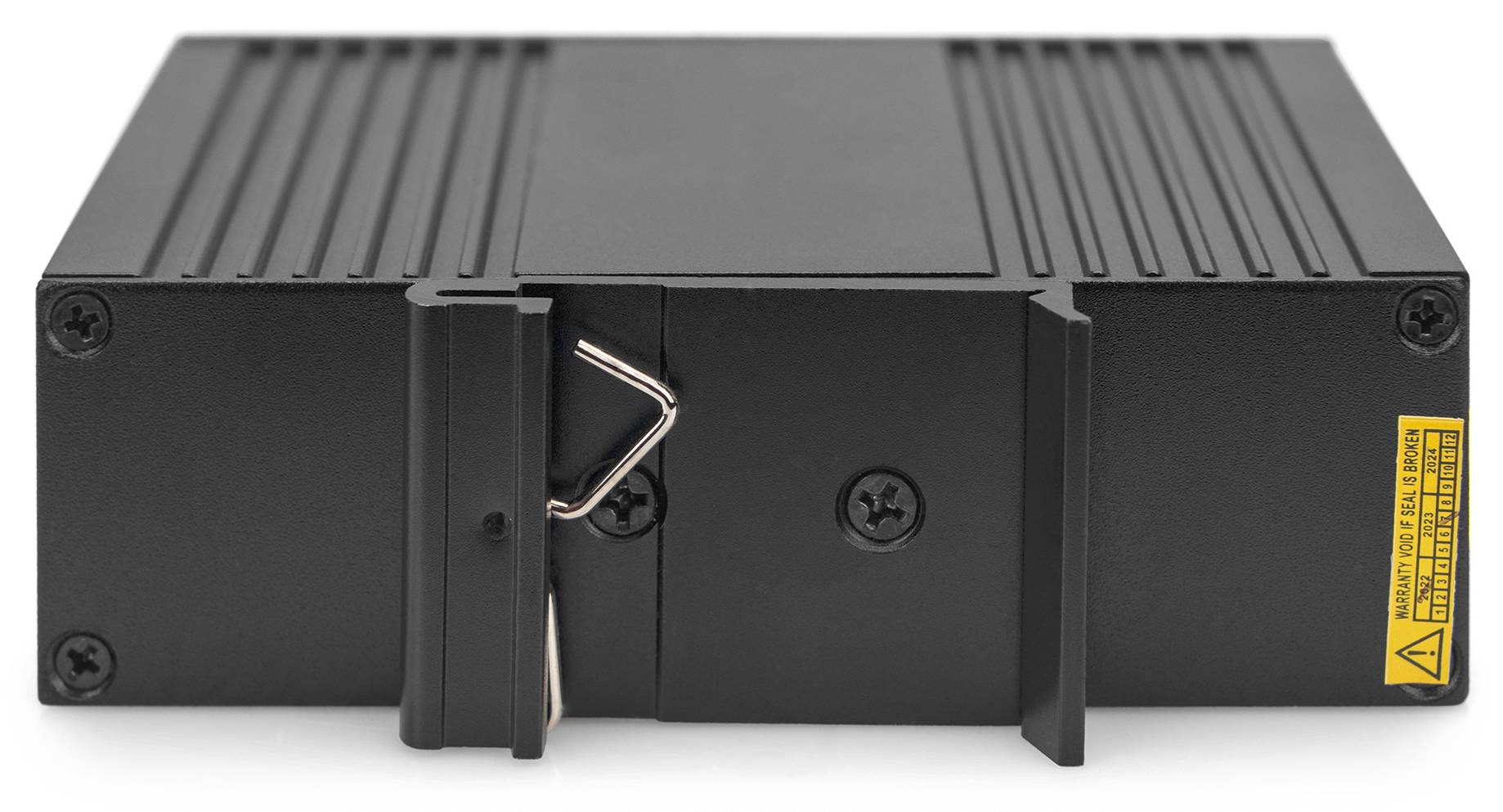

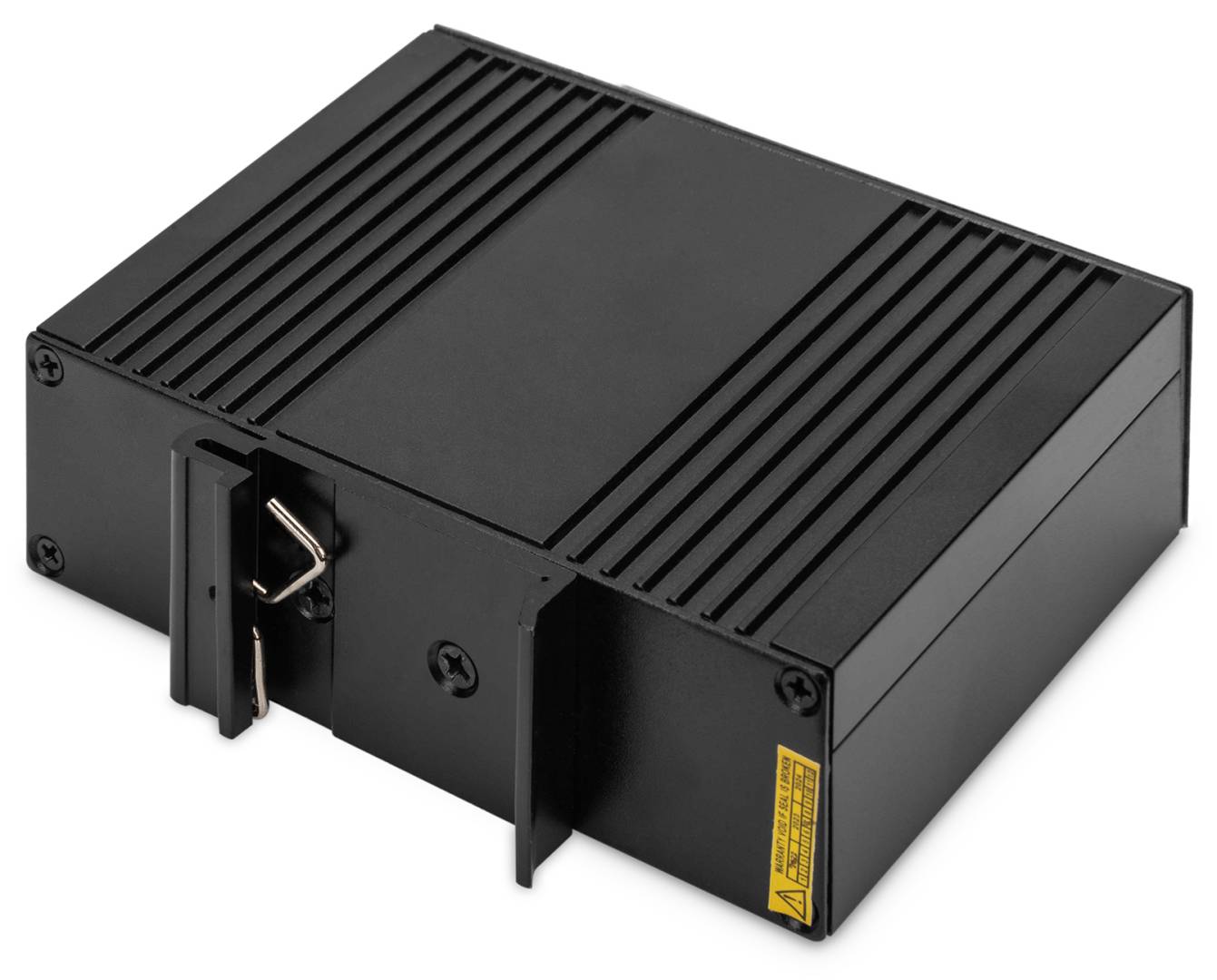

- DIN-rail kit (clip pre-attached)
- User manual
What It Means in Practice
- Lets a non-PoE industrial switch power one high-demand device without replacing the switch.
- Fits next to the existing 48 V DC supply in a control cabinet; one DC feed can serve the injector and other loads.
- 4-pair power reaches 802.3bt Type 3 (60 W) and Type 4 devices; 802.3af/at devices are detected and powered at their own class.
- The wide temperature range suits unheated outdoor cabinets and machine enclosures.
What Will Not Work
- It cannot be plugged into a wall socket — there is no AC input.
- It does not include the 45–56 V DC power supply.
- It is not a switch: one data input, one data + power output.
- It does not convert PoE to 12 V or 24 V DC for non-PoE devices.
Key Features
Up to 85 W
IEEE 802.3bt Type 3 and Type 4 on four pairs, backward compatible with 802.3af/at.
DC terminal input
45–56 V DC on a 3-contact terminal block (12–24 AWG wire).
Industrial range
-40 °C to 75 °C operation, DIN-rail mounting.
Status LEDs
PWR and PoE LEDs; PoE stays lit when an 802.3bt device is detected.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This is the injector for cabinets that already have a 48 V DC bus, not for desks. Before ordering, confirm the DC supply and the power class of the device. If you would rather replace the switch, see our industrial and PoE switches.
✓ Buy it if you need up to 85 W of 802.3bt PoE in a DIN-rail cabinet with a 45–56 V DC supply.
✕ Skip it if you only have mains power — an AC-powered PoE++ injector is the simpler choice.
→ Also consider an AC-powered 802.3bt injector for office or rack installations.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-651141
More Details
Product Code
03:216343
EAN Code
4016032486541
Manufacturer
Digitus
