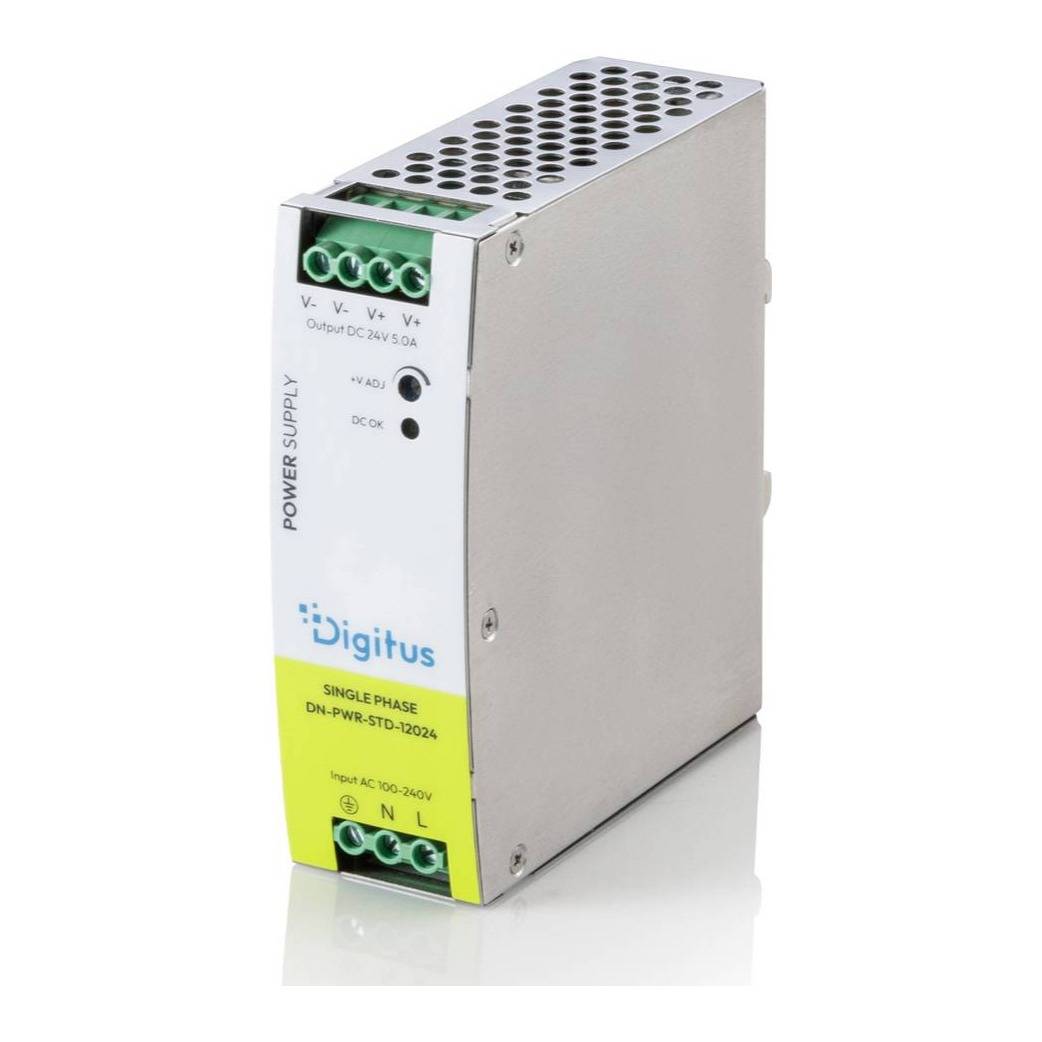

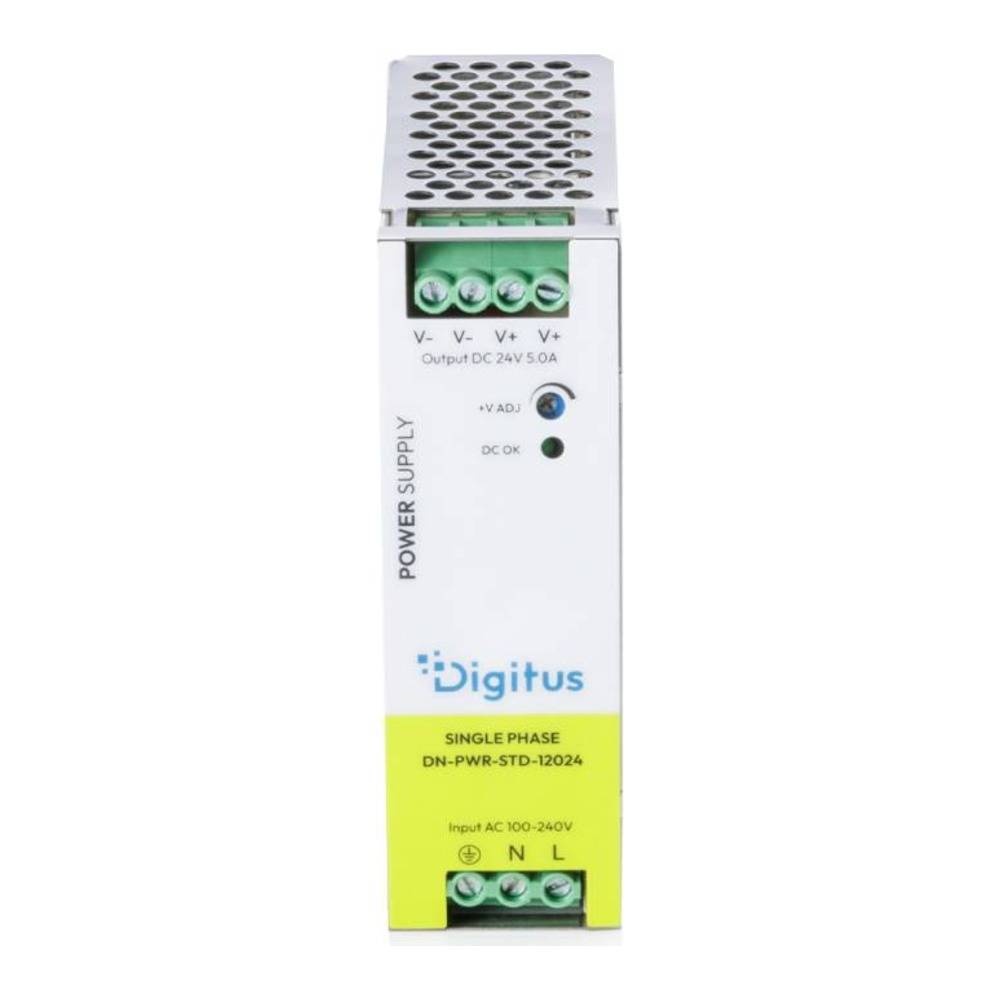

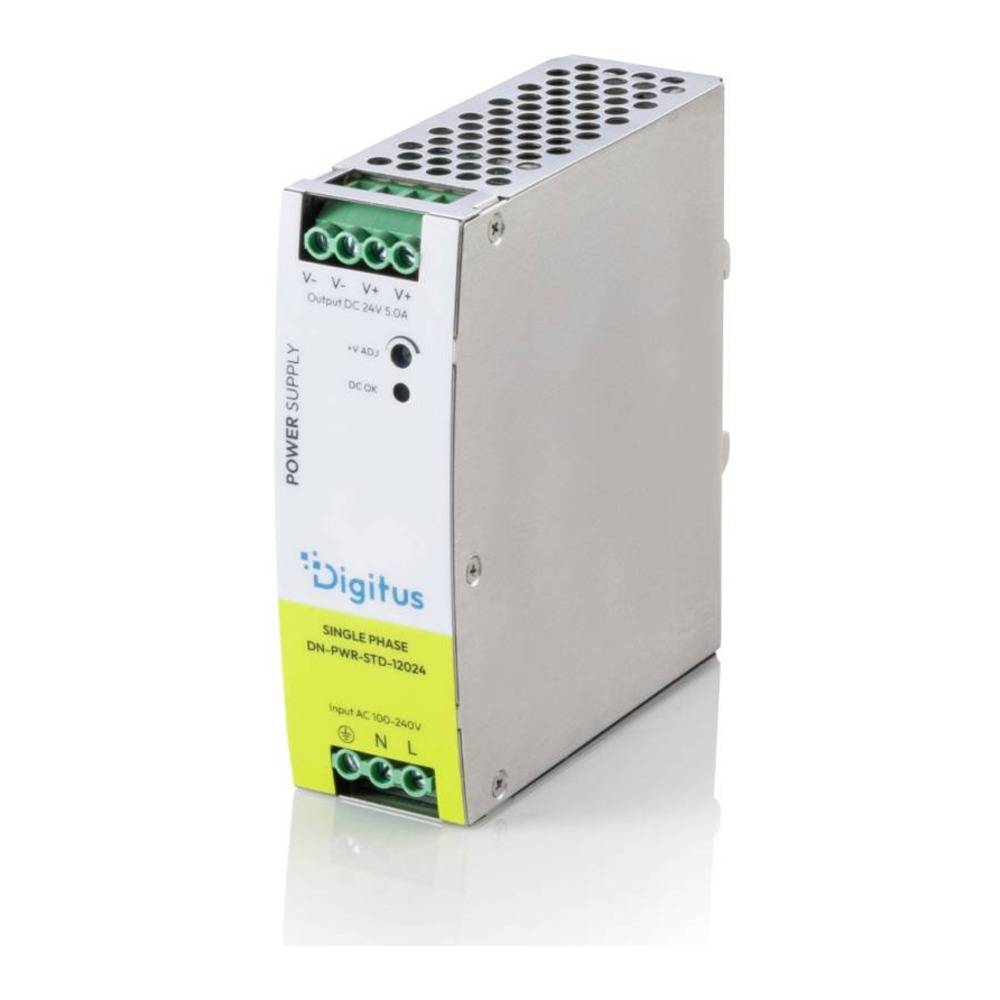

DIGITUS DN-PWR-STD-12024 — 24 V / 120 W Industrial DIN-Rail Power Supply
24 V DC · 5 A · 120 W90–264 V AC inputDIN rail TS-35Fanless · -20 to +70 °C

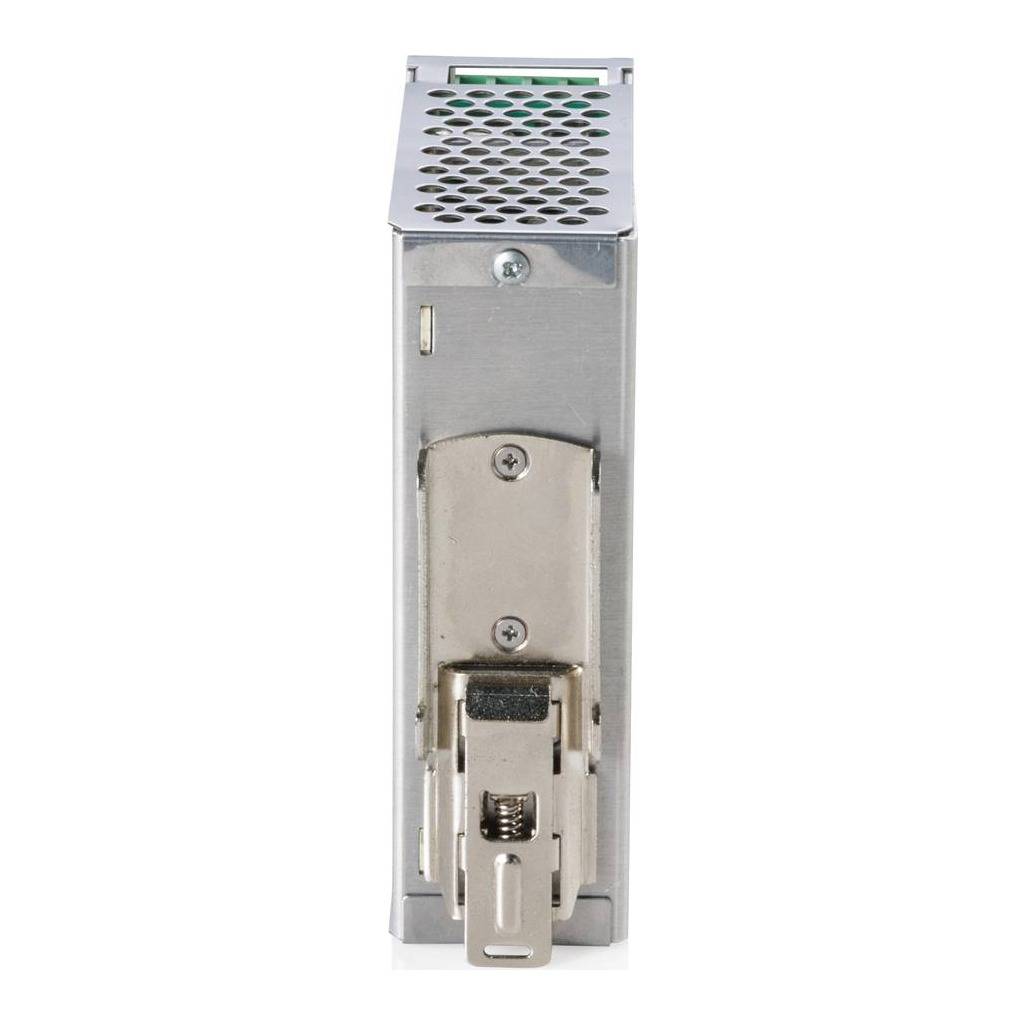

The DIGITUS DN-PWR-STD-12024 is a 120 W industrial AC-DC power supply that turns 90–264 V AC mains into a regulated 24 V DC output at up to 5 A, mounted directly on a TS-35 DIN rail. DIGITUS builds it for control cabinets, machine controls, IoT installations and industrial automation, where a plug-in adapter is neither safe nor tidy.
The metal housing is cooled by natural convection only, so there is no fan to clog with dust or fail after a few years, and the unit runs silently. The output can be trimmed from 24–28 V to match the exact input your equipment expects, and the supply protects itself against short circuit, overload, overvoltage and overtemperature. It is rated for -20 to +70 °C ambient, which covers unheated technical rooms and warm cabinets alike.
24 V DC is the standard control voltage in automation — PLCs, relays, industrial switches, sensors and building-installation devices run on it.
Before you order: This is a DIN-rail module for fixed wiring inside a cabinet. It has no mains plug and no DC lead, and it must be wired and earthed by a qualified electrician. DIGITUS publishes no DC-input range, so feed it from AC mains only.
What's in the Box
- 1 × DIGITUS industrial power supply 24 V DC / 120 W (DN-PWR-STD-12024)
- No mains cable, DC leads or DIN rail are listed in the scope of delivery — plan your own cabinet wiring
What It Means in Practice
- Load budget: up to 5 A continuous at 24 V, i.e. 120 W in total. Add up the maximum draw of everything on the rail and keep a margin of at least 20% for start-up peaks.
- 24 V is the usual supply for PLCs, I/O modules, relays, sensors and many industrial Ethernet switches. PoE switches normally need 48 V or more to power their PoE ports, so use this unit for 24 V loads and the 48 V model for PoE.
- Fanless convection cooling: leave free space above and below the unit and keep its ventilation openings clear, otherwise the overtemperature protection will shut the output down.

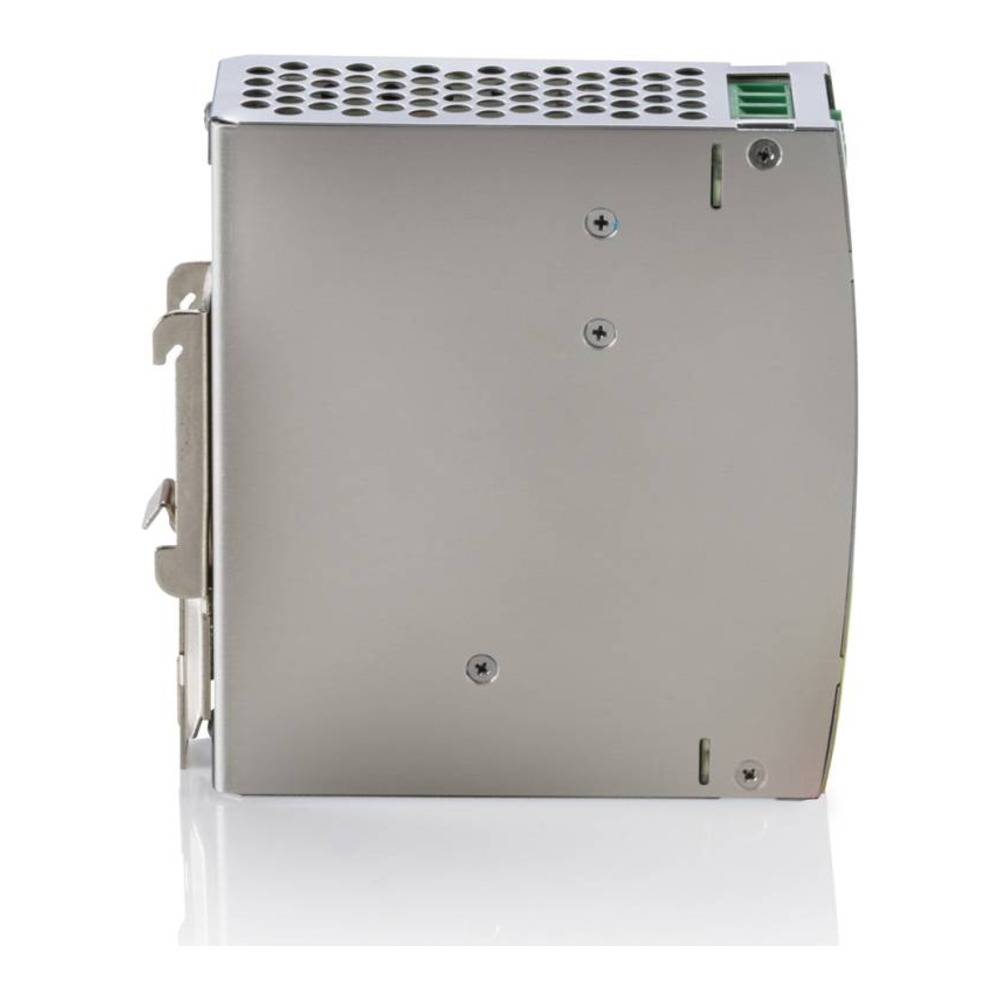

- Width on the rail is 113 mm, height 125 mm and depth 40 mm — check the cabinet door clearance before ordering.
What Will Not Work
- It will not run equipment that needs more than 5 A / 120 W — the overload protection cuts the output instead.
- It is not an outdoor product: DIGITUS specifies indoor use only and publishes no IP rating, so a sealed enclosure is needed in wet or dusty locations.
- It is not a plug-in adapter for desk equipment: there is no wall plug, barrel jack or USB output.
- No redundancy, battery backup or alarm relay is published — for uninterrupted power you need a UPS or a separate DC-UPS module.
Key Features
Wide-range AC input
90–264 V AC, 47–63 Hz covers 230 V mains in Cyprus and Europe as well as 110–120 V installations without any switch.
Adjustable output
Trim the output from 24–28 V to compensate for long cable runs or to match a device that expects a slightly higher input voltage.
Rugged metal housing
Fanless, maintenance-free design for permanent installation in cabinets, with efficiency up to 89%.
Built-in protection
Short-circuit, overload, overvoltage and overtemperature protection guard both the supply and the connected load.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
DIGITUS DN-PWR-STD-12024 is a no-frills cabinet supply: wide-range input, a trimmable 24 V output and fanless metal construction rated to +70 °C. The data sheet is short — DIGITUS publishes no ripple, MTBF or certification figures for this model — so it suits general industrial and network-cabinet use rather than projects that demand a specified approval. If it is feeding industrial network gear, browse our network switches and check that the switch input range includes 24 V.
✓ Buy it if you need a clean 24 V DC rail of up to 120 W inside a control or network cabinet, with no fan to maintain.
✕ Skip it if you need a plug-in adapter, an outdoor-rated unit, or a supply with a published certification, ripple or MTBF value for a tender.
→ Also consider DIGITUS DN-PWR-STD-24048 when you need 48 V or up to 240 W.
Tell us the model of the switch, controller or sensor you want to power and we will check its input voltage and power budget against this supply before you order.
Features - Digitus - DN-PWR-STD-12024
More Details
Product Code
04:592668
EAN Code
4016032508045
Manufacturer
Digitus
