DIGITUS AT-AG-8-8-C6S-10 Cat6 Shielded RJ45 Female-to-Female Couplers, 1:1, 10-Pack

Brand:
Digitus
DIGITUS AT-AG-8-8-C6S-10 Cat6 Shielded RJ45 Couplers, Silver, 10-Pack
DIGITUS AT-AG-8-8-C6S-10 Cat6 Shielded RJ45 Female-to-Female Couplers, 1:1, 10-Pack
€27.68 inc. VAT
Buy
AT-AG-8-8-C6S-10
€23.26
€27.68 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
04:514607
EAN Code
4016032495024
Manufacturer
Digitus

Quick Specs

Category / Shielding
Cat6 / shielded
Connectors
2 × RJ45 female, 8P8C
Pin Assignment
1:1 straight-through
Pack Quantity
10 couplers
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Join terminated RJ45 cables without re-terminating them

Cat6Shielded RJ451:110-Pack

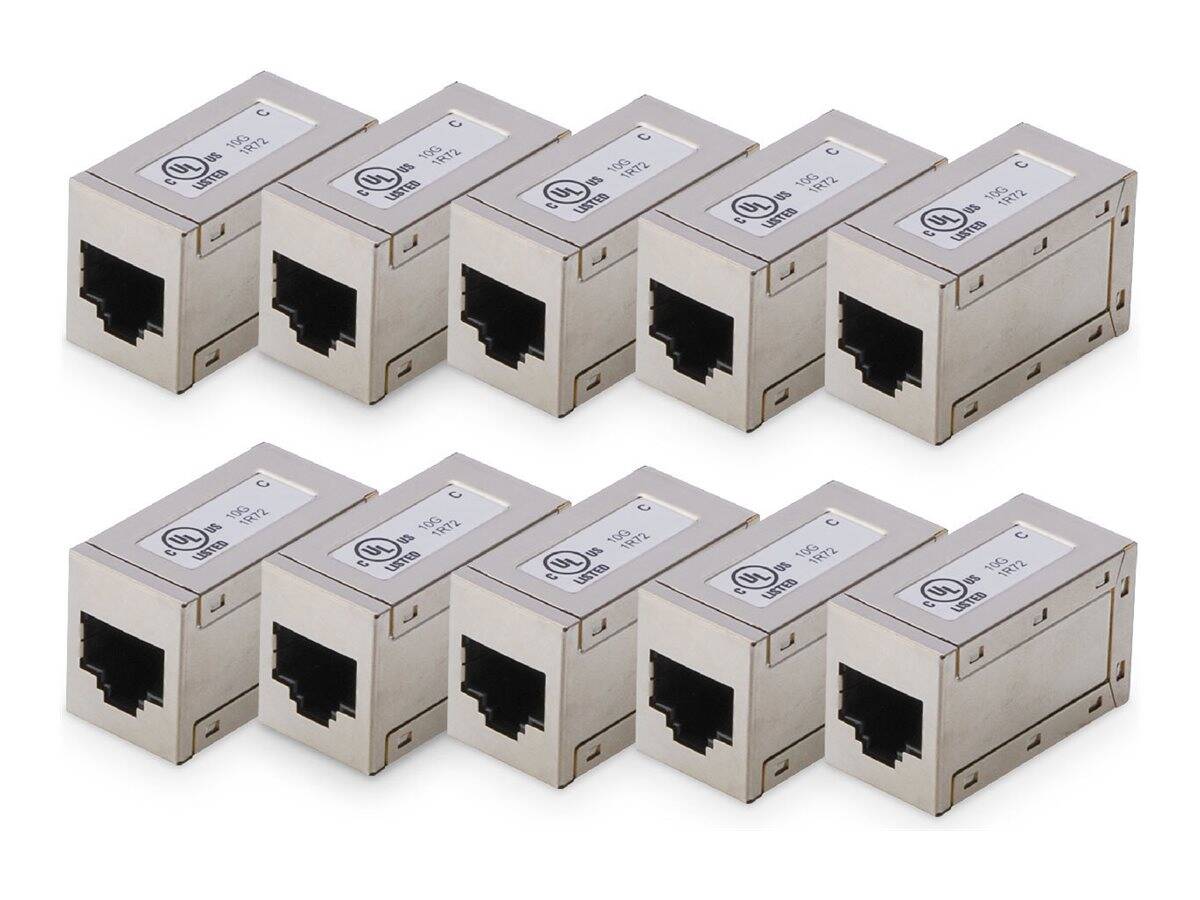

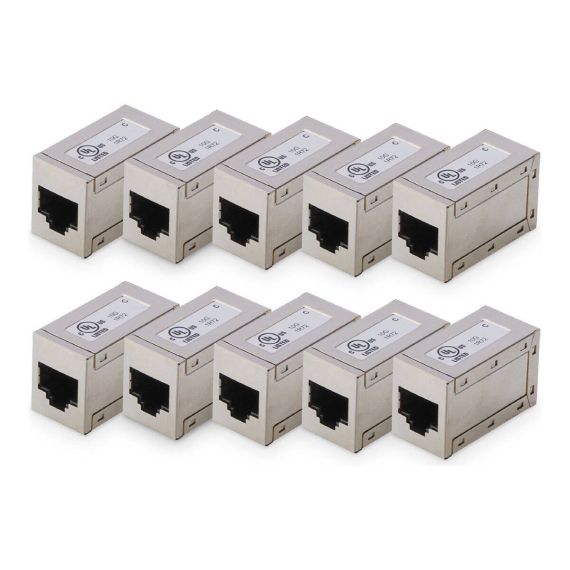

The DIGITUS AT-AG-8-8-C6S-10 pack contains 10 shielded Cat6 couplers. Each coupler connects two RJ45 plugs through female 8P8C sockets with a 1:1 pin assignment. It is a practical format for joining already terminated patch cables where a direct cable-to-cable connection is needed.

Compatibility — check before buying:
Both cable ends must have RJ45 plugs. This is a shielded, straight-through coupler, not a connector for terminating bare conductors or a network splitter. Match cable category and shielding to the intended connection.

Key Features


Two shielded RJ45 sockets
The female-to-female 8P8C format accepts one RJ45 plug at each end, letting you join two terminated patch cables.

Straight-through 1:1 assignment
Pins are connected 1:1. Choose this format for an inline connection rather than a crossover or splitter arrangement.

Specified contact construction
Phosphor-bronze contacts have a nickel and gold-plated finish. The manufacturer specifies FR4 PCB construction and UL 94V-0 materials.

Mechanical durability figures
The stated ratings include at least 750 mating cycles, a maximum 30 N insertion force and 7.7 kg retention strength between jack and plug.

Technical Specifications

Identification and Connection
Brand DIGITUS
SKU / MPN AT-AG-8-8-C6S-10
EAN 4016032495024
Category Cat6
Connectors per Coupler 2 × shielded RJ45 female
Contact Layout 8P8C
Pin Assignment 1:1
Colour Silver
Construction
Housing Description Metal housing
Listed Housing Material ABS UL-94V-0 in manufacturer technical properties
Contact Material Phosphor bronze
Contact Coating Nickel with 0.5 µ gold plating (manufacturer notation)
Shielding Material Tinned bronze, as specified in English datasheet
PCB FR4, UL 94V-0
Mechanical Ratings
Mating Cycles ≥ 750 (ISO/IEC 11801; IEC 60603-7-5)
Insertion Force 30 N maximum (IEC 60603-7-5)
Retention Strength 7.7 kg between jack and plug
Package
Contents 10 Cat6 shielded modular couplers
Package Dimensions 160 × 100 × 45 mm
Gross Package Weight 0.15 kg

What's in the Box

10 shielded Cat6 RJ45 modular couplers

Frequently Asked Questions

Does one coupler turn one network connection into two?
No. Its two female RJ45 sockets are linked 1:1 to join two cable ends. It is not a network splitter.
Do I need to strip or crimp the cables?
The coupler accepts already fitted RJ45 plugs at both ends. Bare cable conductors require a different termination connector.
Are these sold individually?
This exact SKU is a pack of 10 couplers. Each coupler contains two shielded RJ45 female sockets.
Singular Expert Insight
Choose this pack when you need several inline joins for terminated Cat6 cables. Check the complete cable arrangement before adding a join: a coupler changes the physical connection, so it should not be treated as a guarantee of a particular network speed. Compare cable accessories for alternative categories and termination formats. Compare RJ45 couplers and cable accessories

Buyer’s Guide

Buy it if

You need a 10-pack of shielded Cat6 female-to-female RJ45 couplers with 1:1 wiring.

Skip it if

You need to terminate bare wires, split a network port or use a different connector format.

Also consider

A single longer patch cable to avoid an extra join, or another coupler category matched to the cables.
