DIGITUS Modular Patch Panel 24-Port · 1U 19-Inch · Shielded · Pre-Loaded with 24x CAT 6A Keystones · Grey RAL 7035
Brand:
Digitus
DIGITUS Modular Patch Panel 24-Port · 1U 19-Inch · Shielded · Pre-Loaded with 24x CAT 6A Keystones · Grey RAL 7035
€106.39 inc. VAT
DN-91410-24
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS 24-Port Modular Patch Panel, 1U, with 24x CAT 6A Keystones
24x CAT 6A fitted19-inch · 1UShielded · earthing barRAL 7035 grey
The DIGITUS DN-91410-24 is a shielded 24-port 19-inch 1U modular patch panel supplied with 24 DIGITUS DN-93615 CAT 6A shielded keystone modules, for installers building a 10G-ready copper patch field in a network cabinet.
The panel is 1.5 mm powder-coated cold-rolled steel in light grey RAL 7035 with a central earthing connection and an integrated cable management strip. Buying panel and modules together means matched, pre-selected parts in one order.
Before you order: the panel is light grey RAL 7035. The same panel in black RAL 9005 is DIGITUS DN-91411-24 — order that one if your cabinet is black.

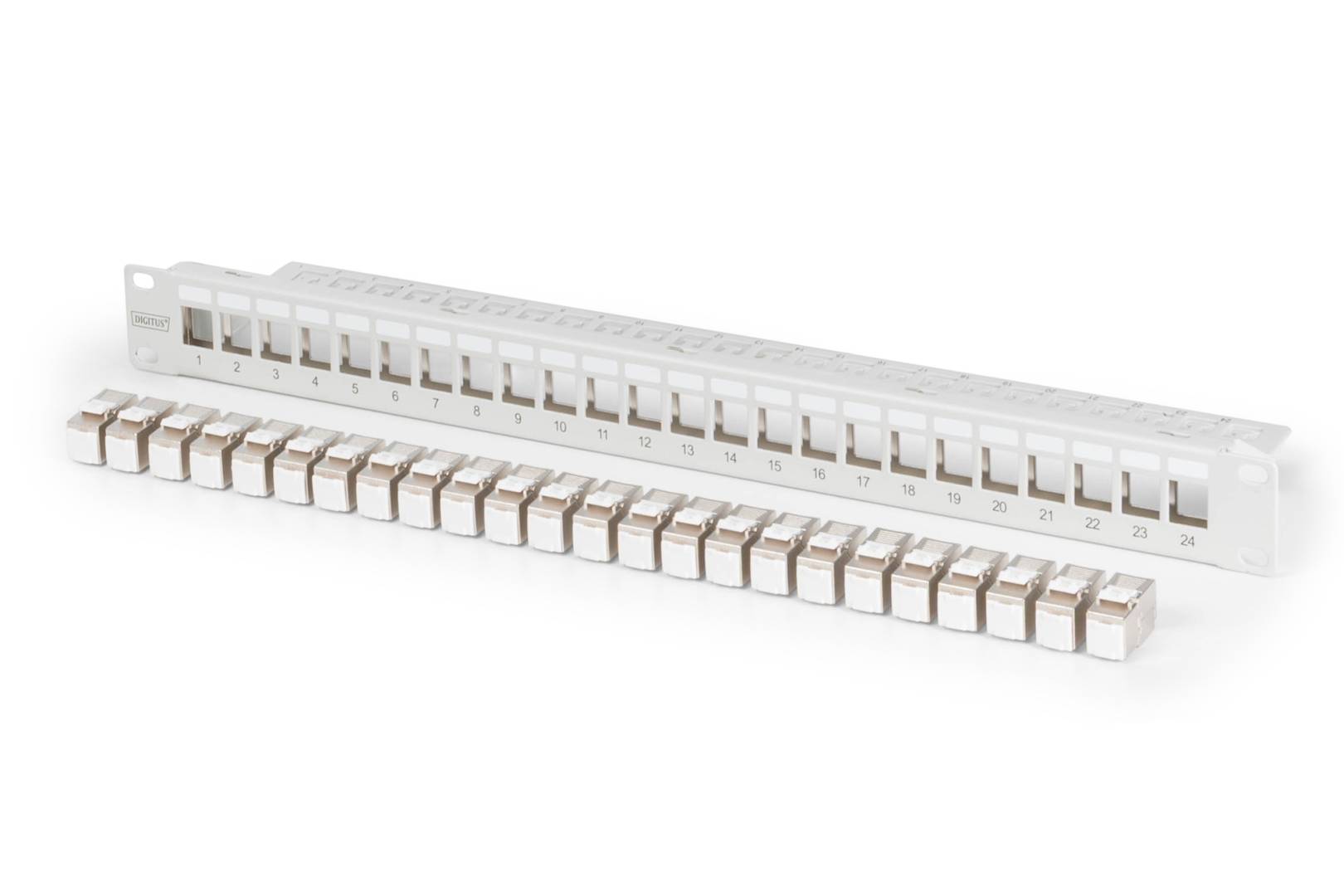

What's in the Box
- 1x DIGITUS 24-port modular patch panel, 1U, shielded, grey RAL 7035

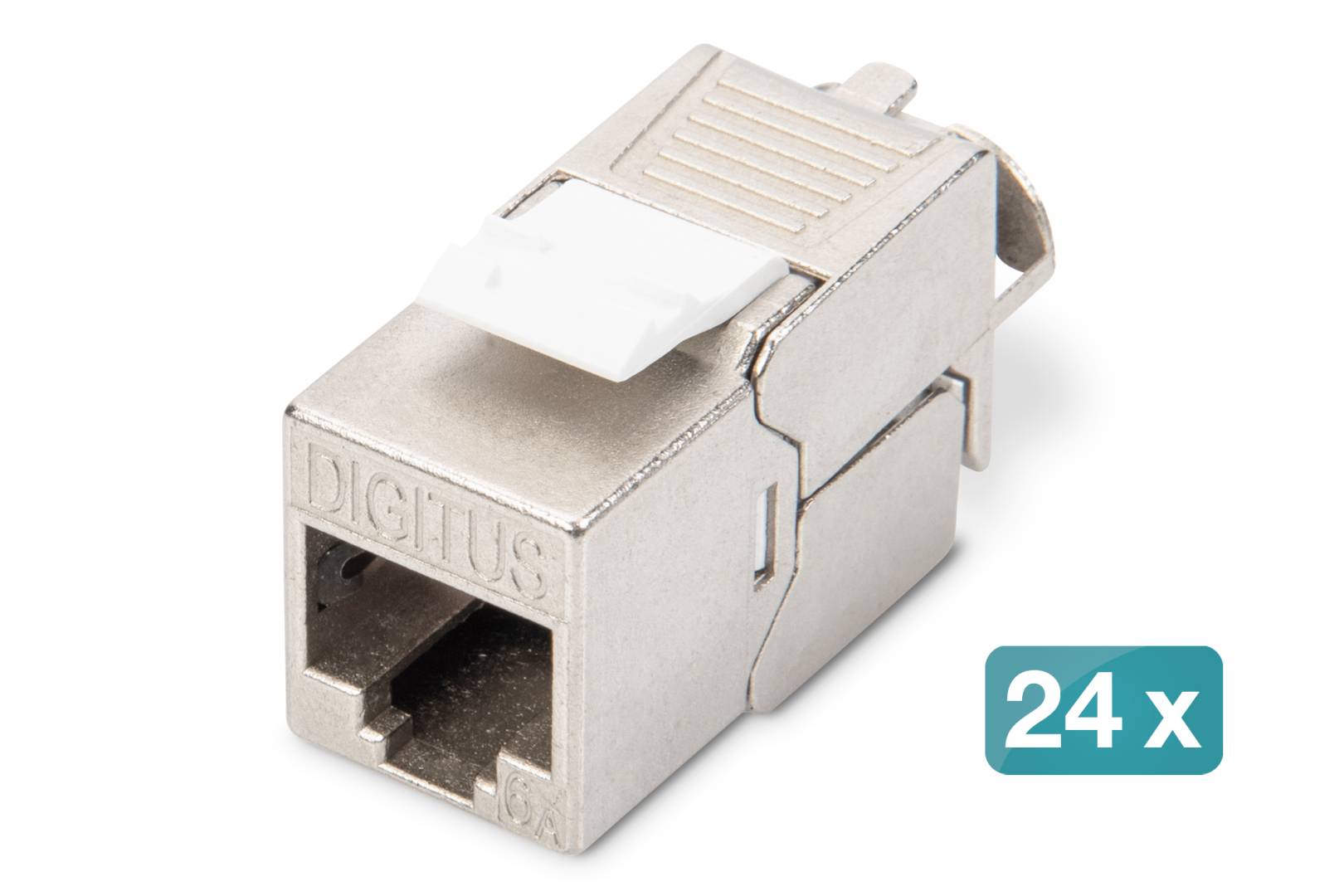

- 24x DIGITUS CAT 6A keystone module, shielded, tool-free (DN-93615)
- Rack screws and cage nuts are not listed in the scope of delivery
What It Means in Practice
- A complete 24-port CAT 6A patch field in one rack unit, ready to terminate installation cable with the tool-free keystones.
- Modular design: individual keystones can be swapped or re-terminated without replacing the panel.
- The central earthing connection bonds the shielded modules to the cabinet earth, which shielded cabling needs to perform.
- The rear cable management strip holds incoming cables in place and relieves strain on the terminations.
What Will Not Work
- It is not a switch — it only provides the passive termination point for building cabling.
- 10G performance requires shielded CAT 6A cable and patch cords; mixing in lower-category parts limits the link.
- It does not fit 10-inch cabinets; it is a 19-inch panel.
Key Features
24x CAT 6A included
Pre-matched DIGITUS DN-93615 shielded keystones.
1U, 19-inch
Rack-mount panel for standard 483 mm cabinets.
Earthing
Central earthing connection with galvanized steel earthing bar.
Cable management
Integrated strip for strain relief.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Buying the panel and 24 matched CAT 6A keystones as one set avoids the most common patch-field mistake: mixing categories or shielded and unshielded parts. Mount it in a 19-inch cabinet, connect the earthing point, and finish with rack accessories such as cable managers.
✓ Buy it if you are building a shielded CAT 6A patch field in a 19-inch cabinet with a light grey finish.
✕ Skip it if your cabinet is black (choose DN-91411-24) or you only need a 10-inch panel.
→ Also consider DIGITUS CAT 6A shielded patch cords to connect the panel to your switch.
Not sure it fits your cabinet? Send us the cabinet model and we will check before you order.
Features - Digitus - DN-91410-24
Colour
grey
More Details
Product Code
04:568857
EAN Code
4016032505730
Manufacturer
Digitus
