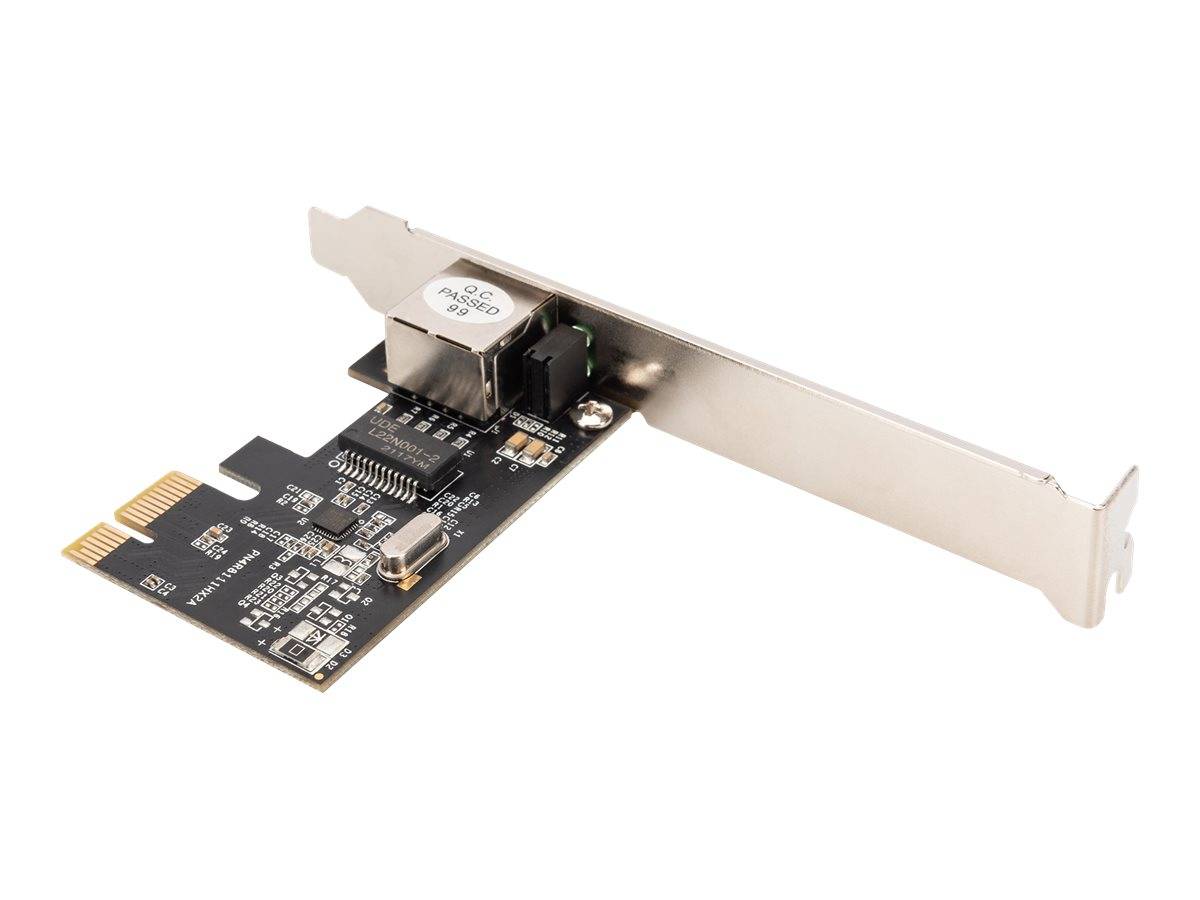

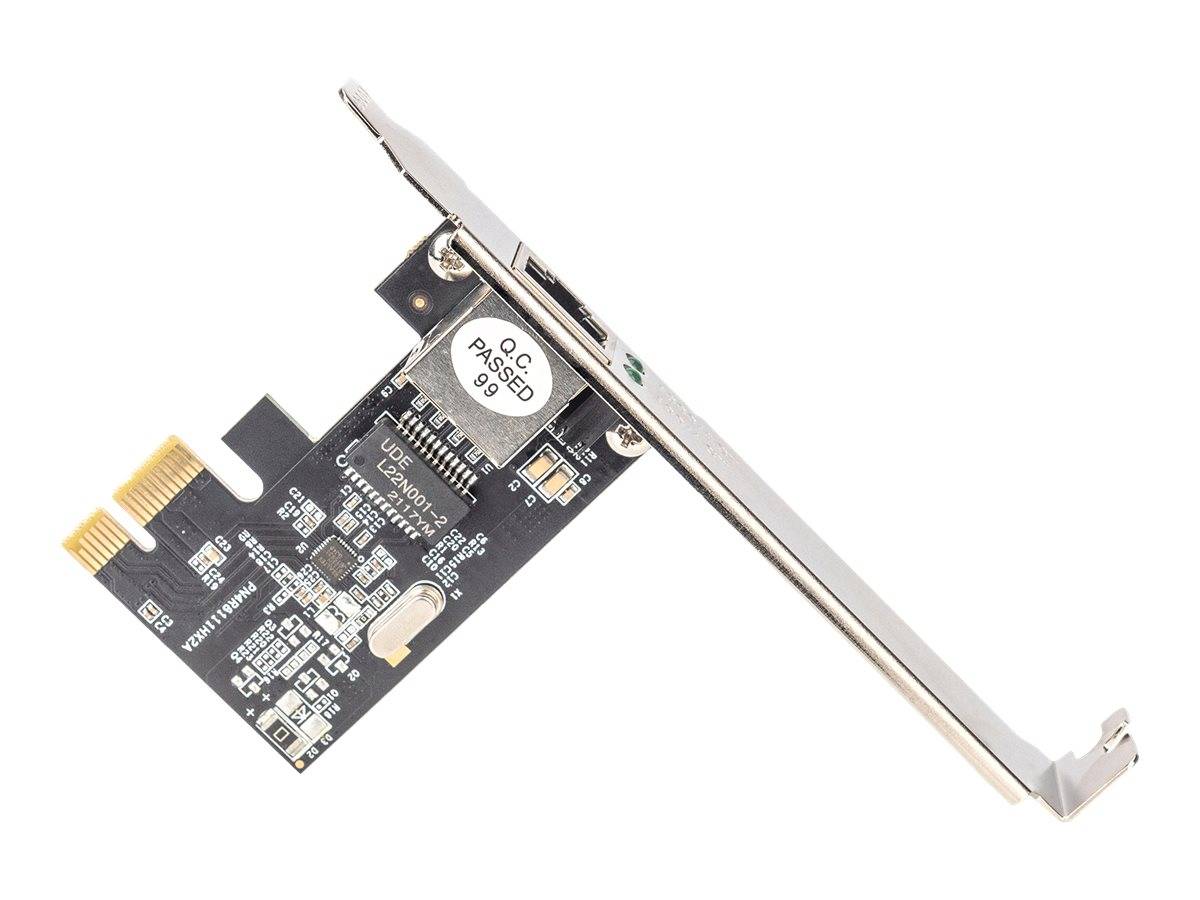

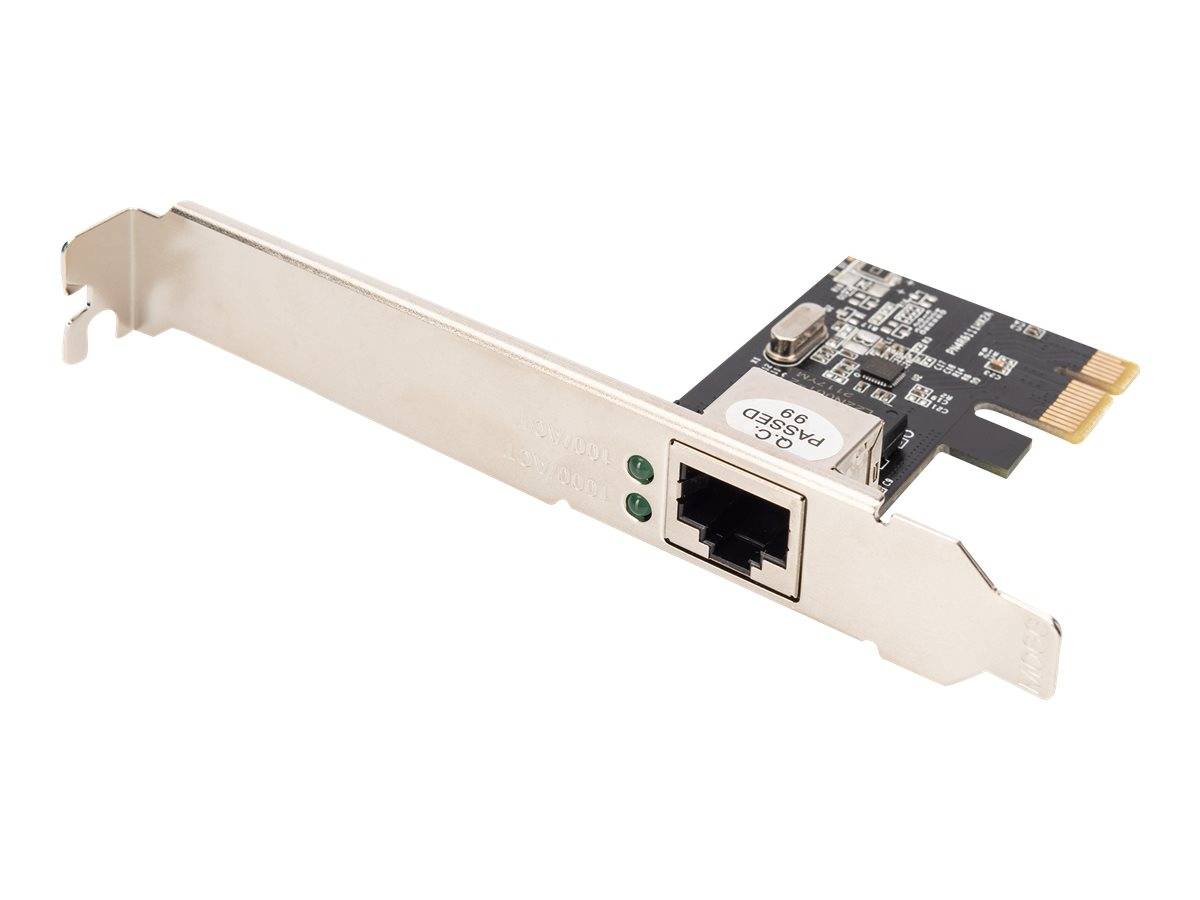

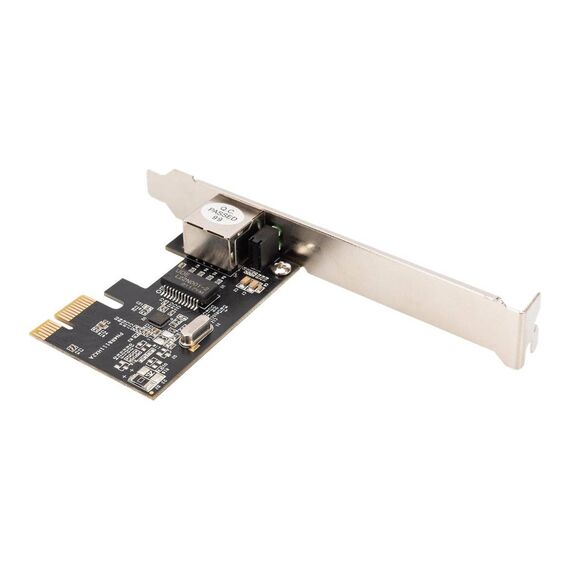

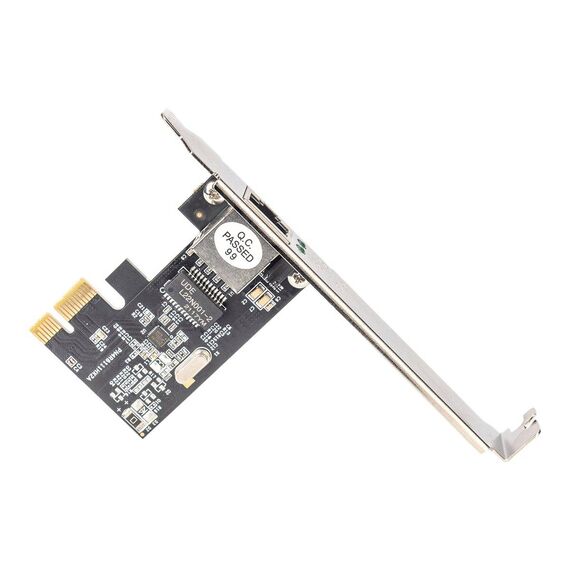

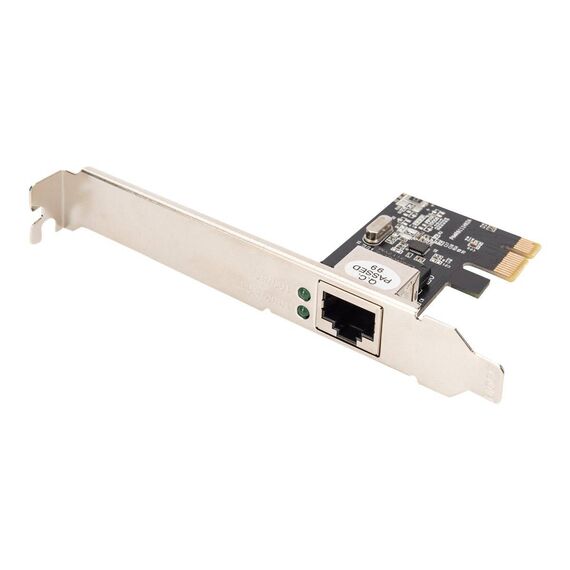

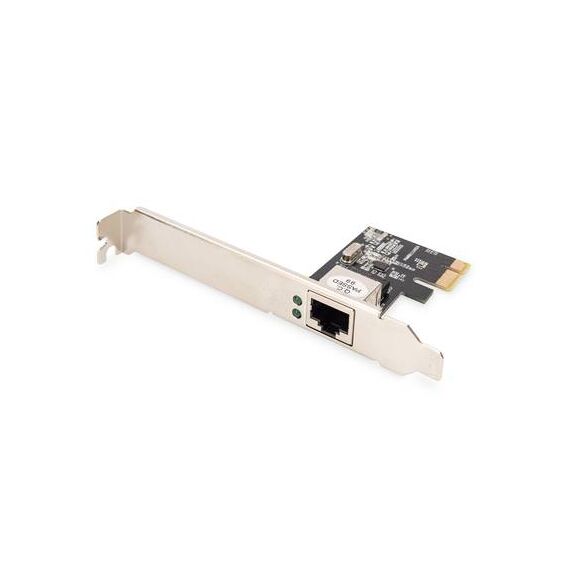

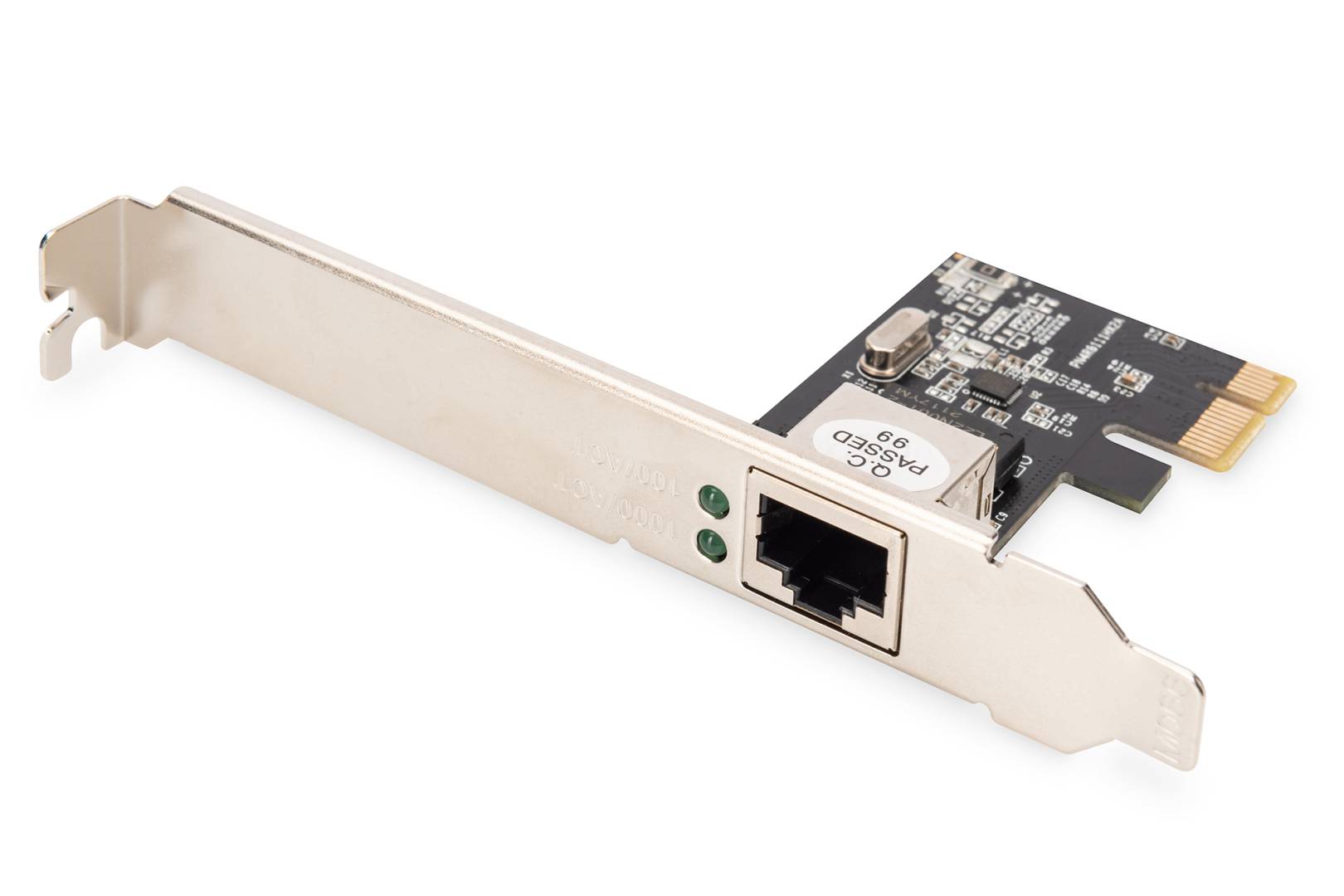

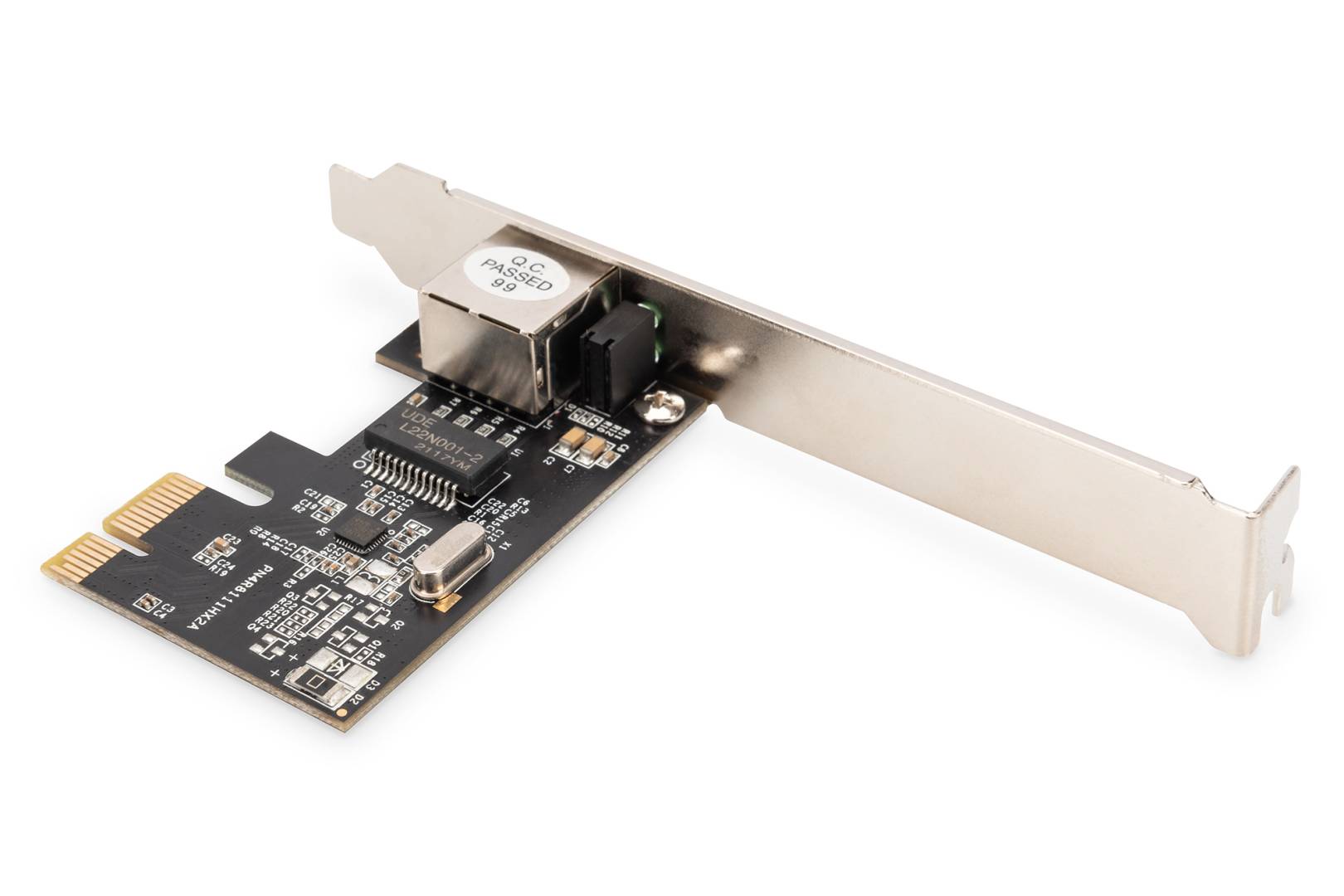

DIGITUS / Network adapter / PCIe low profile / Gigabit Ethernet x 1 | DN-10130-1

Product Features

· Compliant with 10/100/1.000 IEEE 802.3 specification
· Supports 10/100/1.000 Mbps auto negotiation
· Connection: 1x RJ45 LAN
· Chipset: Realtek RTL8111H
· Supports Auto MDI/MDIX crossover at all speed
· Compliant with PCI Express base specification 1.1
· Single-lane (or X1) PCI Express throughput supports rates of 2.5Gbps
· Additional Low Profile Bracket to use the Card also in Thin Computers
· Operating temperature: 0 °C - 55 °C
· Operating humidity: 0% - 85% RH (non-condensing)
· Supports Windows 10, 8.1, 8, 7, Win-Server2008 / 2016, Linux, VMWare, FreeBSD

Special Features

· Adds an extra Gigabit port to a PC using PCI Express
· Gigabit data transfer rates of up to 1000 Mbps
· Space-saving, low-profile plate

Product Specification

Device Type	Network adapter
Form Factor	Plug-in card - low profile
Interface (Bus) Type	PCI Express x1
PCI Specification Revision	PCIe 1.1
Networking	Networking
Ports	Gigabit Ethernet x 1
Connectivity Technology	Wired
Cabling Type	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate	1.25 Gbps

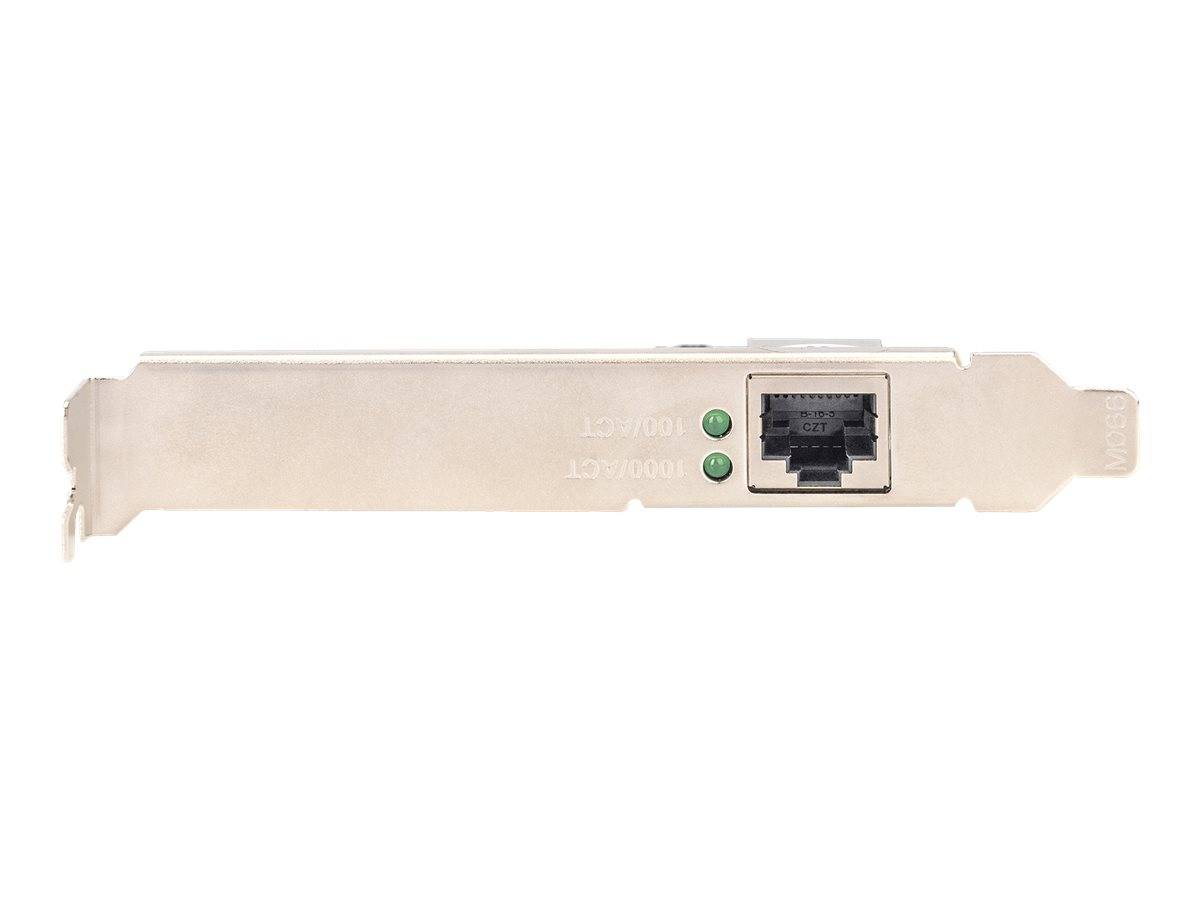

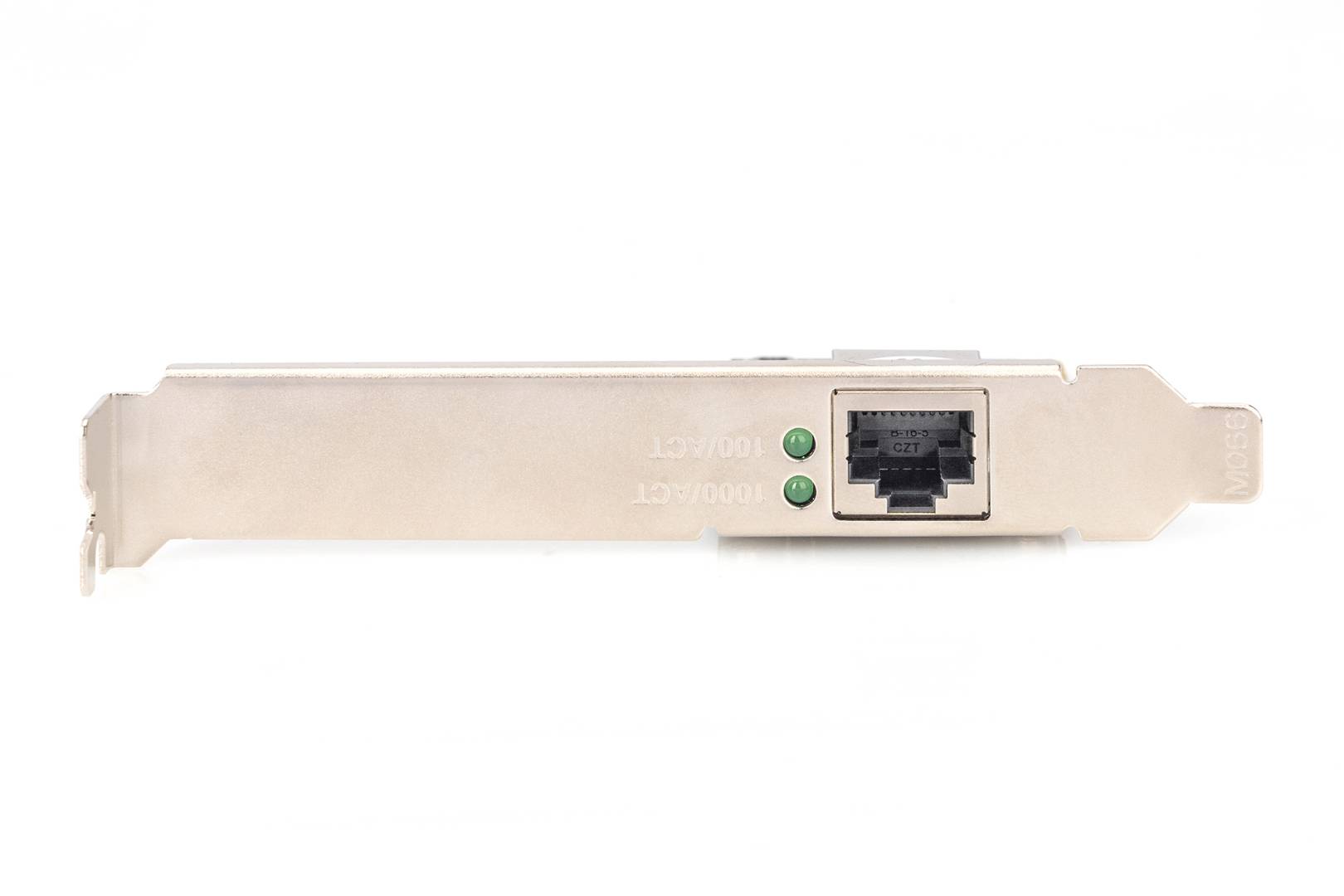

Status Indicators	Link/activity
Features	Auto-negotiation, auto-uplink (auto MDI/MDI-X)
Compliant Standards	IEEE 802.2, IEEE 802.3, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ac, IEEE 802.3az
Processor / Memory	Processor / Memory
Processor	1 x Realtek Semiconductor RTL8111H
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x 1000Base-T - RJ-45
Miscellaneous	Miscellaneous
Included Accessories	Low-profile bracket
Software / System Requirements	Software / System Requirements
Software Included	Drivers & Utilities
OS Required	Linux, FreeBSD, Microsoft Windows Server 2008, VMware ESX, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	20 cm
Shipping Depth	14 cm
Shipping Height	3.5 cm
Shipping Weight	150 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	55 °C
Humidity Range Operating	0 - 85% RH (non-condensing)
