DIGITUS CAT 6A M12 Jack X-Coded · Field Assembly · Shielded · IP67 · 10 Gbps Industrial Ethernet Connector

Brand:
Digitus
DIGITUS CAT 6A M12 X-Coded Field Jack IP67
DIGITUS CAT 6A M12 Jack X-Coded · Field Assembly · Shielded · IP67 · 10 Gbps Industrial Ethernet Connector
€29.7 inc. VAT
Buy
DN-936M12-J
€24.96
€29.70 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:440026
EAN Code
4016032485681
Manufacturer
Digitus

Quick Specs

Type
M12 jack (female), field assembly
Coding
X-coded · CAT 6A · shielded
Protection
IP67 · zinc die-cast
Cable
AWG 26–22 · jacket 6.0–9.7 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS CAT 6A M12 Jack, X-Coded, Field Assembly, IP67

M12 X-codedCAT 6A · 10 GbpsIP67Field assembly

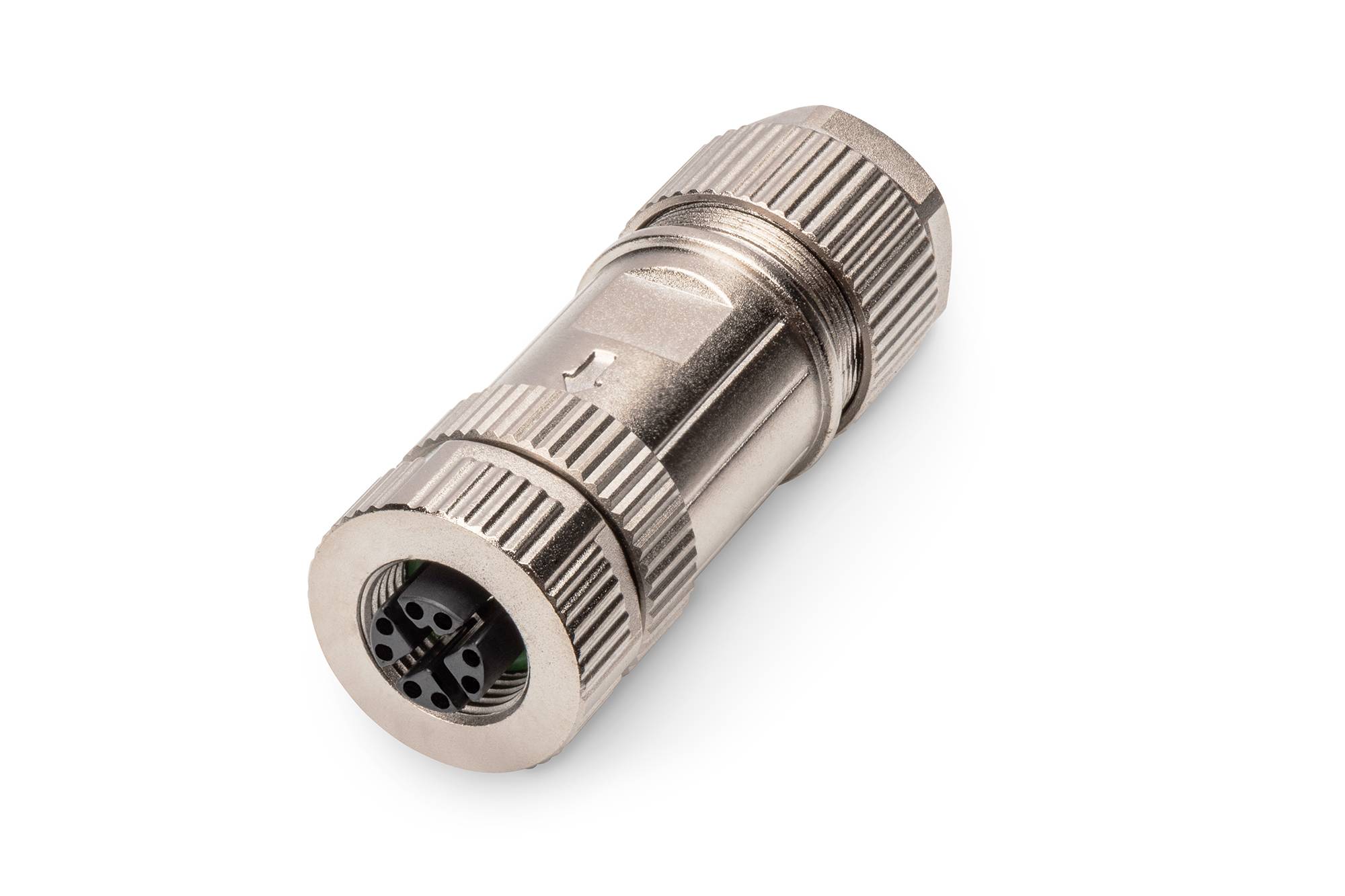

The DIGITUS DN-936M12-J is a field-assembly CAT 6A M12 female jack, X-coded and shielded, with IP67 protection, for building 10 Gbit Ethernet connections on machines, cameras and industrial equipment in harsh environments.

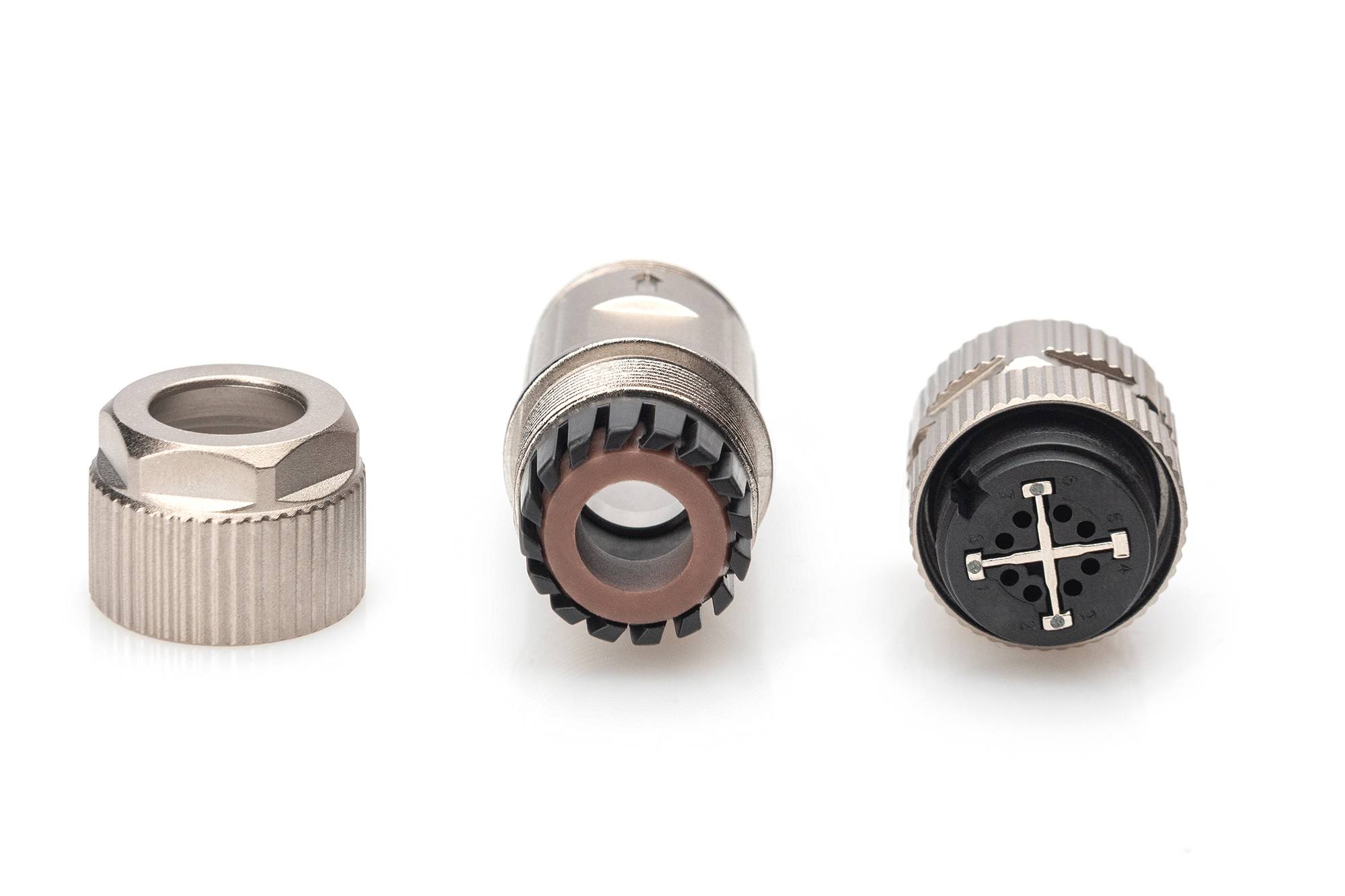

It accepts 8-wire installation cable (AWG 26–22, jacket 6.0–9.7 mm), screws onto a matching X-coded M12 plug and is assembled on site without special tools. The industrial zinc die-cast housing carries the cable shield through to the connector.

Before you order: X-coding is not interchangeable with A- or D-coded M12. Check that the device or mating plug is M12 X-coded (8-pin, 10G) before ordering. The feed name mentions "8 pin"; DIGITUS describes it as an 8-wire X-coded connection.

What's in the Box

  • 1x DIGITUS CAT 6A M12 jack, X-coded, female, field assembly (DN-936M12-J)
  • No cable, mating plug or tools included

What It Means in Practice

  • Lets you make a custom-length 10G industrial Ethernet lead or extension in the field instead of ordering pre-made cables.
  • IP67 keeps dust and temporary water immersion out once mated, for use on machines, outdoor cameras or vehicles.
  • PoE, PoE+ and UPoE are supported, so powered devices can run through the connection.
  • Mating force is max. 30 N and the connector is rated for at least 100 mating cycles.

What Will Not Work

  • It will not mate with A-coded or D-coded M12 connectors, or with RJ45 directly.
  • It is not rated for stranded or solid conductors outside AWG 26–22, or cable jackets outside 6.0–9.7 mm.
  • Electrical rating is 0.5 A / 50 V AC / 60 V DC per contact — it is not a power connector.
  • IP67 applies only when mated or capped — an open jack is not sealed.

Key Features


10G industrial Ethernet
CAT 6A, X-coded per IEC PAS 61076-2-109, IEEE 802.3an.

IP67, MICE E2
Shielded zinc die-cast housing for harsh environments.

Field assembly
Terminates on site without special tools.

PoE ready
PoE, PoE+, UPoE and HDBaseT listed by DIGITUS.

Technical Specifications

Identification
Part Number DN-936M12-J
EAN / GTIN 4016032485681
Brand DIGITUS (ASSMANN)
Connector
Type M12 jack (female), field assembly, screwable
Coding X-coded
Category CAT 6A, shielded
Data rate Up to 10 Gbps (IEEE 802.3an), backward compatible
Protection IP67
MICE rating E2
Housing Industrial zinc die-cast
Standard basis IEC PAS 61076-2-109
Cable
Conductors 8-wire, AWG 22 (AWG 26/1–22/1 and 26/7–22/7 possible)
Solid conductor diameter 0.4 – 0.64 mm
Stranded conductor diameter 0.48 – 0.76 mm
Wire insulation diameter Up to 1.6 mm
Cable jacket 6.0 – 9.7 mm
Electrical & mechanical
Rated current 0.5 A
Rated voltage 50 V AC / 60 V DC
Contact resistance Max. 5 mΩ
Insulation resistance Min. 100 MΩ
Dielectric strength 500 V DC
Insertion / withdrawal force Max. 30 N
Mating cycles Min. 100
PoE PoE (802.3af), PoE+ (802.3at), UPoE, HDBaseT
Weight 0.05 kg
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty per ASSMANN/DIGITUS terms — claims handled through Singular

Frequently Asked Questions

Is this a plug or a socket?
It is the female M12 jack. It mates with an M12 X-coded male plug — DIGITUS lists DN-936M12-P as the matching plug.
Can I use normal CAT 6A installation cable?
Yes, if it is 8-wire with conductors of AWG 26–22 and a jacket diameter between 6.0 and 9.7 mm.
Does it need a special crimp tool?
No. DIGITUS states it can be connected without special tools.
Singular Expert Insight · Buyer's Guide
M12 X-coding is the industrial standard for 10G Ethernet where RJ45 cannot survive vibration, dust or water. Match the coding and cable diameter first; that decides fit more than anything else. For the rest of the run, use shielded CAT 6A network cable within the stated AWG range.
✓ Buy it if you need a field-assembled 10G X-coded M12 connection on industrial or outdoor equipment.
✕ Skip it if your device uses A-coded or D-coded M12 — this jack will not mate with it.
→ Also consider the matching DIGITUS M12 X-coded plug (DN-936M12-P) for the other end.
Not sure of the coding on your device? Send us its model and we will check the M12 type before you order.
