DIGITUS LC/UPC Duplex Fibre Optic Coupler OS2 Singlemode (Female/Female) Ceramic Sleeve Blue
Brand:
Digitus
DIGITUS LC/UPC Duplex Fibre Optic Coupler OS2 Singlemode (Female/Female) Ceramic Sleeve Blue
€3.02 inc. VAT
DN-96007-2
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS LC/UPC Duplex Fibre Optic Coupler, OS2 Singlemode, Blue
OS2 SinglemodeLC/UPC duplexCeramic sleeve≤0.2 dB

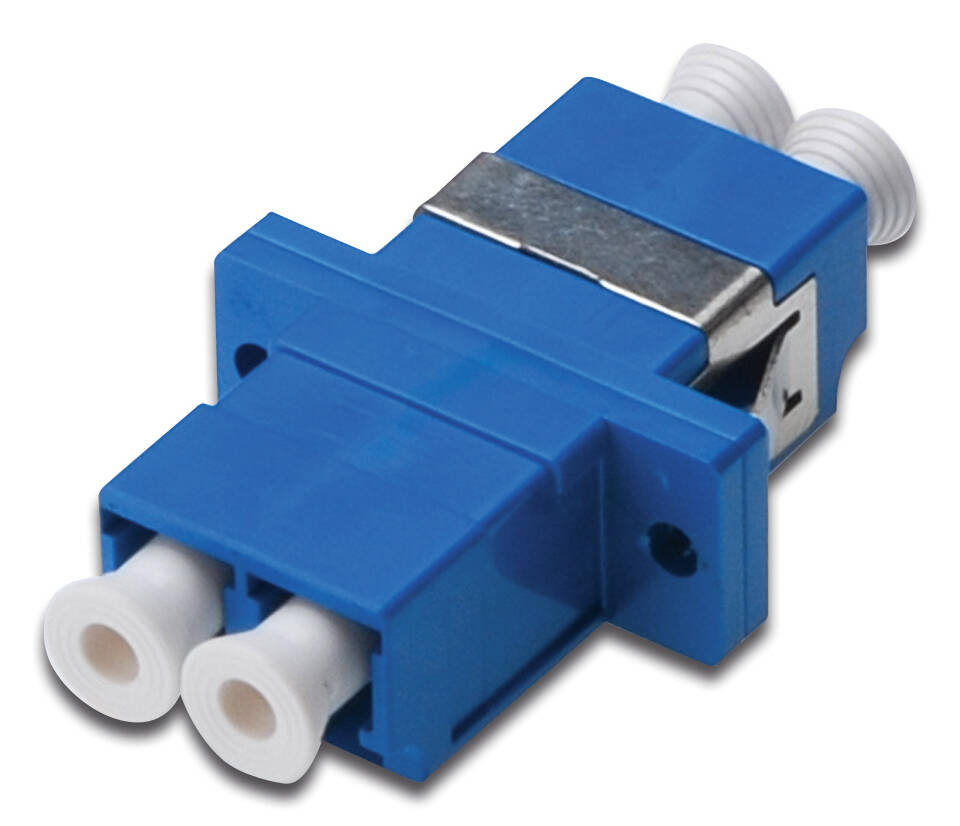

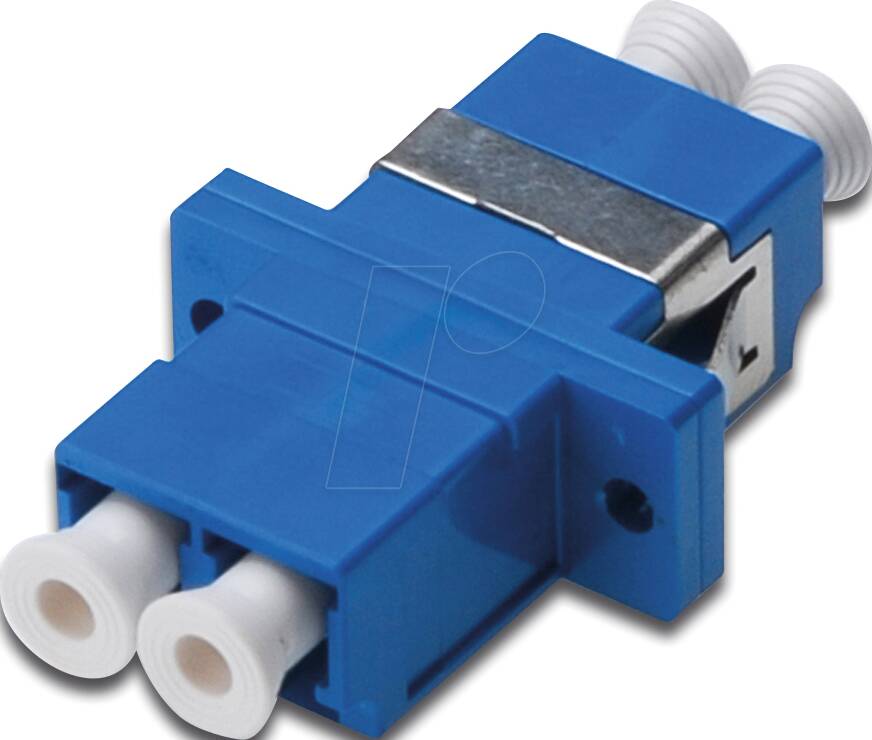

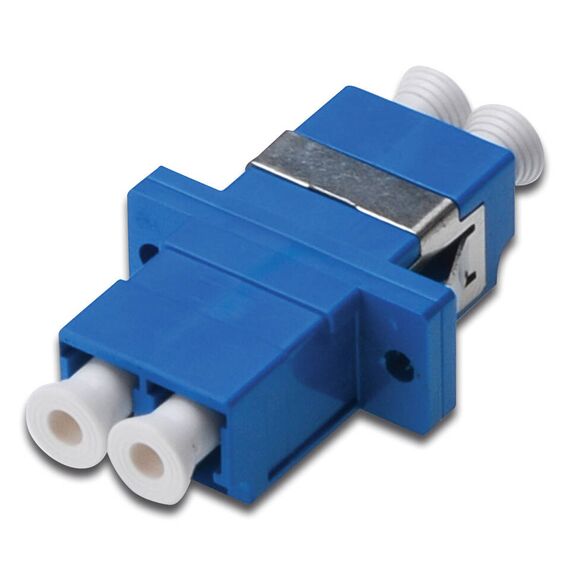

The DIGITUS DN-96007-2 is a duplex LC/UPC fibre optic coupler (female to female) for OS2 singlemode (9/125 µm) links, colour-coded blue, used to join two LC duplex patch cords or to mount LC ports in patch panels, splice boxes and junction boxes.
It carries two channels side by side, so one coupler joins both fibres of a duplex connection. Inside, a ceramic (zirconia) alignment sleeve holds the ferrules on axis; Digitus specifies insertion loss of up to 0.2 dB and return loss of at least 50 dB for the UPC end faces. Fixing screws and dust caps come with it.
Before you order: This is a LC/UPC coupler. Do not use it with APC (green, angled) connectors and do not mix multimode cords through it — match the coupler to the cords on both sides.
What's in the Box
- 1 × DIGITUS LC/UPC duplex coupler, OS2 singlemode, blue
- Dust caps
- Fixing screws
What It Means in Practice
- Join two LC duplex patch cords to extend a run without re-terminating — a typical join adds only a fraction of a dB.
- Populate an LC duplex position in a fibre patch panel or splice box; the blue colour follows the usual singlemode UPC coding, so the panel stays readable.
- Use the dust caps on every unused side: a dirty end face is the most common cause of a fibre link that "suddenly" fails.
- Mount it with the supplied screws — check that your panel uses screw-fixed couplers before ordering.
What Will Not Work
- APC connectors (green, angled end face) — they need an APC coupler; forcing them into UPC damages the end faces.
- Multimode OM3/OM4 cords — use a multimode coupler instead.
- SC, ST or MPO connectors — this coupler accepts LC only; joining LC to SC needs a hybrid coupler or a hybrid patch cord.
- Panels with snap-in-only cut-outs without screw holes — the flange/cut-out size is not published, so send us your panel model first.
Key Features
Duplex LC/UPC
Two channels in one body, so one part joins a complete transmit/receive pair.
Ceramic sleeve
Zirconia alignment sleeve for low loss: up to 0.2 dB insertion loss, return loss at least 50 dB.
Colour-coded
Blue housing marks the OS2 singlemode position on panels and splice boxes.
Ready to install
Dust caps and fixing screws are included; rated for more than 500 mating cycles.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Couplers are cheap, but the wrong one stops a link: polish (UPC vs APC), mode (singlemode vs multimode) and connector type must all match the cords. DIGITUS colour-codes them so a panel is readable years later. If you are building out a fibre patch panel, see our rack accessories for panels and splice boxes.
✓ Buy it if you are joining or panel-mounting OS2 singlemode LC/UPC duplex cords.
✕ Skip it if your cords are APC, multimode, or use SC/ST connectors.
→ Also consider the multimode LC/UPC OM3 (aqua) and OM4 (purple) duplex couplers, and the SC duplex versions.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-96007-2
Colour
blue
More Details
Product Code
04:568867
EAN Code
4016032501503
Manufacturer
Digitus
