DIGITUS DN-91608S-EA Cat 6A Shielded Patch Panel 8-Port 10 Inch 1U LSA Class EA 500 MHz Black RAL 9005
Brand:
Digitus
DIGITUS DN-91608S-EA Cat 6A Shielded Patch Panel 8-Port 10 Inch 1U LSA Class EA 500 MHz Black RAL 9005
€41.01 inc. VAT
DN-91608S-EA
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-91608S-EA — 8-Port Cat 6A Shielded Patch Panel, 10" 1U
8 portsCat 6A shielded10" · 1ULSA punch-down

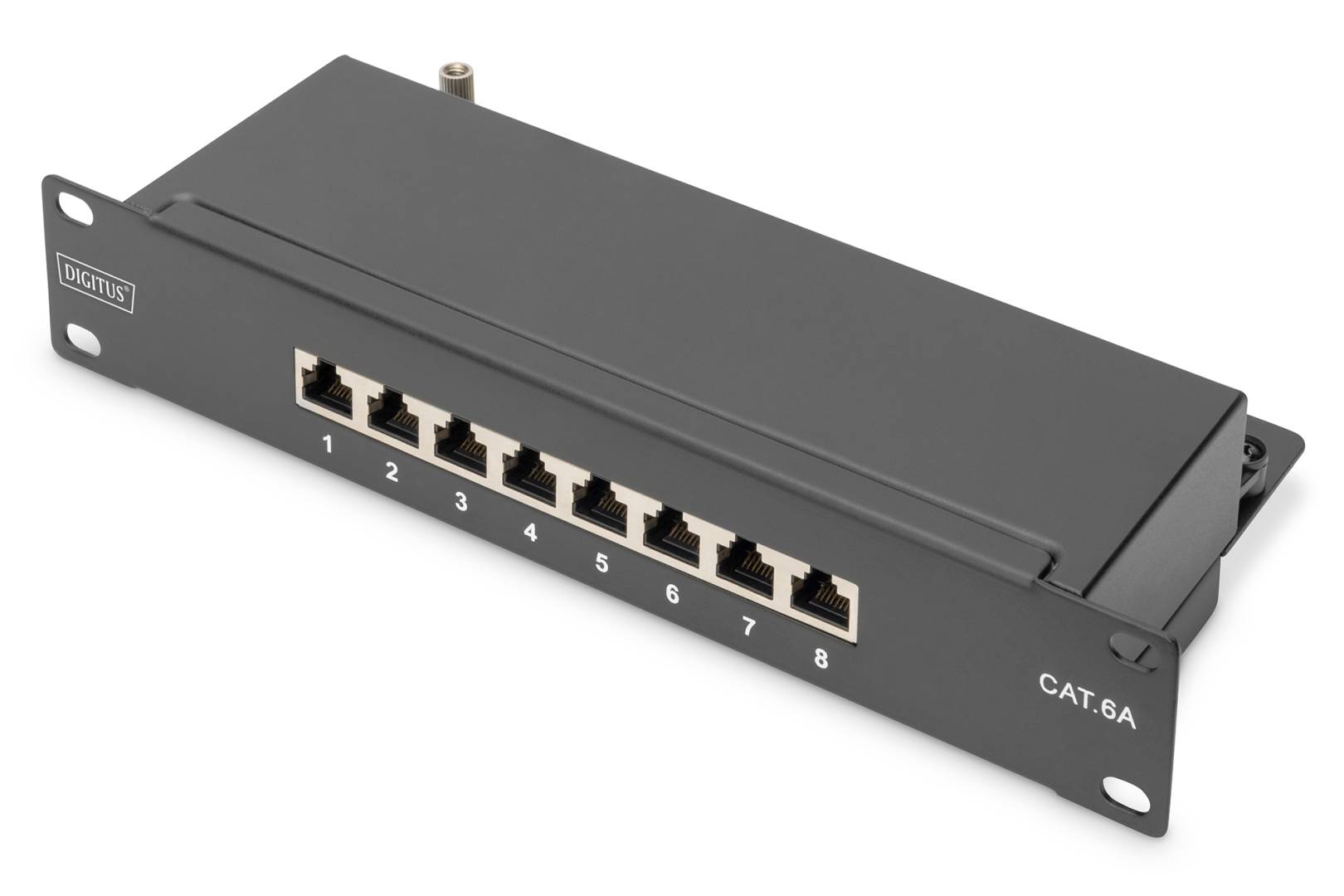

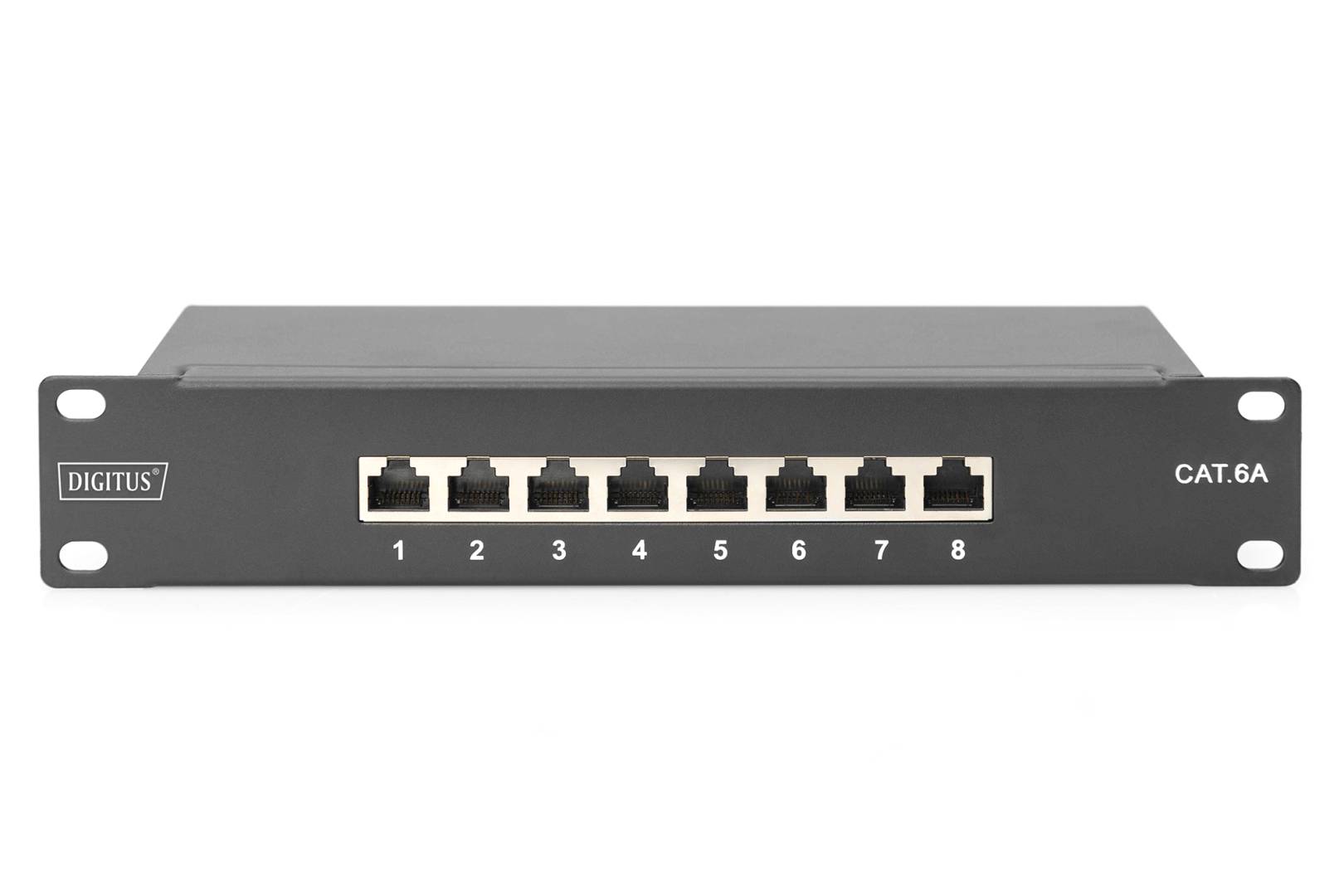

The DIGITUS DN-91608S-EA is a 8-port Cat 6A shielded 10-inch 1U patch panel in black (RAL 9005). It mounts in a 10-inch rack or cabinet and takes up 1U. Installation cable is punched down on the back with an LSA (Krone) punch-down tool, and the 8 RJ45 sockets on the front take ordinary patch cords, rated for 10 Gbit/s (10GBase-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable.
Compatibility — check before buying:
This is the 8-port model — the 12-port version of the same 10-inch Cat 6A panel is DN-91612S-EA. The ports are fixed and terminated with an LSA (Krone) punch-down tool, which is not in the box. As a shielded panel it only gives its full screening with shielded cable and a grounded rack or earth point; the earthing wire is not included. It is 10-inch (254 mm) wide and will not fill a 19-inch rack without a mounting adapter. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.
Best For
✓ Small 10-inch network cabinets
✓ Offices, shops and branch sites
✓ Home networks and studios
✓ Compact cabling next to a small switch
✓ Wall-mounted mini racks
✓ Labelled, tidy outlet termination
Key Features
Punch-down termination

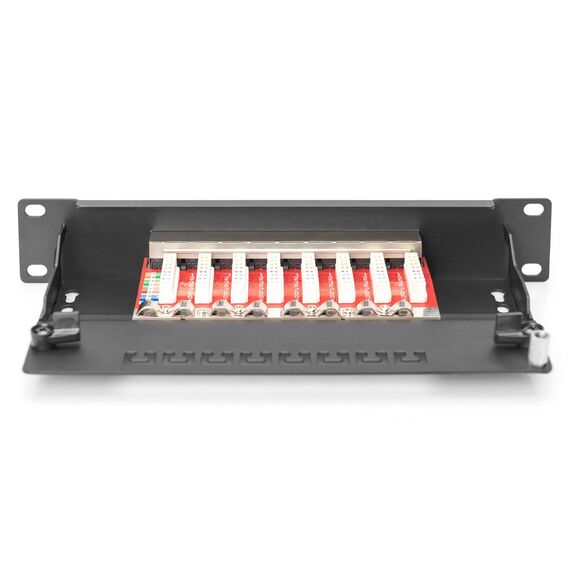

LSA strips, colour-coded T568A/B. Once the cable is terminated, every move is made with a patch cord at the front.
Cat 6A performance
Class EA, up to 500 MHz, 10GBase-T, PoE and PoE+ (IEEE 802.3af/at). The shielded design helps in electrically noisy rooms and with PoE-heavy cable bundles.
10-inch, 1U
Sized for 10-inch (254 mm) cabinets, the compact rack format for small offices, shops and home networks.
Central earthing point
A central earthing connection and 360° shield contact on every socket carry the cable shield to the rack earth.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the DN-91608S-EA for small 10-inch cabinets in offices, shops and homes where eight Cat 6A ports cover every outlet. Leave a few ports free for growth, since most offices add devices faster than they expect. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.
Buyer’s Guide
Buy it if
You are building a small 10-inch rack and need eight shielded Cat 6A ports for 10 Gbit/s links.
Skip it if
You need more than eight ports in 1U, a 19-inch panel, or an unshielded installation.
Also consider
DIGITUS DN-91612S-EA, the 12-port version in the same format.
Features - Digitus - DN-91608S-EA
Colour
black
More Details
Product Code
04:411065
EAN Code
4016032473145
Manufacturer
Digitus
