DIGITUS DN-91648U Cat 6 Unshielded Patch Panel 48-Port 19 Inch 2U Krone LSA Class E 250 MHz PoE for 48-Port Switches

Brand:
Digitus
DIGITUS DN-91648U Cat 6 UTP 48-Port 2U Patch Panel
DIGITUS DN-91648U Cat 6 Unshielded Patch Panel 48-Port 19 Inch 2U Krone LSA Class E 250 MHz PoE for 48-Port Switches
€95.85 inc. VAT
Buy
DN-91648U
€80.55
€95.85 inc. VAT
Ships from EU stock: 28 item(s)
+ −
Add to wish list Ask a question
Product Code
04:115381
EAN Code
4016032241560
Manufacturer
Digitus

Quick Specs

Ports
48 × RJ45
Category
Cat 6 · UTP
Mounting
19" rack · 2U
Termination
Punch-down
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

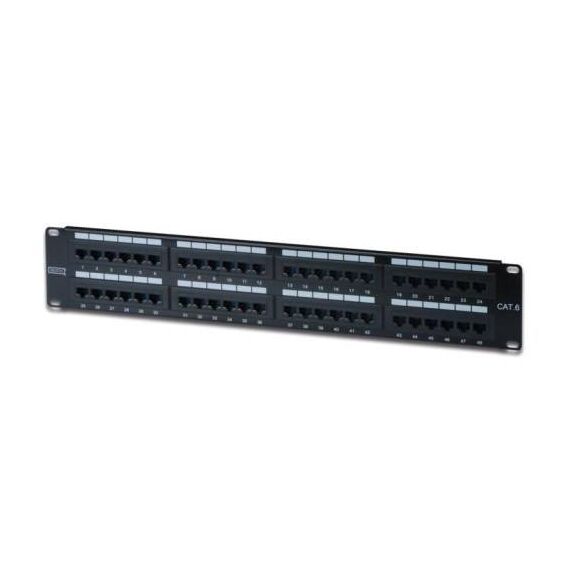

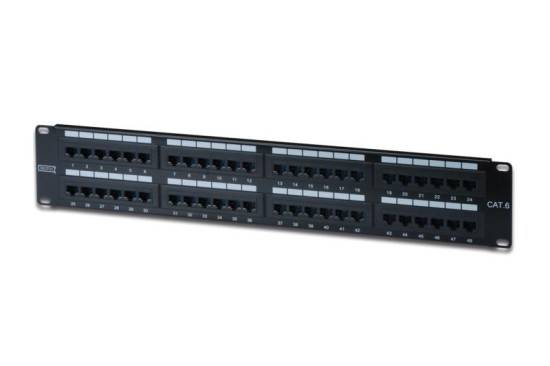

DIGITUS DN-91648U — 48-Port Cat 6 Unshielded Patch Panel, 19" 2U

48 portsCat 6 UTP19" · 2UKrone LSA+

The DIGITUS DN-91648U is a 48-port Cat 6 unshielded 19-inch 2U patch panel. It mounts in a 19-inch rack or cabinet and takes up 2U. Installation cable is punched down on the back with an LSA (Krone) punch-down tool, and the 48 RJ45 sockets on the front take ordinary patch cords, rated for Gigabit Ethernet (1000Base-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable. When the network grows, you add a panel and a few patch cords rather than pulling new cable to every desk, and a clearly numbered panel makes it quick to find which outlet a fault or a new device is on.

Compatibility — check before buying:
It is 48 ports in 2U and unshielded — for screened cabling DIGITUS makes a shielded version. The ports are fixed and terminated with an LSA (Krone) punch-down tool, which is not in the box. It is unshielded (UTP): use it with U/UTP cable, not in a shielded (STP/FTP) installation. It needs a standard 19-inch rack or cabinet with 2U free. Some listings describe this panel as grey (RAL 7035), while the DIGITUS data sheet and product photos show it in black — if it must match your rack, ask us and we confirm before dispatch. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.

Best For

✓ 19-inch server and network racks
✓ Office floor distribution
✓ Structured cabling projects
✓ Patching wall outlets to switches
✓ Data centres and comms rooms
✓ Labelled, serviceable terminations

Key Features


LSA termination
Krone LSA+ strips on the back take solid and stranded wire and are colour-coded for T568A and T568B. Once the cable is terminated, every move is made with a patch cord at the front.

Cat 6 performance
Class E, up to 250 MHz, 1GBase-T. Unshielded construction keeps installation simple with standard U/UTP cable.

19-inch, 2U
Standard 19-inch width at 2U, with 48 ports on one panel — the same count as a 48-port switch, for one-to-one patching.

Rated for PoE
DIGITUS rates the panel for PoE, and the smart cable ties hold the installation cables at the back.

Technical Specifications

Identification
Brand DIGITUS
Product DIGITUS CAT 6, Class E Patch Panel, unshielded, 48-port, 2U
Part Number DN-91648U
EAN / GTIN 4016032241560
Colour Black (RAL 9005) in the DIGITUS data sheet and photos — ask us to confirm before ordering if the colour matters
Performance
Category Cat 6
Transmission Class E, up to 250 MHz, 1GBase-T
Shielding Unshielded (UTP)
Standards ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
PoE Rated for PoE by DIGITUS
Ports & Termination
Ports 48 × RJ45
Port Type Fixed
Termination Krone LSA+ strips, colour-coded T568A/B
Wire Gauge 22–26 AWG, solid and stranded
Tool Needed LSA (Krone) punch-down tool
Mechanical
Mounting 19-inch rack mount
Height 2U
Weight 0.92 kg
Material 1.5 mm galvanised cold-rolled steel; ABS UL94V-0 sockets, gold-plated contacts
Cable Fixing Smart cable ties
Operating Temperature −20 to +70 °C
Planning the Installation
Cable U/UTP Cat 6 installation cable, solid core
Patch Cords Cat 6 or higher, so the link is not held back at the front
Rack Space 2U in a 19-inch rack; plan a cable manager above or below for tidy patching
Labelling Number each port as it is terminated and keep a simple list of which outlet goes where
In the Box
Included The patch panel (DIGITUS publishes no other box contents)
Not Included Ground wire (DIGITUS states it is not included), punch-down tool, patch cords, screws
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not state a manufacturer warranty term for this part on its product page or data sheet; the ASSMANN system warranty applies only to certified cabling systems. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Do I need a special tool?
Yes. The installation cable is terminated on the back with an LSA (Krone) punch-down tool, which is not included. If you order the panel with cable, tell us and we add a suitable tool.
Will it carry 10 Gbit/s?
It is a Cat 6 panel for Gigabit Ethernet. 10GBase-T over Cat 6 only works on short runs and is not what this panel is rated for; for 10 Gbit/s choose a Cat 6A panel.
Does it fit my rack?
It fits standard 19-inch racks and cabinets and takes up 2U. Send us the rack model if you want us to check depth and free space.
Can I use shielded cable with it?
You can terminate it, but the panel has no shield connection, so the screening stops at the panel. For a shielded system, choose a shielded panel.
Singular Expert Insight
We suggest the DN-91648U next to a 48-port switch on a Cat 6 U/UTP network: one panel, one port per switch port, one short patch cord each. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.

Buyer’s Guide

Buy it if

You need 48 Cat 6 UTP ports on one panel next to a 48-port switch.

Skip it if

Your cabling is shielded, or you want 48 ports in less than 2U.

Also consider

DIGITUS DN-91624U-SL-SH, 24 UTP ports in only 0.5U.
