Digitus Professional SC Fibre Optic Pigtail Set OS2 Single-mode 9/125µm Simplex 2m, 12 Colours IEC 60304, 12 Pieces
Brand:
Digitus
Digitus Professional SC Fibre Optic Pigtail Set OS2 Single-mode 9/125µm Simplex 2m, 12 Colours IEC 60304, 12 Pieces
€21.86 inc. VAT
DK-29221-02
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus Professional SC Pigtail Set · OS2 Single-mode 9/125 µm · 2 m · 12 Colours
OS2 9/125 µmSC simplex12 pigtails · 2 mIEC 60304 colours

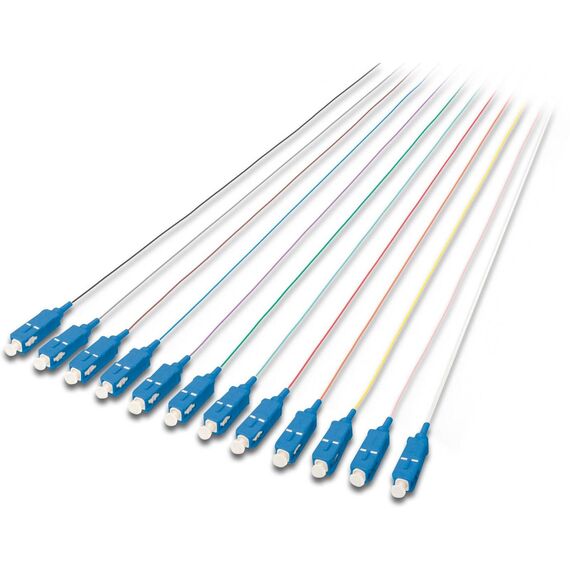

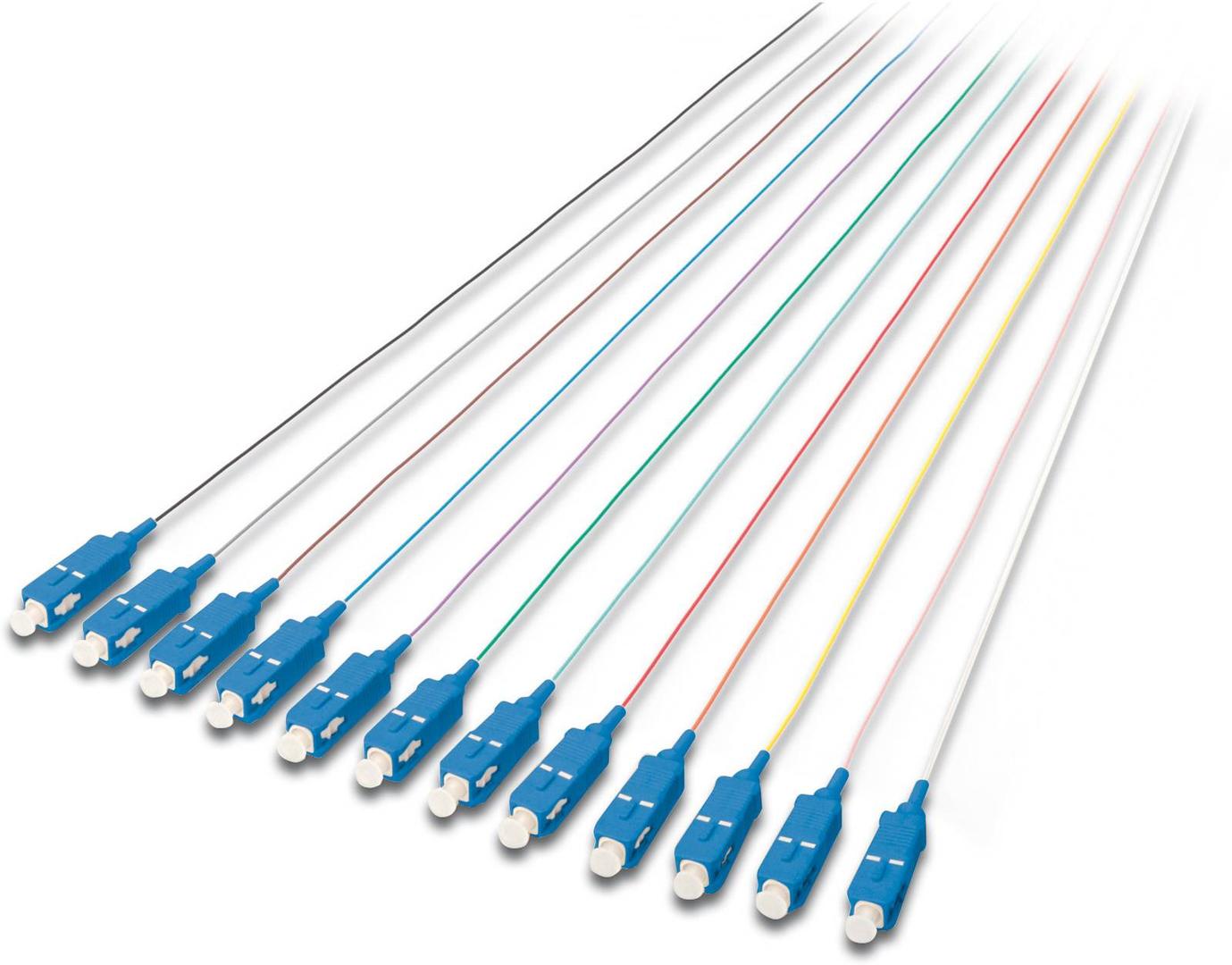

The Digitus Professional DK-29221-02 is a set of 12 SC simplex pigtails on OS2 single-mode 9/125 µm fibre, each 2 m long, for terminating single-mode cables by fusion splicing in a patch panel, splice box or wall outlet.
Each pigtail has a factory-polished SC connector on one end and bare fibre on the other. The twelve buffers are colour-coded to IEC 60304, so fibre 1 to 12 of a cable can be spliced and labelled without confusion.
Before you order: Pigtails are spliced, not plugged: you need a fusion splicer, splice protection sleeves and a splice tray/cassette. Digitus does not publish the polish type (UPC or APC) – if your system uses green APC connectors, tell us before ordering.
What's in the Box
- 12 × SC simplex pigtails, OS2 9/125 µm, 2 m
- Twelve buffer colours to IEC 60304 (white, violet, turquoise, black, red, pink, orange, grey, green, yellow, brown, blue)
What It Means in Practice
- Strip and cleave the bare end, fusion-splice it to the incoming cable fibre, and park the splice in the tray – the SC end then plugs into the coupler on the front of your panel or box.
- 2 m is the usual pigtail length: enough to route around the splice cassette and still re-splice a few times if needed.
- Twelve colours match a 12-fibre cable or two 6-fibre cables, so the fibre order on the front of the panel follows the cable colour code.
- SC is the square push-pull connector used on many FTTx boxes, older switches and media converters; for LC panels use LC pigtails instead.
What Will Not Work
- Not plug-and-play – without a fusion splicer (or a mechanical splice) the bare end cannot be connected.
- Not for multimode OM1–OM5 cable – this is single-mode 9/125 µm fibre and the cores will not match.
- Not for LC or ST couplers – the connector is SC.
- Not for APC systems unless the polish is confirmed – APC and flat-polished connectors must never be mated.
Key Features
IEC 60304 colour code
Twelve standard buffer colours make fibre identification and documentation straightforward.
Ceramic SC ferrule
Zirconia ceramic ferrule, SC connector to IEC 61754-4.
OS2 single-mode
9/125 µm OS2 fibre for long-reach single-mode links and FTTx.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Pigtails are the professional way to terminate single-mode cable: one clean fusion splice per fibre and a factory-polished connector on the front of the panel. The only real decisions are connector type (SC here), fibre type (OS2) and the polish. Pair them with matching SC couplers in a splice box or a panel from our rack accessories.
✓ Buy it if you are fusion-splicing an OS2 single-mode cable into SC couplers and want 12 colour-coded fibres in one pack.
✕ Skip it if you have no fusion splicer, your panel uses LC couplers, or your system needs confirmed APC connectors.
→ Also consider pre-terminated OS2 patch cables if you only need to link two devices, or LC pigtails for high-density LC panels.
Not sure it fits? Send us the model of your splice box, patch panel or cable and we will check it before you order.
Features - Digitus - DK-29221-02
Length
2m
More Details
Product Code
04:352583
EAN Code
4016032280187
Manufacturer
Digitus
