Digitus Pre-Assembled Fiber Optic Universal Breakout Cable OM4, 8 Fibres, LC/UPC to LC/UPC, LSOH, 30m, Black
Brand:
Digitus
Digitus Pre-Assembled Fiber Optic Universal Breakout Cable OM4, 8 Fibres, LC/UPC to LC/UPC, LSOH, 30m, Black
€197.33 inc. VAT
DK-24338U030BK-BBB
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus OM4 Universal Breakout Cable, 8 Fibres, LC/UPC–LC/UPC, 30 m

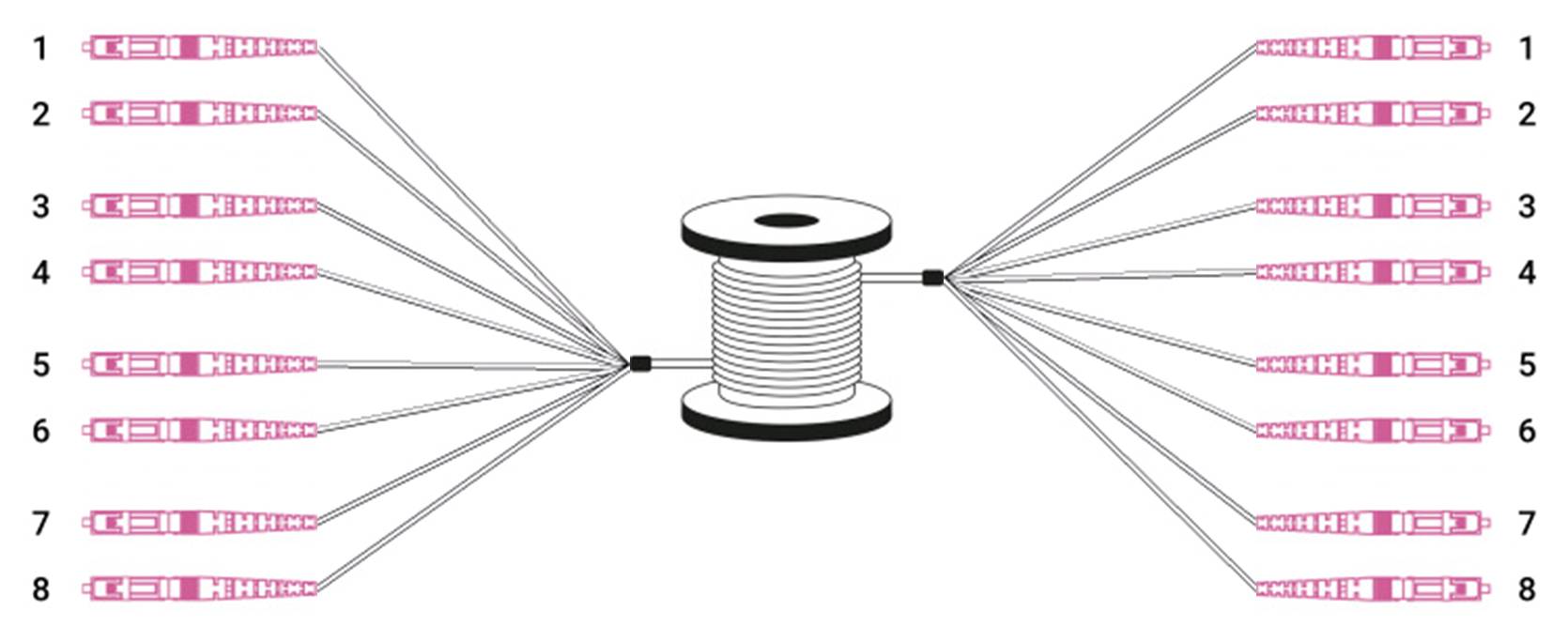

OM4 50/125 µm8 fibresLC/UPC both ends30 m pre-terminated

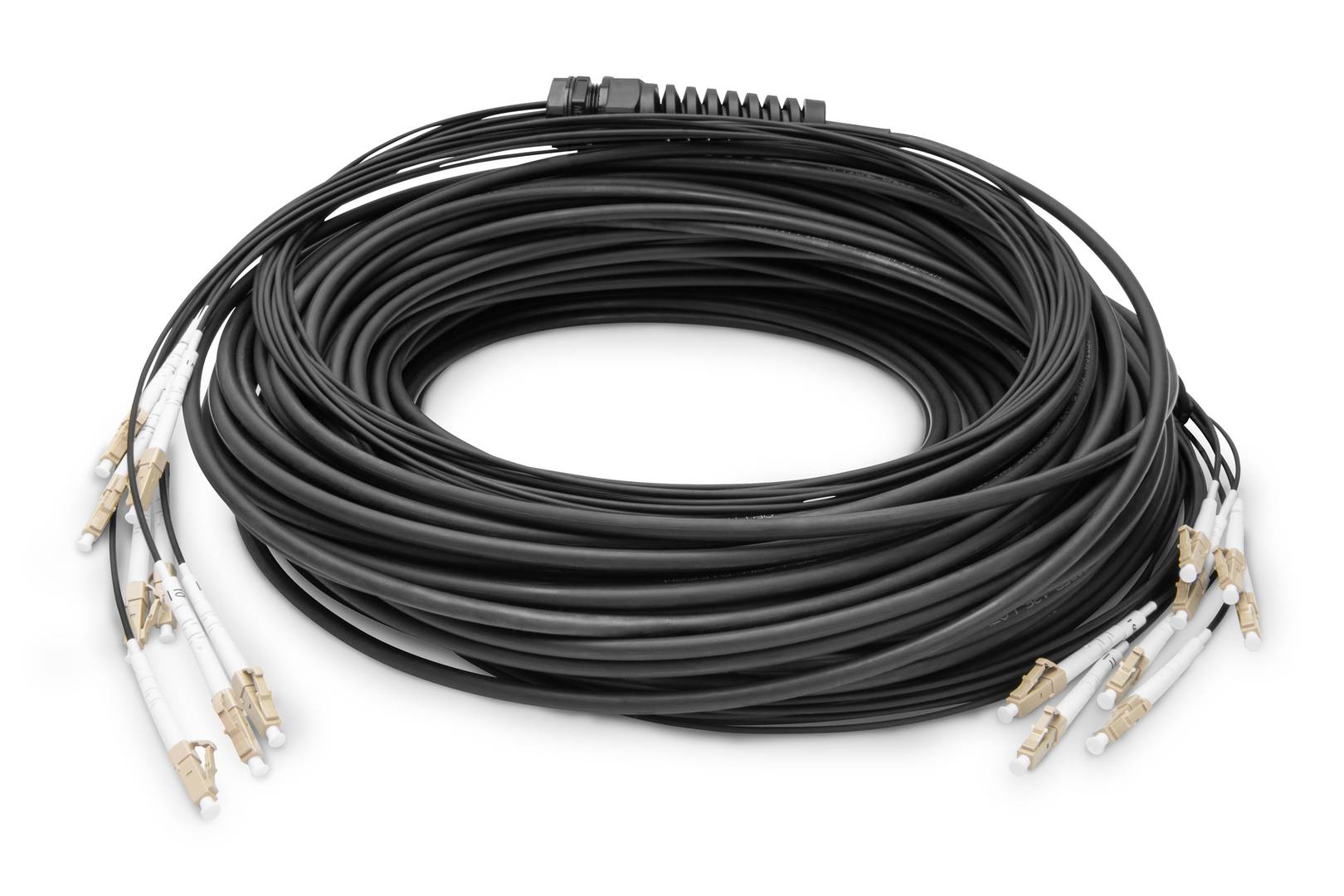

The Digitus DK-24338U030BK-BBB is a 30 m pre-assembled universal breakout cable with 8 OM4 multimode fibres (50/125 µm), factory-terminated with LC/UPC connectors at both ends. It is for installers and IT teams who need to link two racks, floors or buildings with multiple fibre pairs without splicing on site.
The universal (indoor/outdoor) construction I/A-DQ(ZN)BH has a halogen-free LSOH black jacket with 6.0 mm outer diameter and CPR class Dca. Both ends are protected by a pull-in aid for pulling through ducts, and each cable ships with a measurement protocol, so no follow-up testing is needed before going live.
Before you order: Both ends are LC/UPC connectors on OM4 multimode fibre. Your transceivers or patch panels must be multimode (SR/SX, 850 nm) with LC ports — single-mode (LR, OS2) optics and SC/APC panels will not work.
What's in the Box
- 1 × Digitus pre-assembled OM4 universal breakout cable, 8 fibres, LC/UPC to LC/UPC, 30 m, black
- Pull-in aid on both ends
- Measurement protocol (test report)
What It Means in Practice
- 8 fibres give 4 duplex links (e.g. four 10G/25G SR connections) over one cable run.
- Plug-and-play: terminate into partially assembled patch panels without splicing or field polishing.
- The pull-in aid protects the connectors while the cable is pulled through conduit; remove it only at the termination point.
- LSOH jacket and Dca CPR class suit installation inside buildings as well as in ducts between buildings.
What Will Not Work
- Not for single-mode optics (LR/ER, OS2) or APC (green) connectors.
- No SC, ST or MPO connectors — LC/UPC only.
- It is not a ready patch cord for direct desk use; the breakout ends are intended to be terminated into a patch panel or splice box.
- The 30 m length is fixed; it cannot be shortened without re-terminating.
Key Features
OM4 multimode
50/125 µm OM4 fibres for 10G/25G/40G/100G SR multimode links.

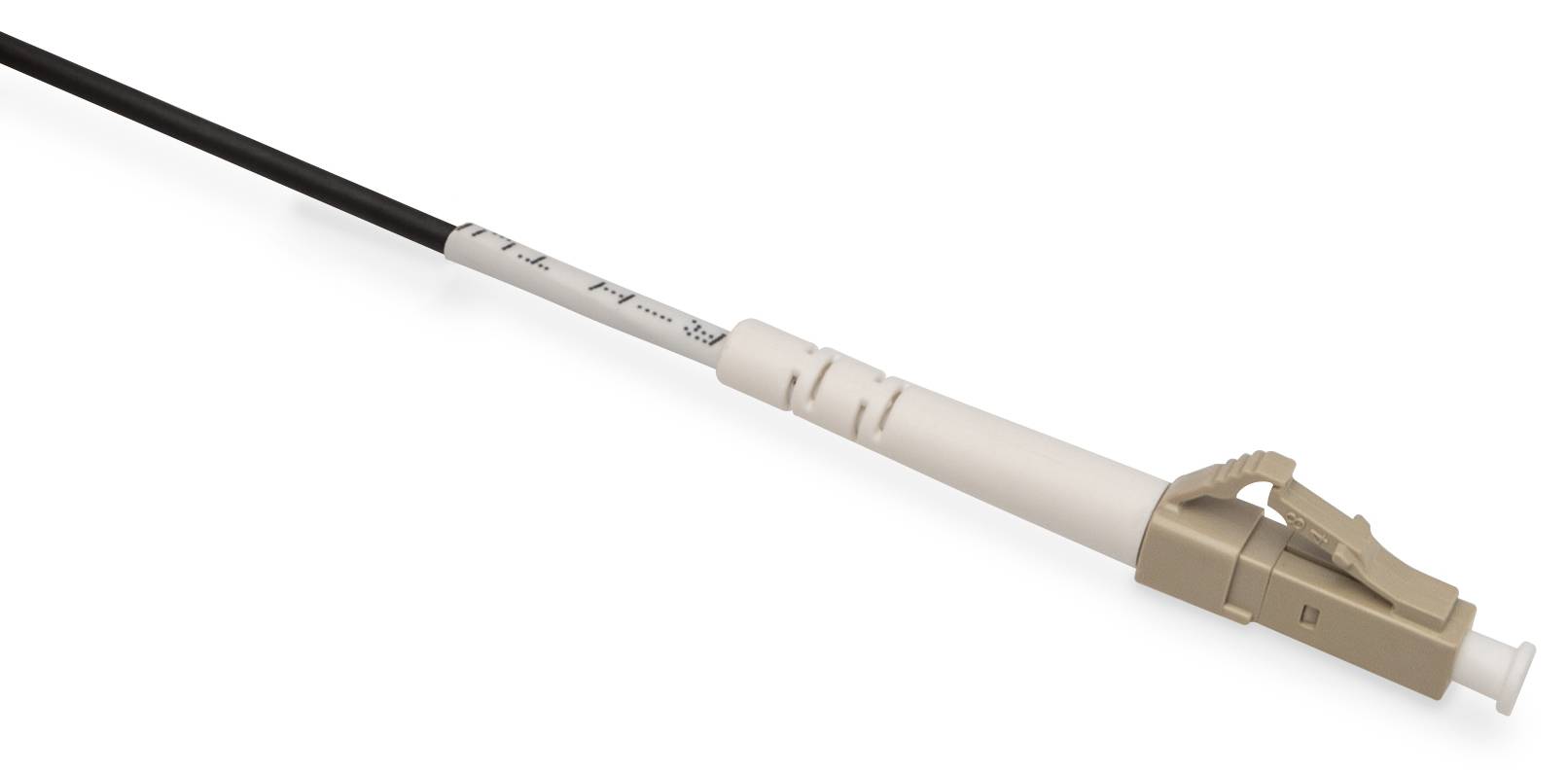

Pre-terminated LC/UPC
Factory-polished LC/UPC connectors, max 0.3 dB insertion loss, min 30 dB return loss.
Universal cable
Indoor/outdoor I/A-DQ(ZN)BH, LSOH black, 6.0 mm, CPR Dca.
Tested
Pull-in aid both ends and measurement protocol supplied with each cable.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A pre-terminated breakout cable saves splicing time and gives tested links on day one. Plan the termination end first — a patch panel or splice box with LC adapters — and see our rack accessories for panels and cable management.
✓ Buy it if you need 4 duplex OM4 links between racks or buildings without on-site splicing.
✕ Skip it if your optics are single-mode or your panels use SC or MPO.
→ Also consider an LC fibre patch panel to terminate the breakout ends.
Not sure about your optics or panel? Send us the transceiver and panel model and we will check compatibility before you order.
Features - Digitus - DK-24338U030BK-BBB
Colour
black
Length
30m
More Details
Product Code
03:280698
EAN Code
4016032485131
Manufacturer
Digitus
