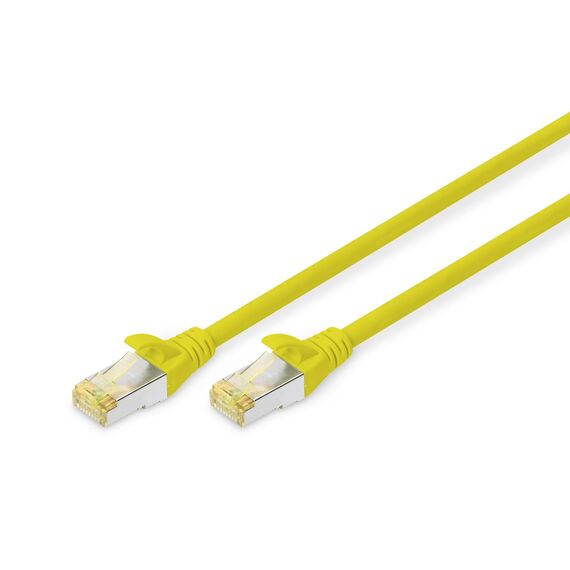

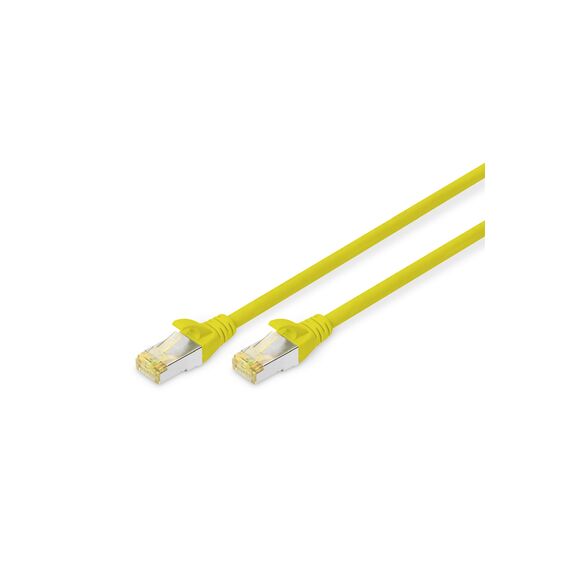

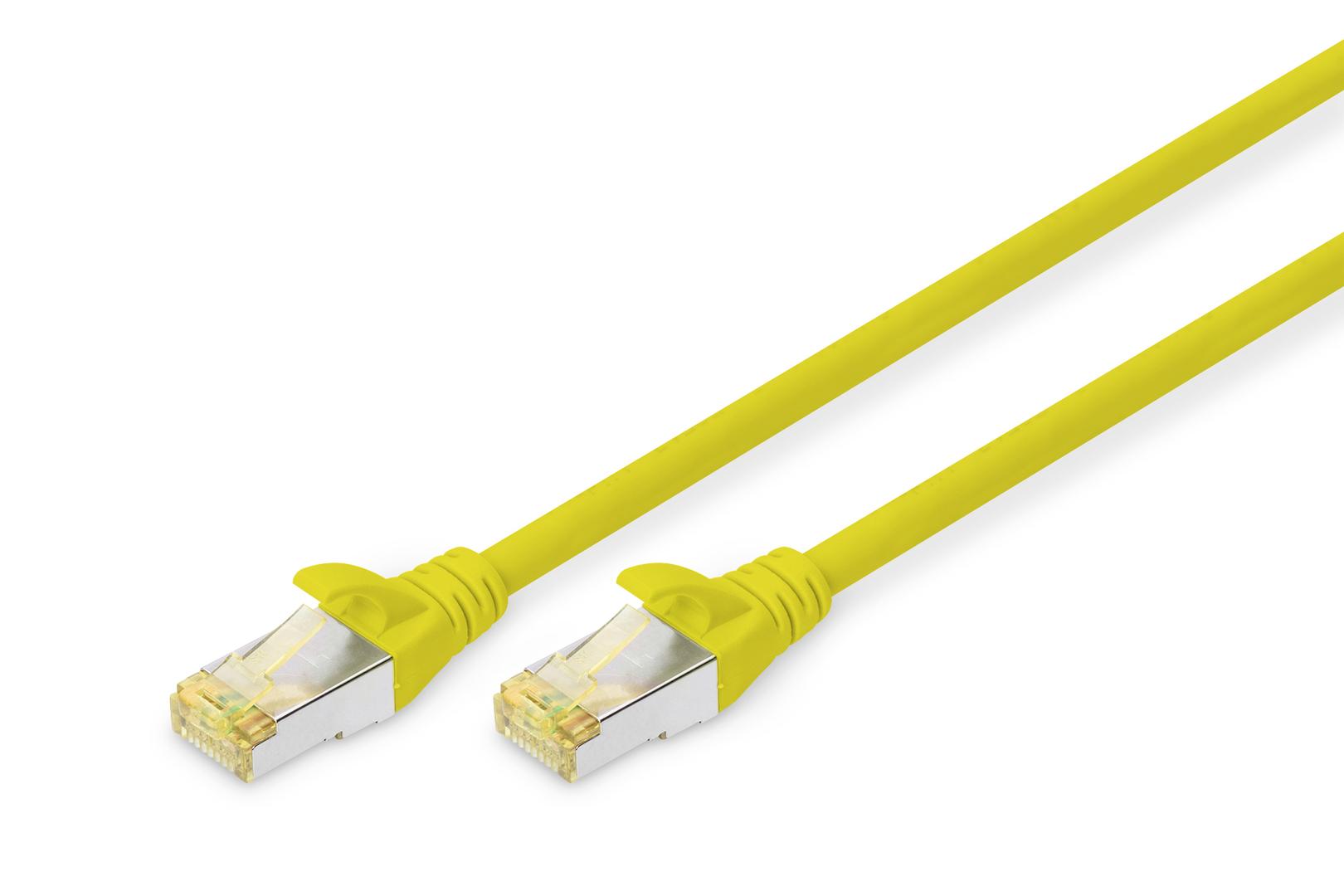

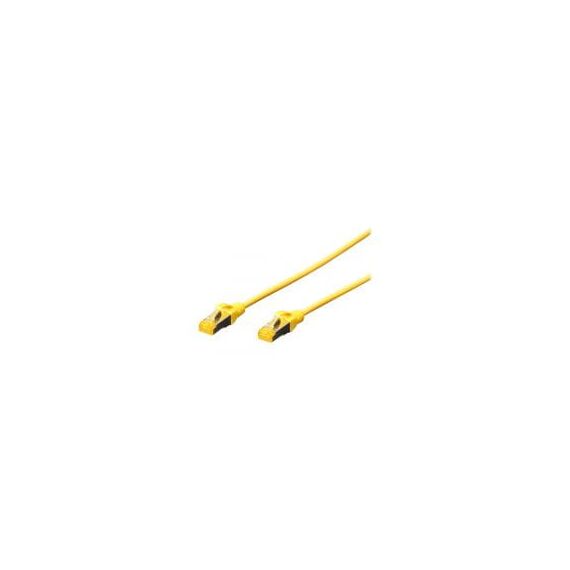

DIGITUS Professional - Patch cable - RJ-45 (M) to RJ-45 (M) - 25 cm - SFTP - CAT 6a - IEEE 802.3 - halogen-free, molded, snagless - yellow | DK-1644-A-0025/Y
DIGITUS Professional - Patch cable - RJ-45 (M) to RJ-45 (M) - 25 cm - SFTP - CAT 6a - IEEE 802.3 - halogen-free, molded, snagless - yellow | DK-1644-A-0025/Y
€3.84 inc. VAT
DK-1644-A-0025/Y
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· 2x RJ45 (8P8C) connectors· Boots with kink protection, strain relief and latch protection
· Length marking on boot
· Conductor: Copper (Cu)
Special Fetures
· With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.· Transparent yellow colored plug with metal shielding for easy identification of Category 6A (500 MHz)
· Conductor: Copper (Cu)
· PoE+ ready
Product Specification
| Network Cable Type | Patch cable - CAT 6a - IEEE 802.3 |
| Technology | Shielded foiled twisted pair (SFTP) |
| Wiring Scheme | T568B |
| Shielding Material | Foil with braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 26/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Halogen-free, molded, snagless, flame retardant, PoE+ Ready, strain relief, length indication, kink protection, bare copper conductors, latch protection |
| Length | 25 cm |
| Colour | Yellow |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | IEC 60332-1, ISO/IEC 11801, IEC 61034, EN 50173, ANSI/TIA-568-C, EN 60603-7-51, ISO/IEC 11801-1 - up to 500 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - Digitus - DK-1644-A-0025/Y
Colour
yellow
Length
0.25m
General
CAT6a
More Details
Product Code
04:365206
EAN Code
4016032327202
Manufacturer
Digitus
