DIGITUS DN-19 ORG-3-1 — 19" Cable Management Rings 158 x 70 mm, 10-Pack
10 rings158 x 70 mm1U eachGrey RAL 7035

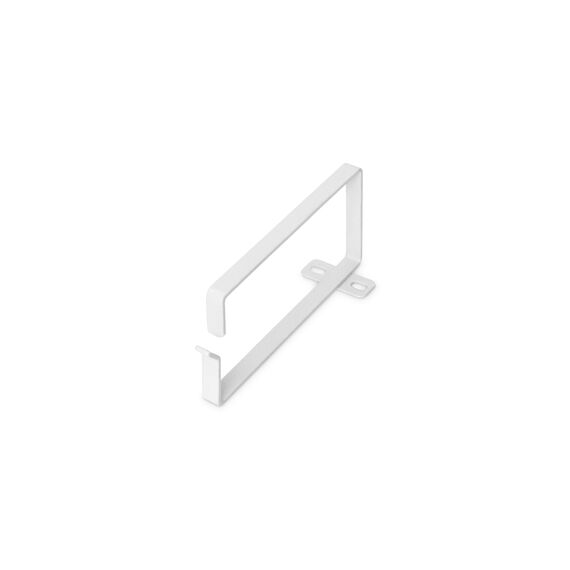

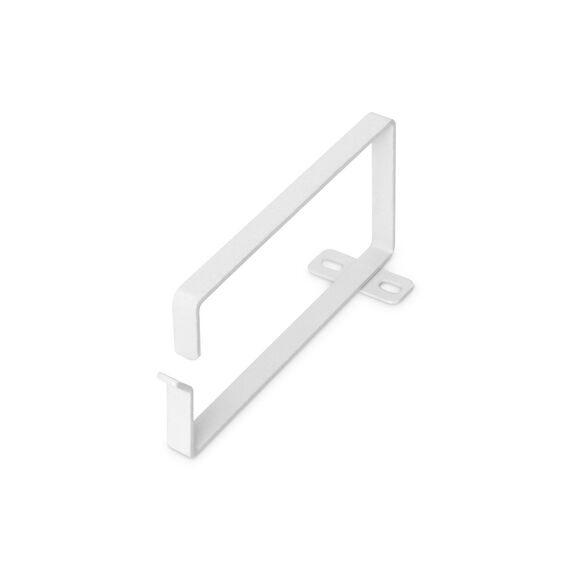

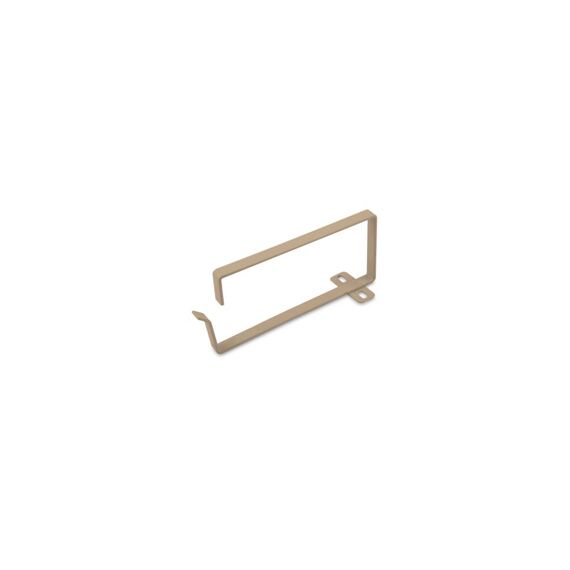

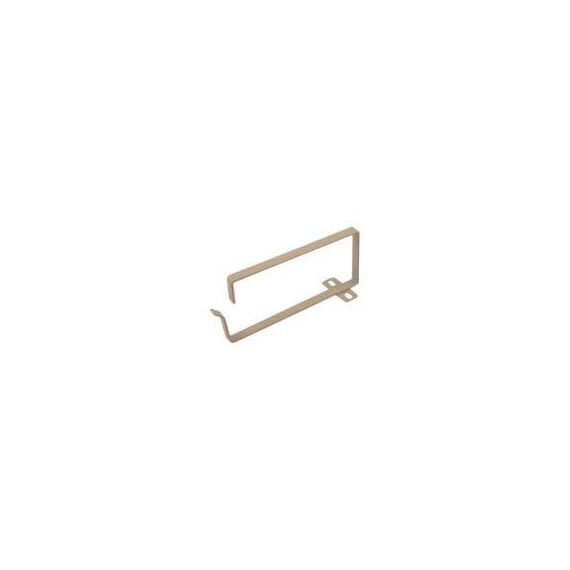

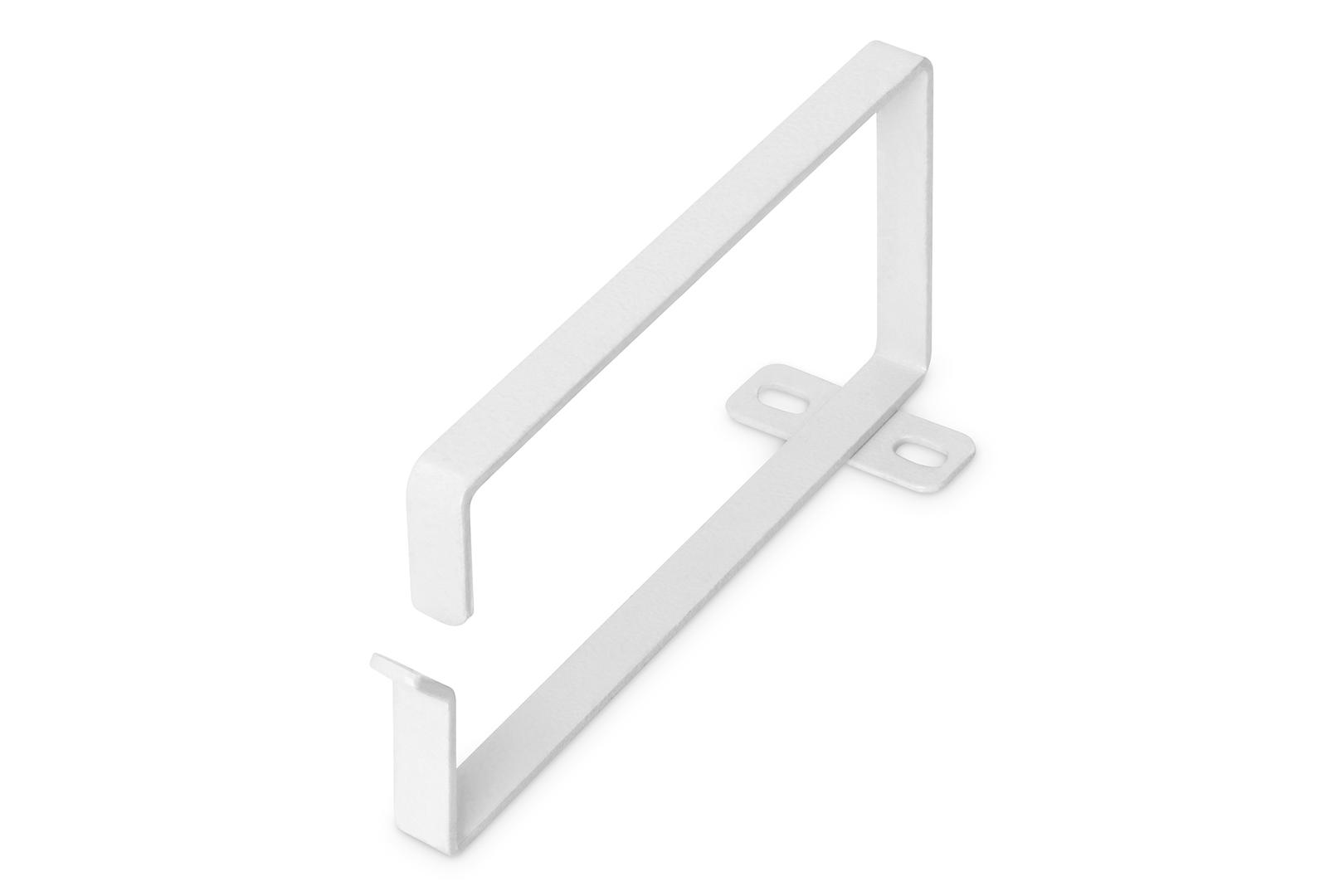

The DIGITUS DN-19 ORG-3-1 is a pack of ten wide steel cable management rings for 19" network and server cabinets. Each ring is 1U high with a 158 x 70 mm profile and an angled opening, giving a large channel for bundles of patch cords running along the rails next to switches and patch panels.
The rings are powder-coated light grey RAL 7035 and fix to the 19" profile rails, or to the perforated main frame of DIGITUS Unique, Unique Light and Unique Server-N enclosures. Screws, cage nuts and washers are included.
Before you order: Despite the "3" in the model name, each ring is 1U high (44 mm). This is the grey version — for black cabinets choose a black DIGITUS ring model.
What's in the Box

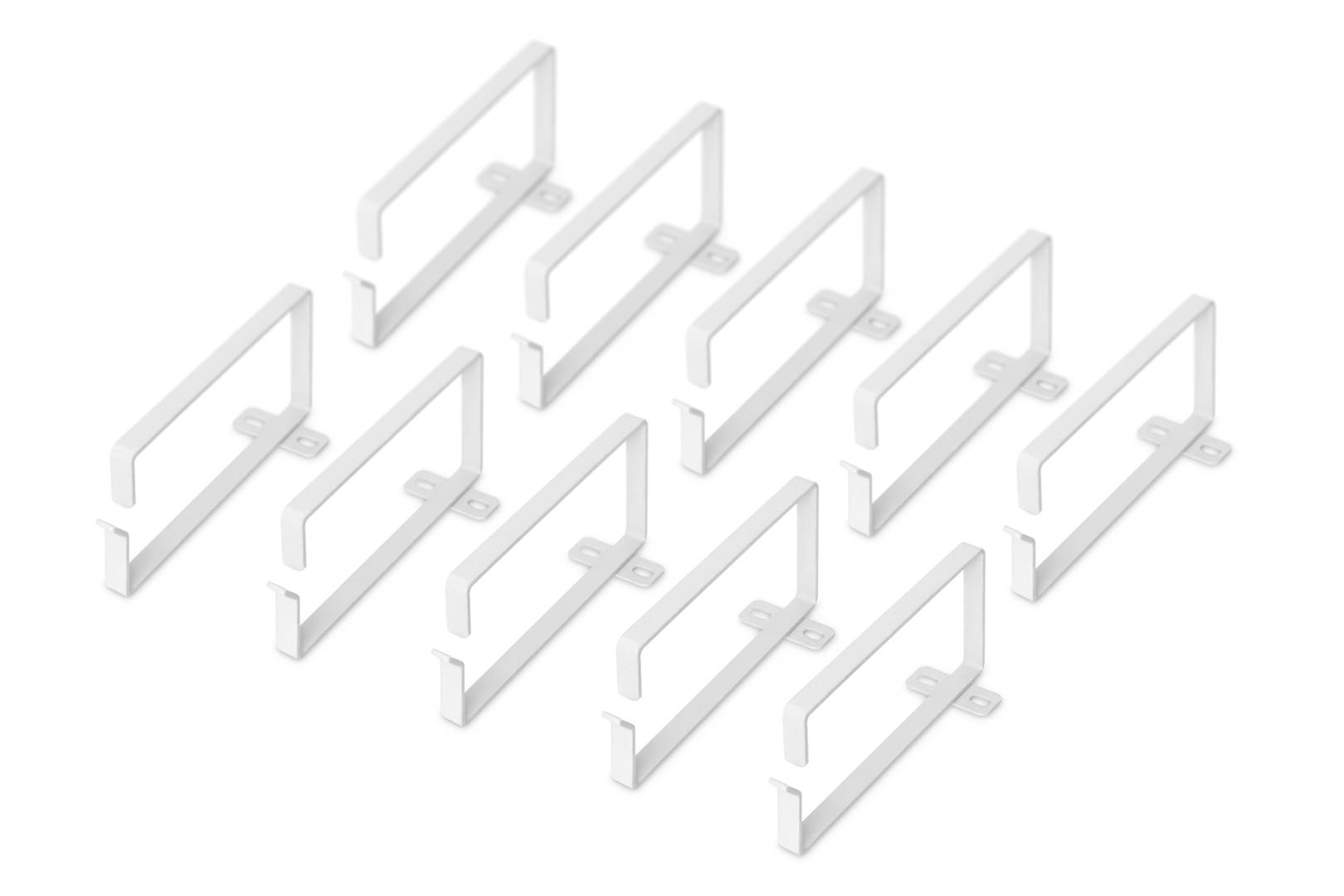

- 10 x cable guide rings, grey RAL 7035

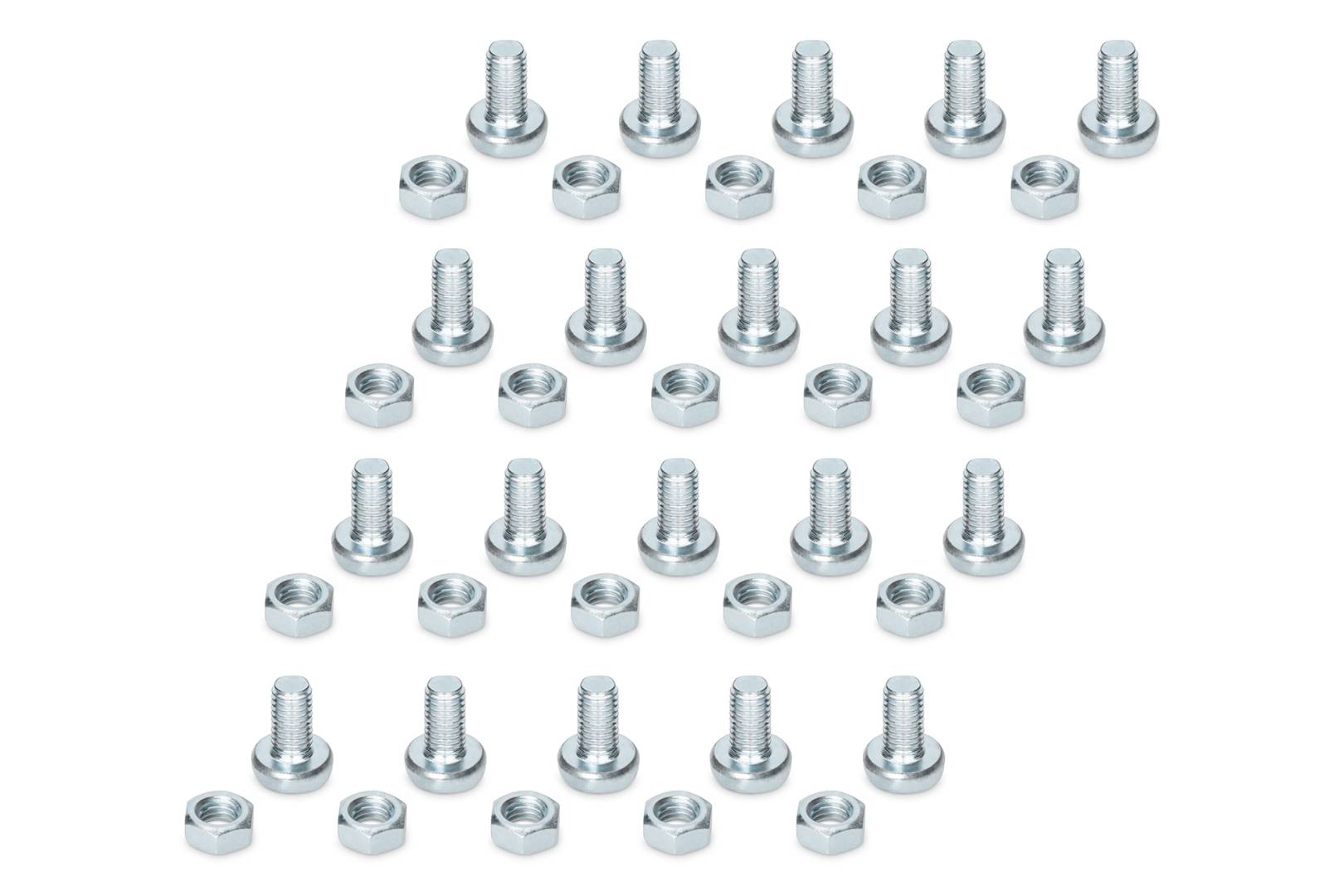

- Installation set: screws, cage nuts and washers
What It Means in Practice
- The widest ring in the DIGITUS ORG range — suits large bundles from 24- and 48-port switches.
- Ten rings cover both sides of a mid-size cabinet.
- Angled opening means cables go in without unplugging.
- Fits both standard rails and DIGITUS Unique frames.
What Will Not Work
- Will not suit 10" racks.
- 158 mm width needs enough side space between rails and cabinet wall — check narrow 600 mm cabinets.
- Grey colour will not match black cabinets.
- Does not cover cables — they stay visible.
Key Features
Wide 158 x 70 mm profile
Large channel for heavy patch-cord bundles.
1U per ring
Place support at any rack unit.
Angled opening
Quick insertion and removal of cables.
Hardware included
Screws, cage nuts and washers supplied.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For dense switch installations the extra width of the ORG-3-1 makes a real difference: bundles from a 48-port switch fit without being squeezed. Measure the gap between the rails and the side wall in narrow cabinets before ordering. For narrower rings or black finishes see our rack accessories range.
✓ Buy it if you run large patch-cord bundles in a grey 19" cabinet with side space to spare.
✕ Skip it if your cabinet is narrow or black.
→ Also consider DIGITUS DN-19 ORG-2 narrower rings, or StarTech.com CMHOOK1UN5PK black D-rings.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-19 ORG-3-1
Colour
grey
More Details
Product Code
04:249981
EAN Code
4016032353591
Manufacturer
Digitus
