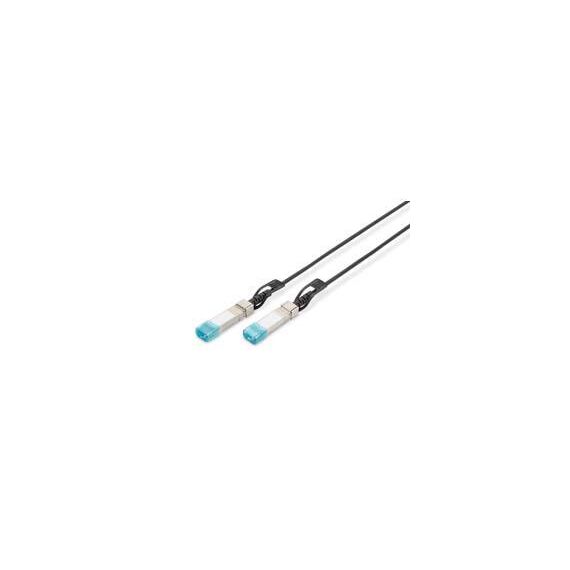

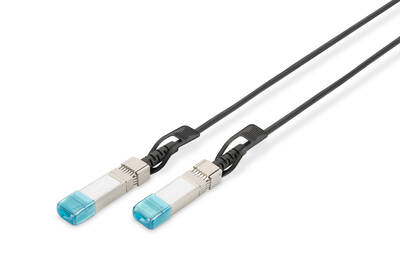

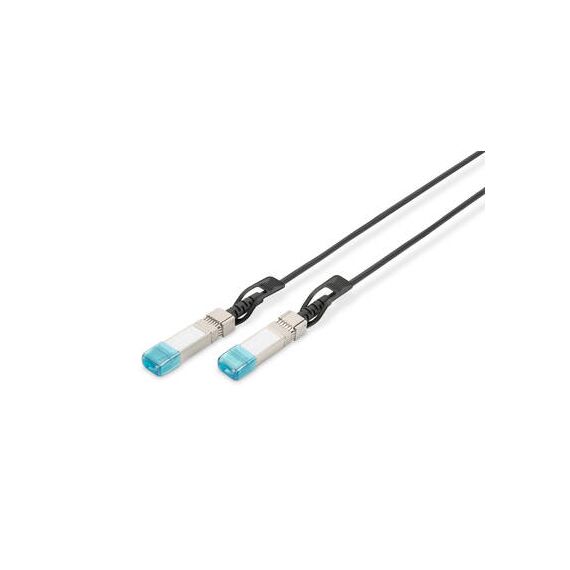

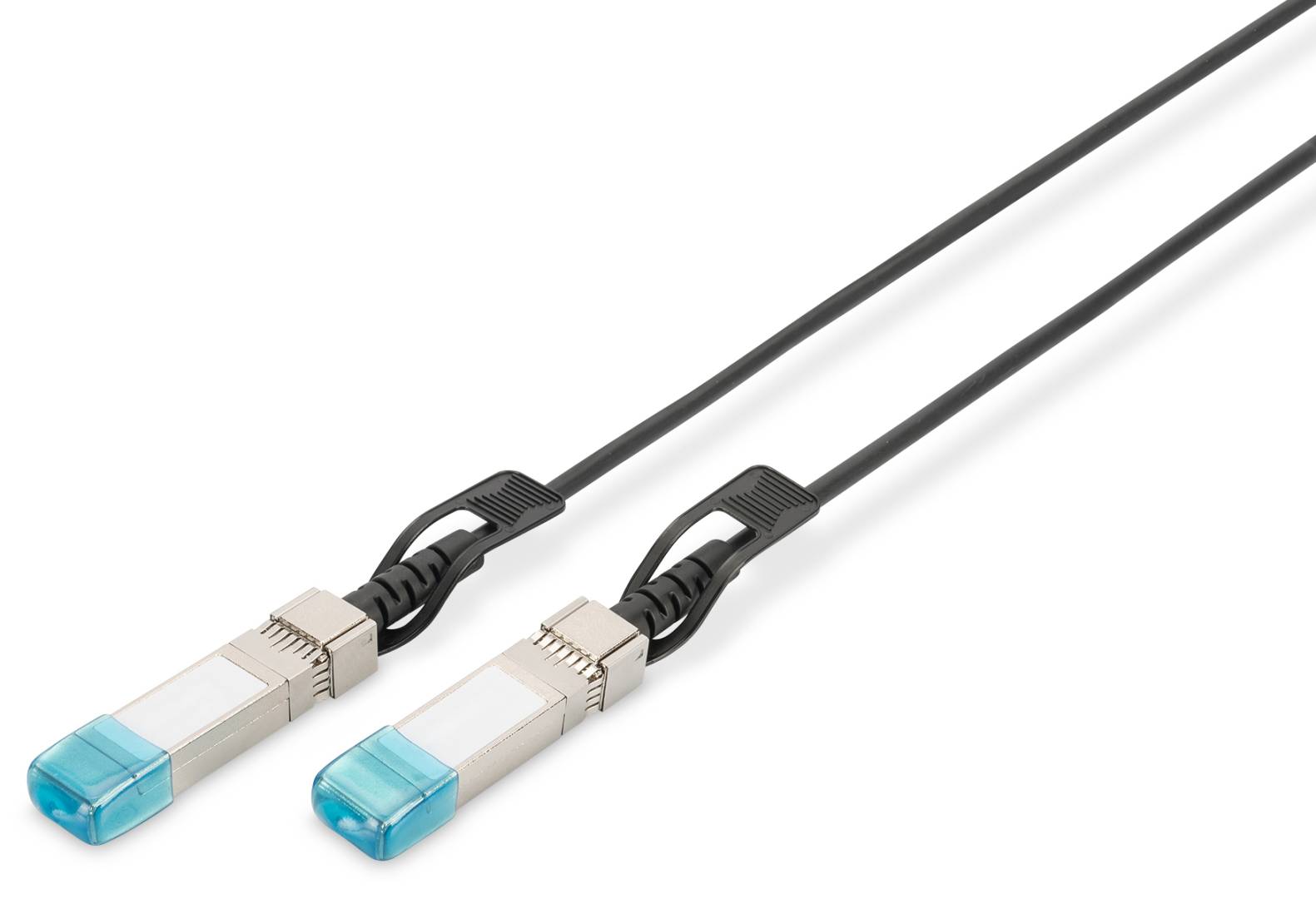

DIGITUS Professional / 10GBase direct attach cable / SFP+ to SFP+ / 1 m / twinaxial | DN-81221-01

Product Features

· AWG 30 Twinax cable
· 1 m maximum distance
· 1.0625-10.52Gbps supported data rate
· Supported applications: 10G Ethernet (10.21 Gbps), 10G fiber channel (10.52 Gbps), 8G fiber channel (8.5 Gbps), 4G fiber channel (4.25 Gbps), 2G fiber channel (2.125 Gbps), 1G fiber channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbit/s), CPRI option 2,3,5,6,7,8, OBSAI RP3 x 2, RP3 x 4, RP x 8
· Compatible brands: Hewlett Packard (HP) HPE compatible
· DDM / DOM support
· Temperature range: 0 ~ 70 °C
· Ports: SFP +
· Power: + 3.3V supply voltage
· Power consumption: 0.5W
· Transceiver type: DAC

Special Features

· SFP+ 10G 1m DAC cable
· AWG 30 Twinax cable
· 1.0625-10.52Gbps supported data rate

Product Specification

Network Cable Type	10GBase direct attach cable
Technology	Twinaxial
American Wire Gauge (AWG)	30
Length	1 m
Connectivity	Connectivity
Connector	SFP+
Connector (Second End)	SFP+
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	26 cm
Shipping Depth	31 cm
Shipping Height	0.5 cm
Shipping Weight	0.1 kg
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
