DIGITUS AT-AG 302A-WH — Consolidation Point Box for 2 Keystone Jacks, White
2 × keystoneSurface-mountEmpty housingPure white

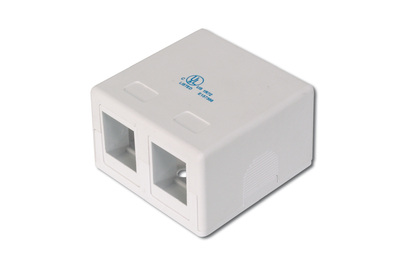

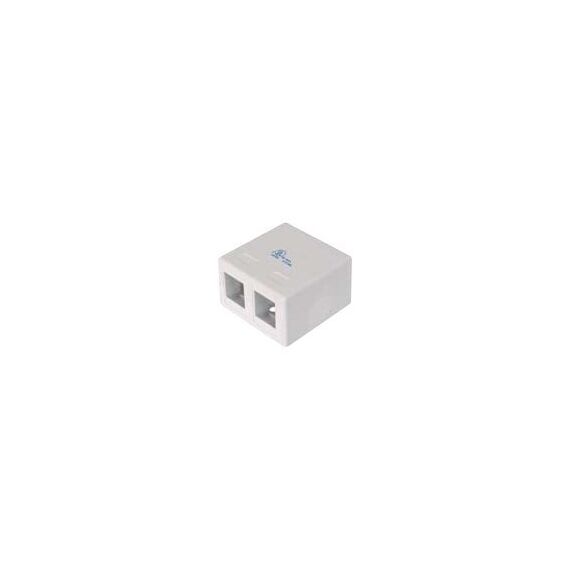

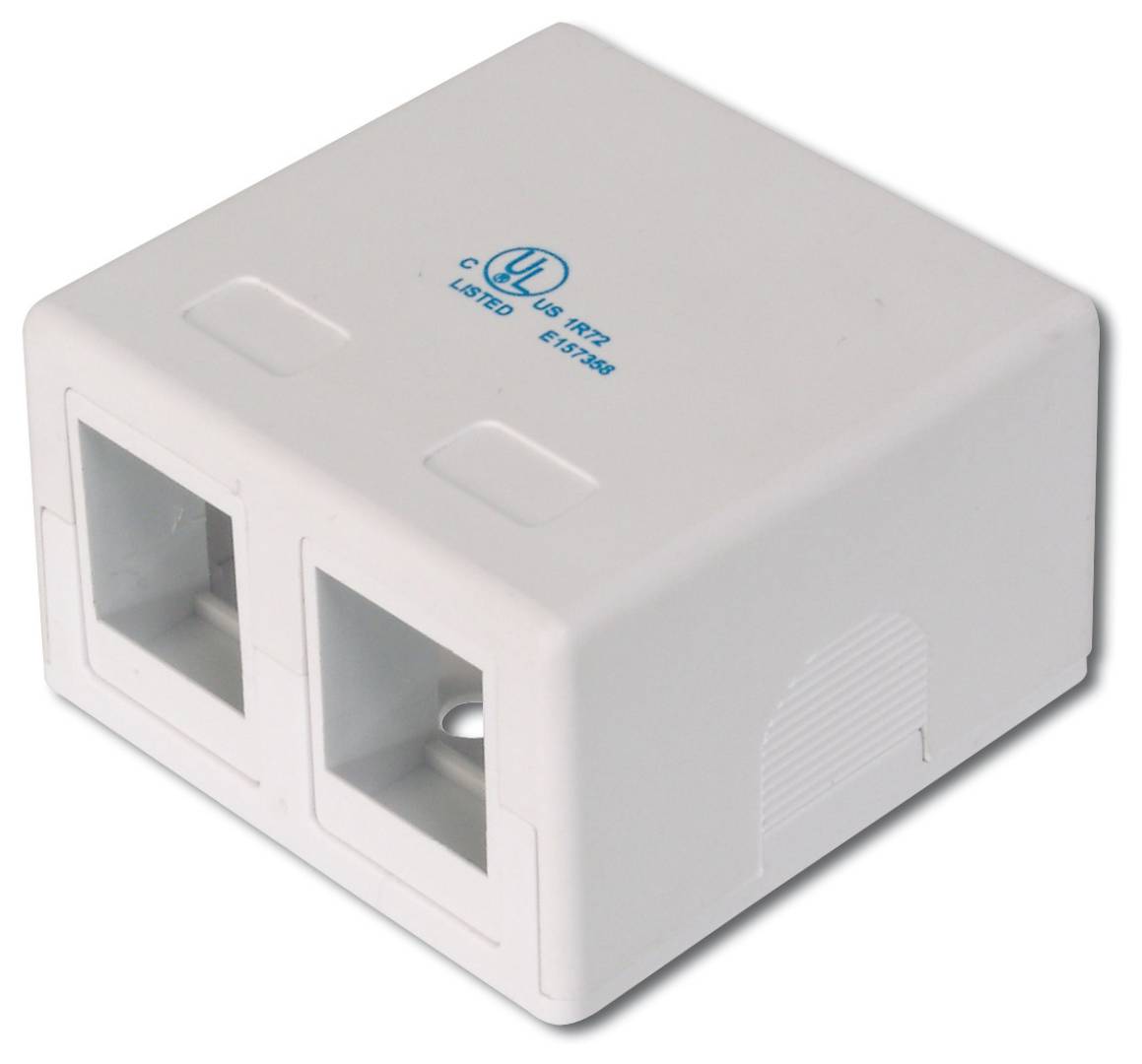

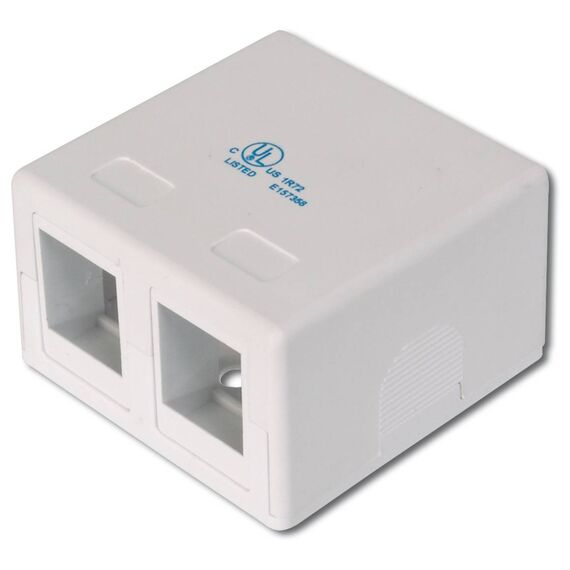

The DIGITUS AT-AG 302A-WH is a compact empty housing for two keystone jacks, used as a consolidation point or small surface-mount outlet at the desk, under a raised floor, in trunking or above a suspended ceiling.
You fit two keystone modules of your choice — Cat6, Cat6A, shielded or unshielded, even a coupler — and the box turns the end of an installation cable into a neat two-port outlet. It is part of the DIGITUS modular connectivity system, so it takes all DIGITUS keystone modules and DIGITUS consolidation-point cables.
Before you order: The box is sold empty — keystone jacks are not included. Order two keystone modules that match your cable (category and shielding) together with the box.
What's in the Box
- 1 × upper housing shell and 1 × lower housing shell
- 2 × adapter inserts with keystone openings
- 1 × adapter insert for cable entry
- Keystone modules are not included
What It Means in Practice
- Gives a clean, two-port network outlet where flush wall boxes are impossible — on furniture, under raised floors or inside trunking.
- As a consolidation point it lets you change desk layouts without re-pulling the cable from the patch panel.

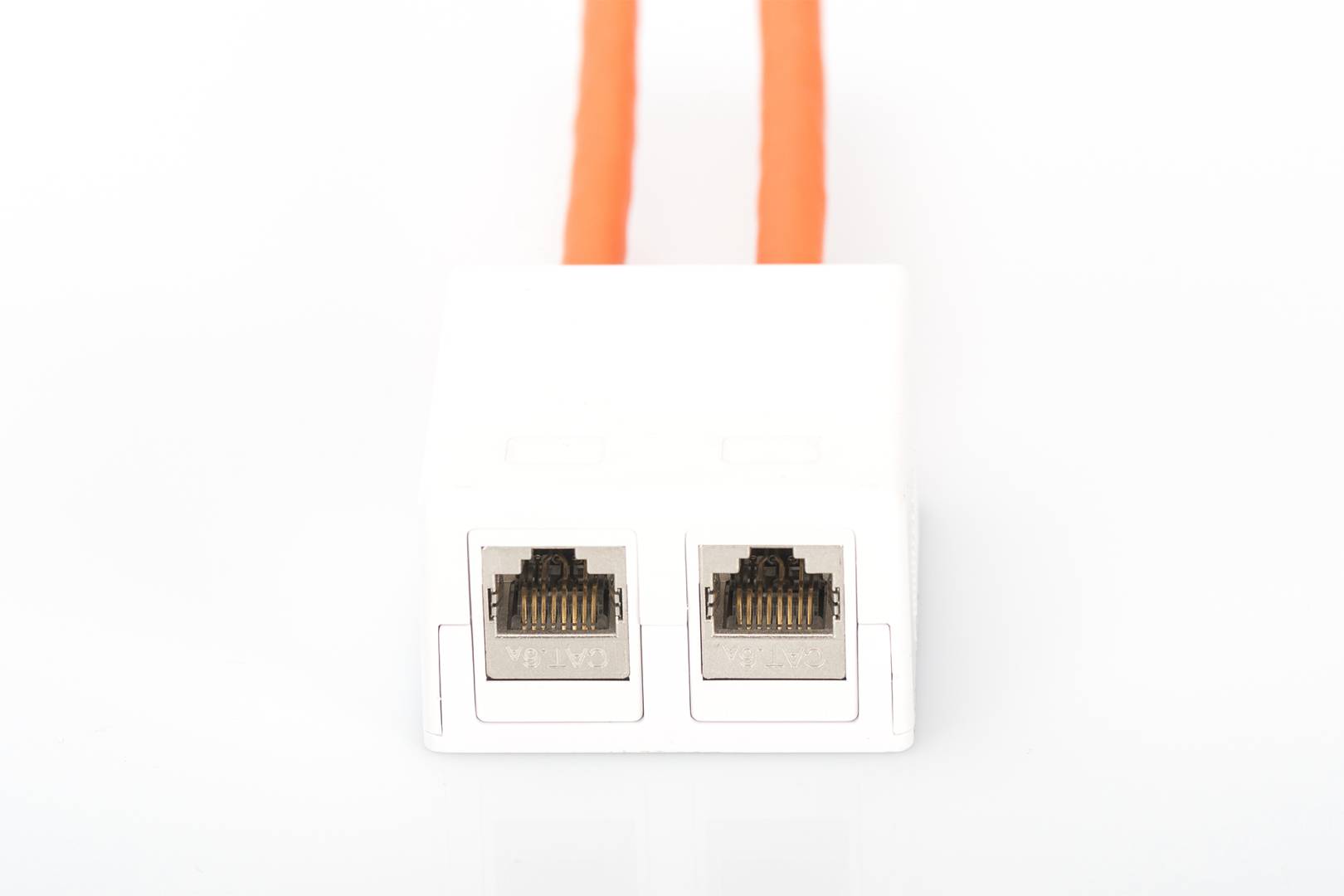

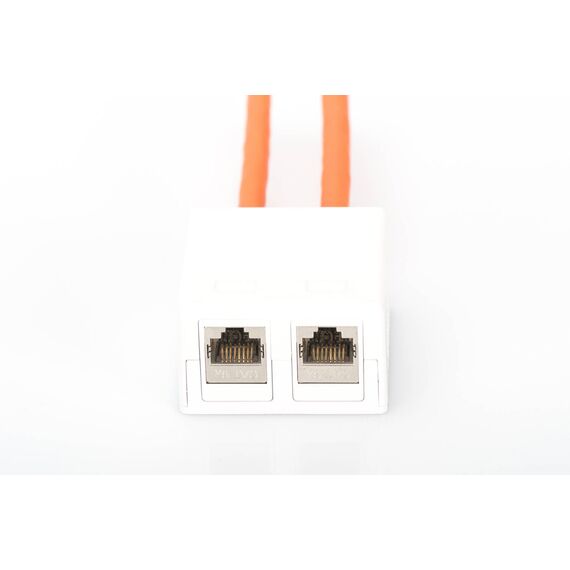

- Straight keystone entry: the patch cable plugs in from the front, the installation cable enters from the back or side.
- Small enough (30 × 50 × 50 mm) to disappear behind a desk or inside a floor box.
What Will Not Work
- It does not work without keystone modules — on its own it is only a housing.
- It is not a flush-mount wall outlet; it sits on the surface.
- It has two openings only; for six ports the matching DIGITUS model is the larger 6-port box.
- Non-standard or proprietary module formats will not clip in — use standard keystone jacks.
Key Features
Two keystone ports
Accepts any DIGITUS keystone module, shielded or unshielded.
Flexible mounting
Raised floor, trunking, false ceiling or surface wall mounting.
Flame-retardant ABS
Housing material rated UL 94V-0.
Standards-based
Designed for ISO/IEC 11801 3rd Ed., EN 50173-1 and EIA/TIA 568-C cabling.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A two-port consolidation box is the tidy answer when a desk or a meeting table needs network ports but the wall is out of reach. Fit two keystone jacks, terminate the installation cable, and connect devices with short patch cables.
✓ Buy it if you need a small two-port outlet on a surface, in trunking or under a raised floor.
✕ Skip it if you need a flush-mount wall socket or more than two ports.
→ Also consider the 6-port DIGITUS consolidation box, and matching DIGITUS keystone jacks for your cable category.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
