Digitus 19-inch Rack-Mount DIN Rail Panel, 3U
3U · 19-inch35 mm DIN rail · 390 mmSteel · RAL 7035Installation set included

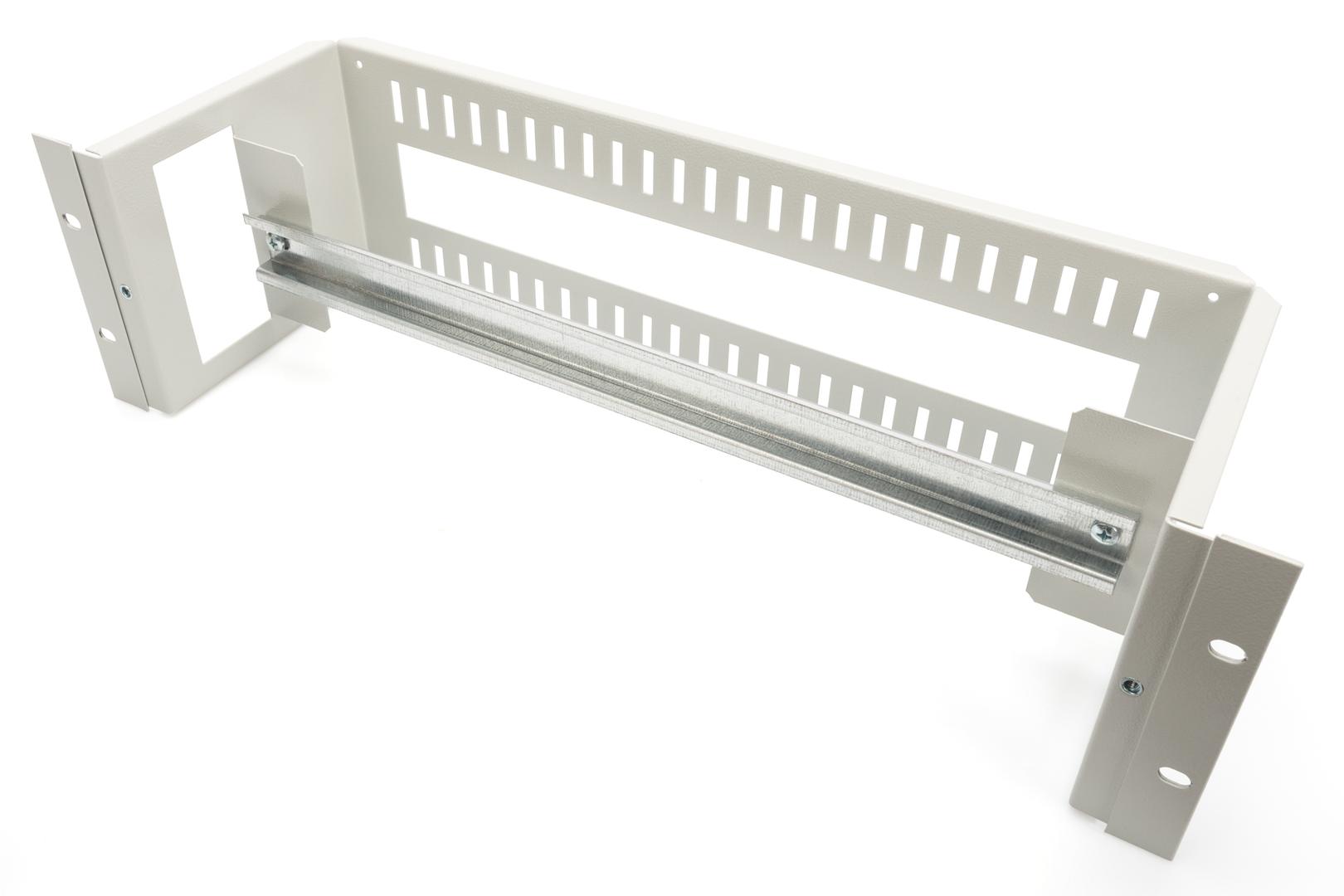

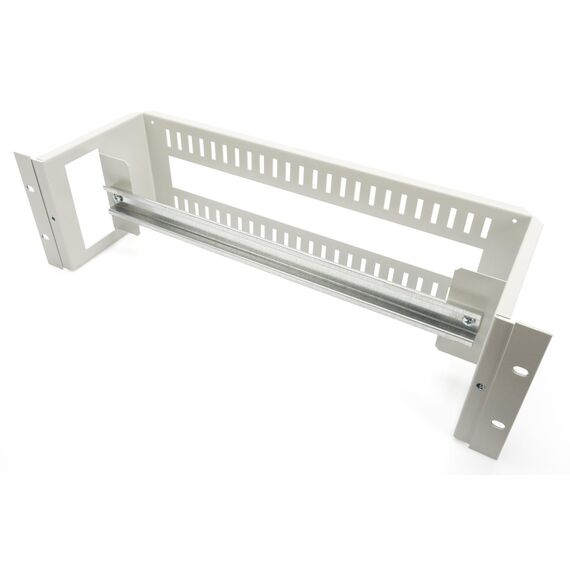

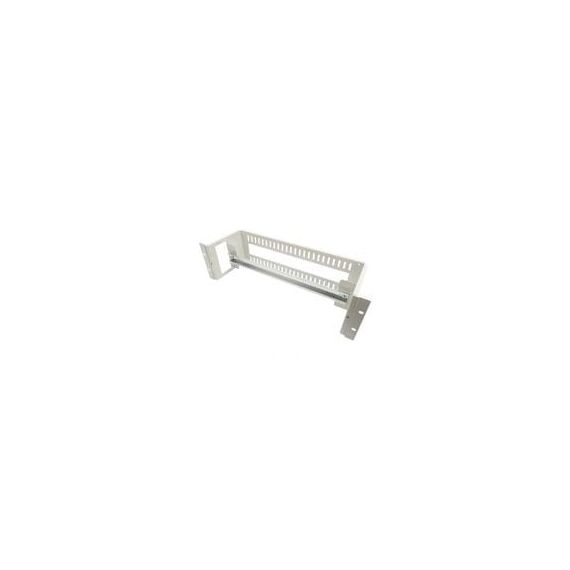

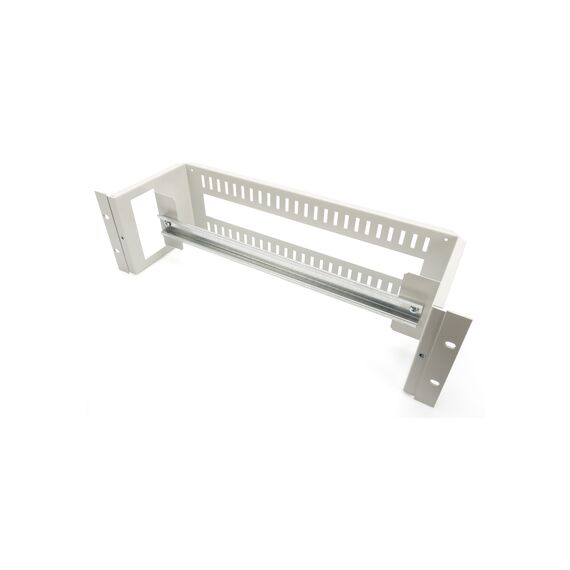

The Digitus DN-19-DIN-3U is a 3U 19-inch rack-mount panel with a built-in 35 mm top-hat DIN rail, so DIN-rail devices — industrial switches, power supplies, PoE injectors, circuit breakers, relays — can be installed neatly inside a standard network or server cabinet.

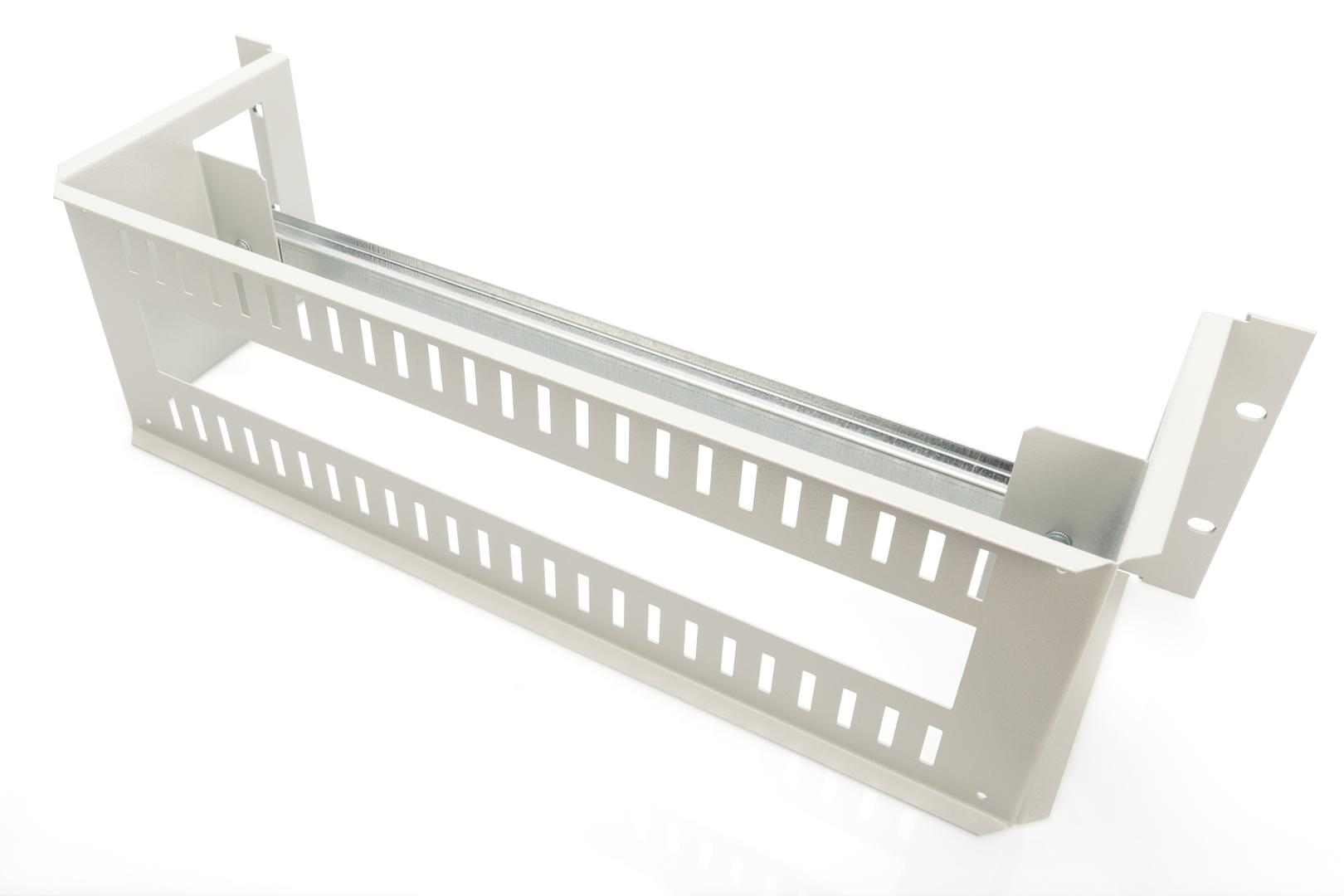

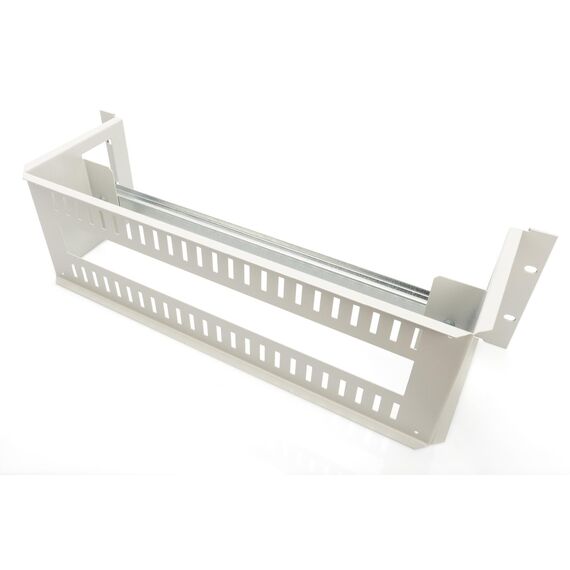

Instead of building a separate electrical box next to the rack, the panel puts a 390 mm length of DIN rail into three rack units. A rear cable opening and ventilation slots help with wiring and heat, and the panel is made of 1.5–2.0 mm powder-coated sheet steel in light grey RAL 7035, matching most network cabinets.
Before you order: Only 35 mm top-hat (TS-35) DIN devices fit, and the total width of the devices must fit the 390 mm rail. The cabinet needs standard 19-inch profile rails with M6 cage nuts and about 15 cm of free depth.
What's in the Box
- DN-19-DIN-3U panel with integrated 35 mm DIN rail
- Installation set: screws, cage nuts and washers
What It Means in Practice

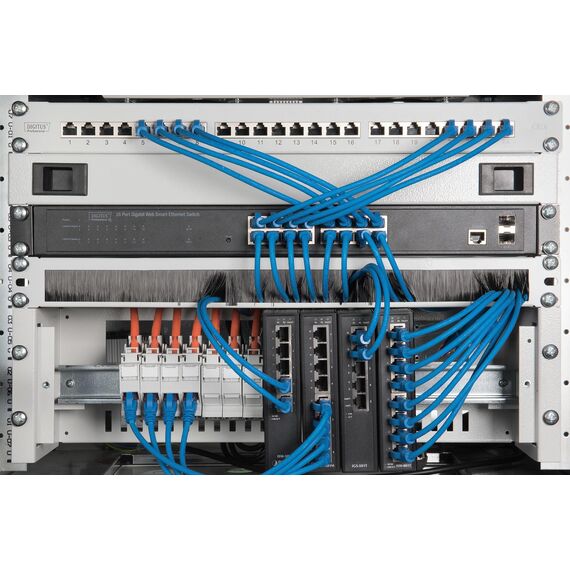

- Turns 3U of a 19-inch rack into a mini DIN-rail cabinet for industrial and electrical components.

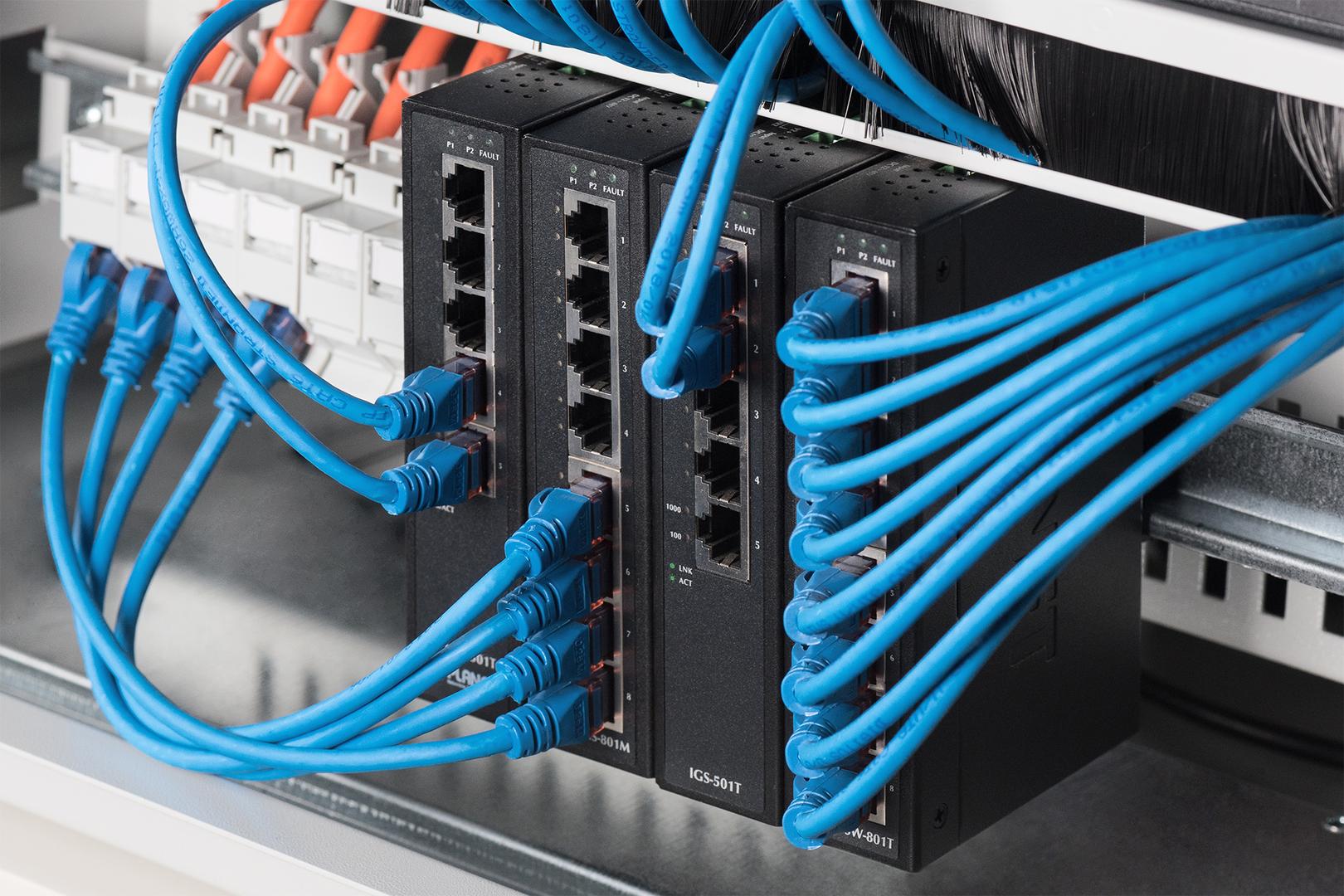

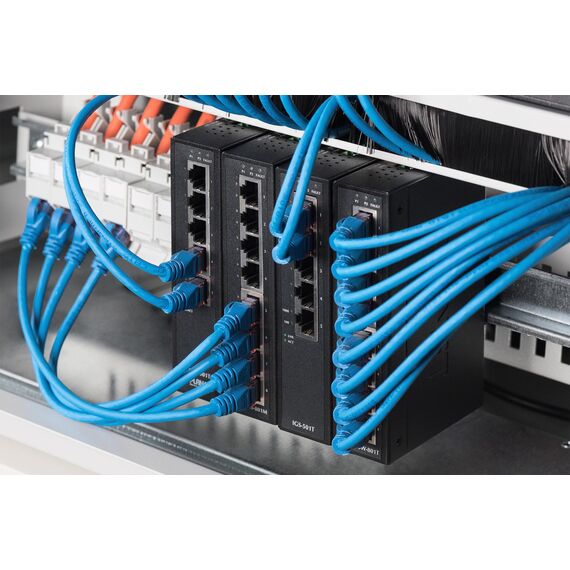

- Keeps DIN-rail PSUs and industrial switches next to the network equipment they serve.
- Rear opening (40 x 35 mm) for feeding cables to the devices.
- Ventilation slots help passively cooled DIN devices.
What Will Not Work
- G-rail or 15 mm mini DIN rail devices.
- Device rows wider than 390 mm in total — consider two panels or the 4U version (DN-19-DIN-4U).
- Racks without 19-inch rails or with less than about 15 cm usable depth.
- It is a mounting panel only: no power distribution, terminals or protection are included.
Key Features
Built-in DIN rail
35 x 390 mm top-hat rail ready for devices.
Steel build
1.5–2.0 mm powder-coated sheet steel.
Cabinet colour
Light grey RAL 7035.
Cable entry
Rear opening and ventilation slots.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide

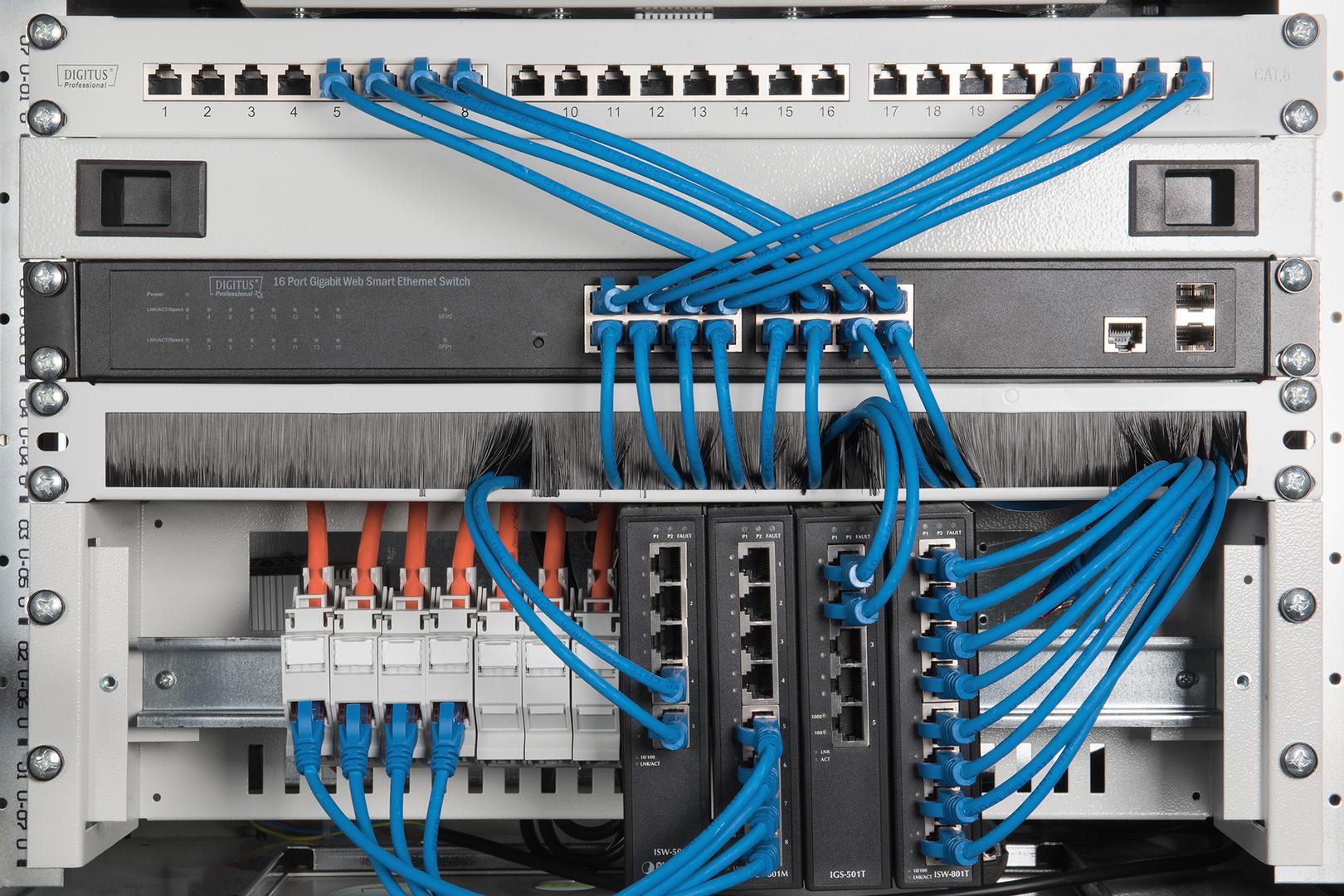

Mixing industrial DIN devices and 19-inch network gear is common in factories, hotels and solar installations. A DIN rail panel keeps both in one cabinet. Pair it with a Digitus DIN-rail PSU and the rest of our rack accessories.
✓ Buy it if you need to install DIN-rail devices inside a 19-inch rack cabinet.
✕ Skip it if your devices use G-rail or mini rail, or need more than 390 mm of rail.
→ Also consider the Digitus DN-19-DIN-4U for taller DIN devices.
Send us the list of DIN devices you want to fit and we will check the rail length and depth before you order.
Features - Digitus - DN-19-DIN-3U
More Details
Product Code
04:283559
EAN Code
4016032447870
Manufacturer
Digitus
