DIGITUS L-Shaped Slide Rails for 19-inch Network Enclosures, Set of 2, 350-600 mm Depth, 100 kg Load, Galvanized Steel

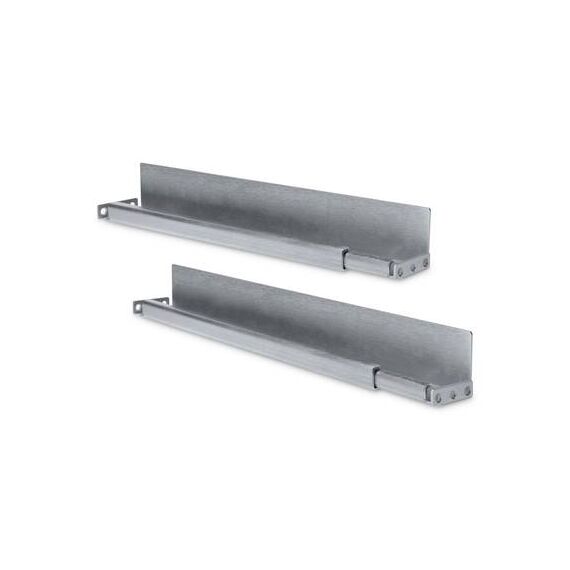

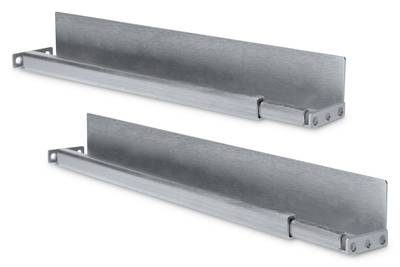

The DIGITUS DN-19 GS-NW is a set of two L-shaped, depth-adjustable slide rails that support heavy equipment in DIGITUS Unique and Unique Light 19-inch network enclosures with 600 mm or 800 mm external depth, rated for 100 kg. It is for installers who need to carry the weight of a rack server, a rack UPS or other heavy 19-inch devices that should not hang from their front ears alone.

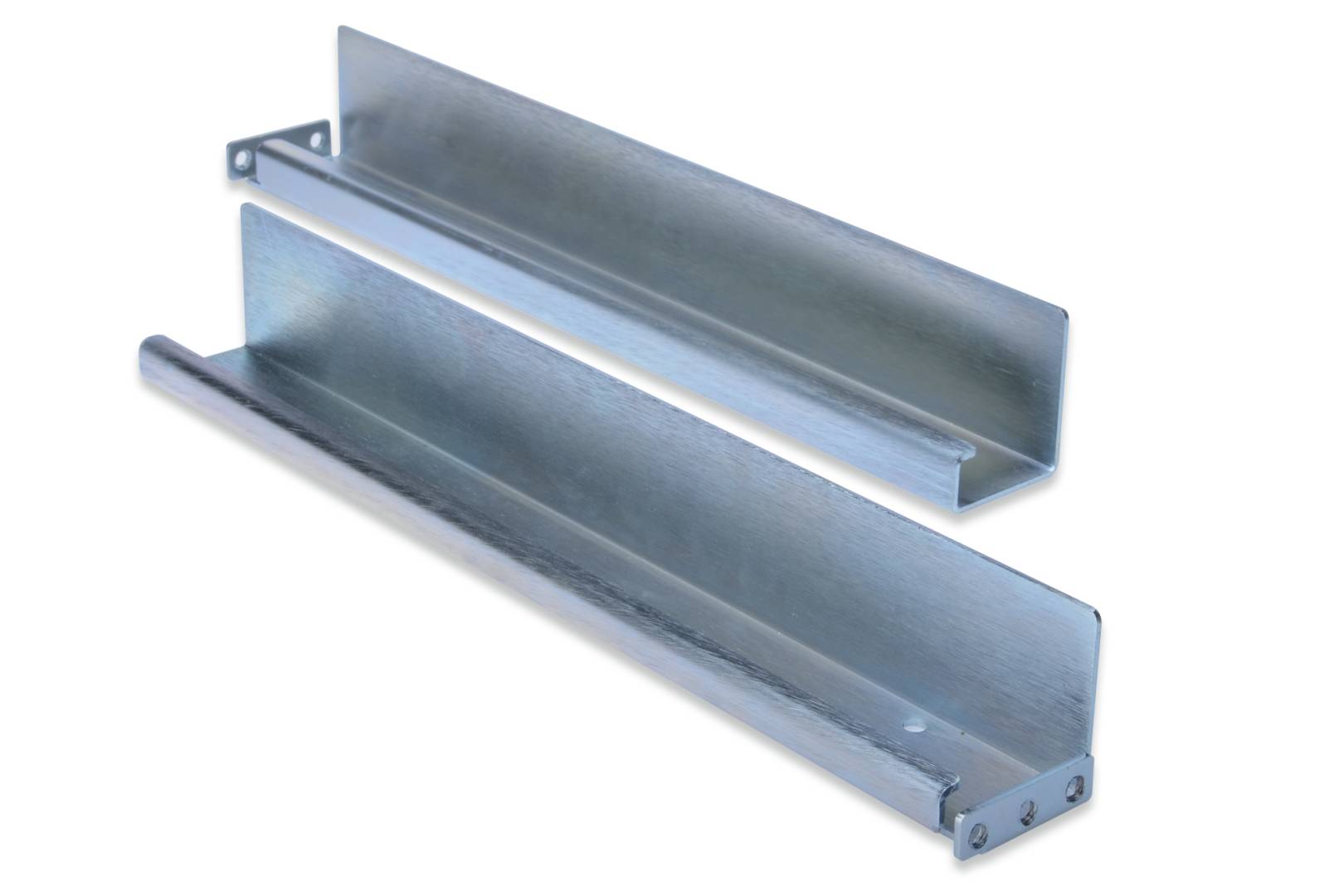

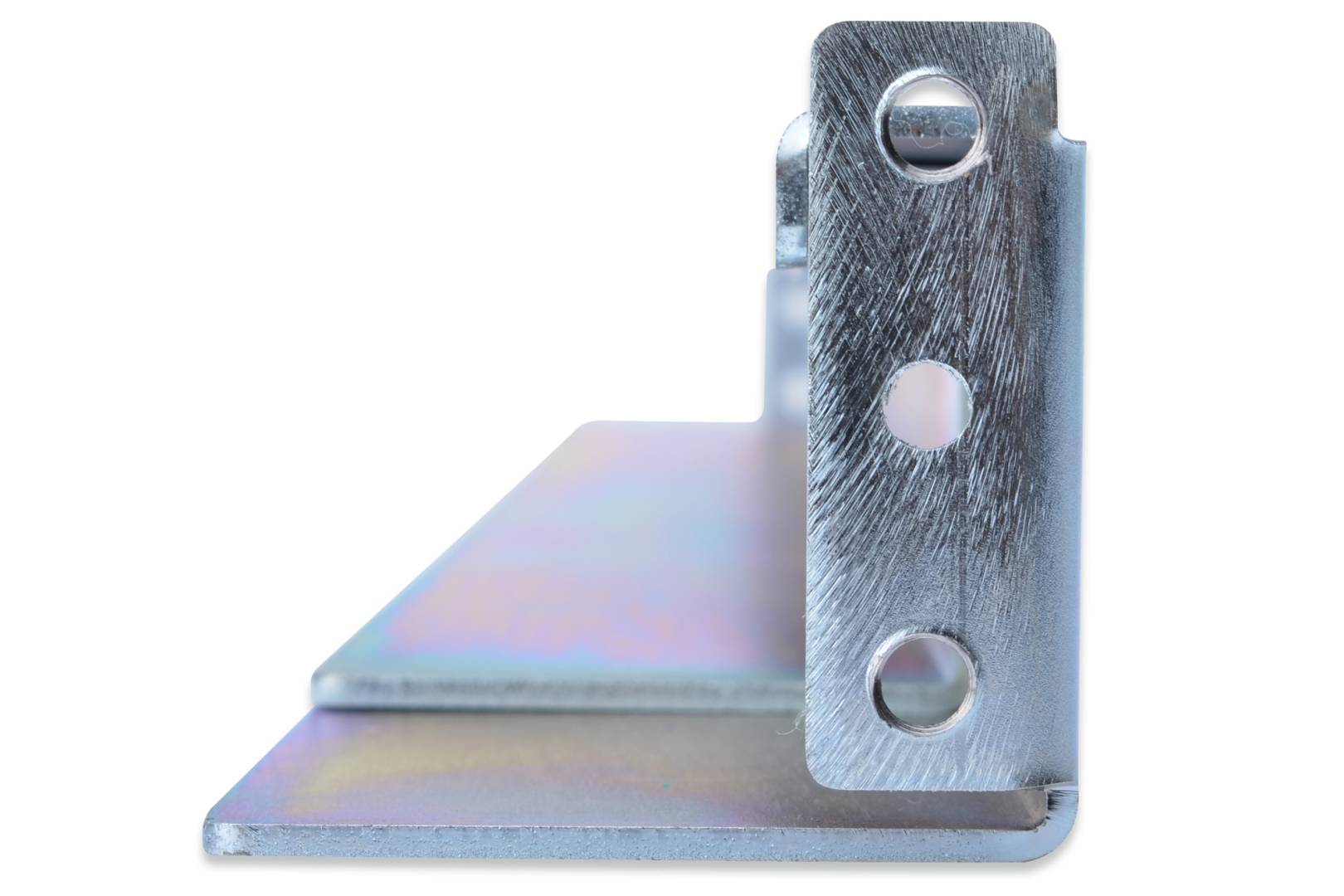

Each rail is made of 2 mm galvanized sheet steel and consists of an inner and an outer profile, so the length follows the distance between the front and rear uprights. The equipment rests on the L-shaped ledge, and the front ears of the device are still screwed to the rack as usual.

• 2 x L-shaped slide rails (each with inner and outer profile)
• Fastening material

• The rails take the weight off the front ears of a heavy device, which prevents bent ears and sagging equipment.
• Depth adjusts from 350 to 600 mm, so the same set covers 600 mm and 800 mm DIGITUS network enclosures.
• In DIGITUS Unique cabinets they mount into threaded holes, so no cage nuts are needed.
• They are support rails, not telescopic slides - the device slides in and out along the ledge but does not extend on ball bearings.

• They are not telescopic ball-bearing slides; you cannot pull a running server out for service on them.
• They are not designed for DIGITUS server cabinets - use DN-19 GS-SRV for those.
• They do not replace the front fixing of the device; its rack ears must still be screwed to the uprights.
• They will not reach front and rear uprights spaced outside 350-600 mm.
