DIGITUS 19-Inch Fixed Shelf 1U, Front 2-Point Mounting, 400 mm Depth, 15 kg, Perforated, Black RAL 9005, for Cabinets from 600 mm

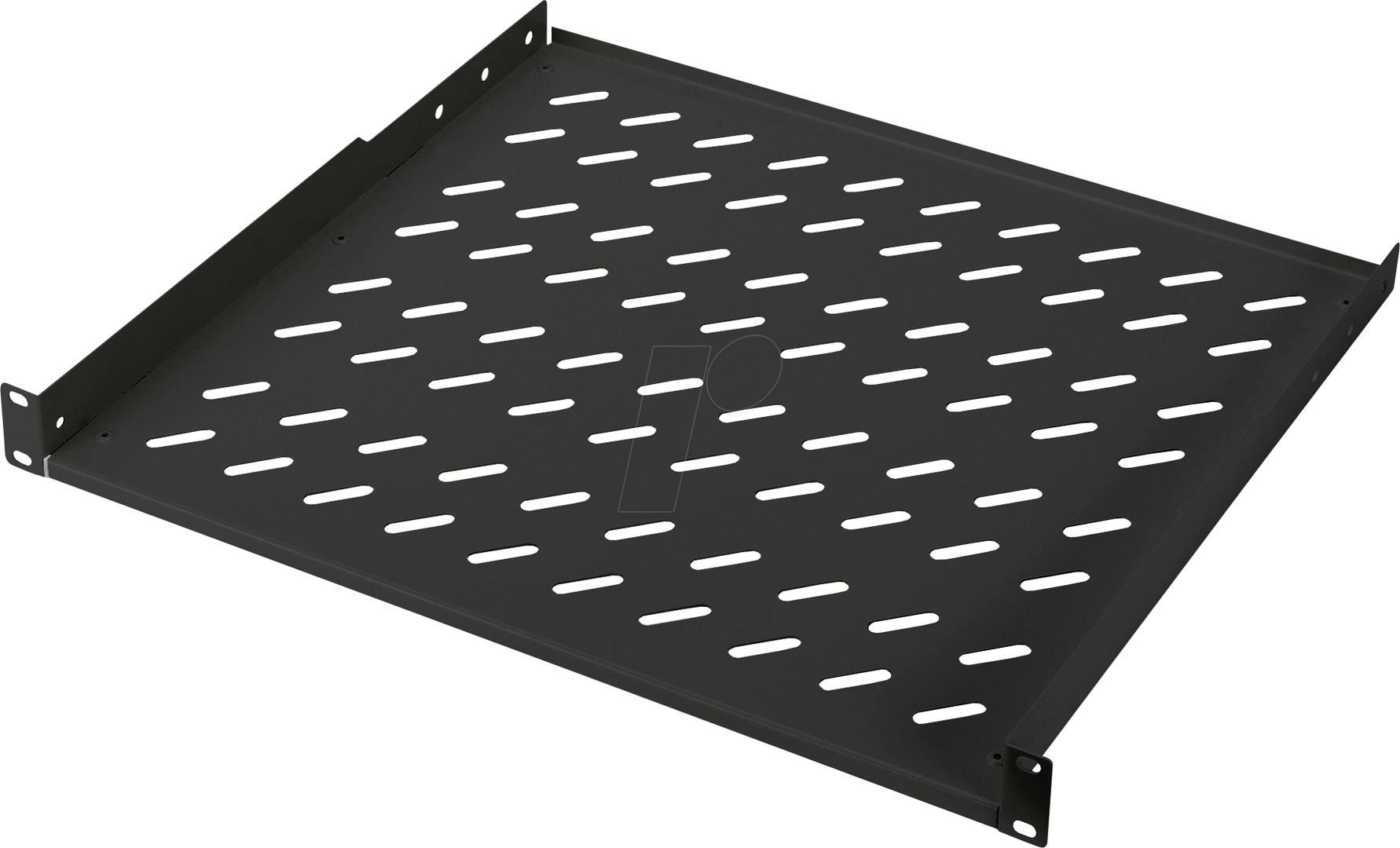

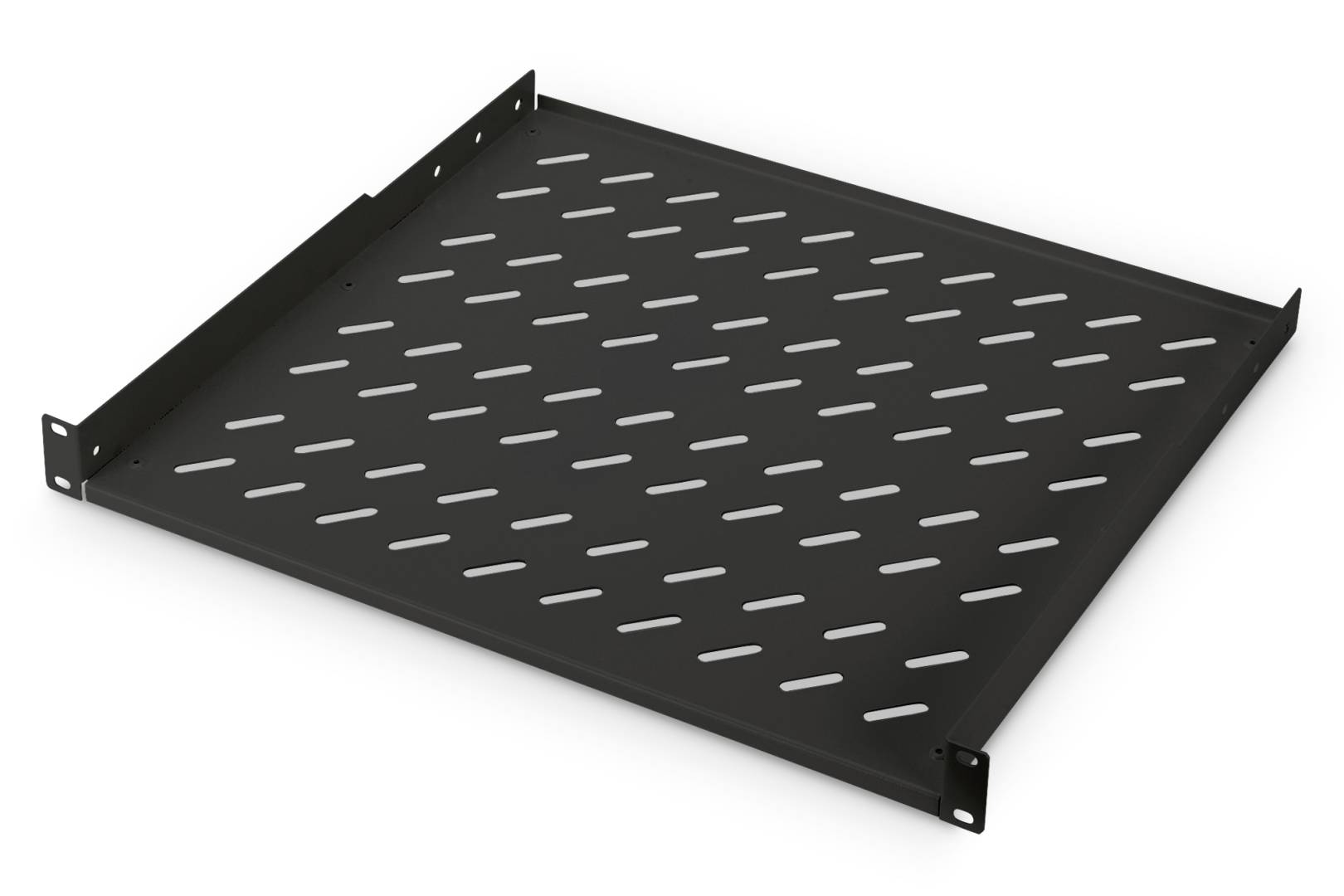

The DIGITUS DN-19 TRAY-1-400-SW is a 1U 19-inch fixed shelf, 400 mm deep with a 440 x 390 mm storage area, fixed to the front 19-inch rails only and rated for 15 kg, for placing routers, modems, small NAS units and other non-rackable devices in network cabinets from 600 mm depth.

Two-point front fixing is the practical choice when the cabinet has no rear rails or when the rear rails are set at a depth that a four-point shelf cannot reach. The shelf is made of sturdy perforated steel sheet, so air can flow through the tray, and the slim 1U design leaves the maximum space for the devices around it. The black RAL 9005 finish matches DIGITUS and most other black cabinets.

• 1 x 19-inch 1U fixed shelf, black RAL 9005
• Installation set: screws, cage nuts and washers

• Front-only fixing: works in wall cabinets and in floor cabinets without a rear rail plane.
• 440 x 390 mm of usable tray for a router, a firewall appliance or a small NAS.
• 15 kg load rating covers most small-office network devices.
• Perforated sheet keeps air moving under devices with bottom vents.

• Cabinets shallower than 600 mm — the shelf is 400 mm deep and DIGITUS specifies cabinets from 600 mm.
• Loads above 15 kg, such as a UPS or a tower server.
• Rear fixing: this model has no rear brackets; for four-point mounting choose a shelf with variable rails.
• Sliding or pull-out use: this is a fixed shelf.
