DIGITUS Professional DN-651112 / PoE injector / 60 Watt / output connectors: 1 | DN-651112

Product Features

· Meets the 802.3af/at PoE standard
· 45~56 volt output voltage, 60 watts
· RJ45 LAN input
· LAN (RJ45) output, power supply via pin: 4/5(+), 7/8(-) and 3/6(+), 1/2(-)
· Cable connection: 10/100/1000 Mbps
· The output has a current limit, a short-circuit protection and an automatic terminal device detection and classification
· Power consumption: 3W max.
· Operating temperature: -40°C - 75°C
· Less than 0.3W idle consumption
· Compact, robust metal housing
· Excellent short circuit protection
· Lightning and overvoltage protection

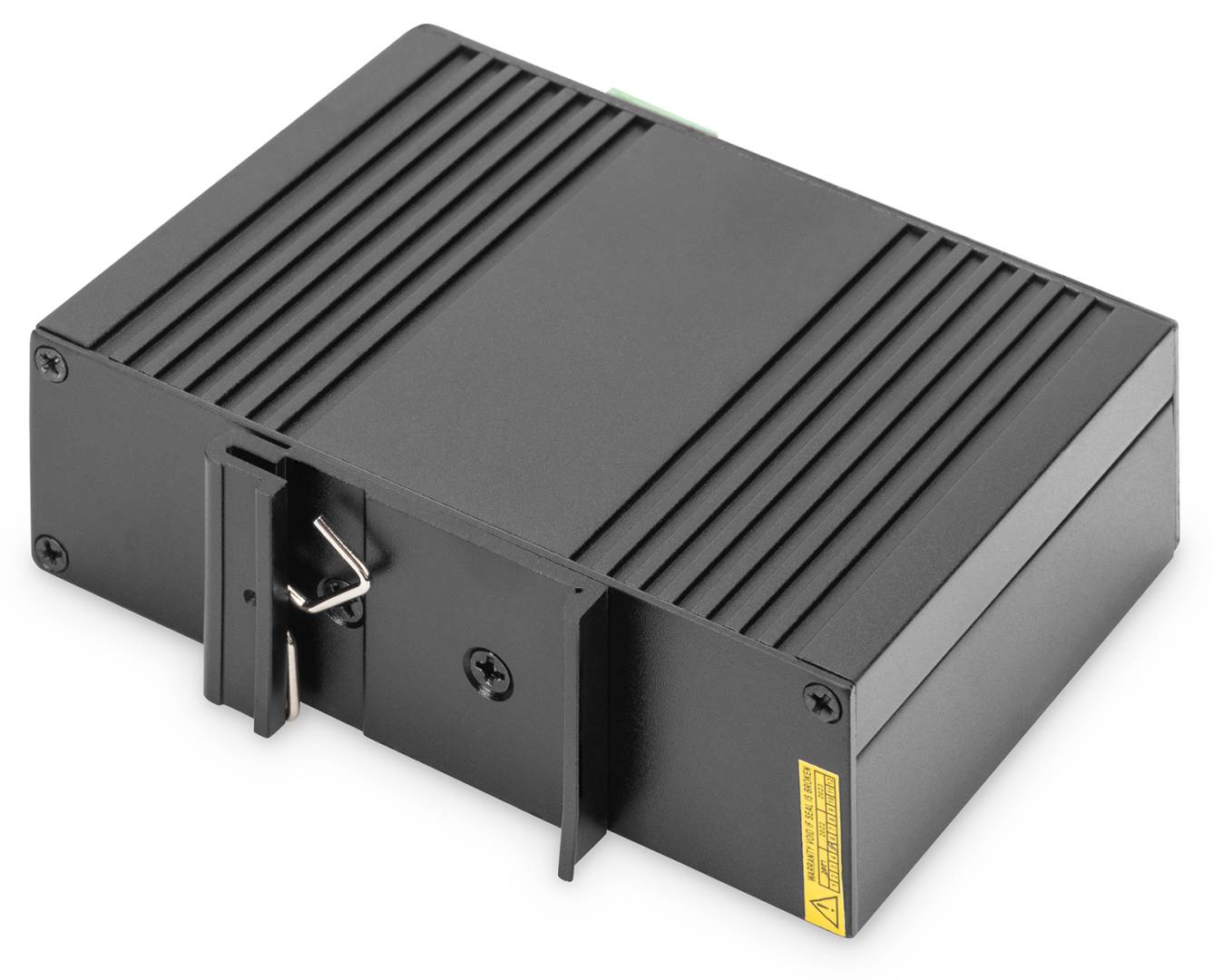

· DIN rail (top hat rail) and wall mounting possible

Special Features

· Industrial Gigabit PoE+ Injector 802.3 af/at
· Meets the 802.3af/at PoE standard
· 48~55V output voltage, 60W

Product Specification

Device Type	PoE injector - external
Power Over Ethernet (PoE)	PoE+ (IEEE 802.3at)
Power Device	Power Device
Input Connectors	Terminal block
Power Consumption Operational	3 Watt
Power Output Connectors Details	1 x RJ-45
Output Voltage	48 - 55 V
Power Capacity	60 Watt
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x Gigabit LAN - RJ-45
Miscellaneous	Miscellaneous
Features	Wall mountable, metal housing, DIN rail mountable
Compliant Standards	IEEE 802.3af, IEEE 802.3at
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	75 °C
Dimensions & Weight	Dimensions & Weight
Width	7.7 cm
Depth	10.3 cm
Height	3.2 cm
Weight	300 g
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	12.5 cm
Shipping Depth	16.5 cm
Shipping Height	5 cm
Shipping Weight	410 g
