Digitus Cat6 Keystone Module Shielded, Tool-Free RJ45 Jack - 250 MHz, Gigabit Ethernet, LSA Colour-Coded T568A/B
Brand:
Digitus
Digitus Cat6 Keystone Module Shielded, Tool-Free RJ45 Jack - 250 MHz, Gigabit Ethernet, LSA Colour-Coded T568A/B
€5.89 inc. VAT
DN-93612-1
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

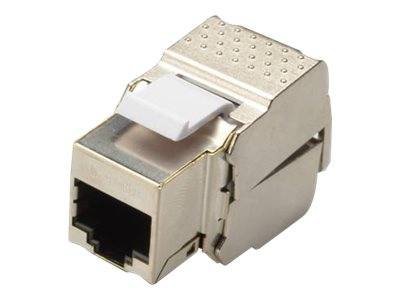

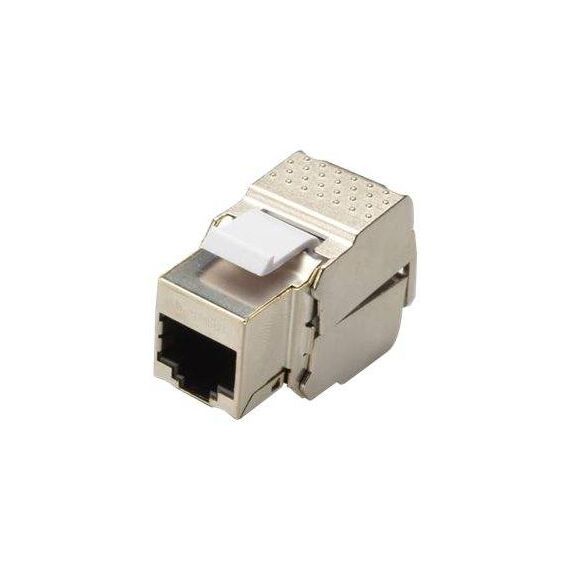

Digitus Cat6 Shielded Keystone Module — Tool-Free RJ45
Cat6 · Class EShielded 360°Tool-free LSAAWG 22–26
The DIGITUS DN-93612-1 is a shielded Category 6 keystone jack that terminates installation cable into an RJ45 socket without a punch-down tool. It is built for installers and IT teams fitting out modular patch panels, wall outlets and junction boxes in Gigabit structured cabling.

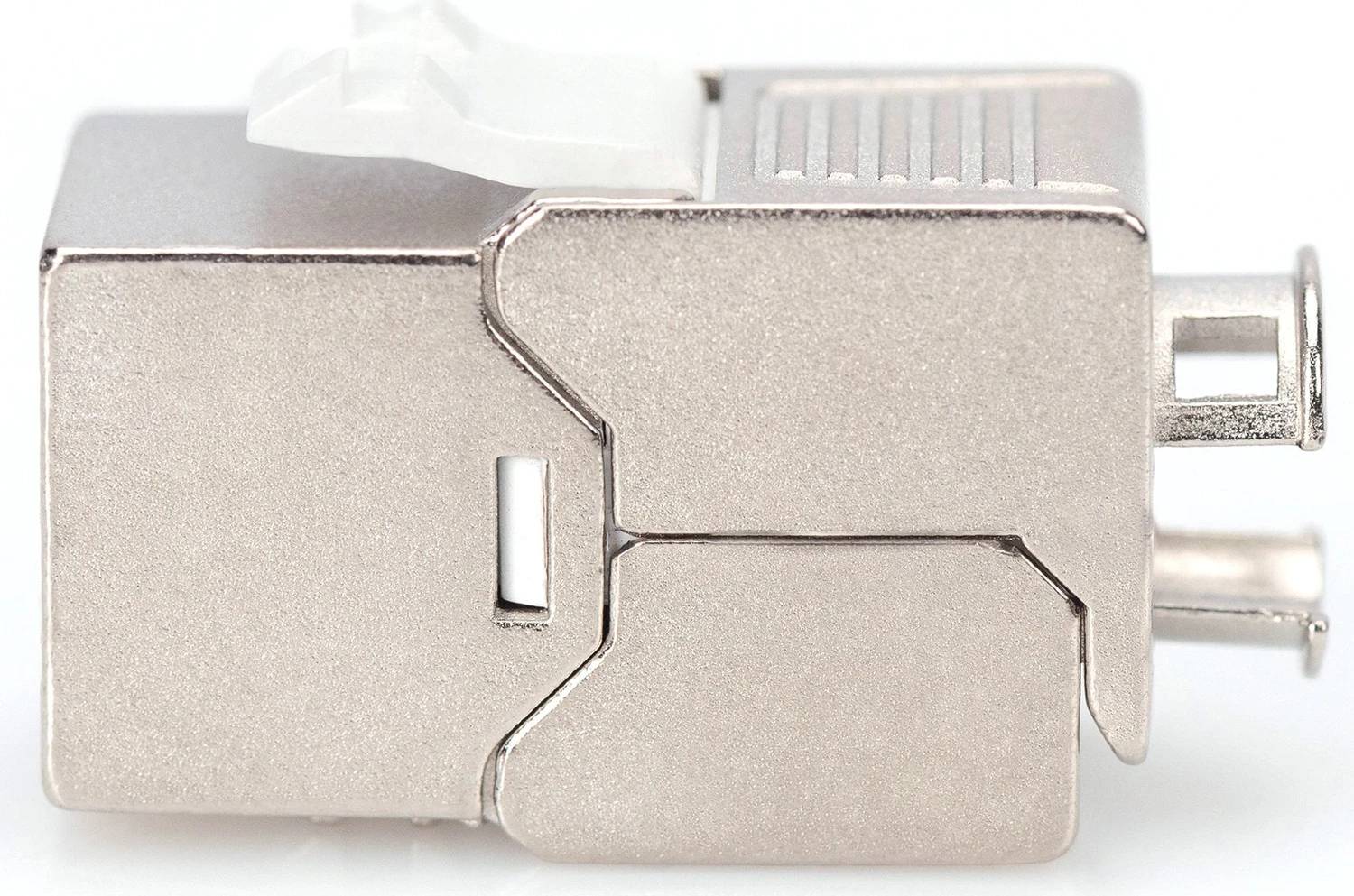

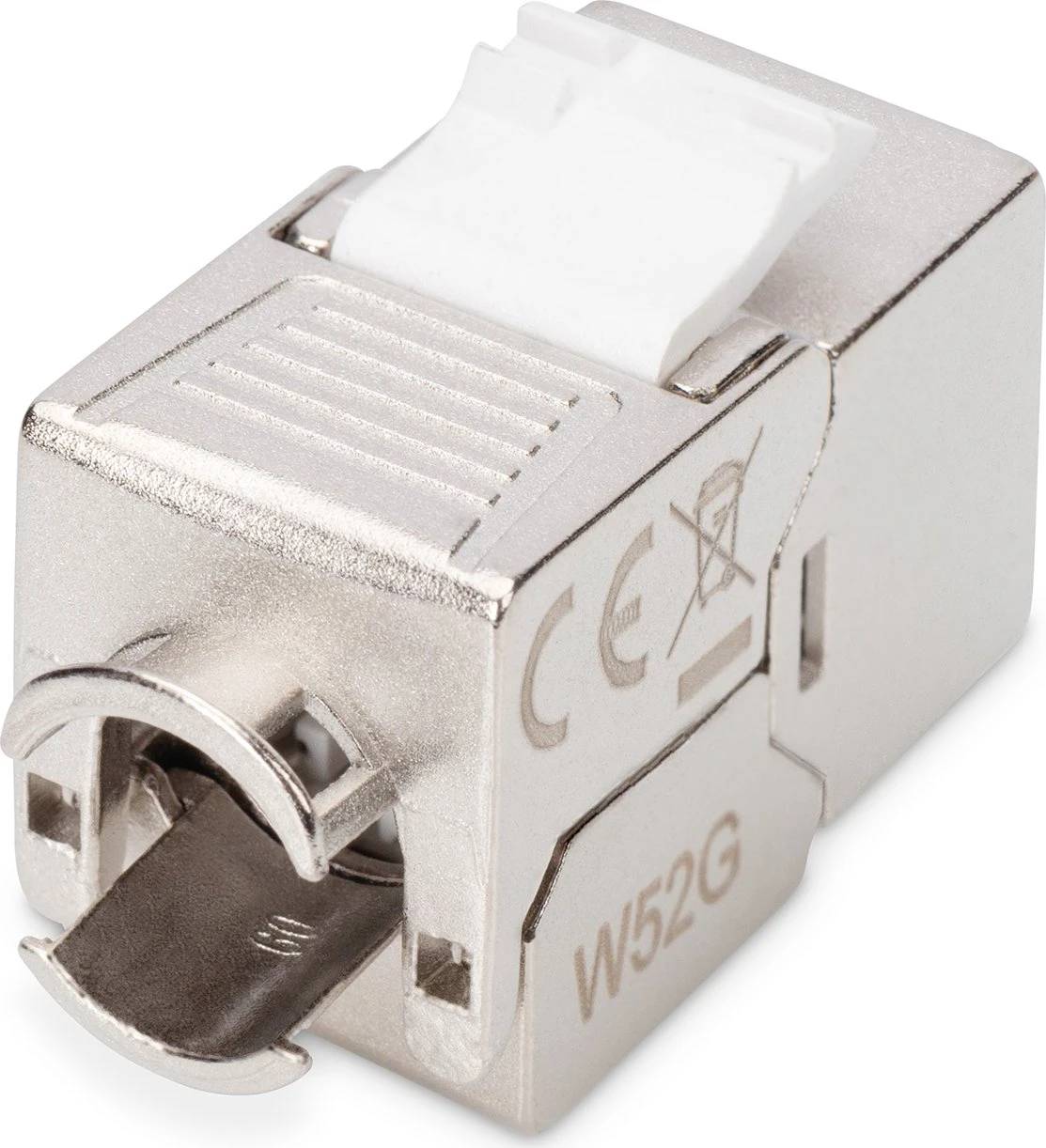

The wires are pressed into colour-coded LSA contacts by closing the integrated cap by hand, and the cap can be reopened if a termination has to be redone. A zinc die-cast body gives 360° shield contact, so a shielded cable stays shielded right up to the socket.
Before you order: This is one module. Patch panels and outlets are sold empty — check that your panel or faceplate takes standard keystone modules before ordering.
What's in the Box
- 1 × DIGITUS Cat6 shielded keystone module, tool-free (DN-93612-1)
- Patch panel, faceplate and cable not included
What It Means in Practice
- Terminate Cat6 installation cable at the panel and at the wall outlet with the same module, so both ends of the permanent link match.

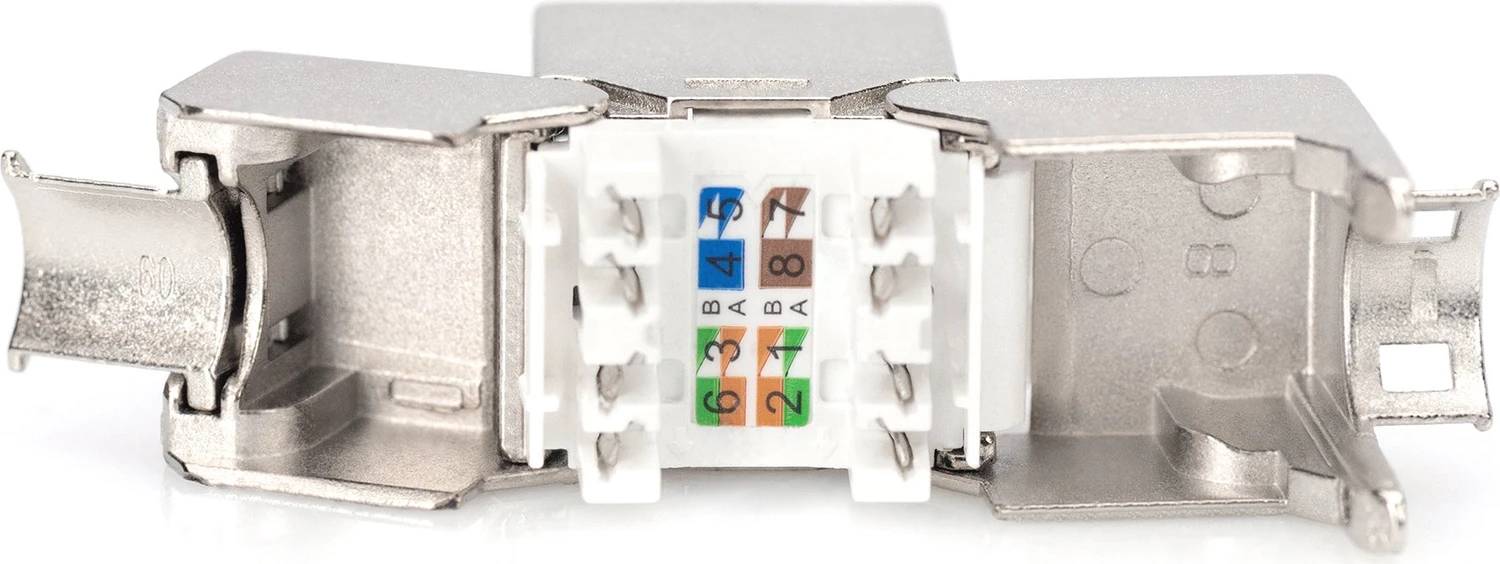

- No punch-down tool needed: lay the pairs in the colour-coded slots (T568A or T568B) and close the cap.
- Mistakes are fixable — the locking cap reopens without tools for re-termination.
- With 24 modules fitting a 1U 19" panel, you can build a full 24-port shielded panel from individual jacks.
What Will Not Work
- Not for 10 Gbit over long runs — the module is rated Cat6 / 1GBase-T; choose a Cat6A keystone for 10GBase-T.
- It does not crimp onto patch-cord plugs; it is for solid or stranded installation cable punched into LSA contacts.
- It will not shield an unshielded (U/UTP) installation — shield continuity needs shielded cable and a grounded panel.
- Not suitable for wet or outdoor locations; storage and installation must stay dry.
Key Features
Tool-free termination
Integrated locking caps press the conductors into the LSA contacts by hand.
360° shielding
Nickel-plated zinc die-cast housing makes full shield contact with the cable.
Gold-plated contacts
Specified for more than 750 mating cycles.
High density
24 modules fit one 483 mm (19") 1U panel.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Tool-free shielded keystones save time on site and make re-termination painless, which is why we suggest them for small and mid-size Cat6 installations. For panels, shelves and cable management to go with them, see our rack accessories.
✓ Buy it if you are building a Gigabit Cat6 shielded installation with keystone panels or outlets.
✕ Skip it if you need 10GBase-T — the Cat6A tool-free module DN-93617 is the right part.
→ Also consider DIGITUS keystone faceplates and empty modular patch panels for a complete outlet.
Not sure the module fits your panel or faceplate? Send us its model and we will check before you order.
Features - Digitus - DN-93612-1
More Details
Product Code
04:206423
EAN Code
4016032378518
Manufacturer
Digitus
