Digitus Professional Keystone Faceplate for 2 Modules, 80 x 80 mm Frame, 50 x 50 mm Central Plate, Straight Entry, White RAL 9003

Brand:
Digitus
Digitus Keystone Faceplate 2-Port 80x80 mm White
Digitus Professional Keystone Faceplate for 2 Modules, 80 x 80 mm Frame, 50 x 50 mm Central Plate, Straight Entry, White RAL 9003
€6.25 inc. VAT
Buy
DN-93832
€5.25
€6.25 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:365864
EAN Code
4016032435228
Manufacturer
Digitus

Quick Specs

Type
Keystone faceplate (wall outlet)
Ports
2 x keystone, straight entry
Key spec
80 x 80 mm frame · 50 x 50 mm insert
Compatibility
Standard keystone modules (not included)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Digitus Professional Keystone Faceplate — 2 Modules, 80 x 80 mm, White

2 x keystone80 x 80 mm frameStraight entryWhite RAL 9003

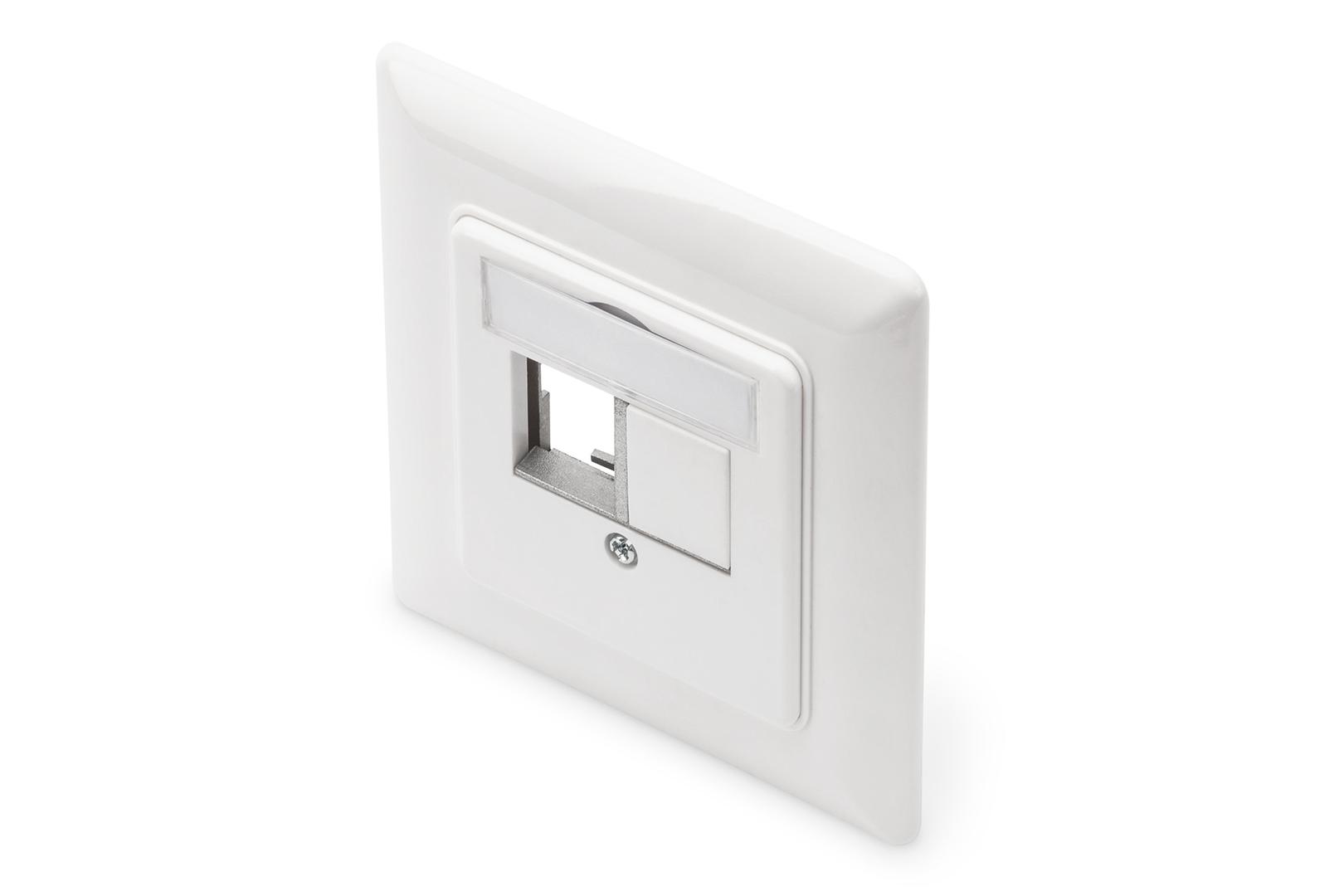

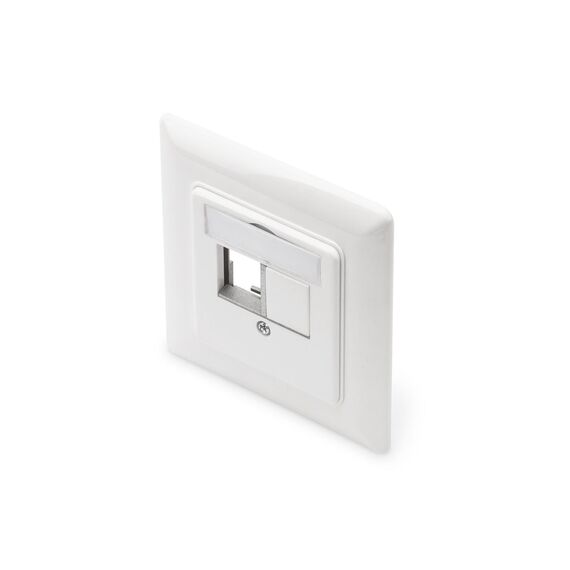

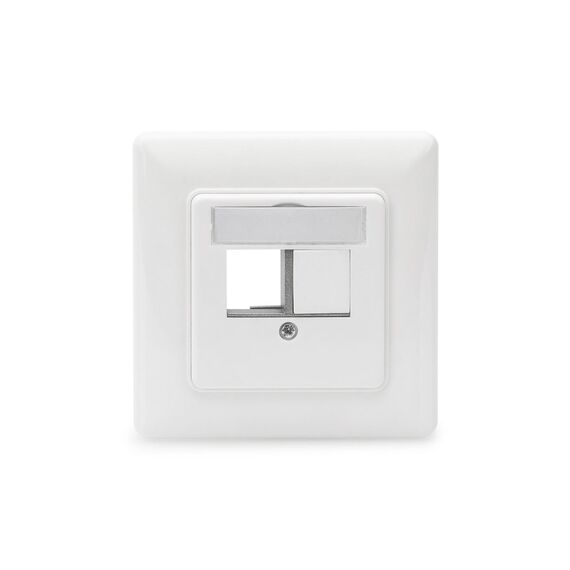

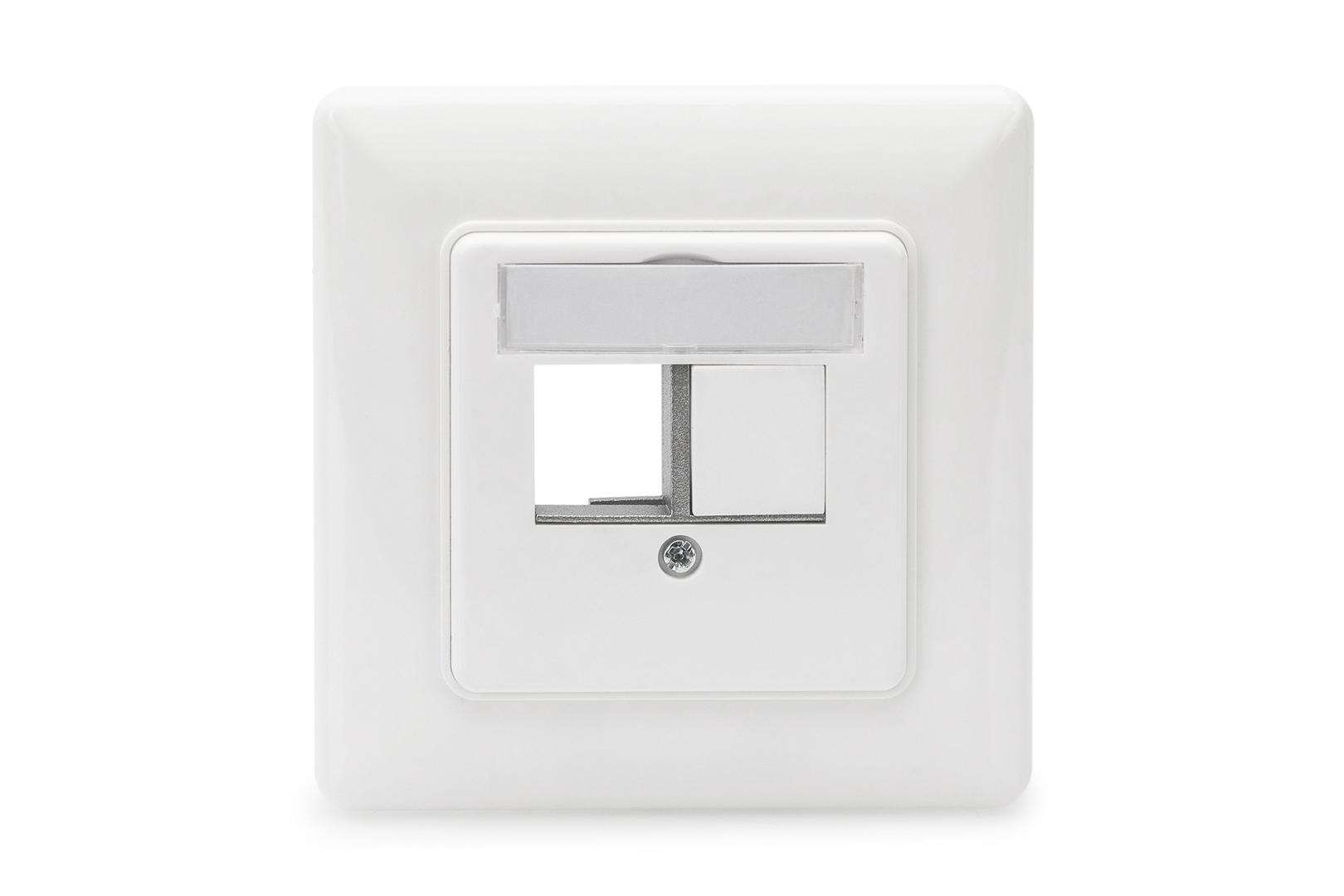

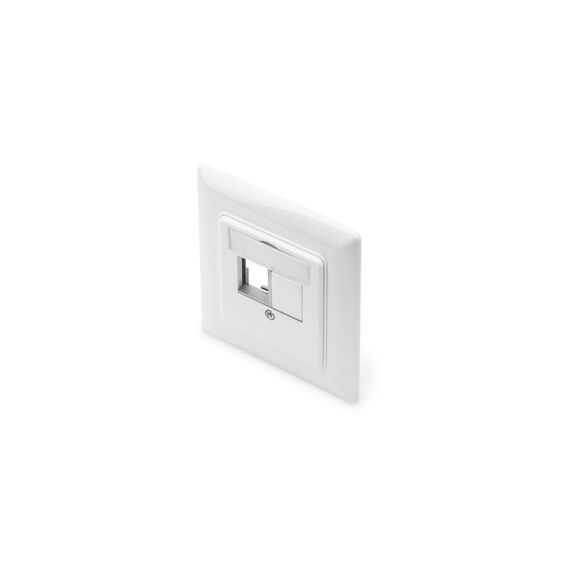

The Digitus Professional DN-93832 is a keystone faceplate for two modules, with an 80 x 80 mm frame and a 50 x 50 mm central plate in white RAL 9003, for building network, USB or HDMI wall outlets from snap-in keystone modules. It is for installers and offices that want a clean wall or trunking outlet using the same keystone modules as their patch panel.

The modules enter straight from the front. The outlet can be flush-mounted in a cavity box, surface-mounted or fitted in cable trunking, has a central ground connection and a plastic label field, and is specified to ISO/IEC 11801 3rd Ed., EN 50173-1 and EIA/TIA 568-C.

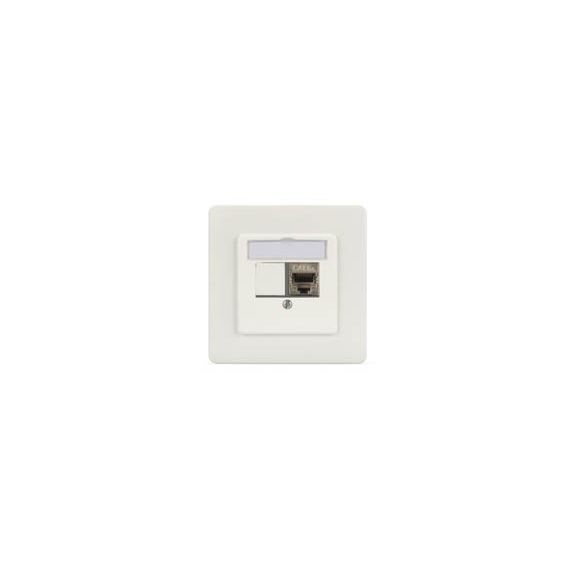

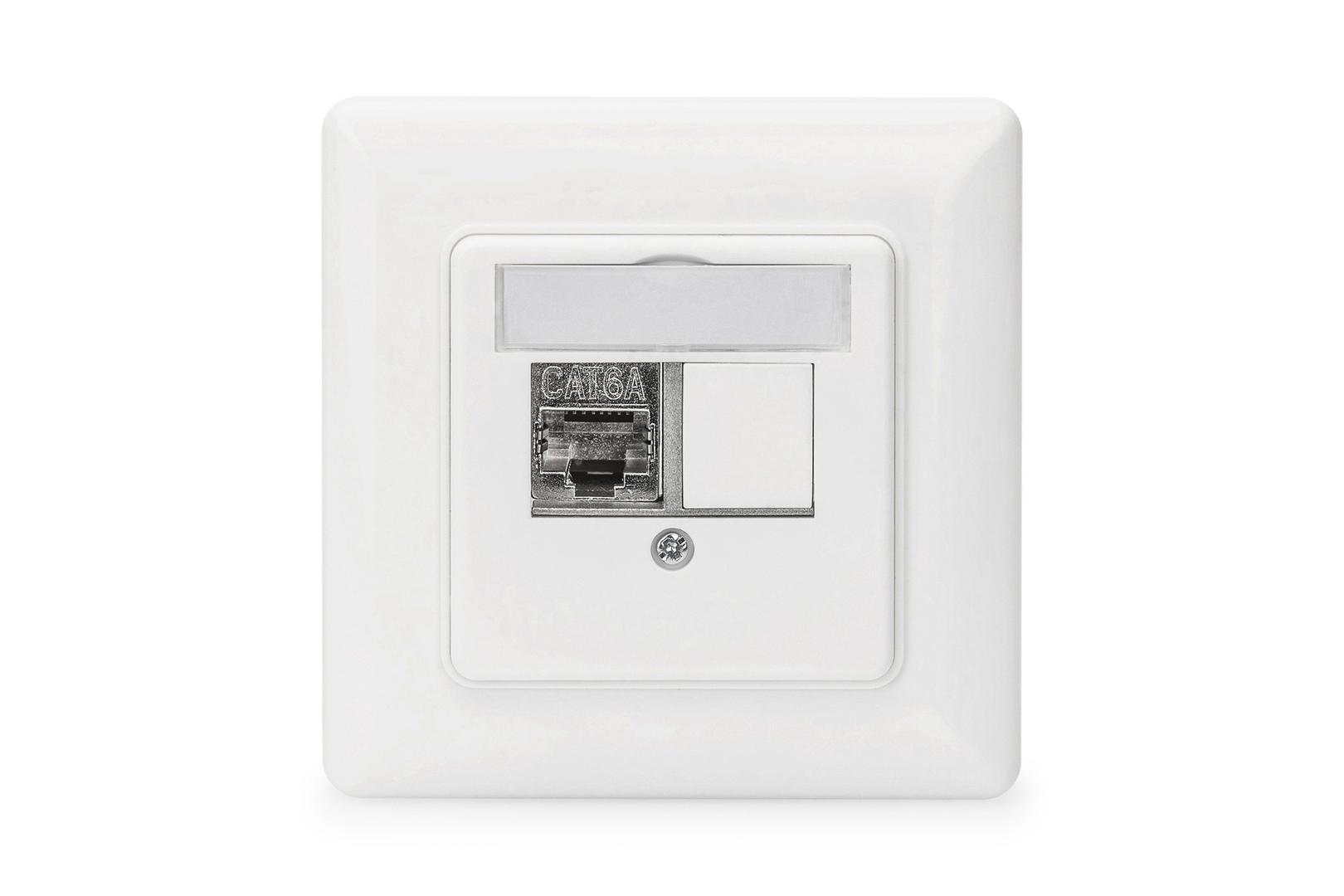

Before you order: Keystone modules are not included — order them separately. Digitus lists compatible modules such as DN-93617 / DN-93615 (Cat 6A), DN-93400 / DN-93402 (USB 2.0), DN-93401 / DN-93403 (HDMI) and DN-93404 (USB 3.0). If you only need one port, the supplied blind insert covers the unused opening.

What's in the Box

  • 1 x faceplate with 80 x 80 mm frame and 50 x 50 mm central plate for 2 keystone modules
  • 1 x blind insert for an unused opening

What It Means in Practice

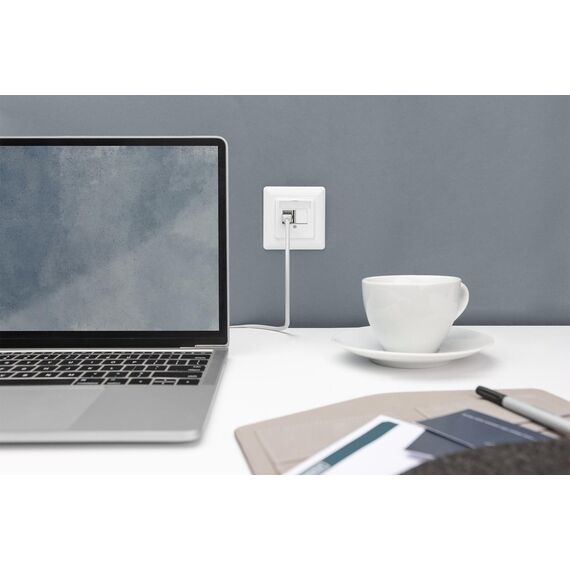

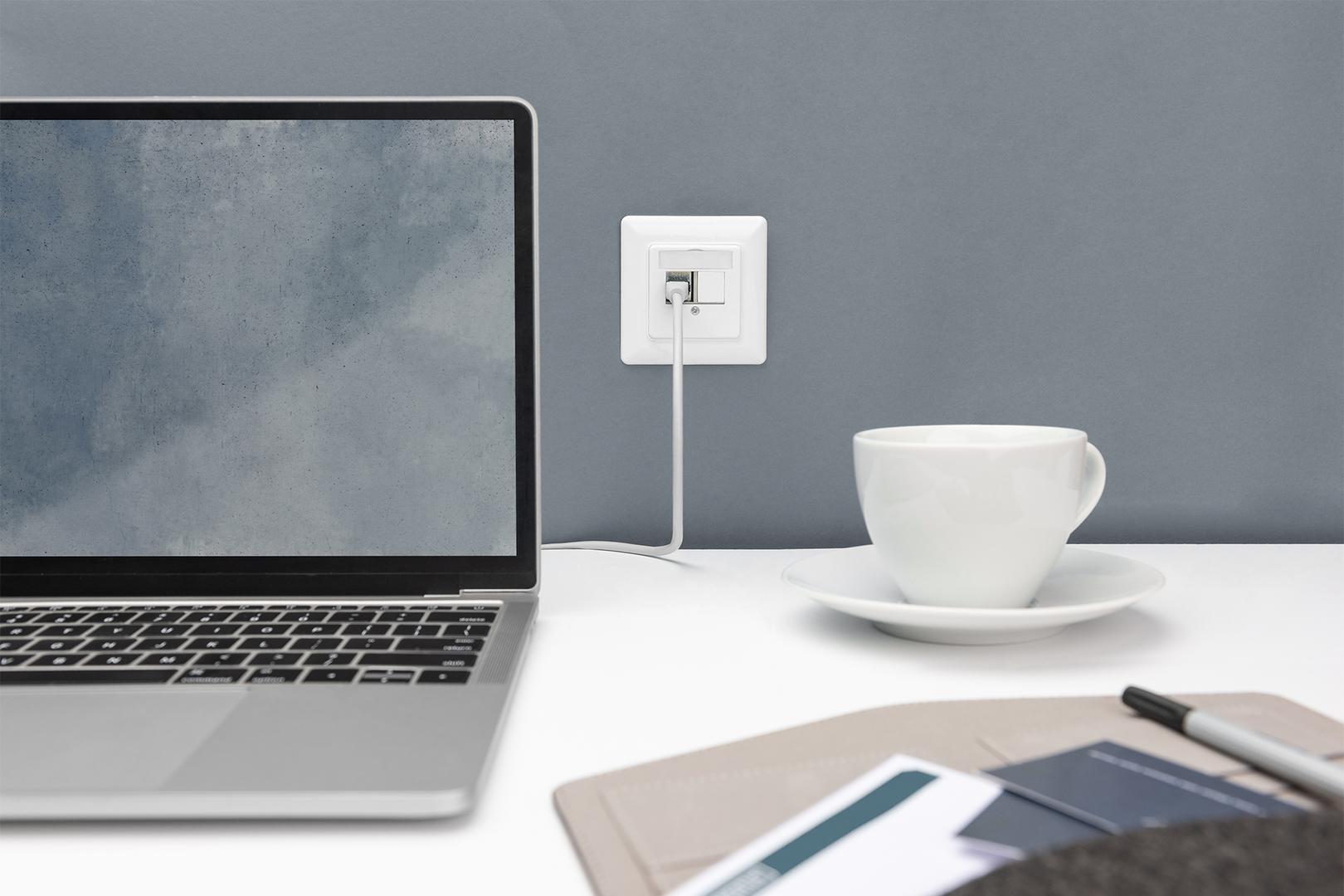

  • Mix and match: one network jack plus one HDMI or USB module in the same outlet
  • Same keystone modules as your patch panel, so spares are interchangeable
  • Fits a standard cavity box, a surface box or trunking — one product for all three installation types
  • Label field lets you number outlets to match the patch panel

What Will Not Work

  • No keystone modules in the box — the outlet does nothing until you add them
  • Not tool-free RJ45 jacks: the modules you choose decide how cables are terminated
  • The 80 x 80 mm frame does not match UK/Cyprus BS-style square switch plates (86 x 86 mm) — check your wall box
  • Not for outdoor or wet locations

Key Features


2 keystone positions
Accepts standard keystone-format modules — network, USB or HDMI.

Three mounting options
Flush (cavity box), surface or trunking mount.

Standards-compliant
ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C; central ground connection.

Technical Specifications

Identification
Part Number DN-93832
EAN / GTIN 4016032435228
Brand Digitus Professional (Assmann)
Mechanical
Type Faceplate for keystone modules
Ports 2 x keystone, straight entry
Frame 80 x 80 mm
Central plate 50 x 50 mm
Material Central plate, frame, surface box: ABS UL94 V-0; outlet: die-cast metal
Colour White RAL 9003
Mounting Flush (cavity box), surface mount, trunking
Grounding Central ground connection
Net dimensions 1.9 x 8 x 8 cm
Environment & Standards
Operating temperature -20 to +70 °C
Standards ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer does not publish a warranty term — claims handled through Singular

Frequently Asked Questions

Which keystone modules fit?
Standard keystone-format modules. Digitus names its Cat 6A, USB 2.0/3.0 and HDMI keystones; most standard keystones from other brands also snap in.
Can I use it for just one port?

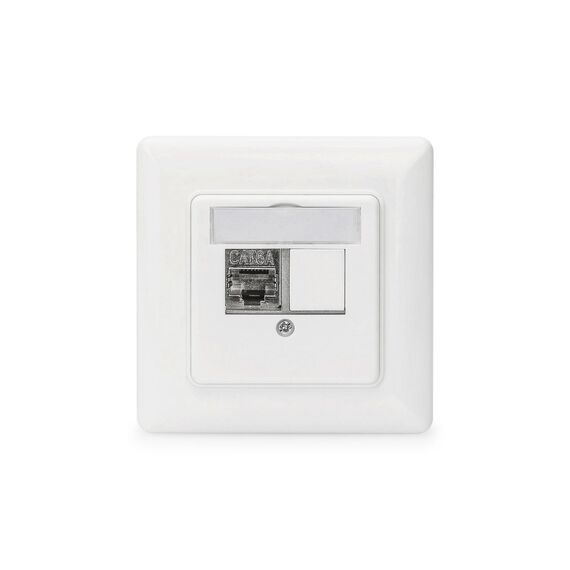

Yes. Fit one module and close the other opening with the supplied blind insert.
Will it fit my existing wall box?
It mounts in a cavity box, on a surface box or in trunking. For BS-style 86 x 86 mm boxes common in Cyprus, tell us your box and we check the fit.
Singular Expert Insight · Buyer's Guide
Keystone outlets make office cabling flexible: the same module type sits in the wall and in the patch panel, and a port can change from network to HDMI without replacing the outlet. Plan the modules together with the faceplate, then connect the desk side with short patch cables.
✓ Buy it if you are building keystone-based wall or trunking outlets and want 2 ports per outlet.
✕ Skip it if you need a complete outlet with jacks already fitted, or a BS-size 86 x 86 mm plate.
→ Also consider Digitus Cat 6A keystone modules (DN-93617) and matching patch panels.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
