DIGITUS Cat6A Field Termination Coupler for Installation Cable, 500 MHz, Fully Shielded, AWG 22-26, Tool-Free, Keystone Design
Brand:
Digitus
DIGITUS Cat6A Field Termination Coupler for Installation Cable, 500 MHz, Fully Shielded, AWG 22-26, Tool-Free, Keystone Design
€7.12 inc. VAT
DN-93909
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

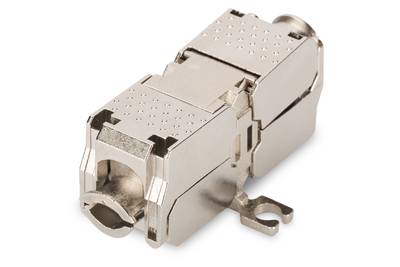

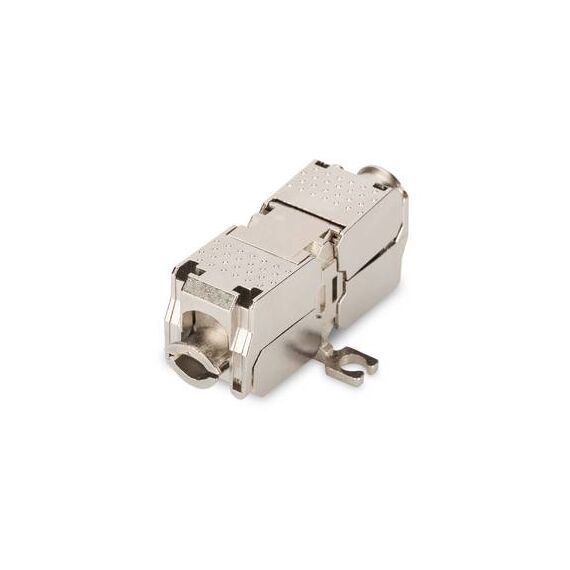

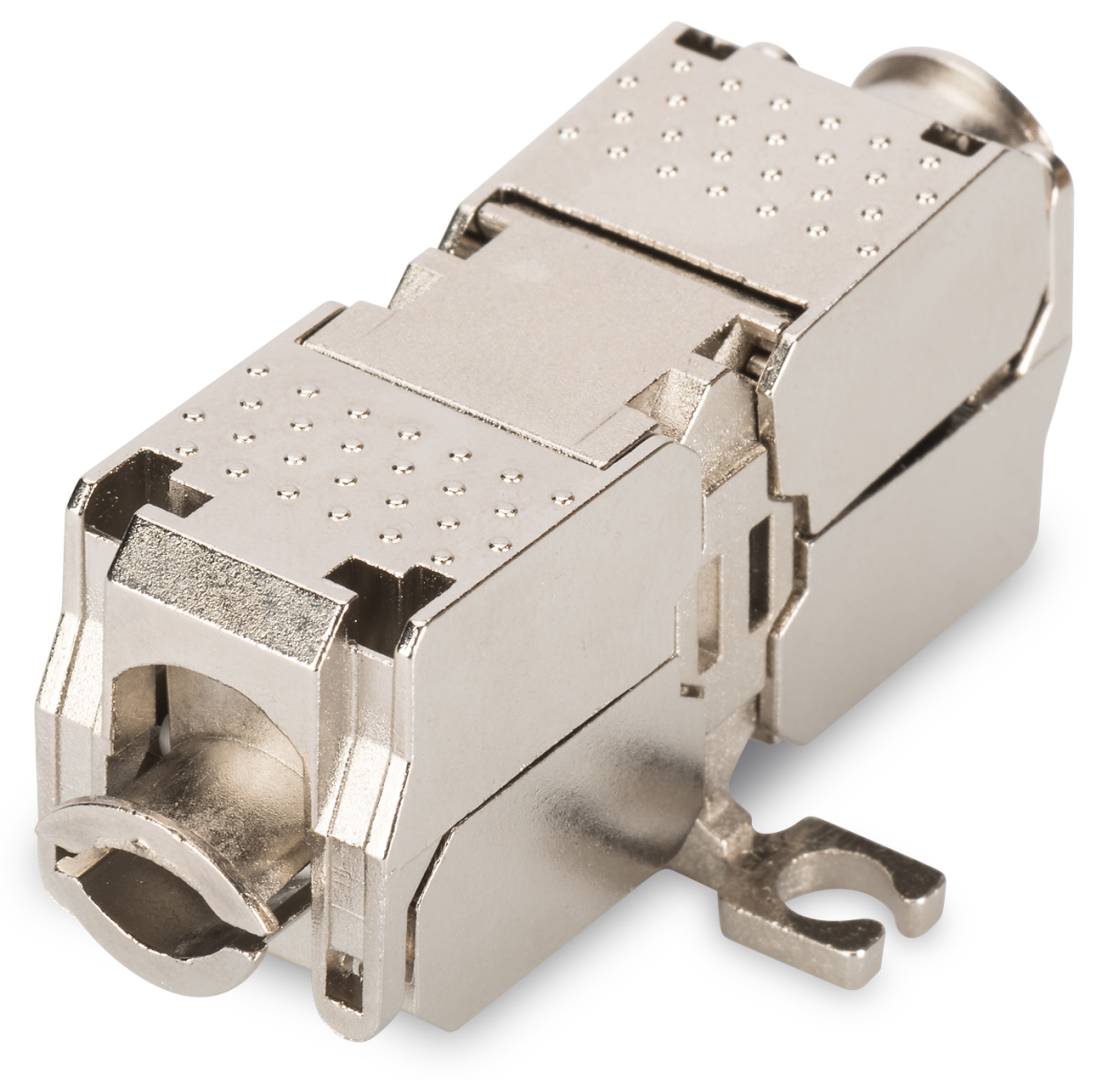

DIGITUS DN-93909 · Cat6A Field Termination Coupler · Shielded
Cat6A · 500 MHzFully shieldedAWG 22-26Keystone design
The DIGITUS DN-93909 is a fully shielded Cat6A field termination coupler that joins two lengths of twisted-pair installation cable directly, wire to wire, for installers who need to extend or repair a damaged cable run without a patch panel or RJ45 plugs.

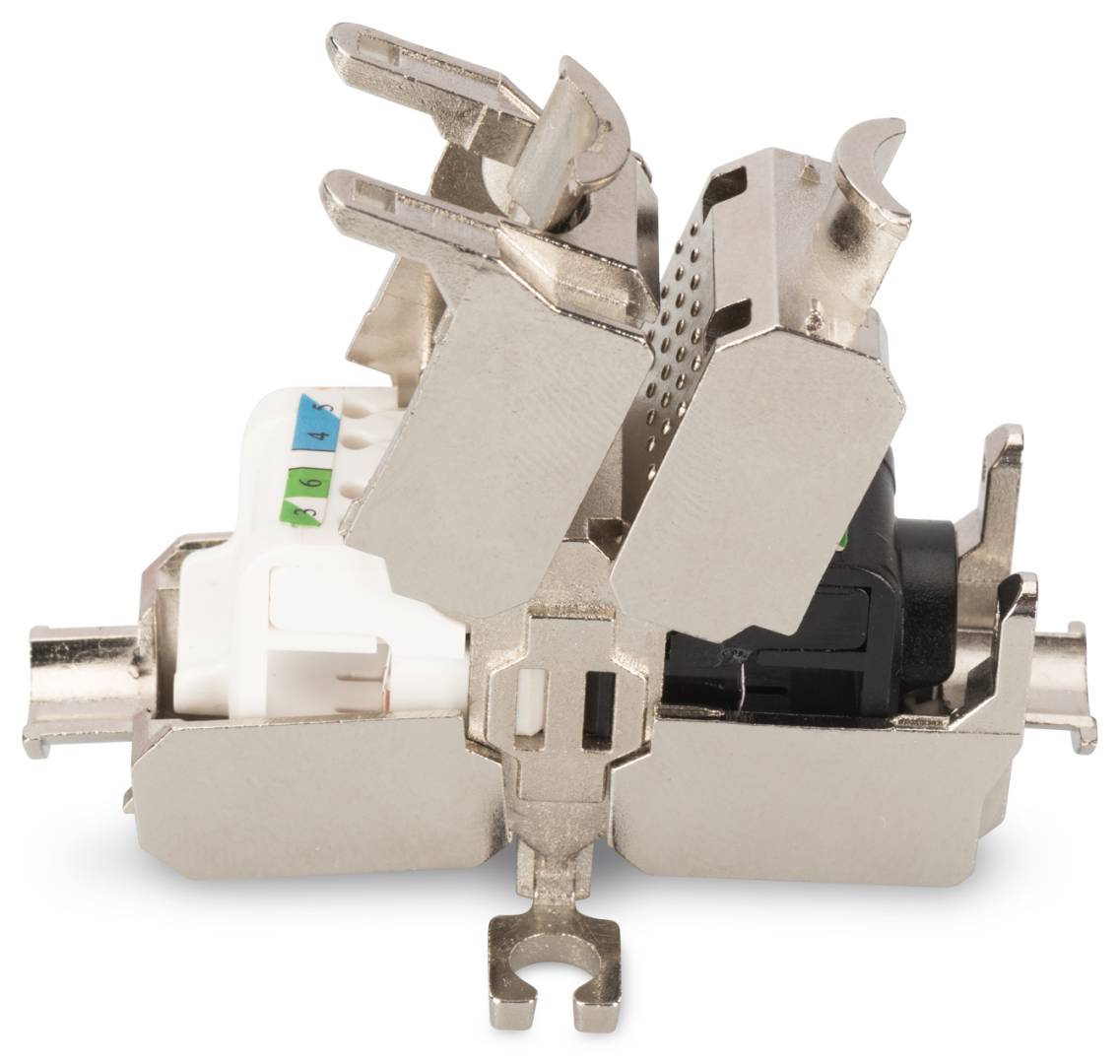

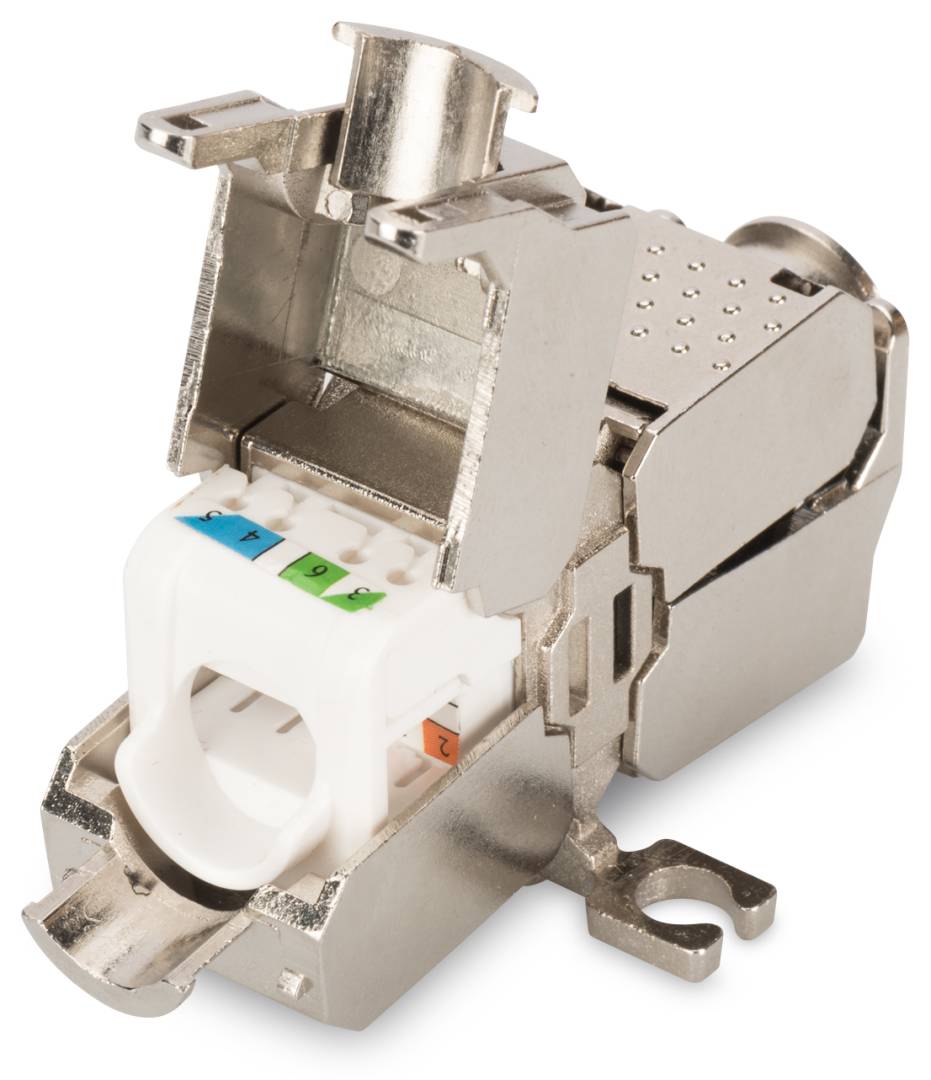

Both cable ends are terminated in the field into the zinc die-cast housing, wired 1:1, for AWG 22 to 26 conductors. DIGITUS rates it Cat6A / Class EA up to 500 MHz, so it suits 10GBase-T links when the rest of the channel is Cat6A as well.
Before you order: This coupler takes bare installation cable on both sides; it has no RJ45 sockets. To join two patch cords with RJ45 plugs you need an RJ45 inline coupler (for example DIGITUS DN-93905).
What's in the Box
- 1 x DIGITUS DN-93909 Cat6A field termination coupler, fully shielded
What It Means in Practice
- Typical use: a cable was cut during building work or ends a few metres short — terminate both ends into the coupler instead of pulling a new run.
- Shielded housing keeps the shield continuous when you use S/FTP or F/UTP cable.

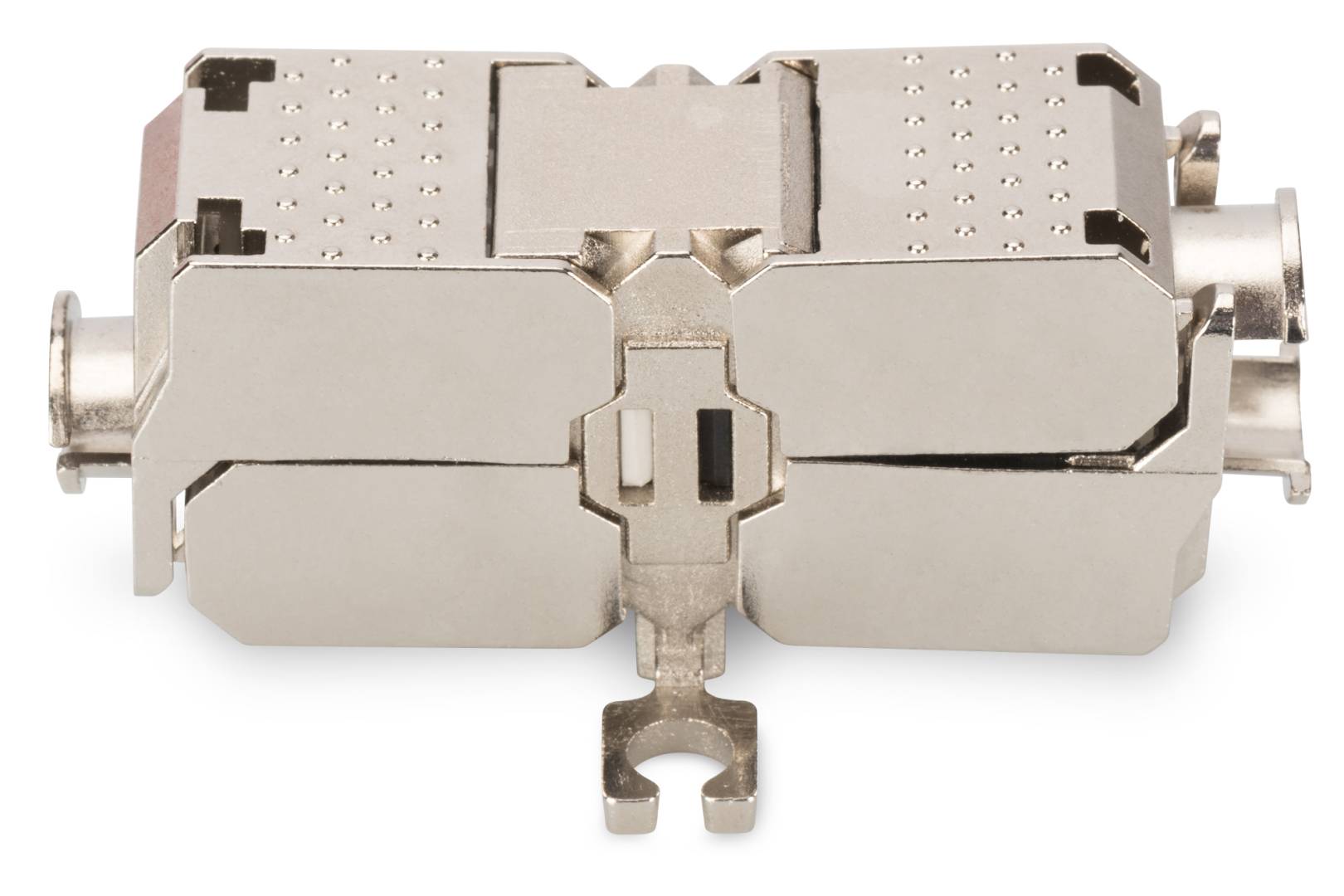

- Keystone design lets the coupler be clipped into a keystone-compatible holder or box if you want it fixed.
- Suitable for solid installation cable from AWG 22 to AWG 26.
What Will Not Work
- It does not accept RJ45 patch cords or plugs.
- A Cat6A coupler does not upgrade a Cat5e or Cat6 cable; the link keeps the category of its weakest part.
- Not weatherproof and not intended for direct burial or outdoor exposure.
Key Features
Cable-to-cable joint
Join or extend installation cable directly without patch panels or plugs.
Cat6A, 500 MHz
Class EA performance for 10GBase-T channels.
Fully shielded
Zinc die-cast housing with 360° shielding and nickel-plated contacts.
Keystone design
Can be clipped into keystone-compatible mounts.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Repairing a cut horizontal cable with a field termination coupler is far quicker than pulling a new run through ceilings and walls. Use it for repairs and short extensions, keep the cable category consistent and test the link afterwards. For the patch side of the link, see our network cables.
✓ Buy it if you need to extend or repair a Cat6A or lower installation cable on site without adding RJ45 plugs.
✕ Skip it if you want to join two patch cords that already have RJ45 plugs — choose an RJ45 inline coupler instead.
→ Also consider the DIGITUS DN-93905 Cat6A RJ45 inline coupler for patch cords.
Not sure which coupler suits your cable? Send us the cable type printed on the jacket and we will check it for you.
Features - Digitus - DN-93909
Colour
silver
More Details
Product Code
04:316249
EAN Code
4016032431268
Manufacturer
Digitus
