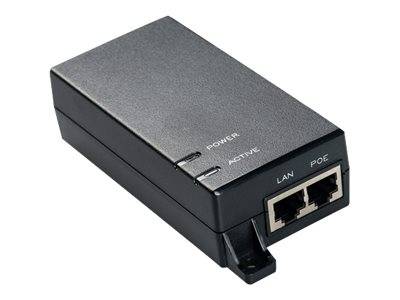

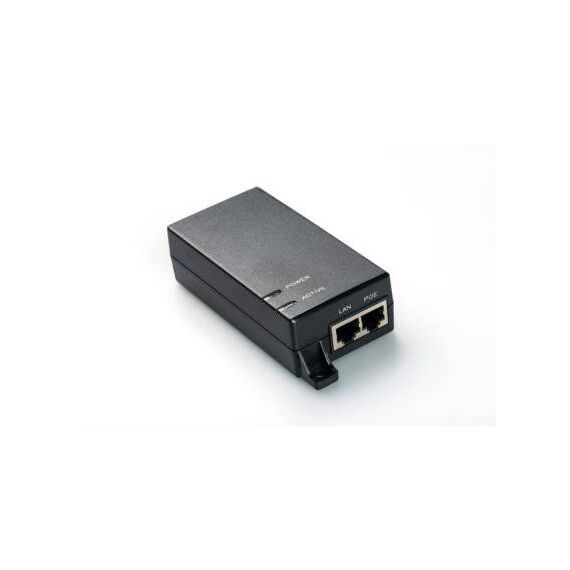

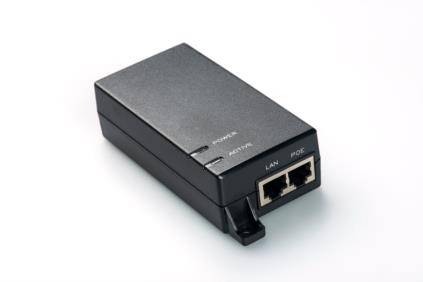

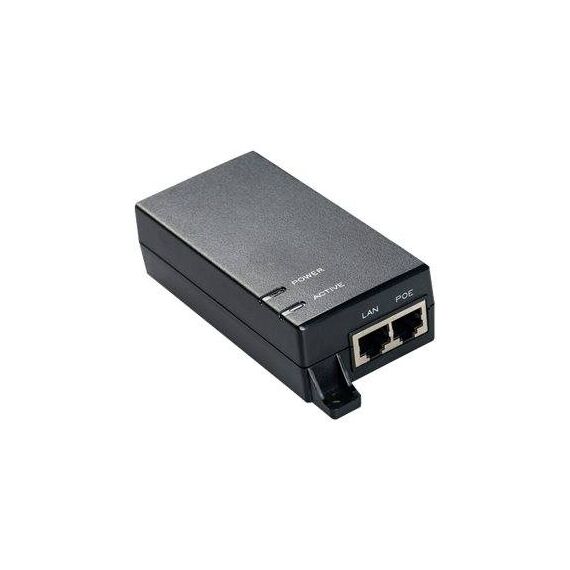

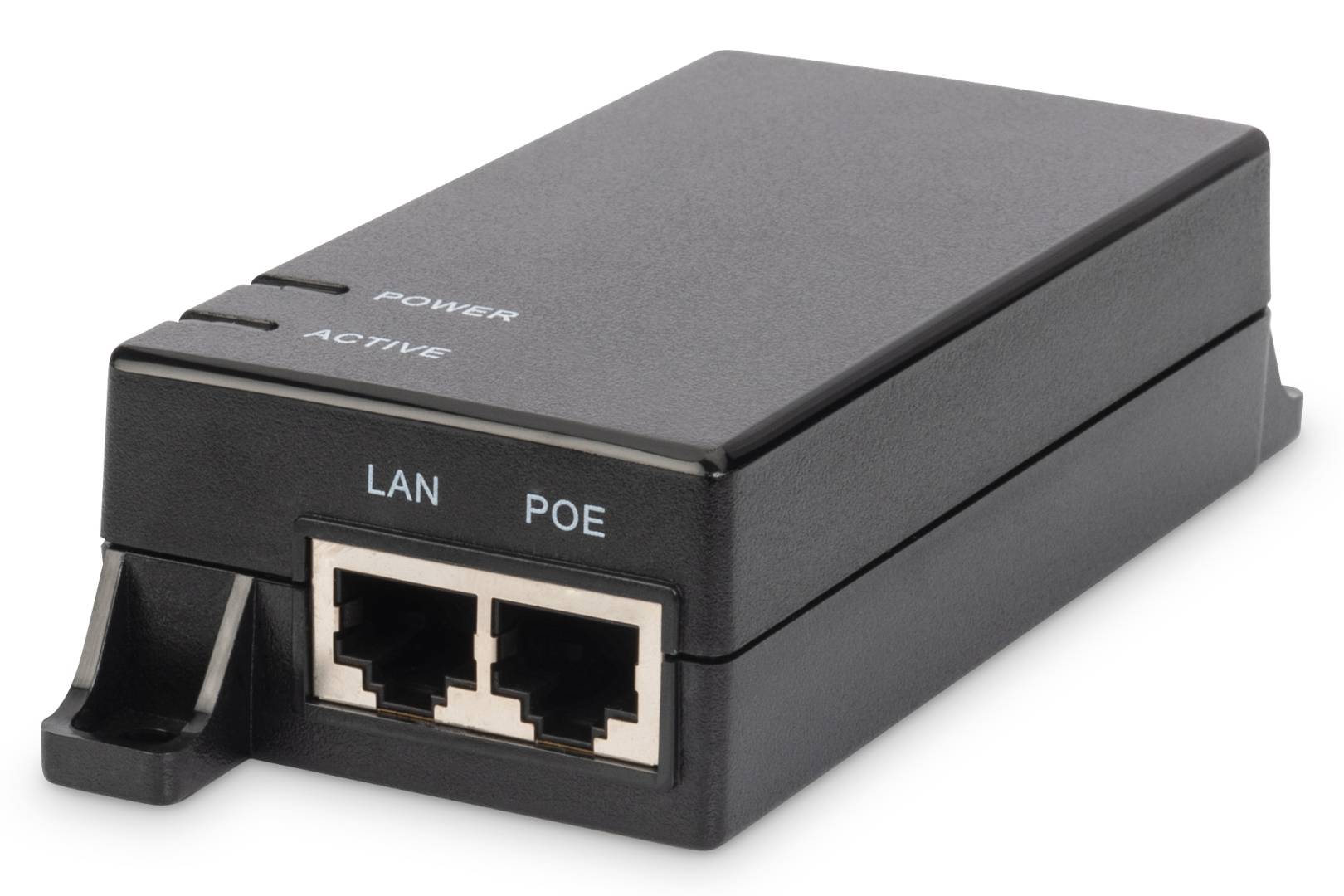

DIGITUS Professional DN-95102-1 / PoE injector / AC 100-240 V / 15.4 Watt | DN-95102-1
Please sign in so that we can notify you about a reply
DIGITUS Professional DN-95102-1 / PoE injector / AC 100-240 V / 15.4 Watt | DN-95102-1
Description
The Digitus PoE Injector minimizes your cabling when installing PoE compatible devices such as IP network cameras. Only the Ethernet cable is used for the data feed and power supply for the devices. This eliminates the need to install a separate power line, and you can extend your network where there are no power outlets or power lines. The injector is fully compliant with the IEEE 802.3af PoE standard and delivers output power of up to 15.4W.
DIGITUS Professional DN-95102-1 / PoE injector | DN-95102-1
Special Features
- Meets the 802.3af PoE standard
- 48V output voltage, 15.4 Watt
- Cable connection: 10/100/1000 Mbps
- Power consumption: 1.6W max
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE (IEEE 802.3af) |

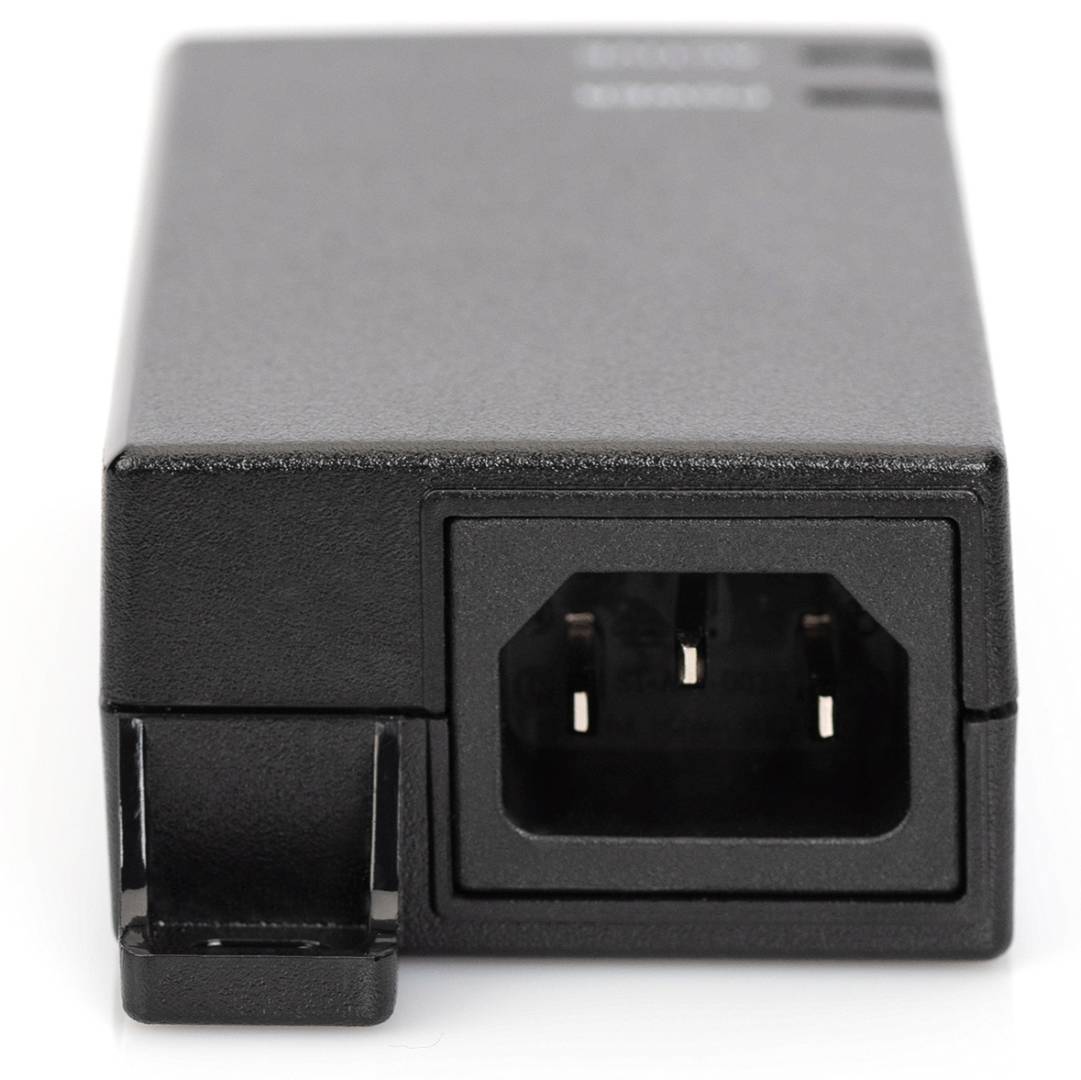

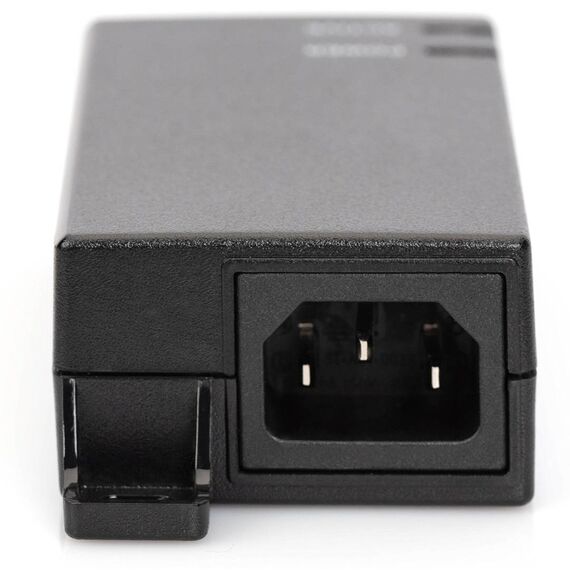

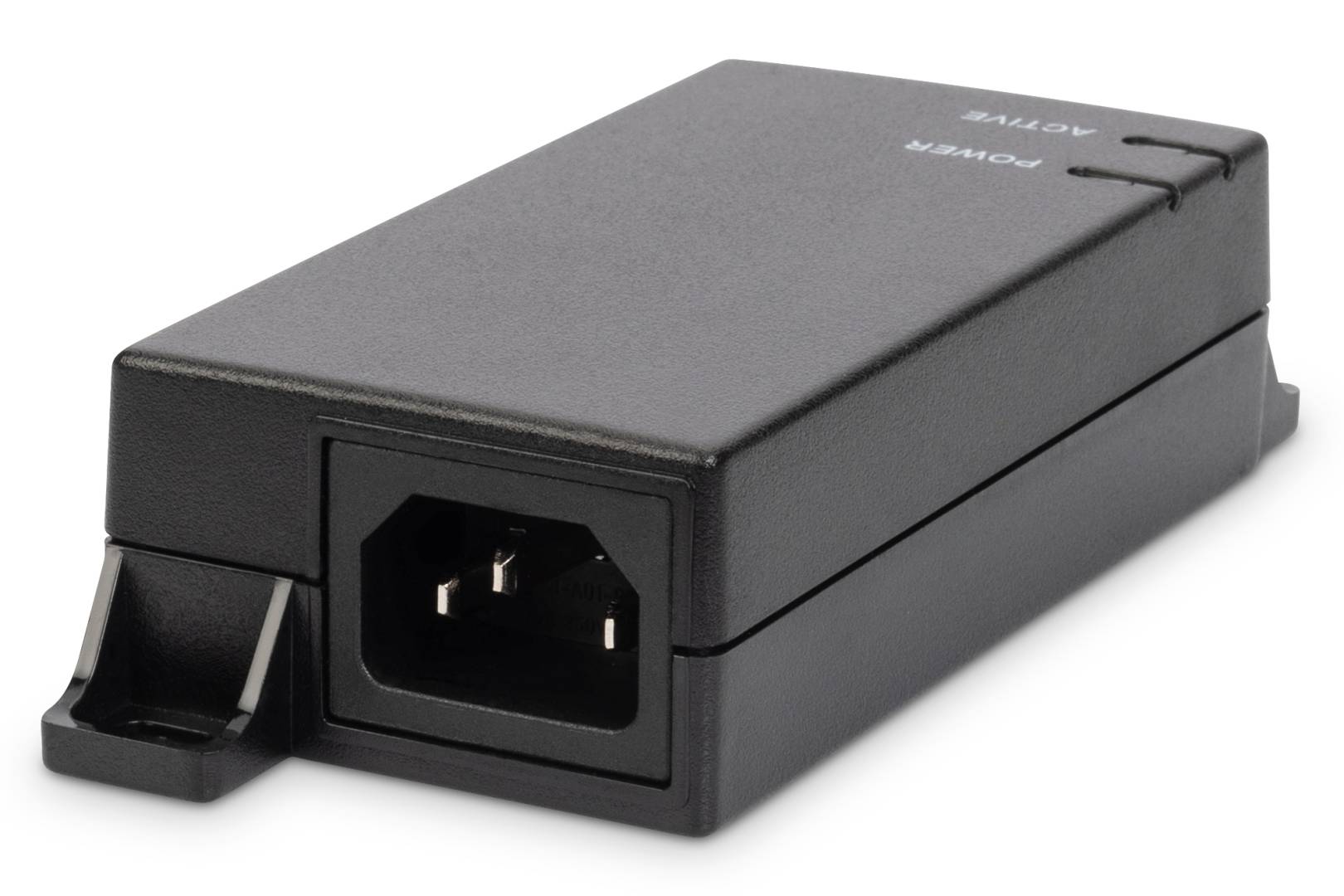

| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Consumption Operational | 1.6 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | 48 V |
| Power Capacity | 15.4 Watt |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Cables Included | AC input cable - external |
| Features | Short-circuit protection |
| Compliant Standards | IEEE 802.3af |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Width | 5.6 cm |
| Depth | 13.4 cm |
| Height | 3.3 cm |
| Weight | 175 g |
| Shipping Width | 14 cm |
| Shipping Depth | 16 cm |
| Shipping Height | 5 cm |
Features - Digitus - DN-95102-1
More Details
Product Code
03:149283
EAN Code
4016032441120
Manufacturer
Digitus
