Digitus DN-95103-2 Gigabit PoE+ Injector IEEE 802.3at 30 W, 1-Port Midspan, 55 V DC, Internal Power Supply 100–240 V AC

Brand:
Digitus
Digitus DN-95103-2 Gigabit PoE+ Injector 802.3at 30W
Digitus DN-95103-2 Gigabit PoE+ Injector IEEE 802.3at 30 W, 1-Port Midspan, 55 V DC, Internal Power Supply 100–240 V AC
€29.5 inc. VAT
Buy
DN-95103-2
€24.79 €41.32
€29.50 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
05:206424
EAN Code
4016032375951
Manufacturer
Digitus

Quick Specs

Type
PoE+ midspan injector, 1 port
Connectors
RJ45 data in · RJ45 data + PoE out · AC inlet
Key spec
IEEE 802.3at/af · 30 W · 55 V DC
Compatibility
802.3af/at PDs up to 30 W
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Digitus DN-95103-2 — 30 W PoE+ for one Gigabit device

IEEE 802.3at · 30 WGigabitInternal PSUIndoor

The Digitus DN-95103-2 is a single-port Gigabit PoE+ injector that adds IEEE 802.3at power — up to 30 W at 55 V DC — to an Ethernet link. It is used to power one access point, IP camera or IP phone from a switch or router that has no PoE ports.

The power supply is built in and connects to the mains with an AC cable. Data passes at 10/100/1000 Mbps; the injector detects and classifies the connected device before it applies power, and it limits current and protects against short circuits.

Before you order: Do not confuse it with the DN-95103-3, a different Digitus variant. The DN-95103-2 is limited to 30 W: 802.3bt (60 W / 90 W) devices need a PoE++ injector.

What's in the Box

  • DN-95103-2 PoE+ injector
  • AC power cable
  • Quick installation guide

What It Means in Practice

  • Covers typical Wi-Fi 6 access points and PoE+ cameras that need up to 25.5 W at the device.
  • One Cat5e/Cat6 cable up to 100 m carries data and power; with an optional PoE extender (not included) the reach can grow to 400 m.
  • Detection means a non-PoE laptop or printer plugged in by mistake only receives data.
  • Self-consumption is up to 7 W, which is normal for a 30 W injector with an internal supply.

What Will Not Work

  • It does not power 802.3bt (60/90 W) devices.
  • It does not output 12 V DC for non-PoE devices — use a splitter.
  • It is not a switch: one data input, one data + power output.
  • It is for indoor use only.

Key Features


PoE+ 30 W
802.3at/af at 55 V DC, 550 mA on pins 4/5 (+) and 7/8 (-).

Protection
Current limiting, short-circuit protection and 1.5 kA / 3 kV surge rating.

Gigabit
10/100/1000 Mbps pass-through.

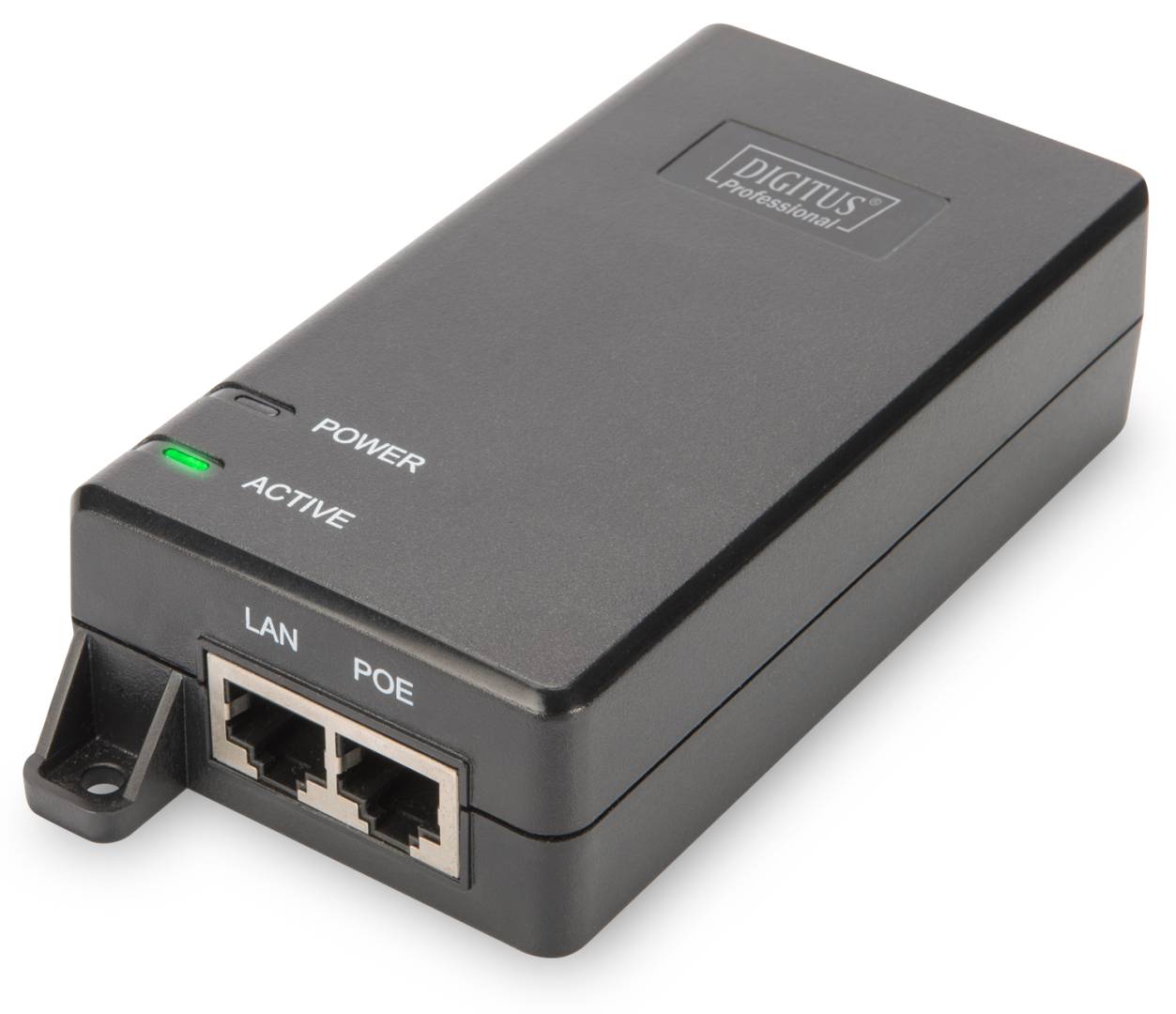

Status LEDs
AC power and Active Load.

Technical Specifications

Identification
Brand Digitus (Assmann)
Part Number DN-95103-2
EAN / GTIN 4016032375951
Connectivity

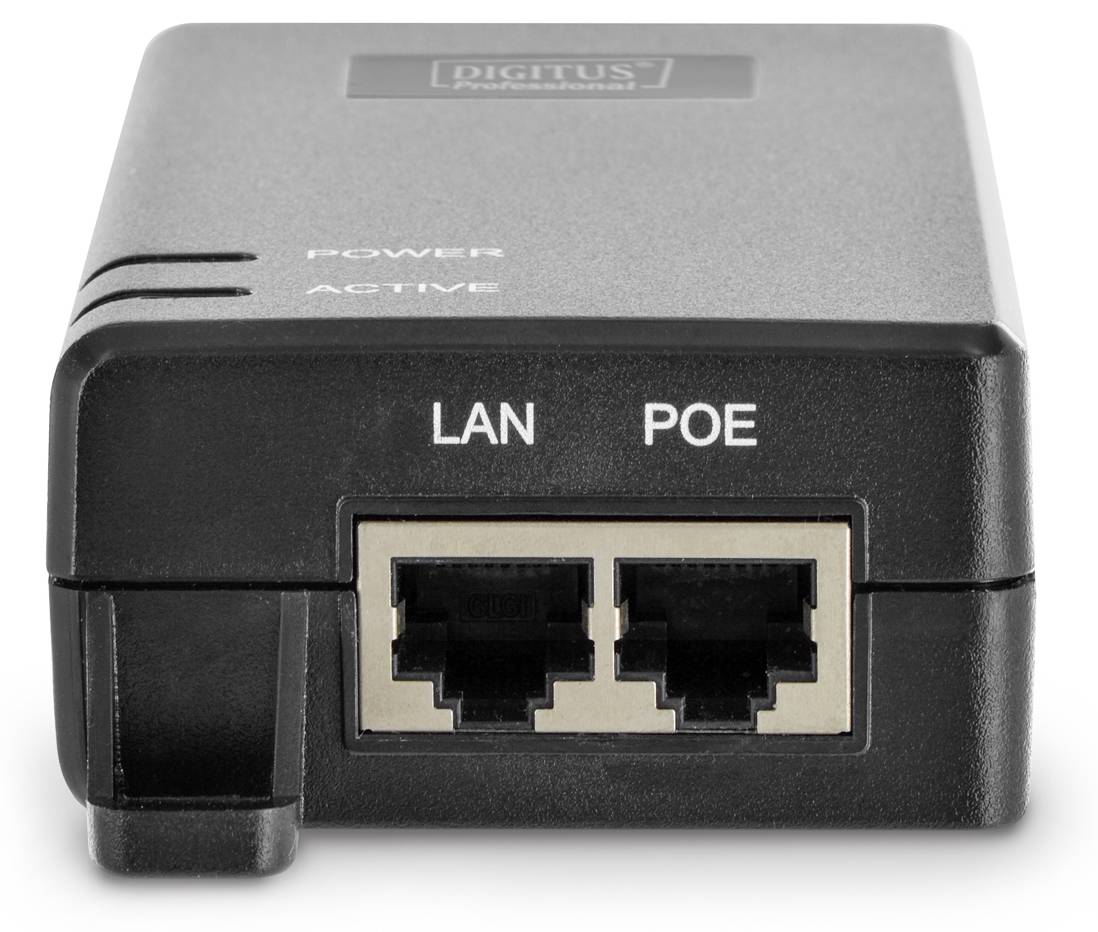

Ports 1× data in, 1× data + PoE out (RJ45)
Data rate 10/100/1000 Mbps
PoE standard IEEE 802.3at / 802.3af
PoE output 55 V DC, 550 mA, 30 W
Pin assignment 4/5 (+), 7/8 (-)
Distance 100 m (400 m with optional PoE extender)
Electrical

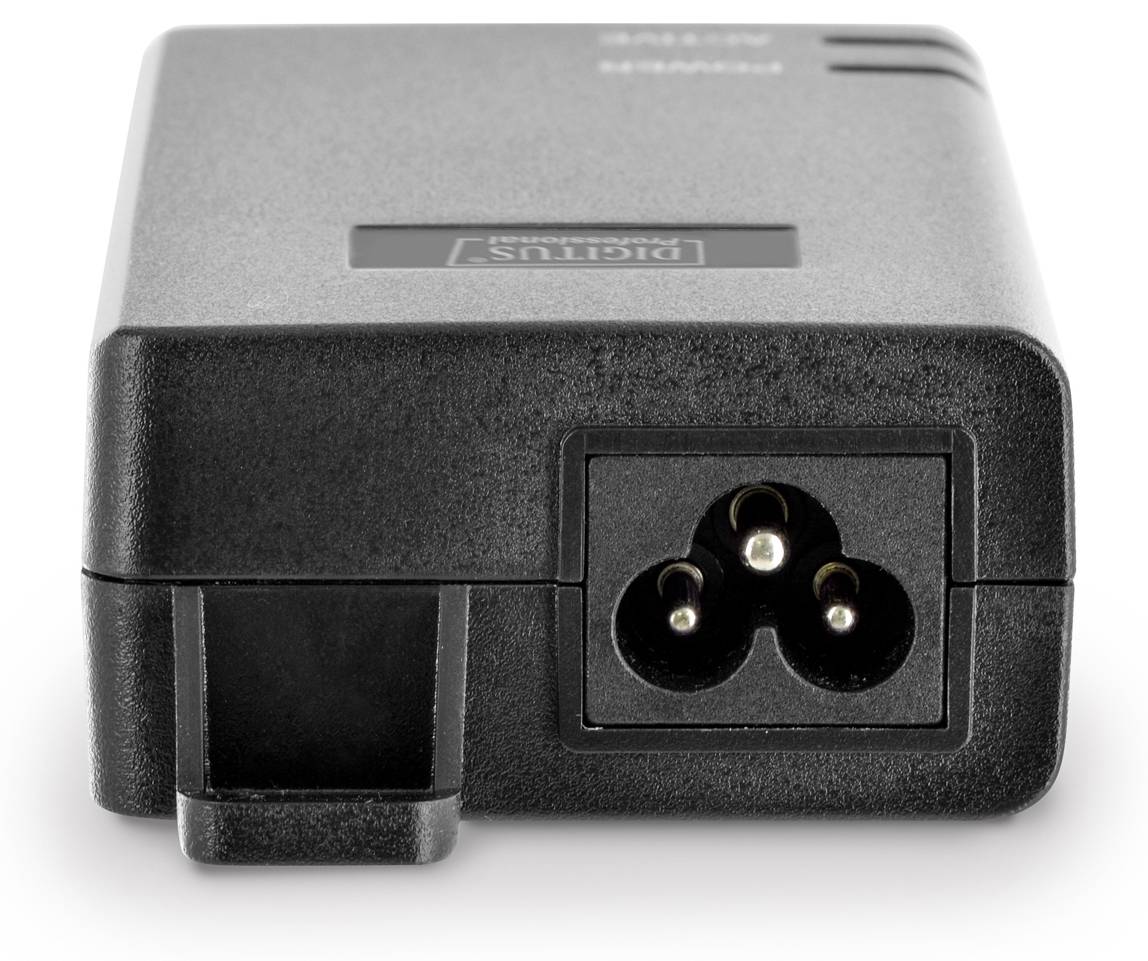

Input 100–240 V AC, 50–60 Hz, 1.0 A, internal power supply
Self-consumption Max. 7 W
Surge protection 1.5 kA / 3 kV
Physical
Dimensions 140 × 63 × 32.5 mm
Weight 200 g
LEDs AC power, Active Load
Environment
Operating temperature -5 °C to 40 °C
Humidity Max. 90% RH
MTBF 100,000 h
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer does not publish a warranty term for this model — claims handled through Singular

Frequently Asked Questions

What is the difference to the DN-95103-3?
They are different Digitus catalogue items. Order by the exact part number; if you are replacing an existing unit, send us the label code and we will check it.
Will it power a Wi-Fi 6 access point?
Most Wi-Fi 6 access points need 802.3at, which this injector provides. Check the maximum power of the access point.
Can I extend beyond 100 m?
Yes, with a PoE extender in line (not included), up to 400 m in total according to Digitus.
Singular Expert Insight · Buyer's Guide
A 30 W PoE+ injector is the standard way to add one modern access point or camera to a non-PoE switch. For more than three devices a PoE switch is usually cheaper per port. For devices to power, see our access points.
✓ Buy it if you need 802.3at power for one device and your switch has no PoE.
✕ Skip it if the device needs 802.3bt, or you need PoE on many ports — a PoE switch is the better buy.
→ Also consider an 802.3bt PoE++ injector for high-power cameras and Wi-Fi 7 access points.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
