DIGITUS DN-96332/9 Sliding 19″ 1U Fiber Splice Box, 24 LC/UPC Duplex, 48 OS2 Fibers, with Pigtails

Brand:
Digitus
DIGITUS DN-96332/9 Grey 24 LC Duplex OS2 Sliding Fiber Splice Box
DIGITUS DN-96332/9 Sliding 19″ 1U Fiber Splice Box, 24 LC/UPC Duplex, 48 OS2 Fibers, with Pigtails
€249.96 inc. VAT
Buy
DN-96332/9
€210.05
€249.96 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:352570
EAN Code
4016032278481
Manufacturer
Digitus

Quick Specs

Adapters
24 LC/UPC duplex
Fibers
48 / OS2 singlemode
Rack
19″ / 1U
Access
Sliding construction
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS OS2 Fiber Splice Box — 24 LC Duplex

OS224 LC/UPC duplex48 fibers19″ / 1U

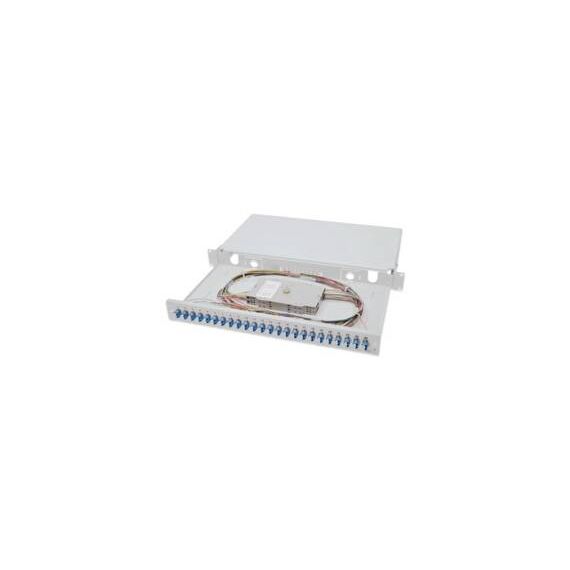

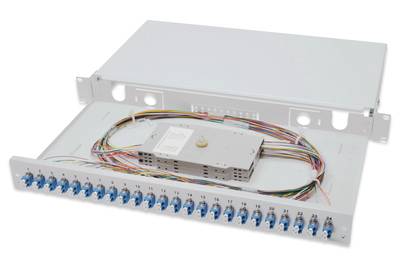

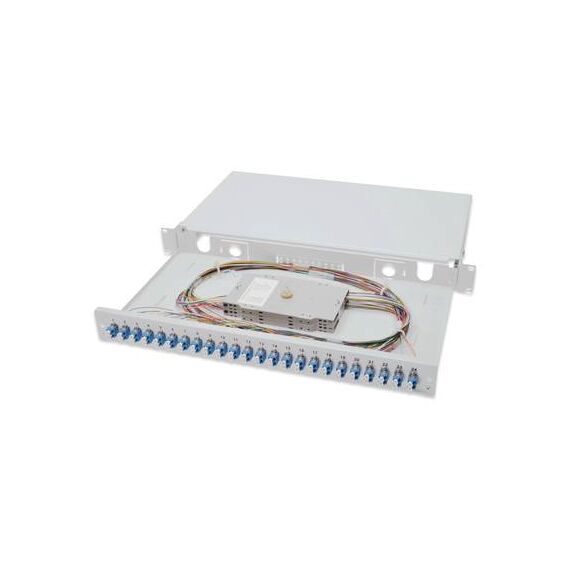

DN-96332/9 organizes OS2 fiber terminations in a 19-inch rack using 1U. It provides 24 LC/UPC duplex adapters for 48 fibers, coloured pigtails and a splice cassette within a sliding steel housing.

Compatibility — check before buying:
Match LC/UPC connections and OS2 fiber. Check the 240 mm depth, mounting points and cable-entry route. The prefitted pigtails require splicing to the incoming installation-cable fibers.

Key Features


24 duplex connections
Each LC duplex adapter provides two fiber positions, giving 48 fiber positions in total.

Prepared internal fiber routing
Coloured pigtails are already inserted into the cassette to organize the incoming-cable splices.

Sliding access
The sliding housing provides access to the cassette and internal fiber management.

Technical Specifications

Identification and optical configuration
Model / SKU DIGITUS DN-96332/9
EAN / GTIN 4016032278481
Product type Equipped fiber optic splice box
Front adapters 24 × LC duplex
Connector polish / format LC / UPC / duplex
Fiber class / count OS2 singlemode / 48 fibers
Pigtail preparation Coloured fiber pigtails prepared and inserted into splice cassette(s)
Couplers Ceramic alignment sleeves; polymer housings
Rack and construction
Mounting width 483 mm / 19″
Rack height 1U / 44.45 mm
Depth 240 mm
Access type Sliding
Housing 1.0 mm steel sheet, varnished
Colour Light grey, RAL 7035
Included entry/management hardware M20/M25 fixing components, splice cassette, cassette cover and strain relief
Packaging
Pack dimensions (D × W × H) 31.5 × 51.5 × 5.5 cm
Gross packed weight 3.66 kg

What's in the Box

Equipped DN-96332/9 splice box with 24 LC duplex couplers and coloured pigtails
Splice cassette with cover
M20/M25 hardware and strain relief

What Will Not Work

Do not mate LC/UPC with LC/APC at the same connection.
It does not provide an active link by itself; suitable cable, splicing and active equipment are required.

Frequently Asked Questions

Is this a 24-fiber or 48-fiber box?
It has 24 duplex LC adapters and 48 fiber positions. A duplex connection uses two fibers.
Is the building cable already spliced?
The internal pigtails are prefitted. Splice them to the installation cable on site using suitable equipment and test the completed fibers.
Can I choose this for OM3 or OM4 cabling?
This equipped variant is OS2. Choose the box and accessories that match the installation’s fiber type.
Singular Expert Insight
Check fiber type and connector polish before choosing patch leads. Keep the LC end faces clean and maintain the selected cable’s bend requirements inside the drawer. Browse fiber leads and select OS2 LC/UPC

Buyer’s Guide

Buy it if

You are terminating up to 48 OS2 fibers at 24 LC/UPC duplex adapters in a 19″ rack.

Skip it if

The installation requires another fiber class, APC polish or a different rack depth.

Also consider

Matching OS2 LC/UPC patch leads and professional splicing/testing.
