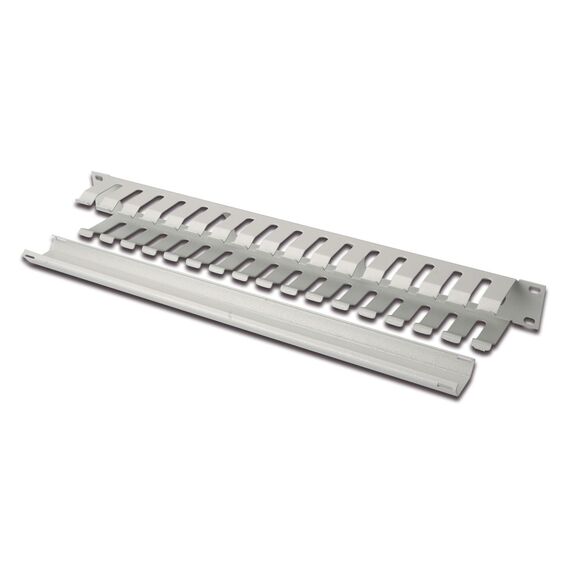

DIGITUS DN-97616 — 1U cable management panel with three openings and detachable rear plate
1U · 19"3 openings 30 x 130 mmDetachable rear plateRAL 7035 grey

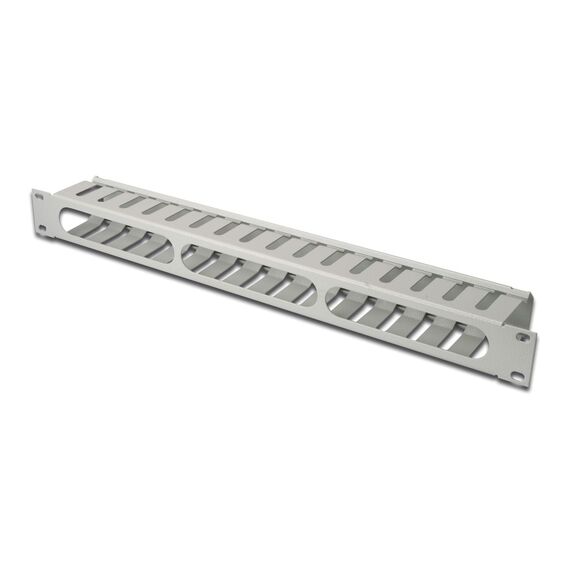

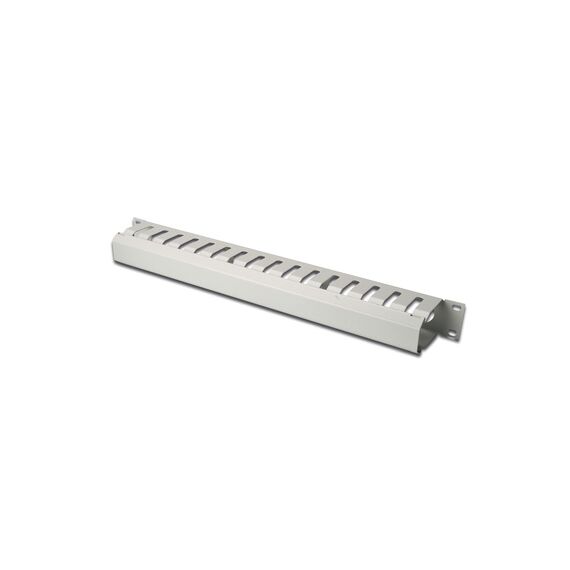

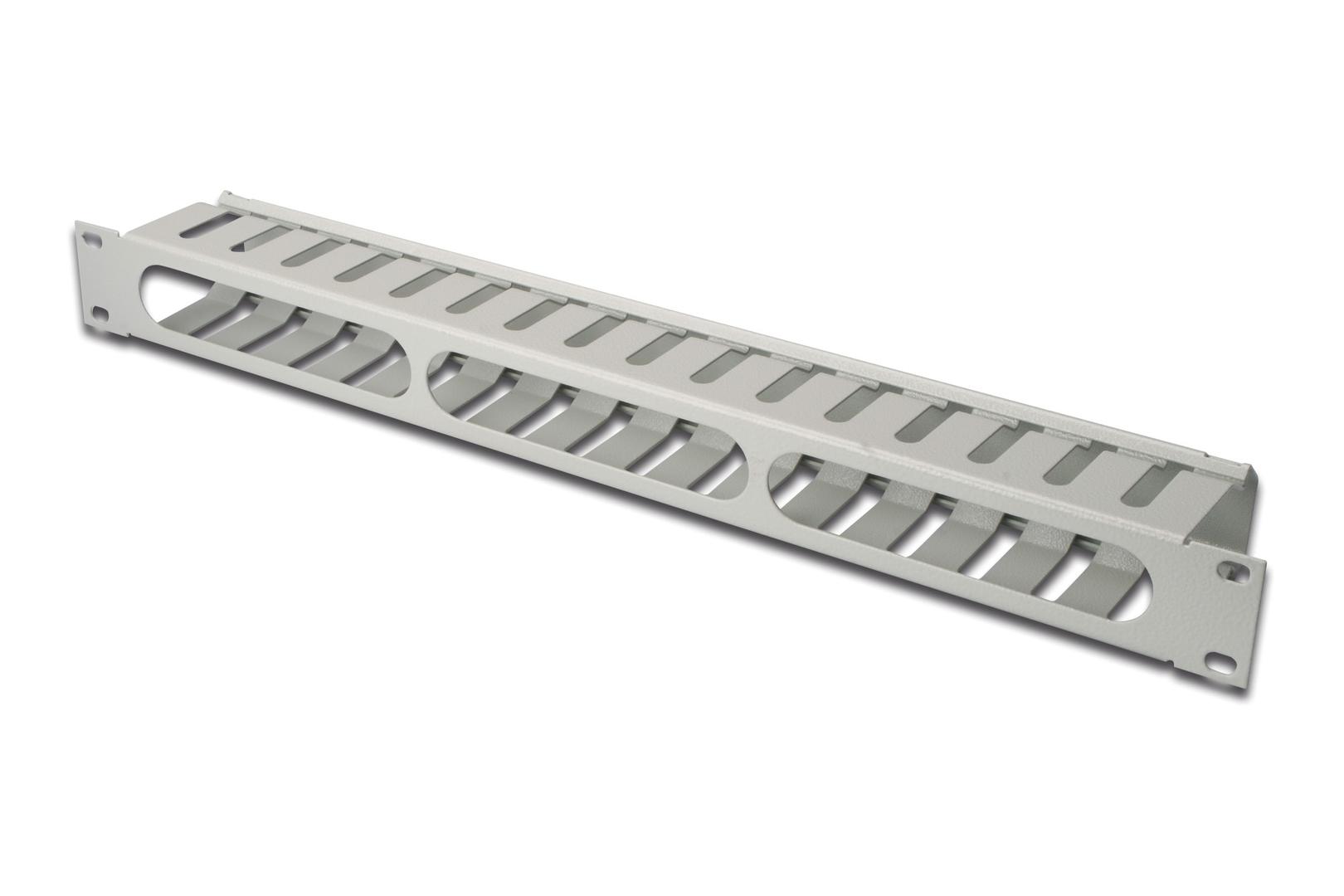

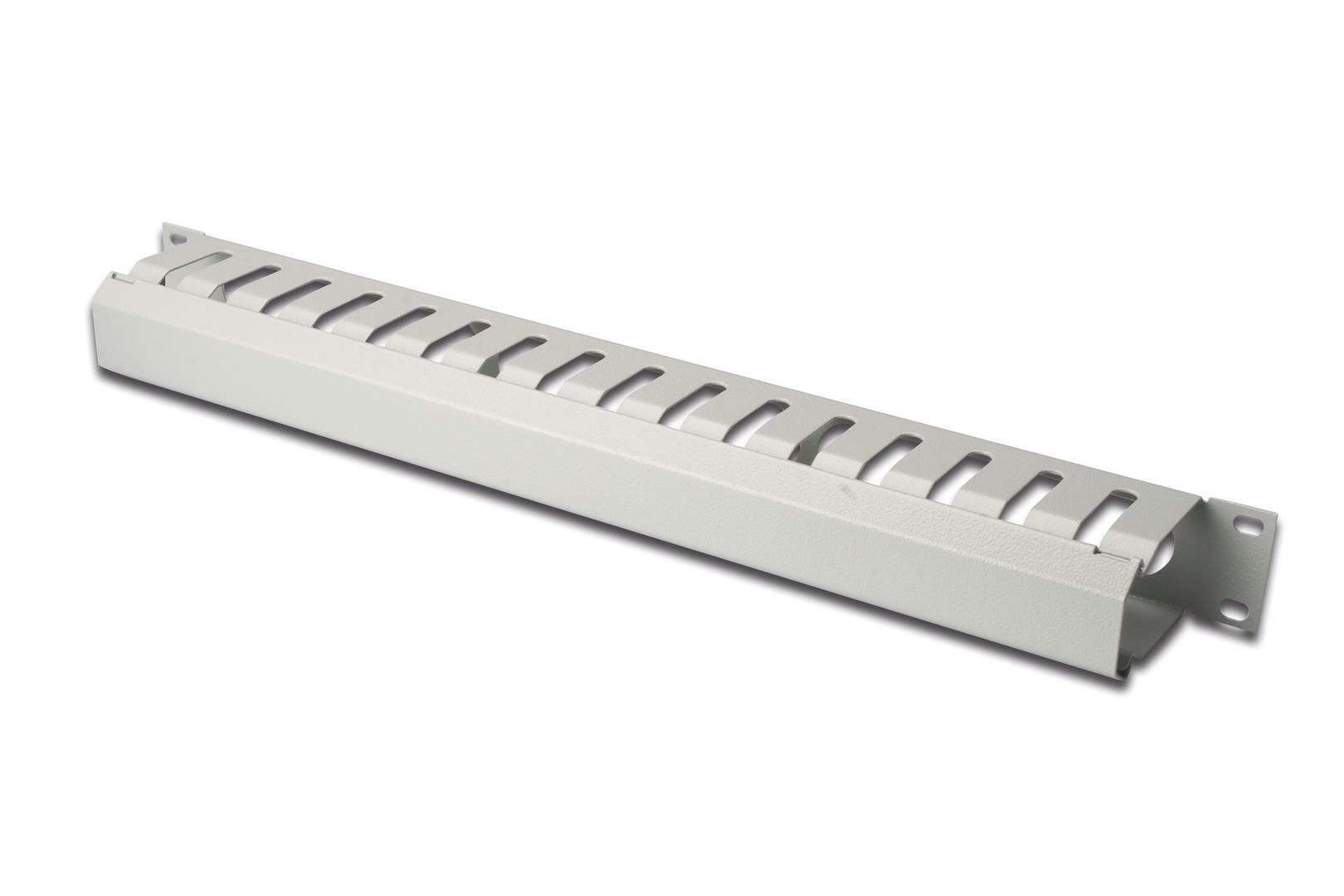

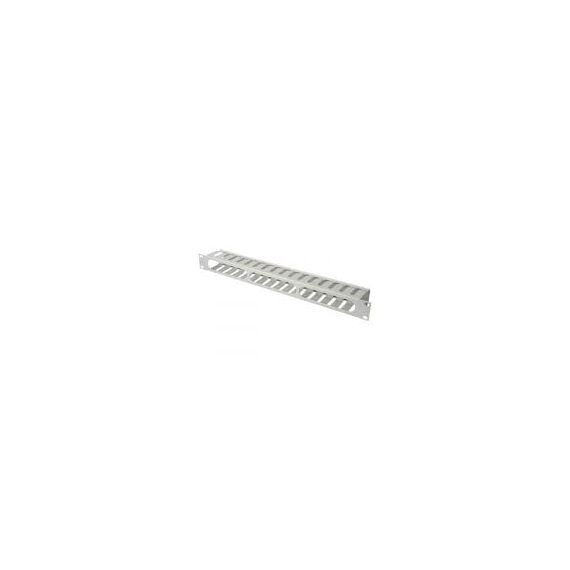

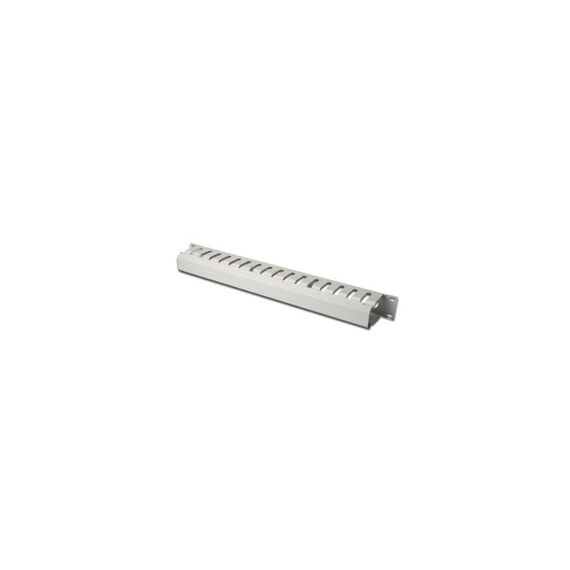

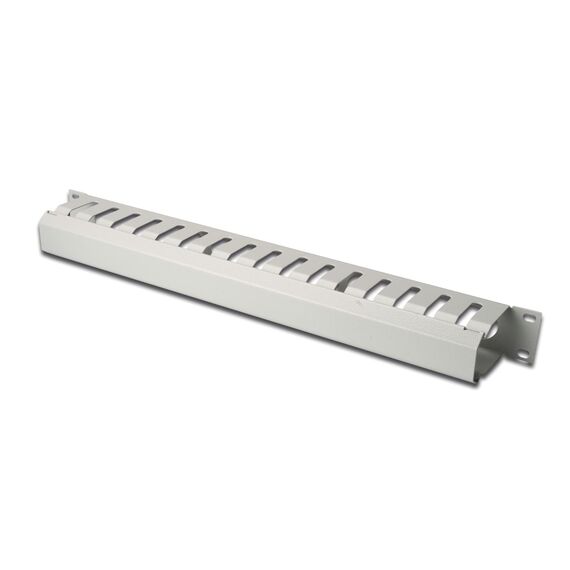

The DIGITUS DN-97616 is a 1U, 19-inch cable management panel in light grey RAL 7035 steel with three front openings (30 x 130 mm each) and a detachable rear plate, for grey network cabinets where patch cords should pass neatly from the front of the rack to the equipment behind.

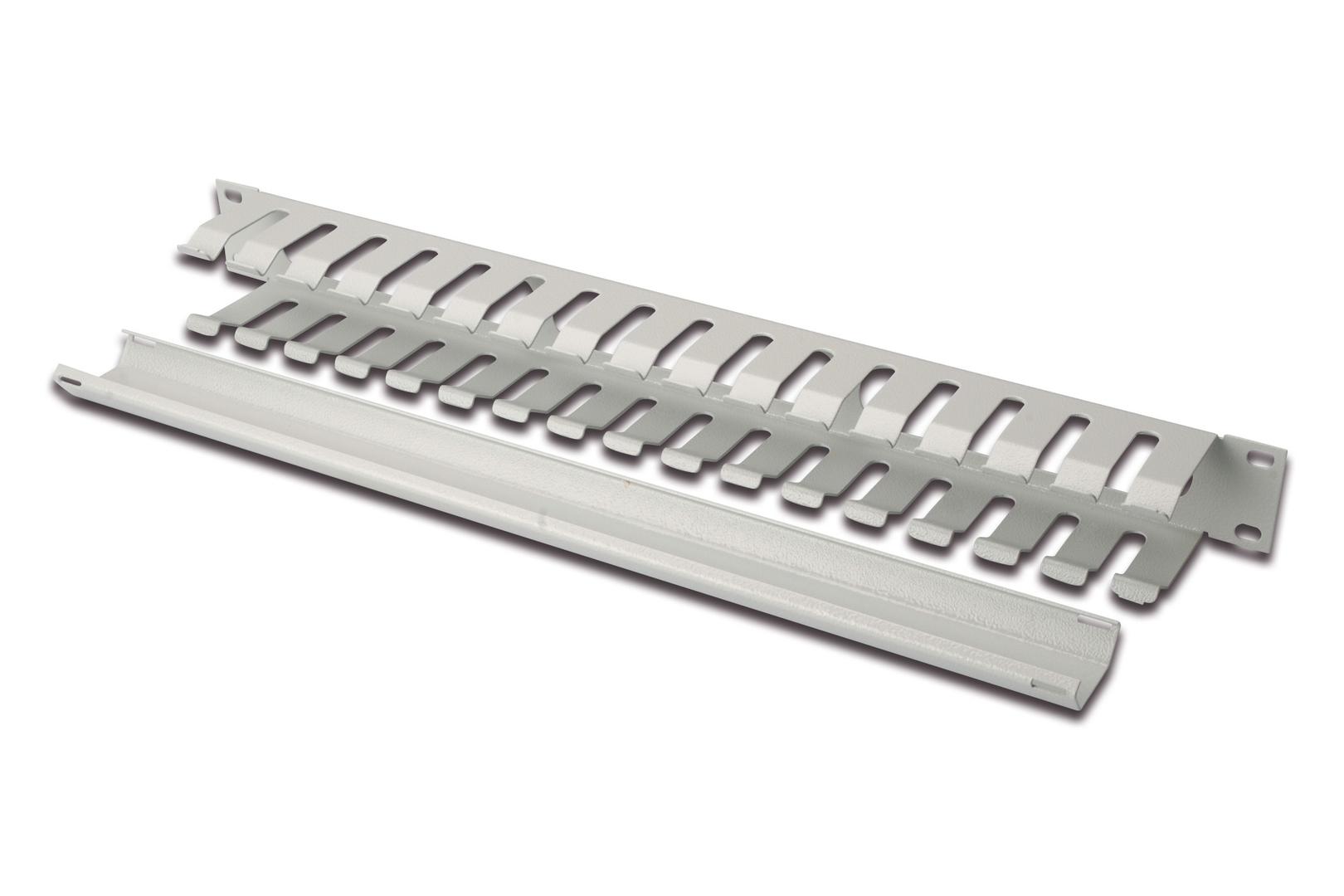

It measures 44 x 483 x 68 mm and fits the 483 mm (19") profile rails of standard network and server cabinets. The rear plate comes off, so you can feed or remove cables from behind without taking the panel out of the rack.
What's in the Box
- 1 × DIGITUS DN-97616 19" 1U cable management panel (RAL 7035)
- DIGITUS does not list mounting hardware for this model — plan on using the cage nuts and M6 screws of your cabinet
What It Means in Practice
- The three 30 x 130 mm openings group cables into three bundles, so a 24-port patch panel feeds its switch in tidy sections.
- With the rear plate removed, cables can be added from the back of the rack, which is easier in a full cabinet.
- 68 mm depth keeps the panel shallow enough for 2-post racks and wall cabinets as well as floor cabinets.
- Light grey RAL 7035 matches the most common grey DIGITUS and generic network cabinets.
What Will Not Work
- It does not fit 10-inch racks — it is built for 483 mm (19") rails.
- It has no rings or brackets on the front; for horizontal loop management use a ring-type panel such as DN-97666.
- It is not a brush panel and does not seal the opening against airflow.
- Black cabinets: it is grey. Ask us for the black equivalent.
Key Features
Three front openings
30 x 130 mm each — enough to split a full 24-port row into manageable bundles.
Detachable rear plate
Remove the back to reach, add or remove cables without unscrewing the panel.
Sturdy sheet steel
Rigid steel body in RAL 7035, 44 x 483 x 68 mm.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A three-opening panel is a good middle ground between an open ring panel and a fully covered one: cables pass through in neat groups and the front still looks closed. Mount it directly below the patch panel and use short patch cords. More options in our rack accessories.
✓ Buy it if you have a grey 19-inch cabinet and want patch cords to pass through in three neat groups.
✕ Skip it if you need front rings for horizontal slack, a brush seal, or a black panel.
→ Also consider DIGITUS DN-97666 (1U panel with 5 steel rings, grey) for open horizontal routing.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-97616
Colour
grey
More Details
Product Code
04:143702
EAN Code
4016032279204
