Digitus Modular Cat5 KVM Switch Module, 16 Ports, RJ45 with 16 Cat5 Dongles, Cascadable, for Digitus Modular LCD Consoles
Brand:
Digitus
Digitus Modular Cat5 KVM Switch Module, 16 Ports, RJ45 with 16 Cat5 Dongles, Cascadable, for Digitus Modular LCD Consoles
€1072.81 inc. VAT
DS-72217
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus Modular Cat5 KVM Switch, 16 Ports
16 × Cat5 KVMModule for modular consoles60 m over Cat516 dongles included

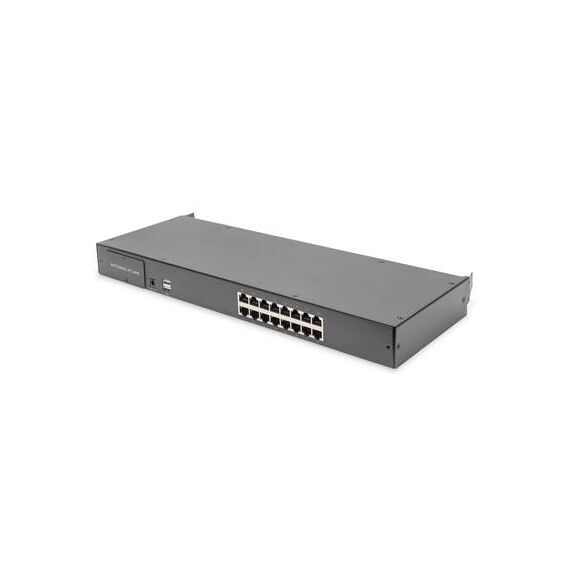

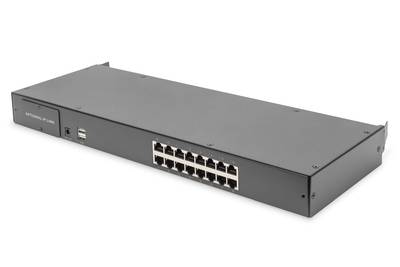

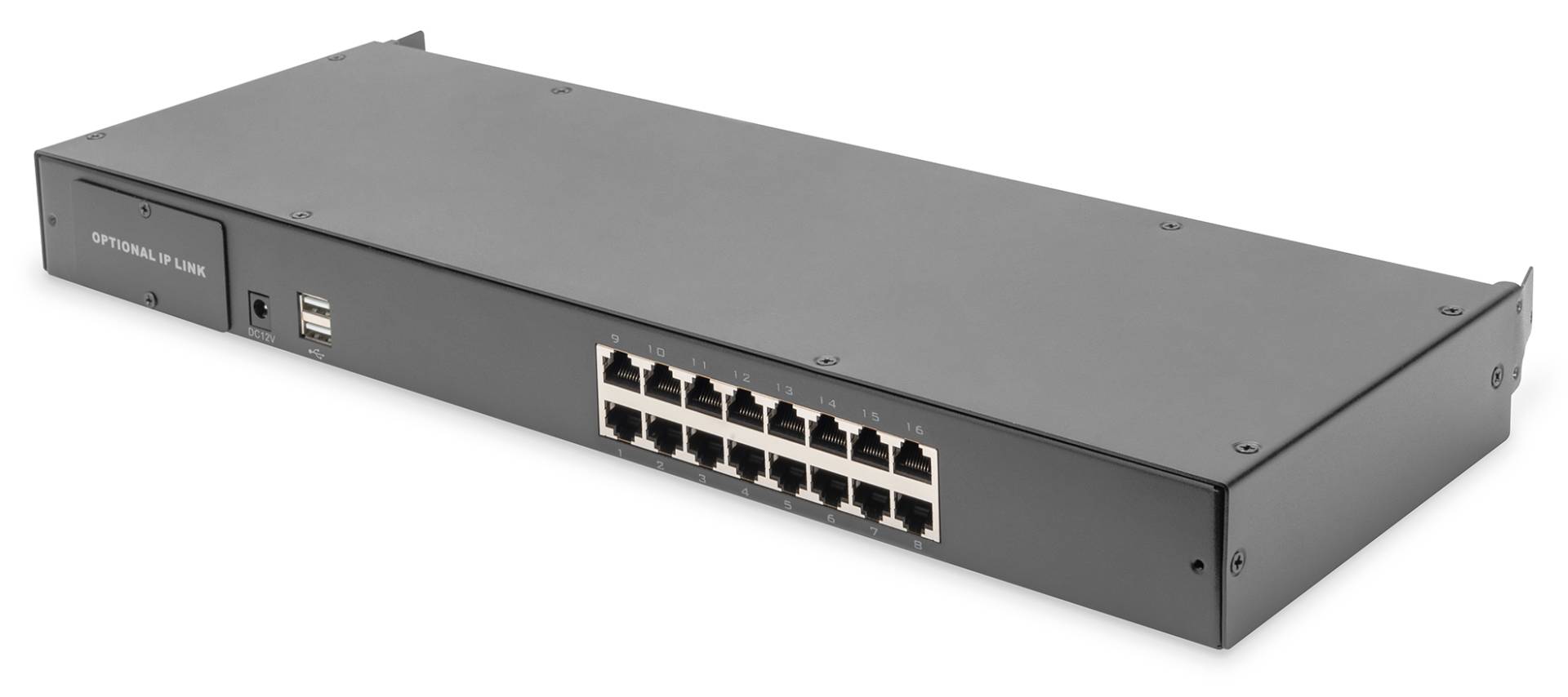

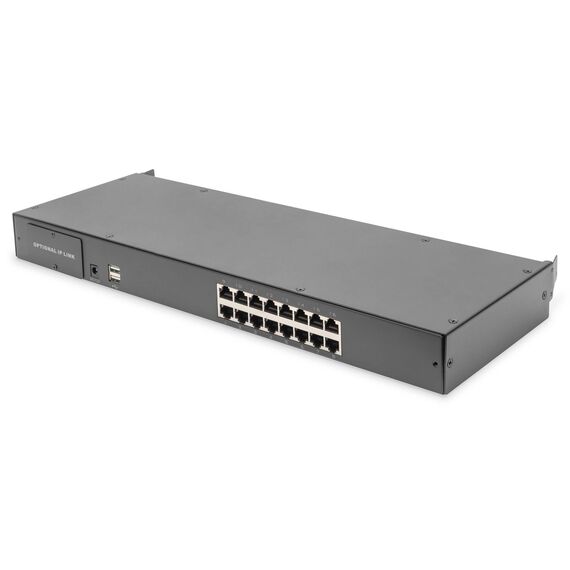

The Digitus DS-72217 is a 16-port Cat5 KVM switch module that installs into a Digitus 17" or 19" modular LCD KVM console, letting one console control up to 16 servers over standard Cat5 cabling.
Each server connects through a small Cat5 dongle (USB or PS/2 plus VGA) and a regular Cat5 patch cable of up to 60 m, so servers can sit in other racks or rows without bulky KVM cables. The switch is cascadable, supports hot-plugging and keyboard/mouse emulation, and gives full BIOS-level control with no software to install.
Before you order: This is a module for Digitus modular LCD consoles, not a standalone KVM switch. A compatible Digitus 17" or 19" modular console is required and not included.
What's in the Box
- 1 × Digitus modular Cat5 KVM switch, 16 ports
- 16 × Cat5 dongles (server side)
- Mounting material
- Quick start guide
What It Means in Practice
- Install the module in the Digitus modular console, then run a Cat5 patch cable from each RJ45 port to a dongle on each server.
- Dongles connect to the server via USB or PS/2 plus VGA — check that your servers still have a VGA output.
- Distance per server is up to 60 m over Cat5 UTP.
- Autoscan cycles through servers every 5–90 s (selectable); remote power wake-up and cascading are supported. An optional DS-51000-1 IP module adds remote access.
What Will Not Work
- Use without a Digitus modular LCD console — it has no monitor or keyboard of its own.
- Servers with only HDMI or DisplayPort outputs — the dongles take VGA.
- Remote access over the network out of the box — the DS-51000-1 IP module is sold separately.
- Patch cables between switch and servers are not included.
Key Features
16 ports over Cat5
Up to 16 servers on standard RJ45 cabling, up to 60 m each.
Dongles included
16 USB/PS2 + VGA Cat5 dongles in the box.
Cascadable
Expand beyond 16 servers by cascading.
BIOS-level control
Hot-plug, keyboard/mouse emulation, no software needed under any OS.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A Cat5 KVM module is the tidy way to reach servers spread across several racks from one console: thin patch cables instead of thick KVM bundles. Check your console is a Digitus modular model and that your servers have VGA. Finish the installation with our rack accessories.
✓ Buy it if you own a Digitus modular LCD console and need to control up to 16 servers over Cat5, possibly in other racks.
✕ Skip it if you do not have a Digitus modular console, or your servers have no VGA output.
→ Also consider a complete Digitus LCD KVM console with a built-in switch, or the DS-51000-1 IP module for remote access.
Not sure it fits? Send us your console part number and server models and we will check compatibility before you order.
Features - Digitus - DS-72217
Colour
black
More Details
Product Code
04:283583
EAN Code
4016032447641
Manufacturer
Digitus
