DIGITUS DN-95123 Gigabit PoE+ Extender, IEEE 802.3af/at, Up to 22 W

Brand:
Digitus
DIGITUS DN-95123 Gigabit PoE Plus Extender Black
DIGITUS DN-95123 Gigabit PoE+ Extender, IEEE 802.3af/at, Up to 22 W
€77.61 inc. VAT
Buy
DN-95123
€65.22
€77.61 inc. VAT
Ships from EU stock: 98 item(s)
+ −
Add to wish list Ask a question
Product Code
04:238171
EAN Code
4016032391531
Manufacturer
Digitus

Quick Specs

Ethernet
10/100/1000 Mbps
PoE standards
IEEE 802.3af / 802.3at
Output power
Up to 22 W
Power source
PoE input; no local PSU
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Extend PoE reach with a budget matched to the load

Gigabit EthernetIEEE 802.3af/atUp to 22 W

The DN-95123 regenerates an Ethernet and PoE link through an additional cable segment without needing a local power socket. Its upstream PoE supply powers the extender and the compatible downstream device, making it useful for cameras, phones or access points beyond a standard single cable run.

Before you order:
Check the PoE source, endpoint power demand and cable gauge before choosing the distance. The manual’s 500 m example applies to a load below 4 W with an 802.3at source and cascaded extenders. A PoE+ endpoint below 22 W is illustrated at up to 200 m with an at source, not 500 m. Indoor use only.

What's in the Box

  • 1 × Gigabit PoE+ extender
  • Manual

What It Means in Practice

  • Each extender adds a regenerated segment of up to 100 m; longer routes require additional units and consume part of the available PoE budget.
  • Fanless, PoE-powered operation suits indoor positions without a nearby outlet, provided the upstream source can support the whole link.

What Will Not Work

  • An ordinary non-PoE Ethernet port cannot power this extender.
  • The maximum range and maximum output power cannot be assumed simultaneously.
  • It is not an outdoor/weatherproof or industrial-rated extender.

Key Features


Gigabit link regeneration
Passes 10/100/1000 Mbps Ethernet with automatic link setup.

PoE-powered extension
No separate power supply is needed at the extender location.

Simple indoor mounting

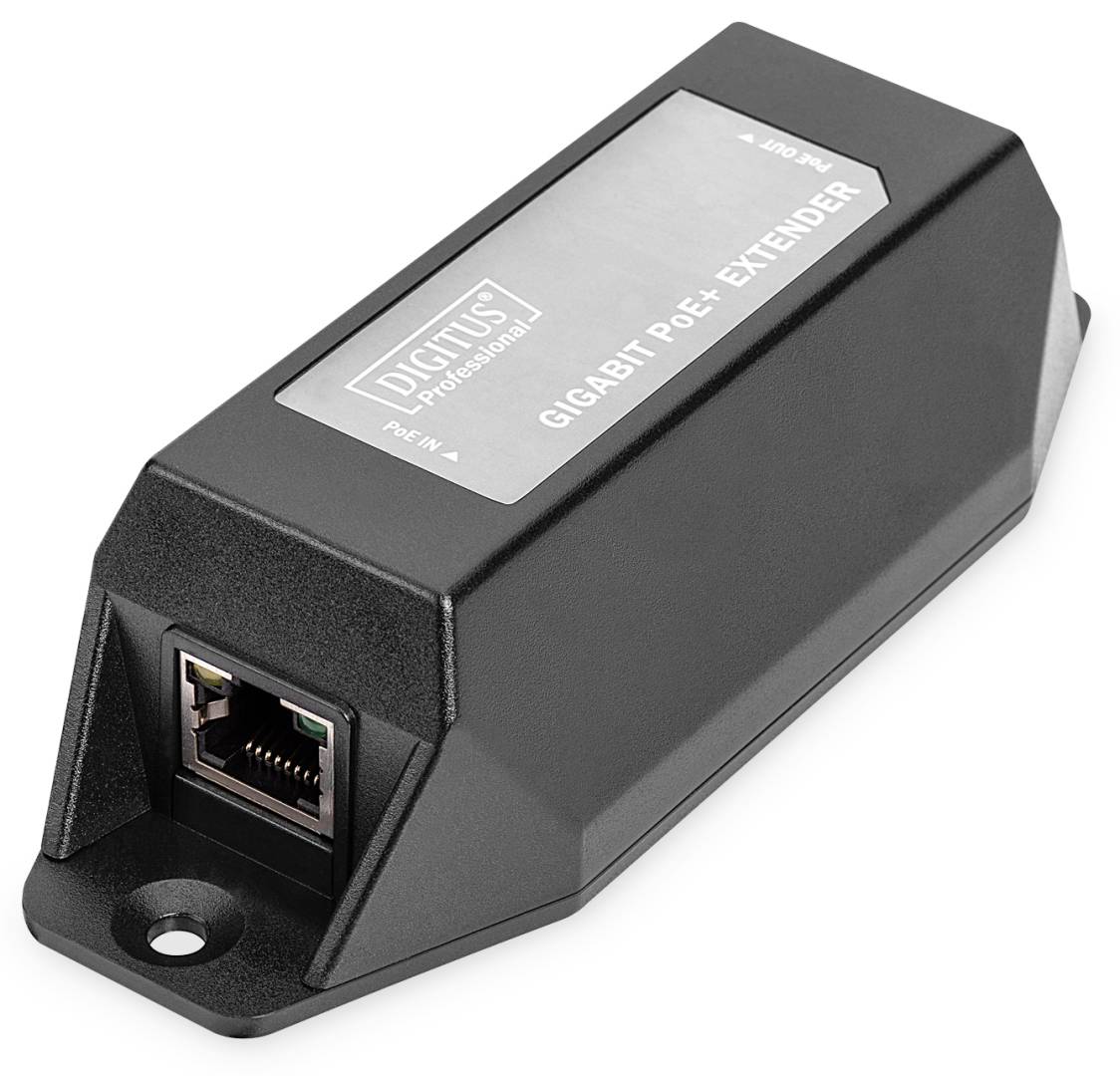

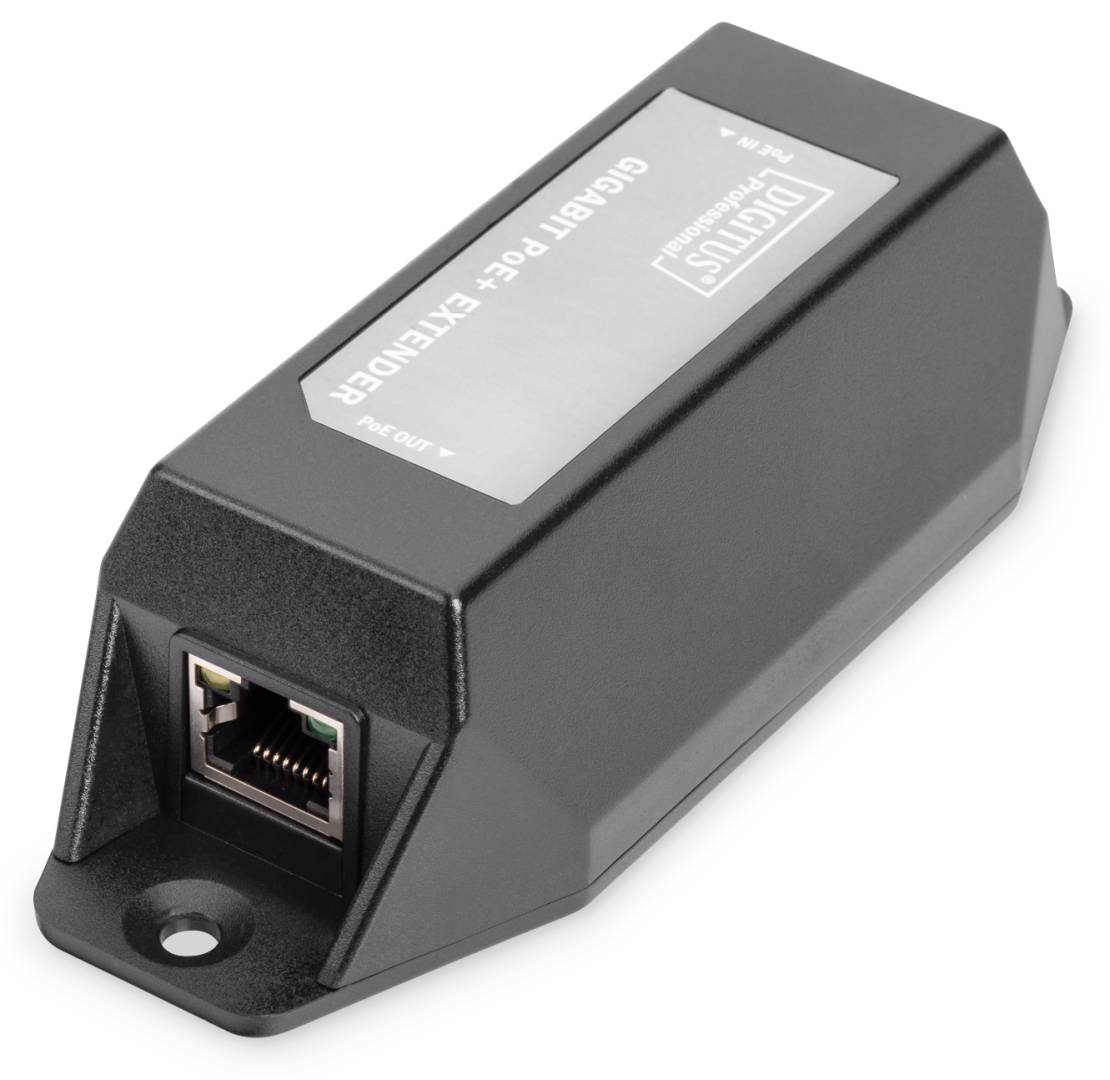

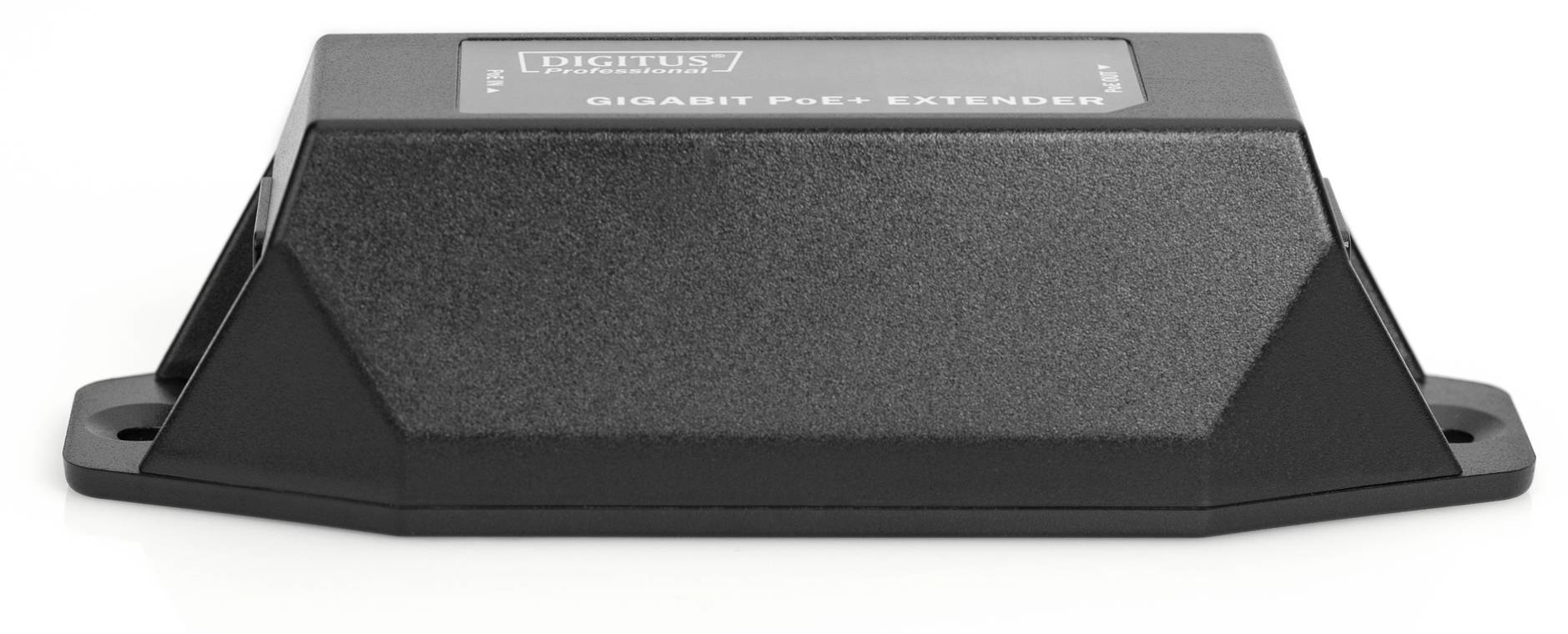

A compact fanless enclosure includes wall fixing points and status indicators.

Technical Specifications

Network and PoE
Channels / ports 1 channel; 2 shielded RJ45 ports (input/output)
Data rate 10/100/1000 Mbps, half/full duplex
Automatic link setup Speed, duplex and crossover
Wiring compatibility EIA 568A / 568B
PoE standards IEEE 802.3af / IEEE 802.3at
Maximum PoE output Up to 22 W, subject to source and cable losses
Power input pins 1/2 (−), 3/6 (+), or 7/8 (−), 4/5 (+)
Power output pins 1/2 (−), 3/6 (+)
Power supply Powered by upstream PoE; no separate local PSU
Installation Plug and play; automatic PoE device detection
Protection Circuit isolation

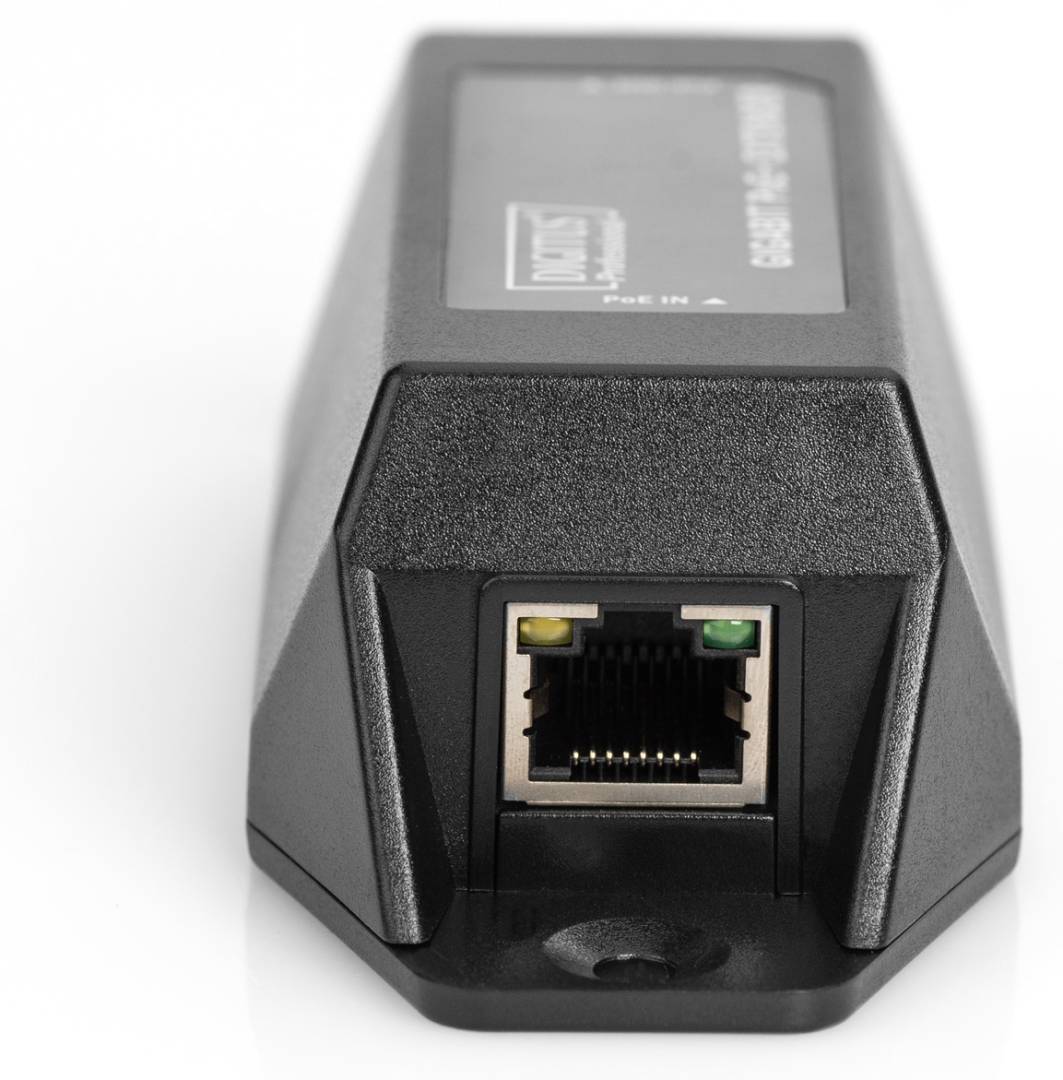

LEDs Power and network status on RJ45 connectors
Distance planning
Additional cable segment Up to 100 m per extender
Maximum cascade Up to 3 extenders with af source; 4 with at source, subject to load
Manual example: load below 4 W Up to 400 m with af; 500 m with at
Manual example: load below 6 W Up to 300 m with af; 400 m with at
Manual example: load below 12 W Up to 200 m with af; 300 m with at
Manual example: PoE+ load below 22 W Up to 200 m with at; af source not applicable
Distance-example cabling 24 AWG or heavier Cat5e/Cat6; actual conditions affect reach
Cable requirement Shielded Cat5 or higher; Cat5e/Cat6 for stated range examples
Physical and environmental
Cooling / mounting Fanless; wall fixing points or shelf placement
Dimensions (L × W × H) 127 × 47 × 37 mm
Weight 140 g
Colour Black
Environment Indoor; not industrial-rated
Operating temperature −10 to +45 °C
Operating humidity Up to 90%, non-condensing
Storage temperature −20 to +70 °C
Storage humidity Up to 95%, non-condensing
Model DN-95123
EAN 4016032391531

Frequently Asked Questions

Can it provide 22 W at 500 m?
Do not assume that. The manual’s longest example is for a load below 4 W; its PoE+ example below 22 W reaches up to 200 m with an 802.3at source.
Does it need a nearby mains outlet?
No local PSU is required. It draws power from the upstream IEEE 802.3af/at PoE source, whose capacity must cover the extender and endpoint.
Singular Expert Insight
Best for a planned indoor copper link where the endpoint’s real consumption is known. Work backwards from the device load and the manual’s source/distance table; for long routes with larger loads, compare fibre plus local power or a suitable powered switch instead of assuming unlimited PoE extension. Network cable installation accessories

Buyer’s Guide

✓

Buy it if

 You have a compatible PoE source, known endpoint load and an indoor cable route that fits the manual’s limits.
✕

Skip it if

 You need outdoor protection, industrial conditions or maximum power at the longest stated distance.
→

Also consider

 A suitable outdoor/industrial extender, or fibre with local power for a long-distance endpoint.
Tell us your PoE source, endpoint power demand and cable route so we can check the design.
