DIGITUS DN-19-DIN-4U — 4U 19" Rack-Mount DIN Rail Panel
4U · 19"35 mm DIN rail20 kg loadGalvanized steel

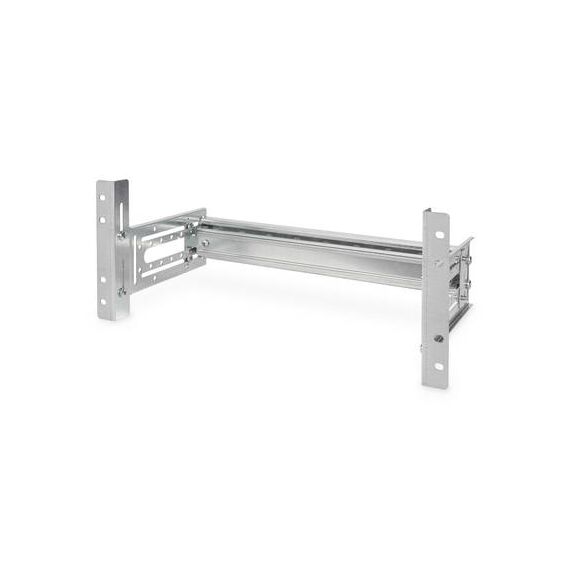

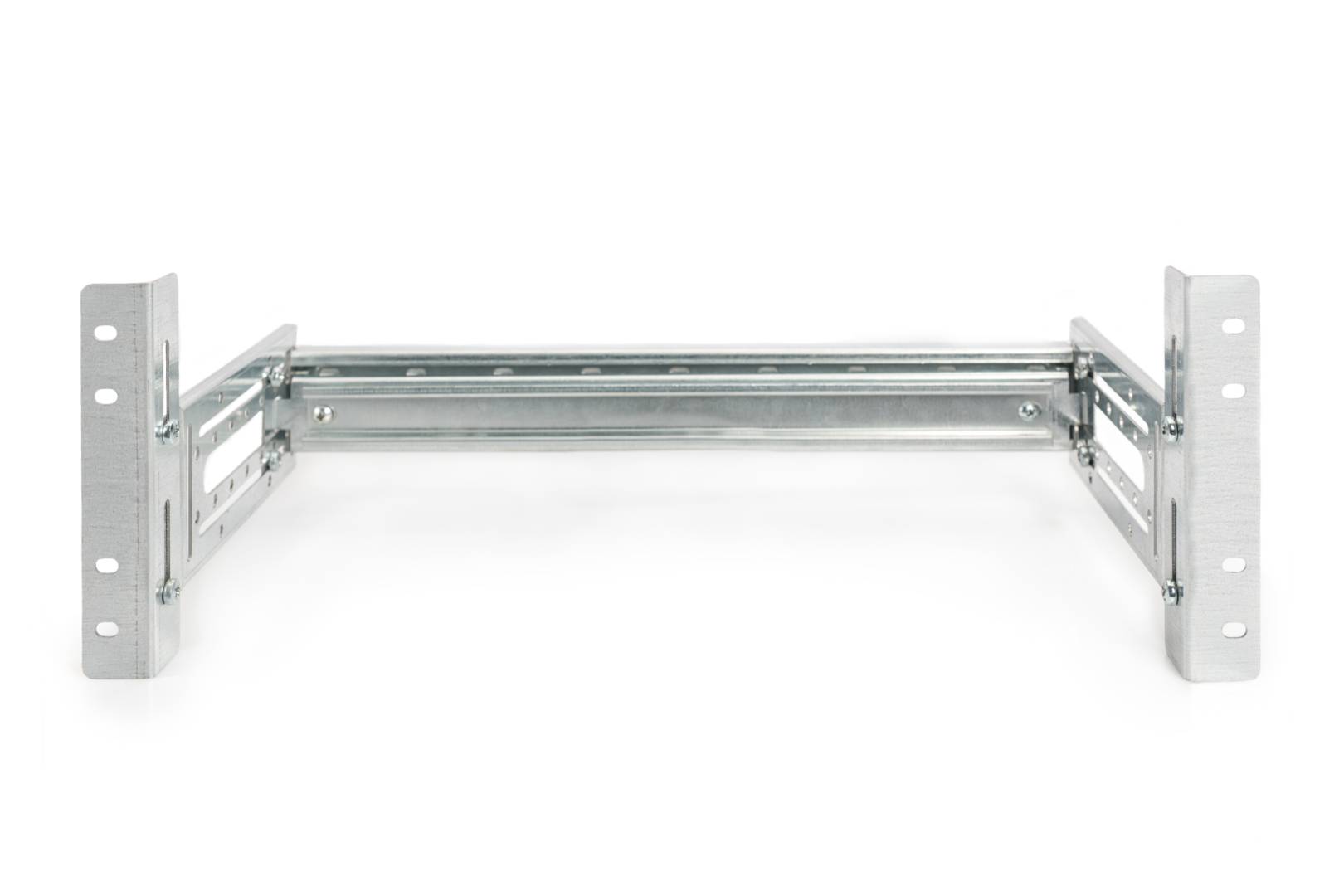

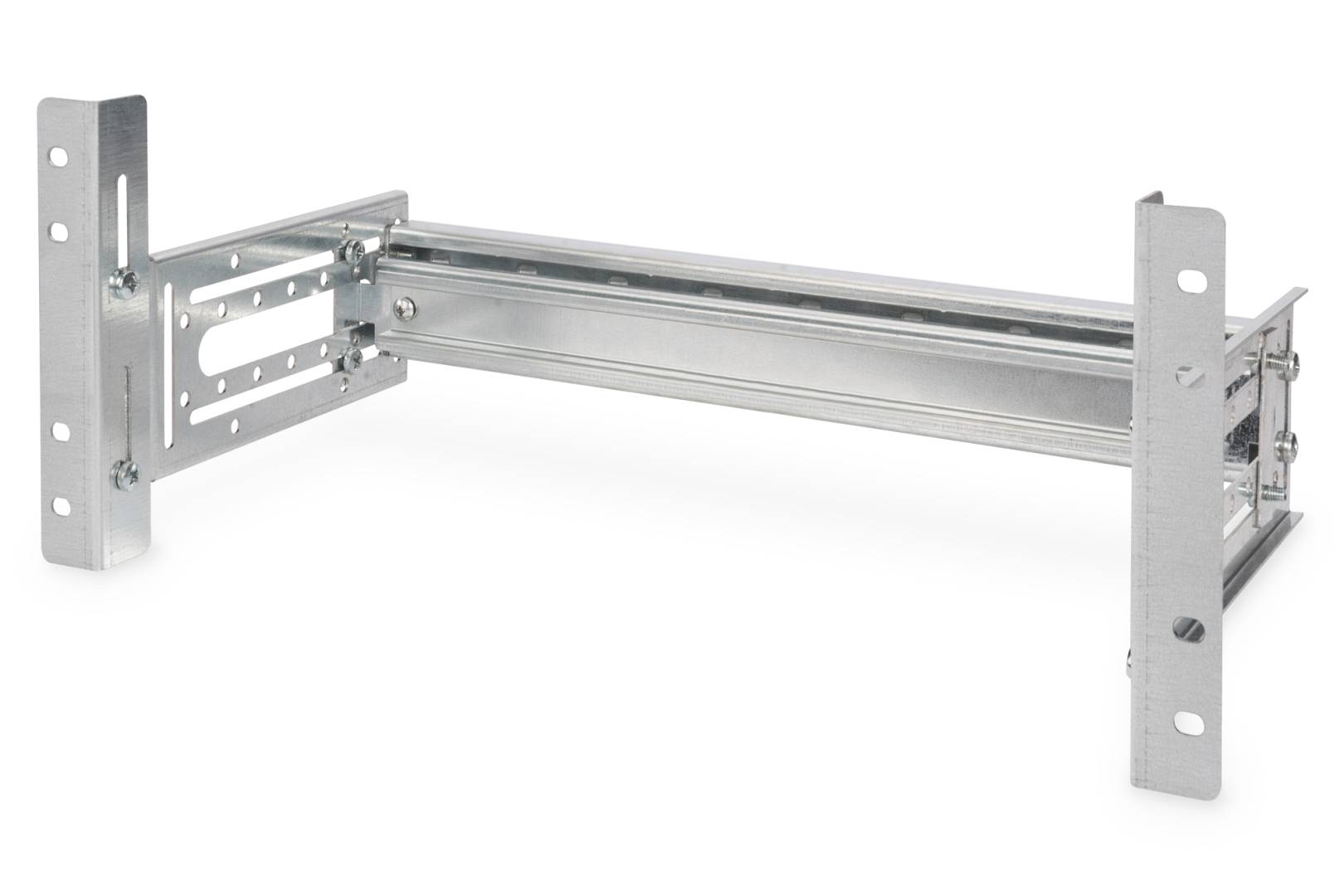

The DIGITUS DN-19-DIN-4U is a 4U, 19-inch rack-mount DIN rail panel that brings 35 mm top-hat DIN rail devices into a network or server cabinet. It comes with a built-in DIN rail to DIN EN 60715, carries up to 20 kg, and is made of galvanized sheet steel.
DIGITUS designed it for quick, screwless mounting of DIN rail equipment such as power supplies, circuit breakers, relays, PoE injectors or industrial Ethernet switches. The DIN rail is variable in depth, and a C-shaped cable tray on the rear side can be adjusted in height for tidy wiring. It measures 178 x 483 x 223 mm (H x W x D).
What's in the Box
- 1x DIGITUS 4U DIN rail panel with built-in 35 mm DIN rail
- Installation set: screws, cage nuts and washers
What It Means in Practice
- DIN rail gear sits in the same 19-inch cabinet as the network equipment it powers or controls.
- Variable depth lets you line the DIN devices up with patch panels or keep them back from the door.
- The rear C-shaped tray gives cables a fixed route and tie points behind the devices.
- 4U of height leaves room for taller DIN components such as power supplies.
What Will Not Work
- It only takes 35 mm top-hat (TH35) DIN rail devices.
- It is not an electrical distribution board and gives no touch protection for mains terminals.
- It does not include the DIN rail devices.
- It will not carry more than 20 kg.
Key Features
Built-in DIN rail
35 mm top-hat rail to DIN EN 60715 included and pre-mounted.
Screwless device mounting
DIN devices clip onto the rail without extra screws.

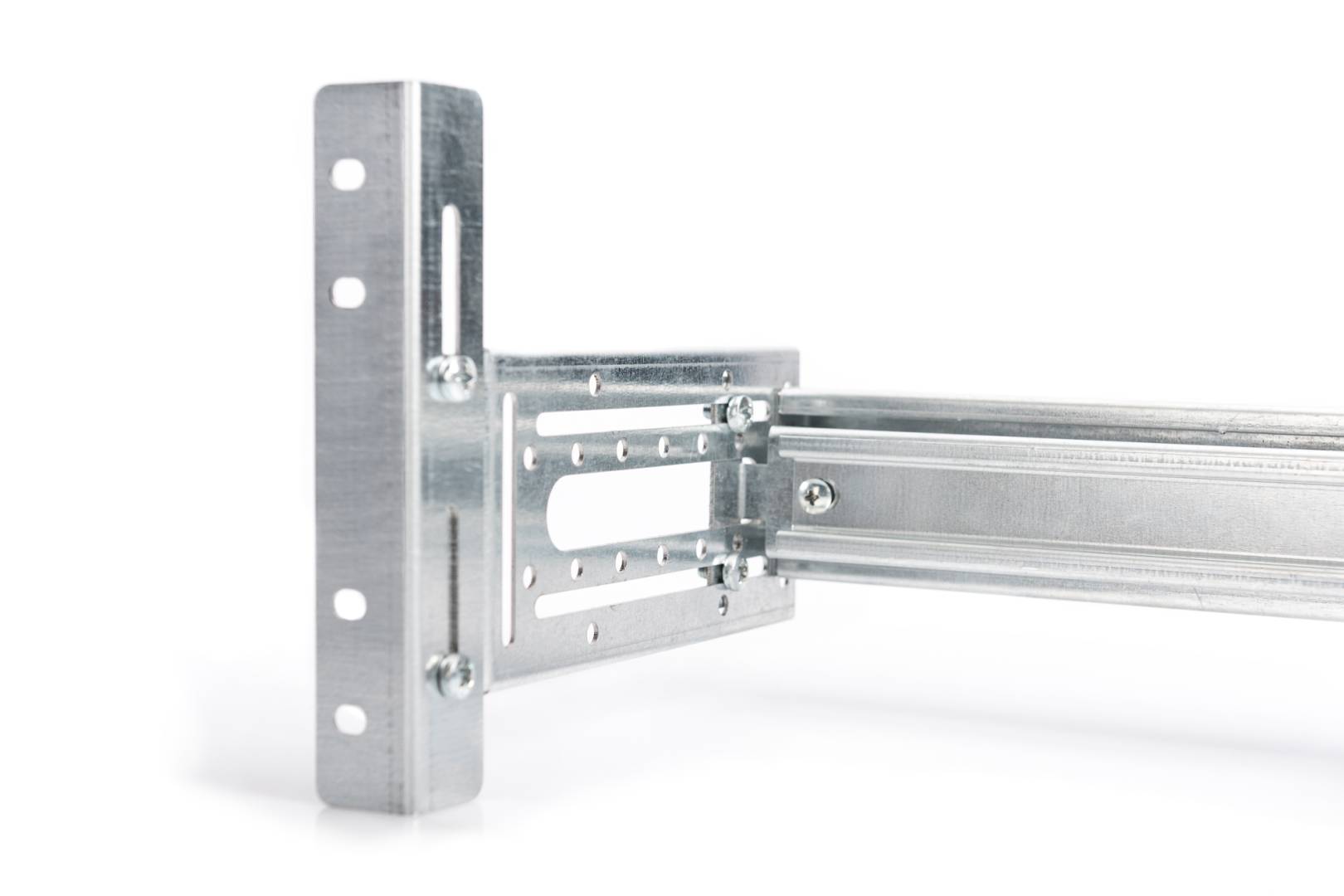

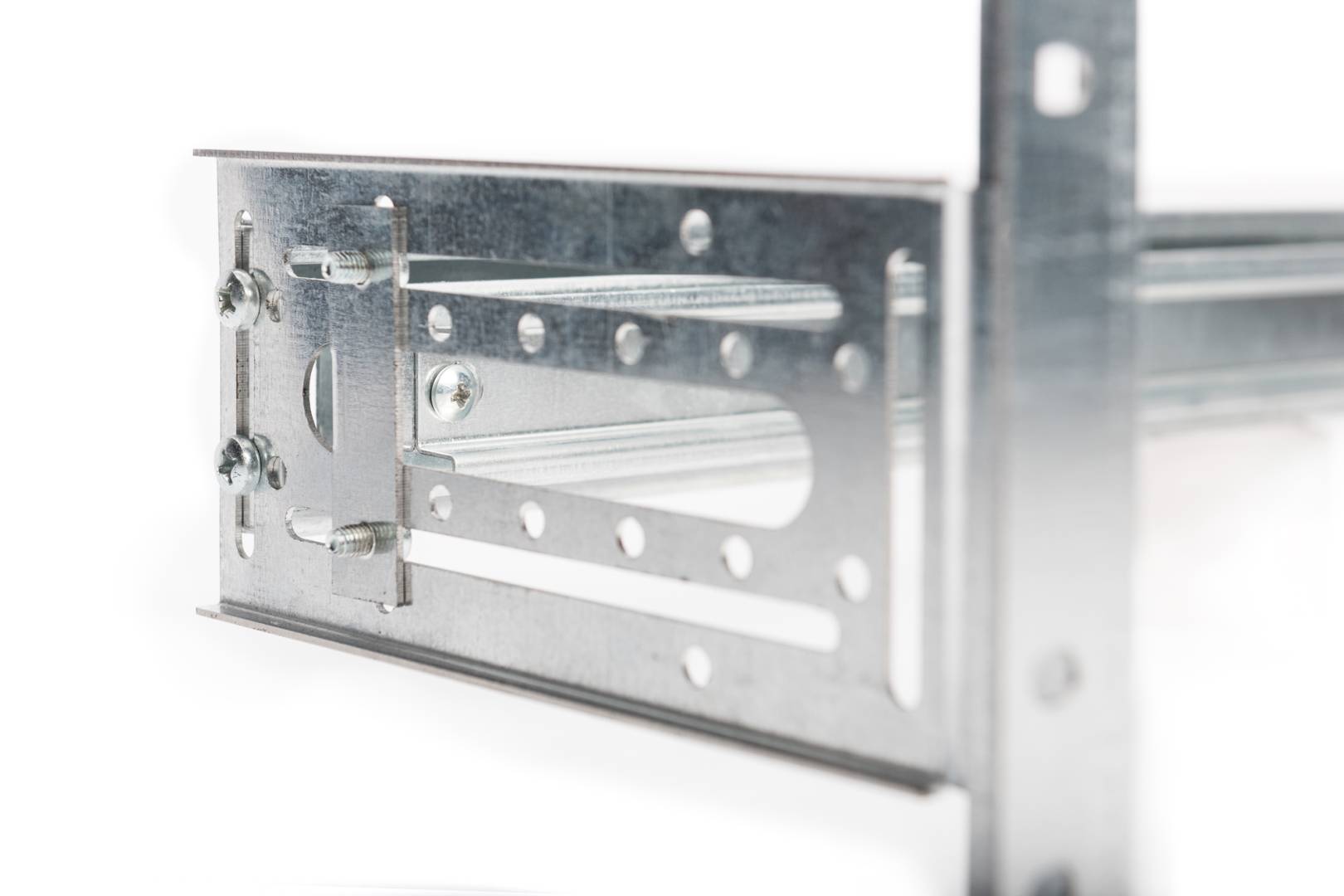

Variable depth
The DIN rail position can be adjusted in depth.

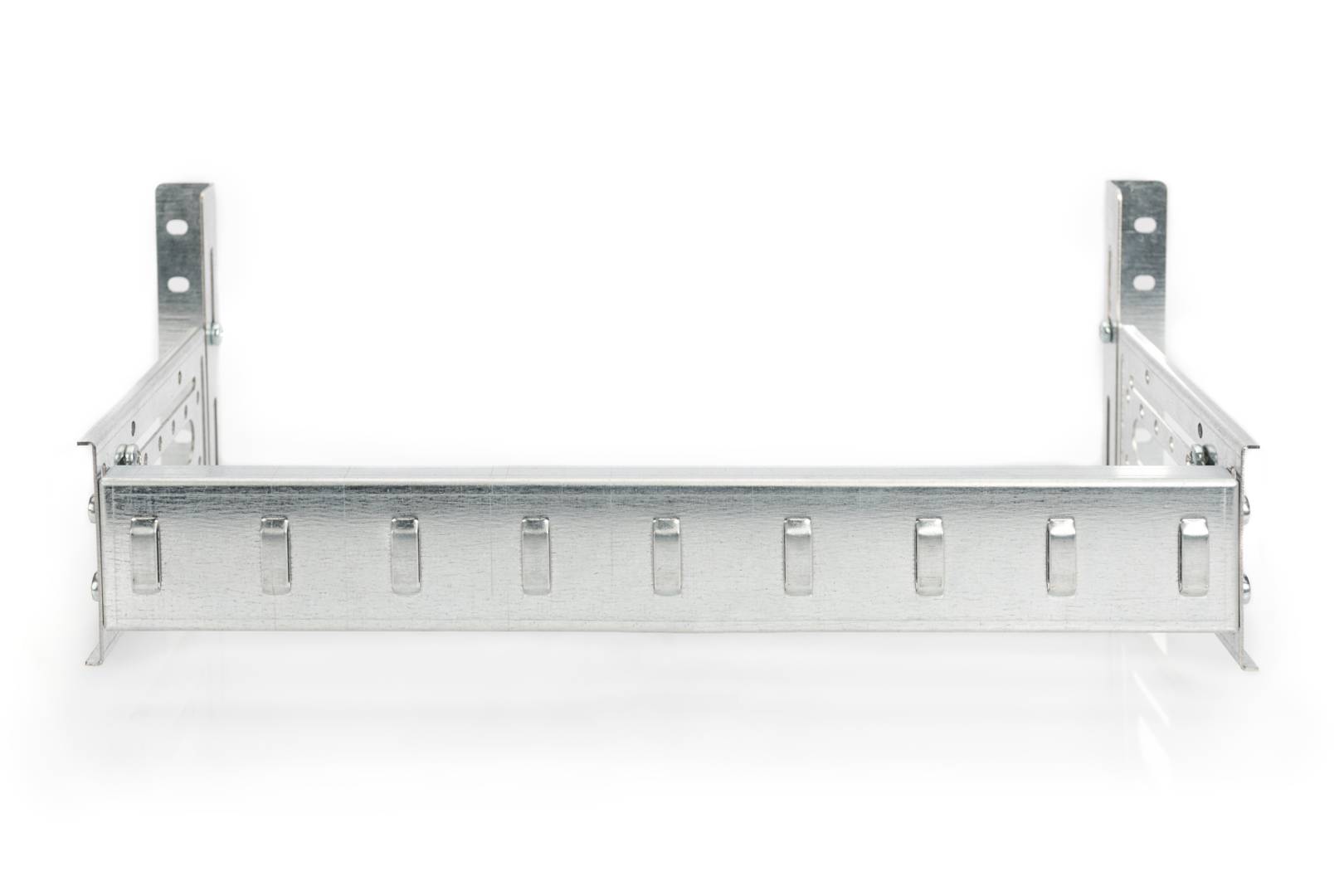

Rear cable tray
C-shaped tray on the back, variable in height, for cable routing.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A DIN rail panel inside the rack keeps small power and control devices next to the network gear, with one door and one cable route. Leave space around DIN power supplies for heat, and use our rack accessories for blanking panels and fans to keep the cabinet cool.
✓ Buy it if you want to mount 35 mm DIN rail devices in a 19-inch cabinet with adjustable depth.
✕ Skip it if you need a closed, touch-safe electrical enclosure for mains distribution.
→ Also consider the EFB 53719.1V3 universal DIN rail holder, which can also be mounted on a wall or ceiling.
Not sure it fits your setup? Send us the list of DIN rail devices and your cabinet model, and we will check before you order.
Features - Digitus - DN-19-DIN-4U
Colour
silver
More Details
Product Code
04:290157
EAN Code
4016032456100
Manufacturer
Digitus
