DIGITUS 2U Extendible Rack Shelf for Front 19-inch Rails, Cabinets from 450 mm Deep, 30 kg Load, Perforated Steel, Grey RAL 7035
Brand:
Digitus
DIGITUS 2U Extendible Rack Shelf for Front 19-inch Rails, Cabinets from 450 mm Deep, 30 kg Load, Perforated Steel, Grey RAL 7035
€116.22 inc. VAT
DN-19-TRAY-2-450
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS 2U Extendible Shelf for Front 19" Rails — Grey
2U · 19"Pull-out with handle30 kg loadRAL 7035

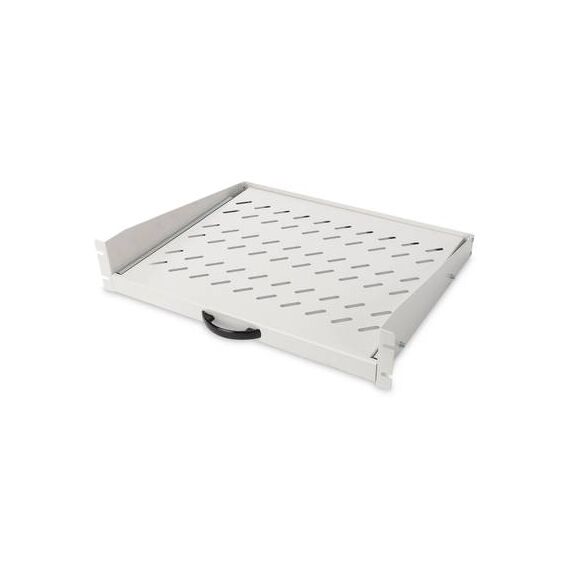

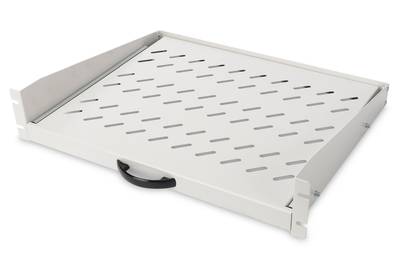

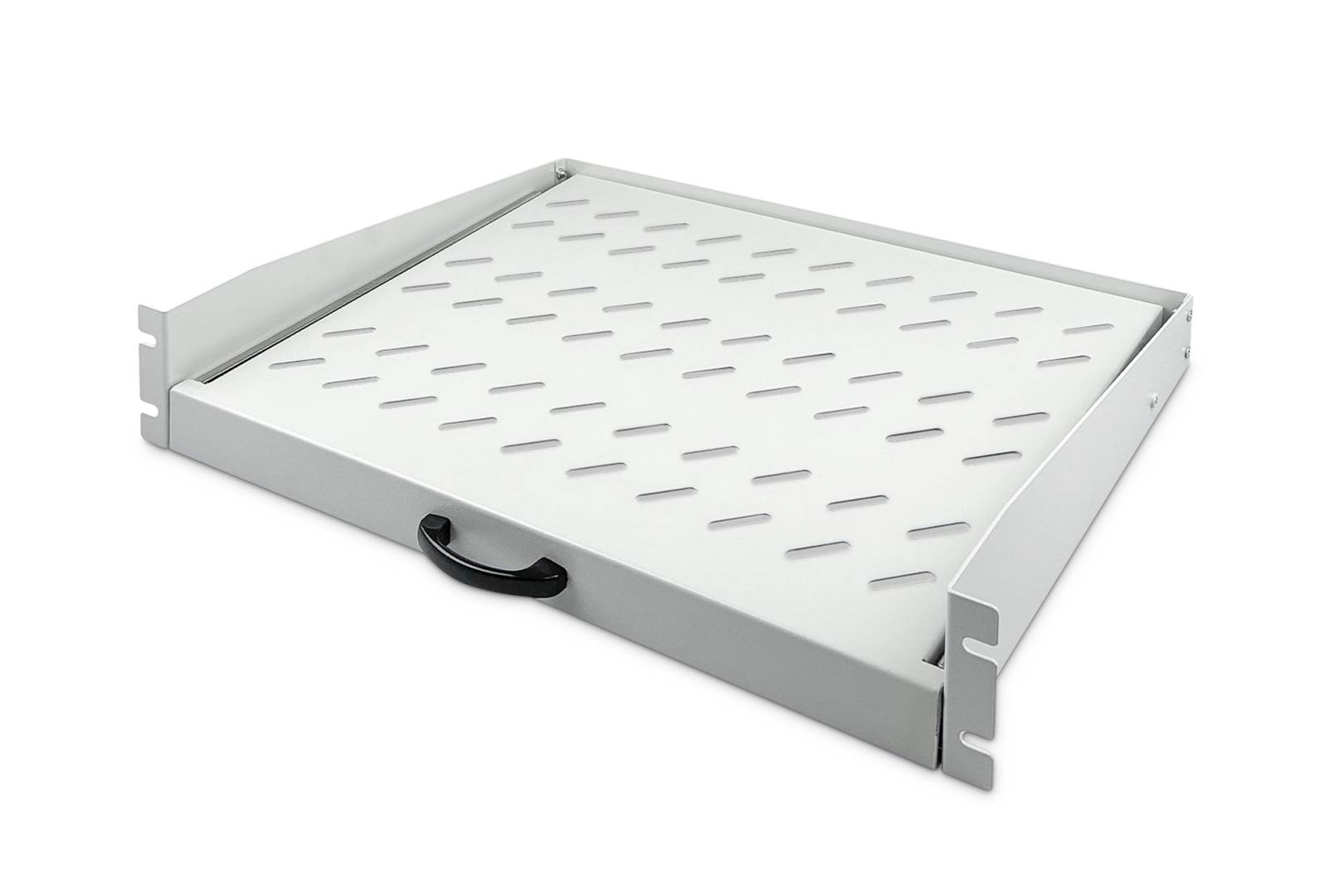

The DIGITUS DN-19-TRAY-2-450 is a 2U extendible (pull-out) shelf that fixes to the front 19-inch rails only and suits cabinets from 450 mm deep, carrying up to 30 kg, for anyone who wants reachable storage for non-rack devices in a wall cabinet or a shallow network cabinet.

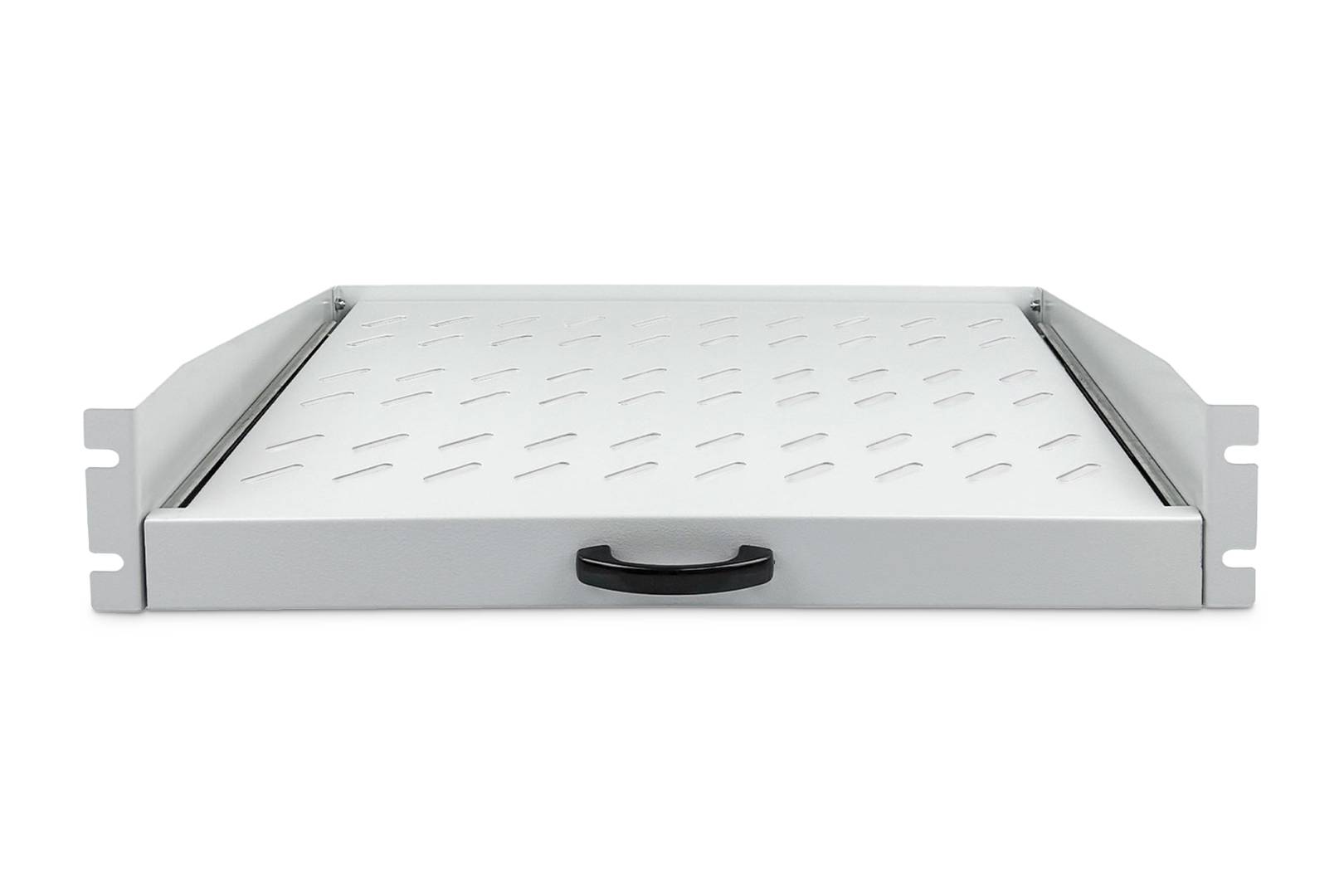

Because it needs only the front rails, it is well suited to double-section wall-mount cabinets and other enclosures without rear profiles. A handle lets you slide the tray forward to reach a router, modem, NVR or small NAS, then push it back. The perforated tray lets heat rise away from the equipment.
Before you order: the shelf needs at least 450 mm of cabinet depth and mounts on the front rails only. Do not confuse it with the fixed (non-extendible) 2U 450 mm DIGITUS shelves, which have different part numbers.
What's in the Box
- 1 × 2U extendible shelf with handle (grey, RAL 7035)
- Installation set: screws, cage nuts and washers
What It Means in Practice
- 2U high: the shelf body uses two rack units; the device on top needs its own height above it.

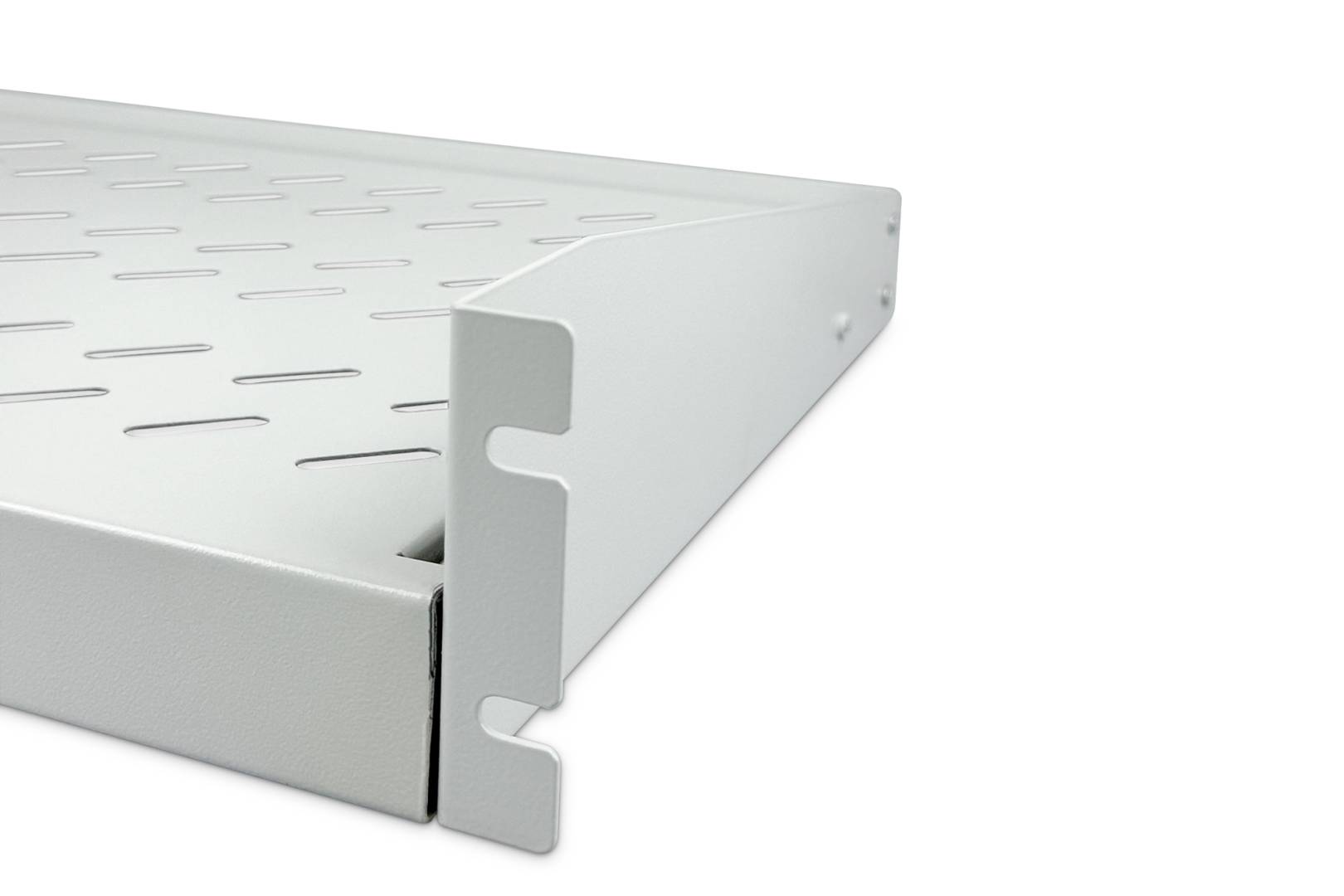

- Front-rail fixing only, so it works in wall cabinets and racks that have no rear profiles.
- Sliding the shelf out gives access to ports and buttons without removing the device from the cabinet.
- Perforated steel keeps air moving through the shelf for devices that vent through the base.
- Handles up to 30 kg — enough for most desktop network, surveillance and storage devices.
What Will Not Work
- Cabinets shallower than 450 mm.
- Loads above 30 kg, such as rack UPS units or batteries.
- 10-inch mini racks — this is a 19-inch shelf.
- Matching a Black cabinet — the other colour is a separate part number.
Key Features
Pull-out access
Handle-operated extension makes service and cabling easier.
Front-rail mounting
No rear rails required, ideal for wall-mount cabinets.
30 kg capacity
Strong enough for NVRs, small NAS units, routers and modems.
Ventilated tray
Perforated steel lets heat escape from underneath devices.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For wall cabinets, a front-mount extendible shelf is often the only shelf that both fits and gives real access to the equipment. Keep an eye on total depth: the shelf is about 35 cm deep, and your device plus its cables must fit in front of the cabinet rear wall. See our rack accessories for blanking panels, fan units and cable managers to finish the cabinet.
✓ Buy it if you need a pull-out shelf for a wall cabinet or shallow 19-inch cabinet from 450 mm deep, up to 30 kg.
✕ Skip it if your cabinet is shallower than 450 mm, or you need to carry more than 30 kg.
→ Also consider the black version of the same shelf, or a four-point extendible shelf for deep floor-standing cabinets.
Send us your cabinet model and depth and we will confirm the shelf fits before you order.
Features - Digitus - DN-19-TRAY-2-450
Colour
grey
More Details
Product Code
04:256266
EAN Code
4016032427988
Manufacturer
Digitus
