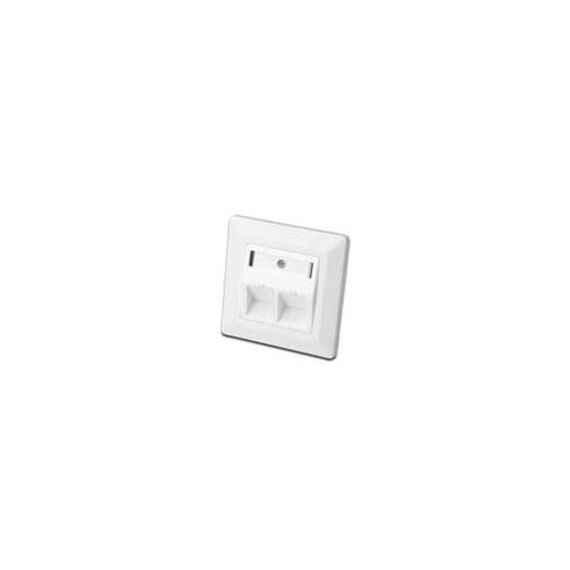

Digitus Keystone Wall Outlet, 2 Ports, 45° Angled, German Type 80 x 80 mm Frame, Flush Mount, Pure White RAL 9003

The Digitus DN-93801-1 is a flush-mount wall outlet for two keystone modules, with a 45° angled outlet, 80 × 80 mm frame and 50 × 50 mm central plate in pure white, for installers finishing structured-cabling points in offices and homes.

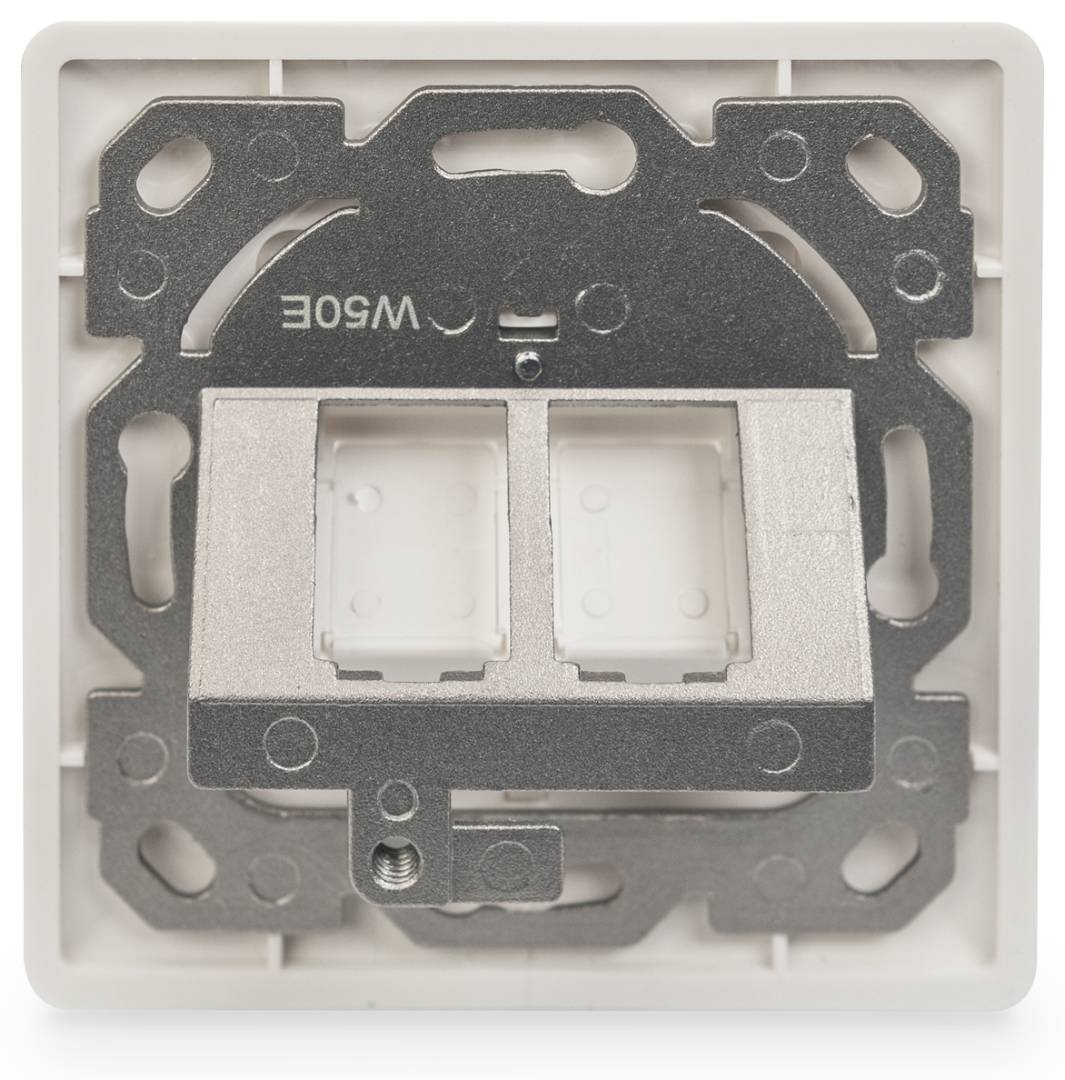

It is a faceplate only: you terminate the installation cable on a Digitus keystone jack, clip the jack into the plate, and screw the plate into the wall box. Integrated dust covers close the ports when nothing is plugged in, and a central ground connection lets shielded jacks be earthed properly.

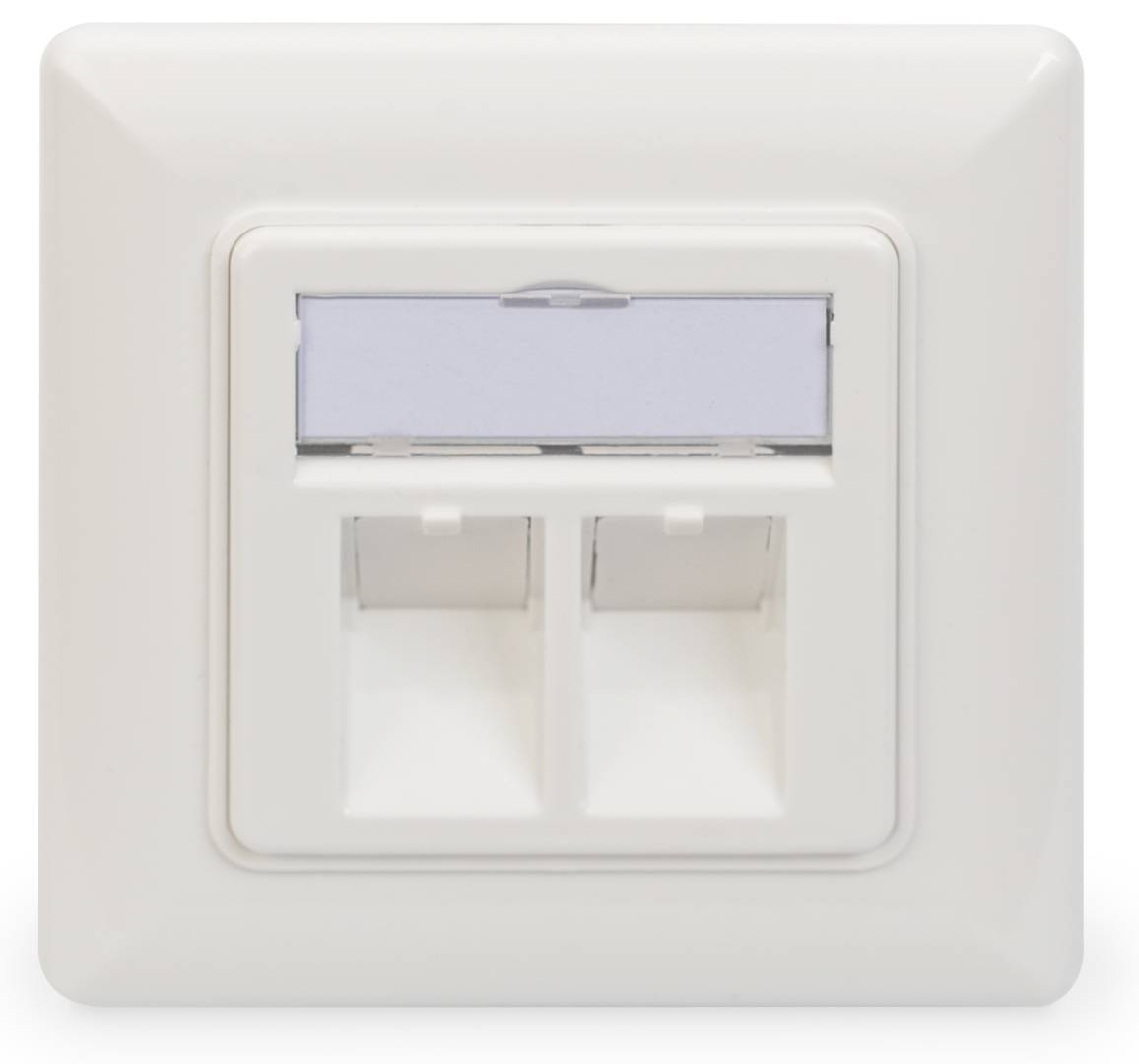

• 1 × keystone wall outlet: 2-port central plate 50 × 50 mm with dust covers
• 1 × frame 80 × 80 mm
• Keystone jacks: not included

• Gives a cabled-in network point a clean, finished wall outlet: the installation cable is terminated on a keystone jack, the jack clips into the plate, and users plug a normal RJ45 patch cord into the front.
• The 45° downward outlet keeps the patch cord close to the wall, so furniture can be pushed nearer and the plug is less likely to be knocked off.
• German-type format: 80 × 80 mm frame with 50 × 50 mm central plate, the common European flush-box size.
• Two ports in one outlet: typically one for the PC and one for a phone, printer or access point at the same desk.

• It does nothing on its own — without keystone jacks (sold separately) there is no connection.
• Not a surface-mount box: for walls without a flush box or trunking you need a surface housing (for Digitus: DN-93803 80 × 80 × 42 mm, sold separately).
• Not for UK BS 4662 single-gang back boxes without an adapter — the plate is the European 80 × 80 mm format.
• Unshielded Digitus keystones (e.g. DN-93603, DN-93606) are not what Digitus lists for this plate — ask us before mixing.
