DIGITUS DN-DVR-1 Wall Mounting Cabinet for DVR NVR 580x550x160 mm Steel Door 2U Power Strip Bracket 50 kg IP20 Light Grey

Brand:
Digitus
DIGITUS DN-DVR-1 Wall Cabinet for DVR / NVR Grey
DIGITUS DN-DVR-1 Wall Mounting Cabinet for DVR NVR 580x550x160 mm Steel Door 2U Power Strip Bracket 50 kg IP20 Light Grey
€219.38 inc. VAT
Buy
DN-DVR-1
€184.35
€219.38 inc. VAT
Ships from EU stock: 454 item(s)
+ −
Add to wish list Ask a question
Product Code
03:165885
EAN Code
4016032460671
Manufacturer
Digitus

Quick Specs

Type
Wall cabinet for DVR / NVR
External Size
580 × 550 × 160 mm
Inside
2U 19″ bracket + monitor bracket
Door & Load
Steel door · 50 kg
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-DVR-1 — Wall Mounting Cabinet for DVR and NVR Recorders

580 × 550 × 160 mmSolid steel door2U power strip bracketDelivered assembled

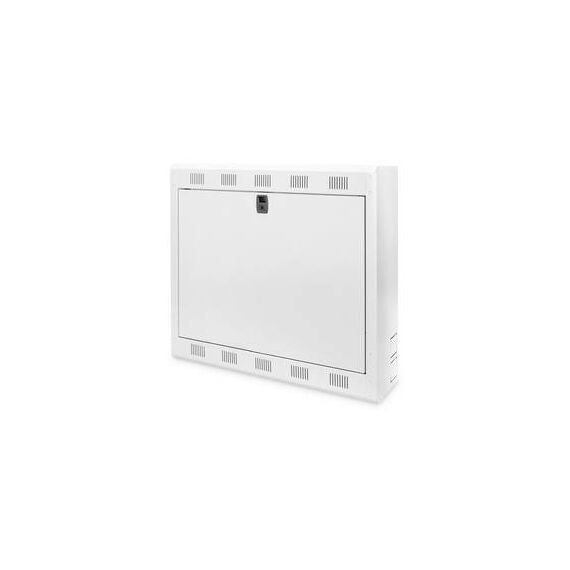

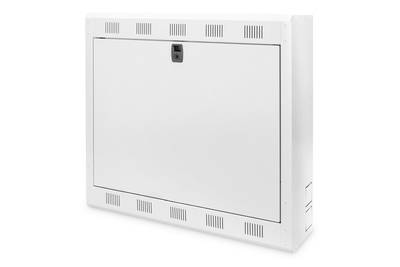

The DIGITUS DN-DVR-1 is a shallow wall mounting cabinet made for a CCTV recorder (DVR or NVR) and its accessories, in light grey (RAL 7035). It measures 580 mm wide, 550 mm high and only 160 mm deep, so it takes very little room on the wall of a shop, a warehouse or an office corridor. A single solid steel door covers the front and keeps the recorder and its hard drives out of sight. Inside, DIGITUS fits a 2U 19″ bracket for a power strip and a 12″ bracket for a monitor, and multiple cable entries on every side bring in the camera, network and power cables. The cabinet is delivered assembled, hangs on an adjustable wall bracket with rubber anti-vibration pads, carries up to 50 kg and is rated IP20. It is not a 19″ network rack: it is a protective box for a recorder.

Compatibility — check before buying:
Check your recorder first. The cabinet is 160 mm deep overall, so the recorder, its cables and plugs must fit within that depth — many desktop DVR/NVR units do, while 19″ rack-mount recorders and switches do not. The only 19″ space is a 2U bracket for a power strip. DIGITUS does not state a lock for the steel door; if the cabinet is in a public area, tell us and we suggest a lockable option. Wall plugs and screws are not listed. Send us the recorder model and we check the fit.

Best For

✓ Shops and kiosks with CCTV
✓ Warehouses and car parks
✓ Office corridors and back rooms
✓ Protecting a DVR or NVR
✓ Keeping hard drives out of sight
✓ Tidy camera cable entry

Key Features


Made for recorders

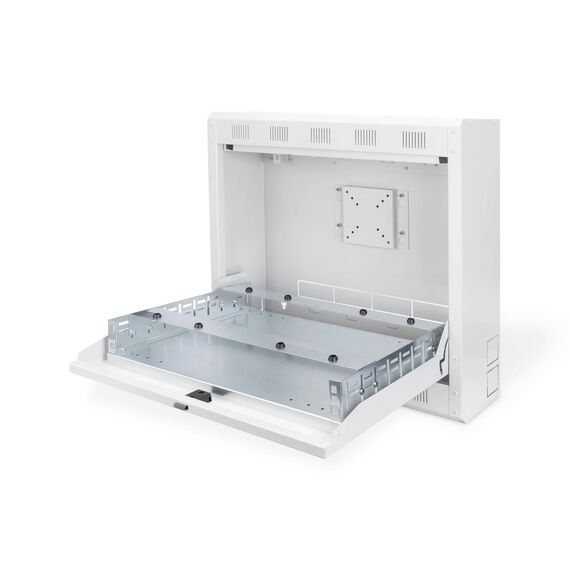

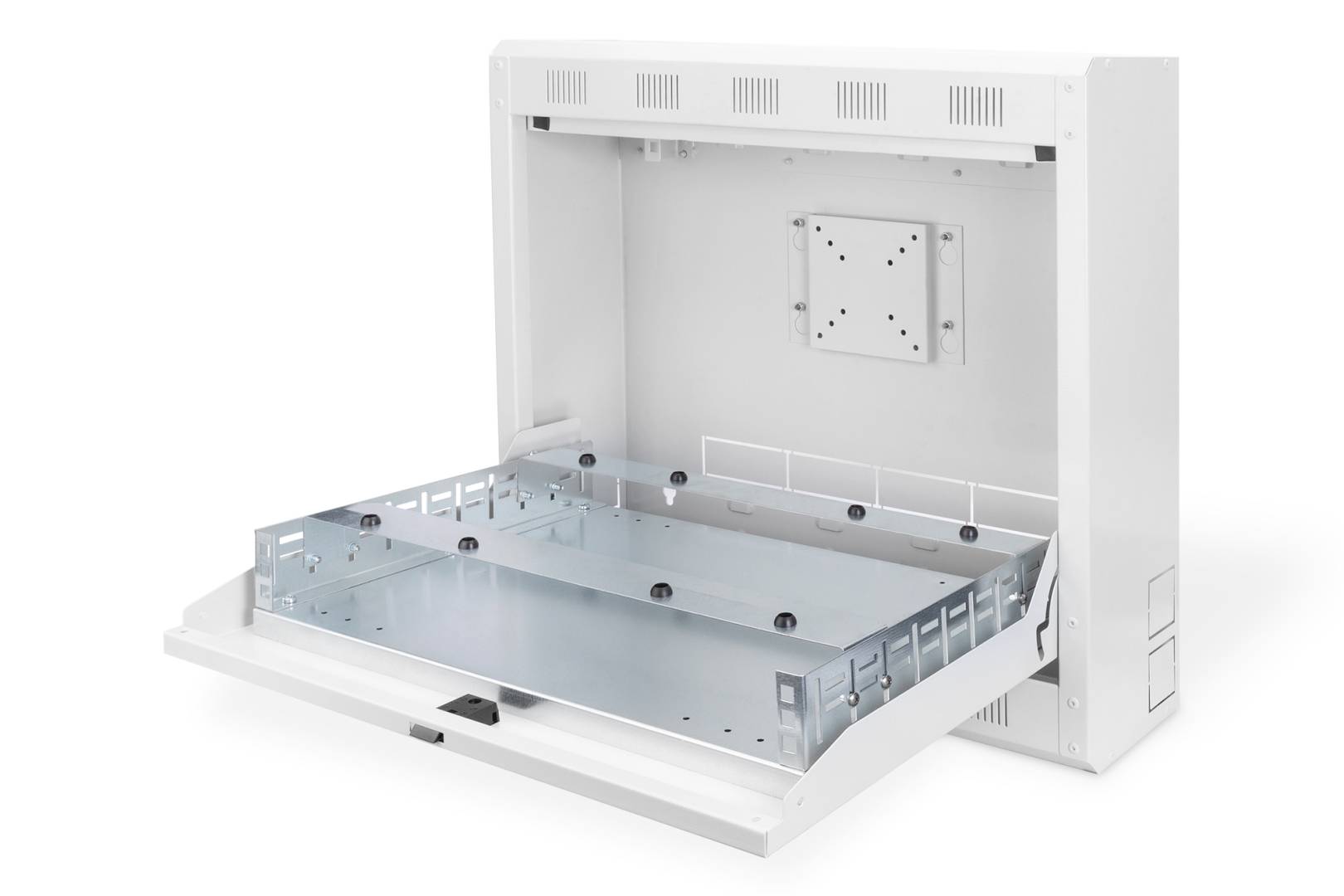

Shallow 160 mm body sized for a DVR or NVR, with a 12″ monitor bracket inside.

2U power strip bracket
A 19″ 2U bracket inside holds a power strip for the recorder and cameras.

Cable entries all round
Multiple entries on every side bring in camera, network and power cables.

Anti-vibration wall bracket
An adjustable wall bracket with rubber anti-vibration pads carries the cabinet.

Technical Specifications

Identification
Brand DIGITUS
Product DIGITUS Wall Mounting Cabinet for DVR, 580 × 550 × 160 mm, light grey
Part Number DN-DVR-1
EAN / GTIN 4016032460671
Colour Light grey (RAL 7035)
Dimensions & Capacity
External Size (W × H × D) 580 × 550 × 160 mm
Max. Load 50 kg
Net Weight 15 kg
Door & Housing

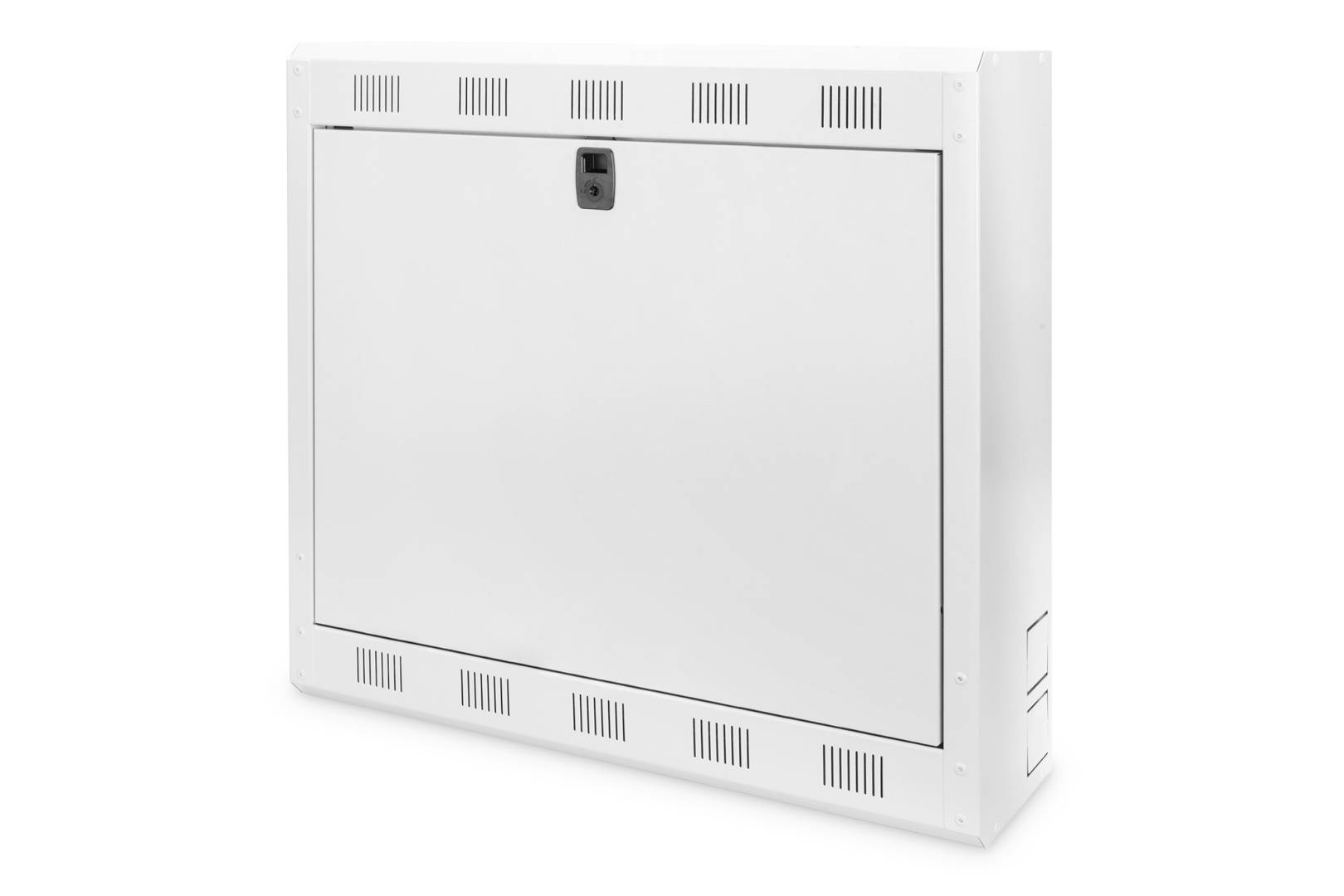

Front Door Solid steel, single door
Side Panels Both sides
Colour Light grey (RAL 7035)
Protection Class IP20, for indoor use
Interior

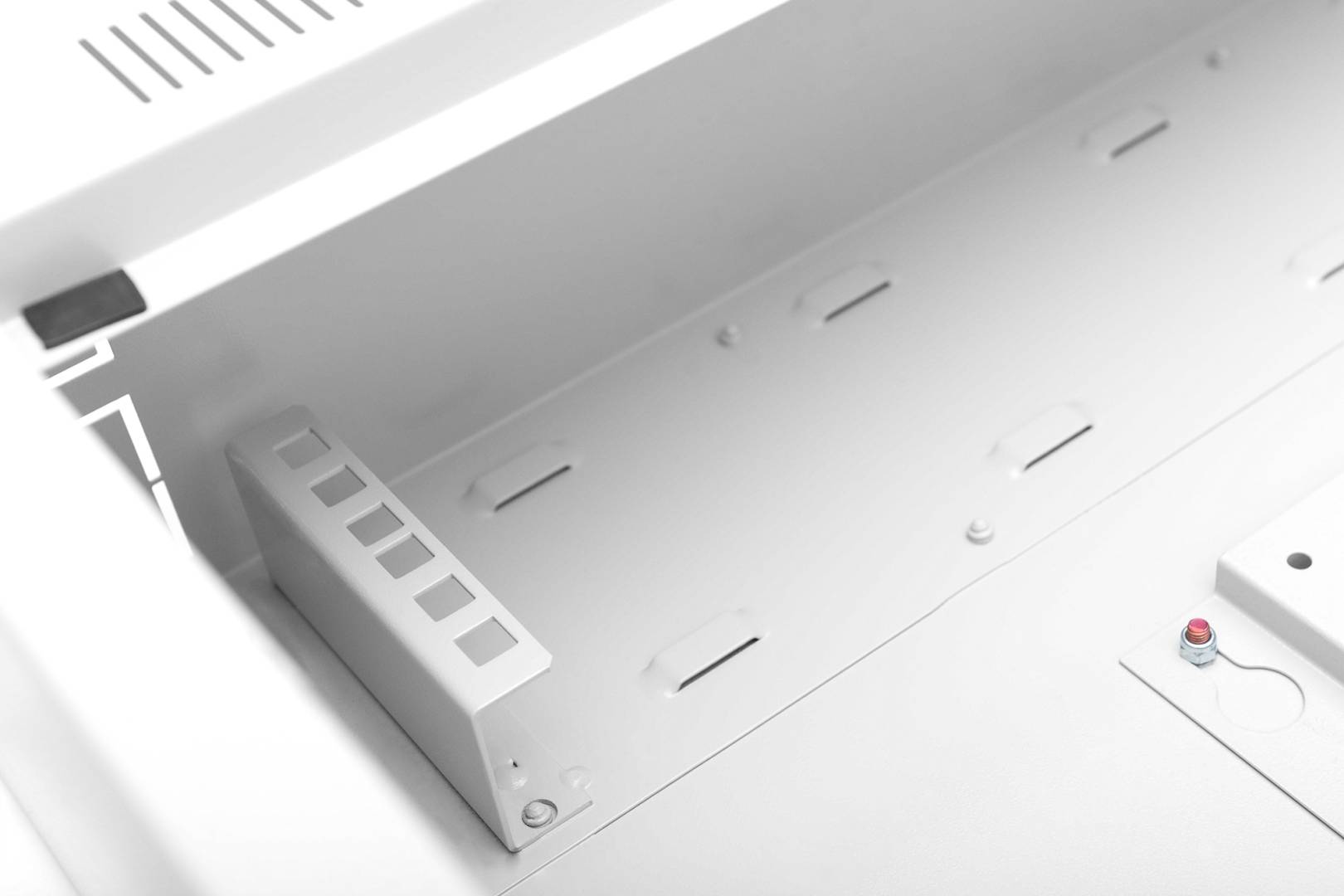

19″ Space 2U bracket for a power strip

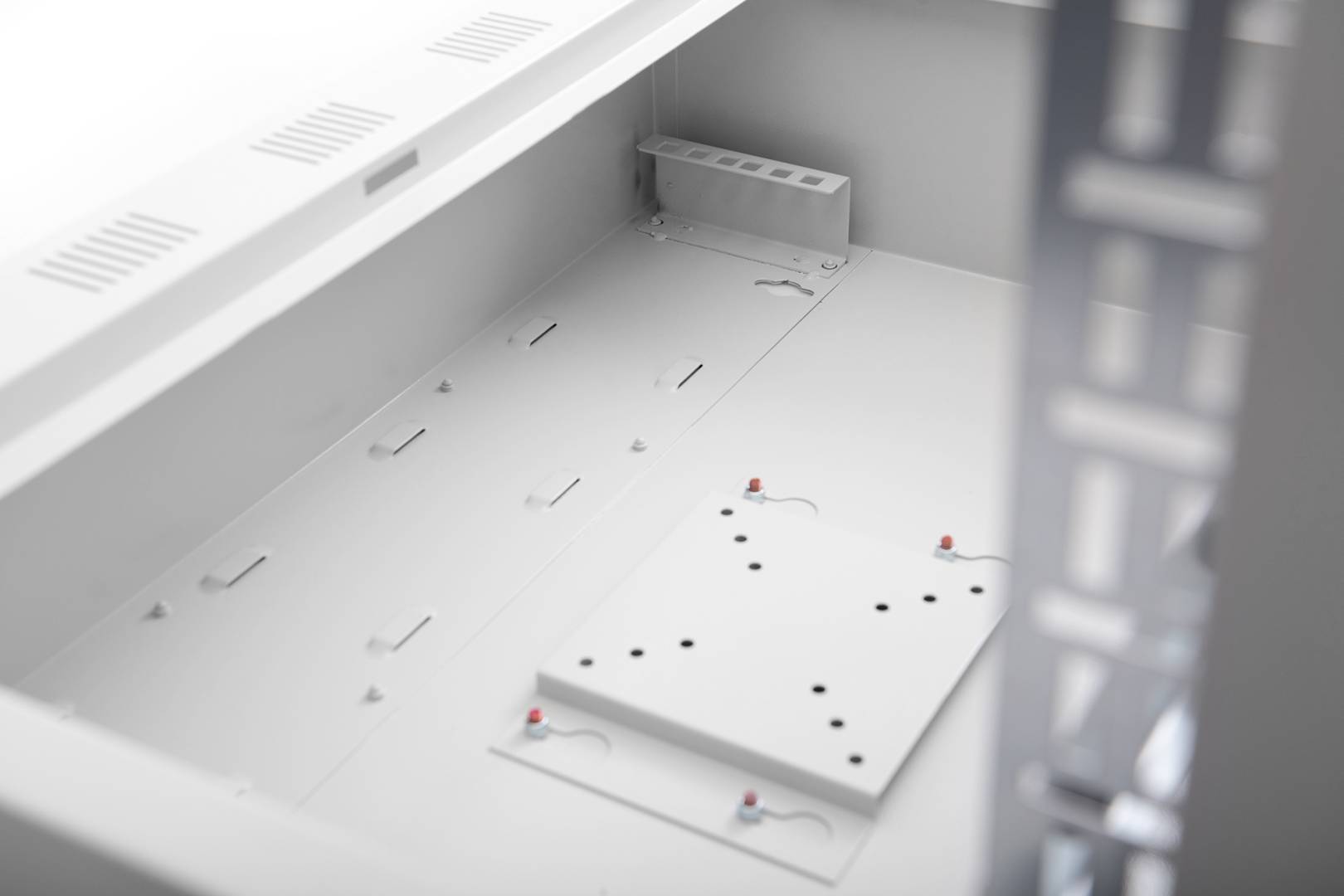

Monitor 12″ monitor bracket
Mounting & Cabling

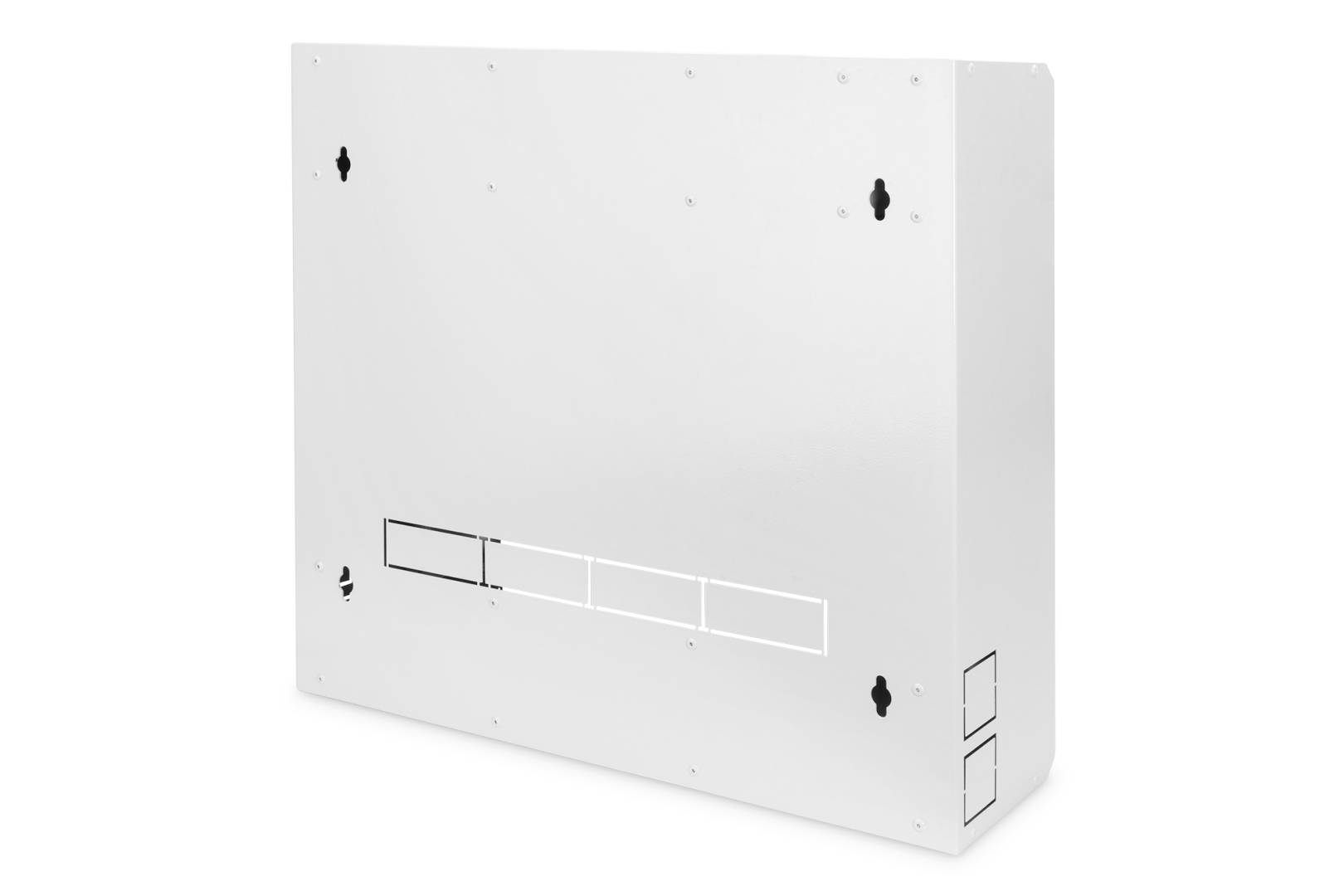

Installation Wall mounting, adjustable bracket with rubber anti-vibration pads
Delivery Assembled
Cable Entry Multiple entries on each side
In the Box
Included Installation set (screws, cage nuts, washers)
Not Included Wall plugs and wall screws (not listed), power strip, recorder, monitor
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not publish a warranty term for this product on its product page or data sheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will my rack-mount NVR fit?
Usually not. The cabinet is 160 mm deep and has only a 2U bracket for a power strip; it is designed for desktop-style recorders. Send us the model and we check.
Does the door lock?
DIGITUS does not state a lock for this cabinet. If you need a lockable box, ask us for an alternative.
Is it assembled?
Yes. It is delivered assembled with an installation set.
Can I put a monitor inside?
DIGITUS fits a 12″ monitor bracket inside. Check your monitor size and depth with us before ordering.
Singular Expert Insight
We suggest the DN-DVR-1 when a CCTV recorder sits on a shelf or on the floor and needs a tidy, closed home on the wall. Match it with a desktop DVR or NVR and a compact power strip. Every order comes with Singular’s local support in Cyprus. See our IP cameras, or browse all racks and cabinets.

Buyer’s Guide

Buy it if

You want a shallow, closed wall cabinet for a desktop DVR or NVR and its power strip.

Skip it if

Your recorder is 19″ rack-mount, or you need a lockable network cabinet.

Also consider

DIGITUS SOHO Pro DN-49201, a lockable 4U 19″ wall cabinet.
