DIGITUS DN-19 12-U-EC — a 12U 19" Dynamic Basic wall cabinet, 600x450 mm
12U 19"600x450 mm60 kg loadGrey RAL 7035

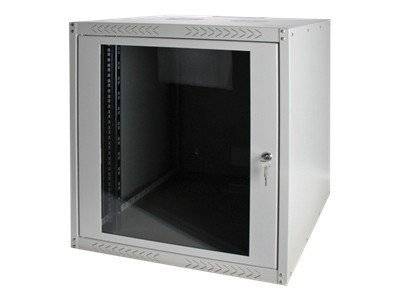

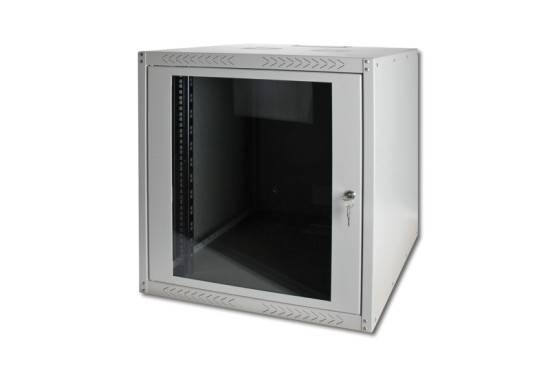

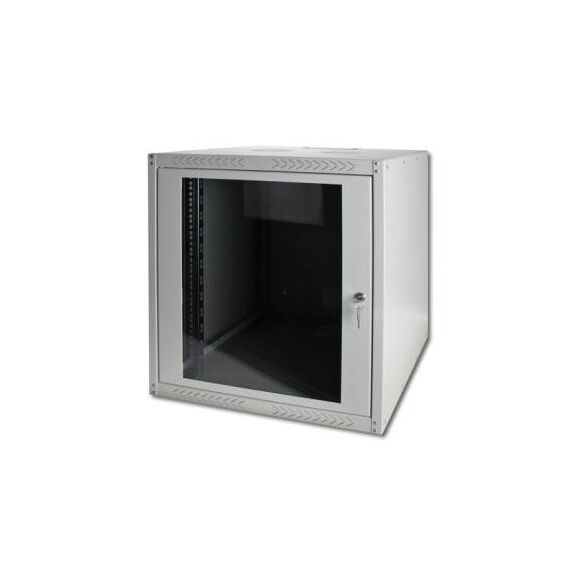

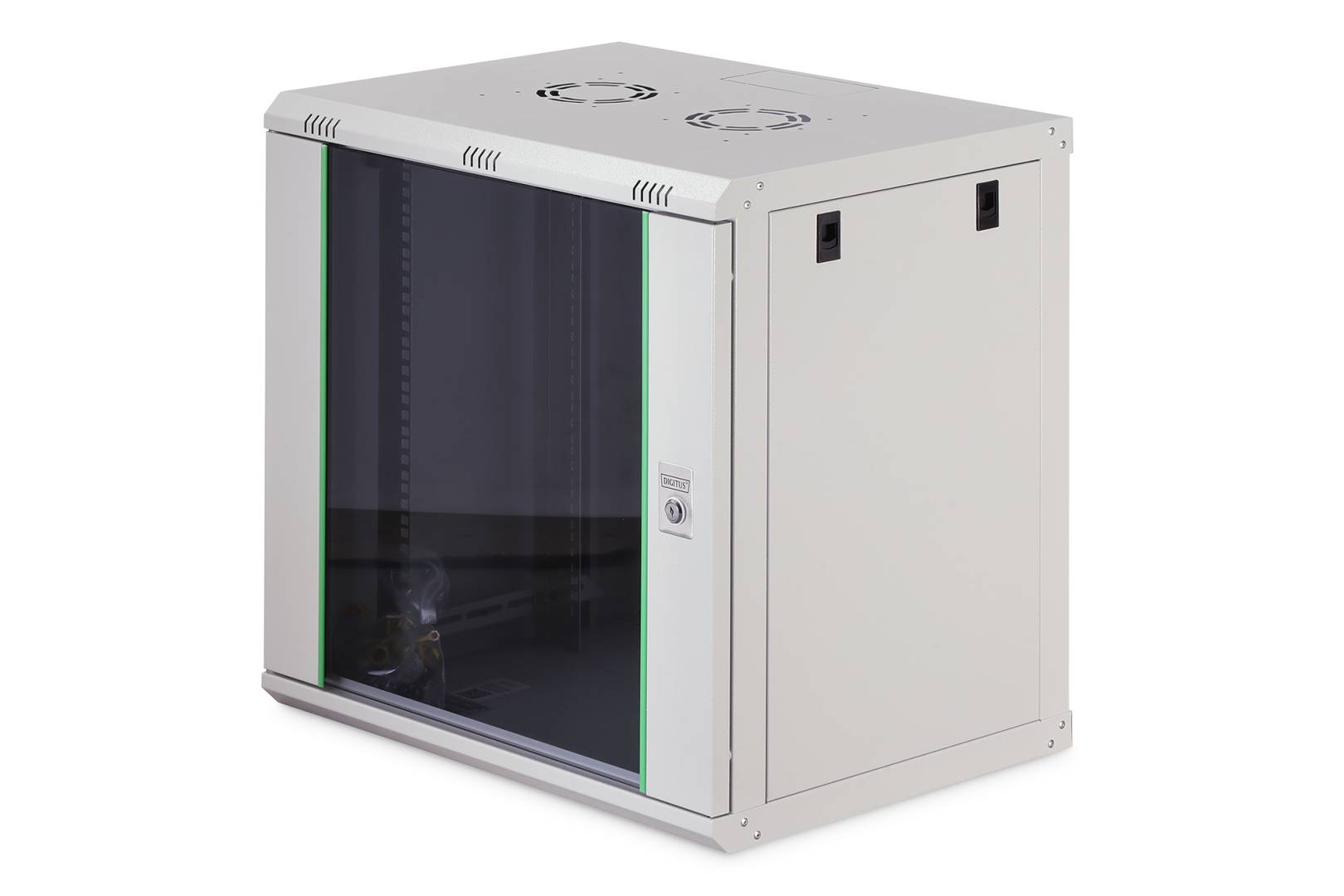

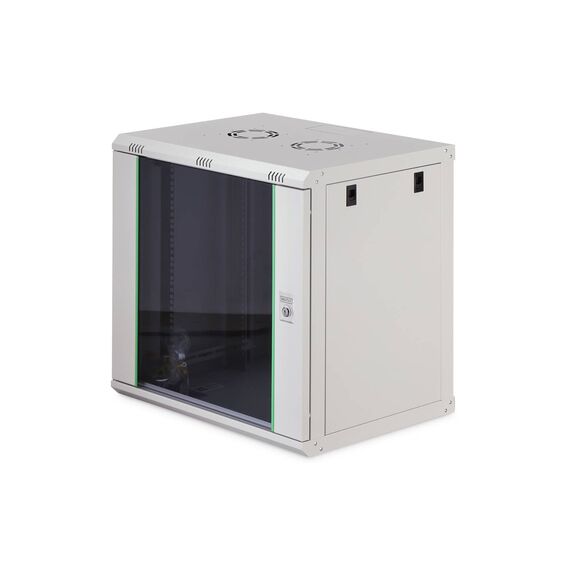

The DIGITUS DN-19 12-U-EC is a 12U 19-inch wall mounting cabinet from the DIGITUS Dynamic Basic Series, measuring 607 x 600 x 450 mm (H x W x D) in light grey (RAL 7035). It has a lockable safety-glass front door that opens 230°, removable side panels and two pairs of depth-adjustable 19" profile rails, and it carries up to 60 kg of equipment. Equipment can be 219–320 mm deep, which suits switches, patch panels, routers and small recorders in an office, shop or comms corner. It hangs on a wall-mounting plate: the plate is screwed to the wall first, then the housing is attached. The roof is prepared for an optional fan unit.
Compatibility — check before buying:
The cabinet is 450 mm deep outside, but equipment between the rails can only be 219–320 mm deep — rack servers and deep UPS units will not fit. The load limit is 60 kg, and the wall must hold that plus the cabinet itself (26 kg). Wall plugs and screws for your wall are not in the box, and neither are a fan, shelf or power strip. Check the code before ordering: DN-19 12-U-EC-SW is the black version, and the heavier Unique Series (no -EC in the code), rated 100 kg with 305–370 mm depth. Tell us what you plan to install — model and depth — and we check that it fits before you order.
Best For
✓ Office and shop network corners
✓ Switches and patch panels
✓ Routers, firewalls and small NVRs
✓ Rooms without floor space for a rack
✓ Growing SME networks
✓ Lockable, tidy IT installations
Key Features
450 mm body, 219–320 mm usable
Two pairs of galvanized 19" rails, adjustable in depth and marked with height units.
60 kg rating
Sheet-steel body 1.0–1.2 mm, powder coated, rated for 60 kg of equipment.

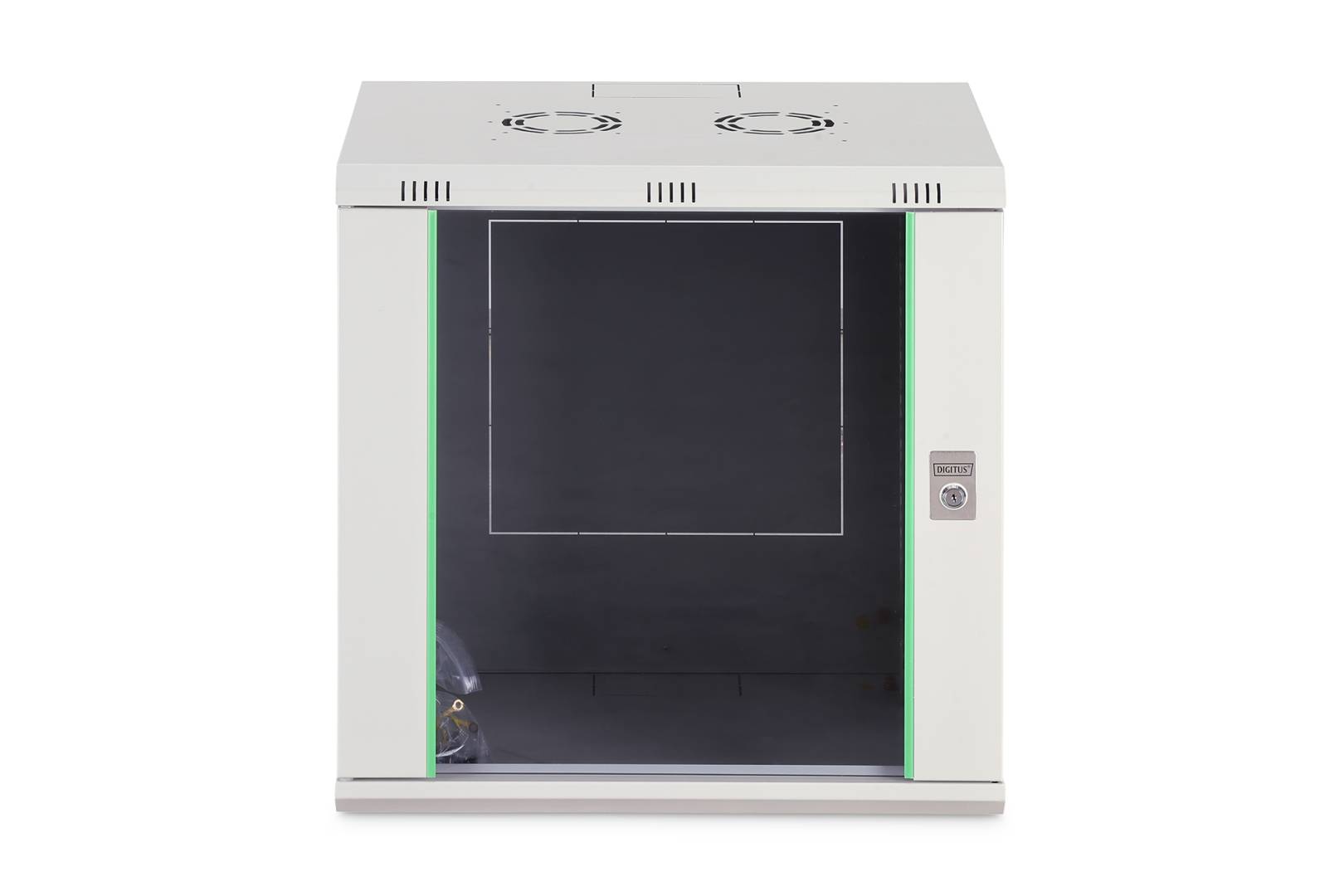

Lockable glass door

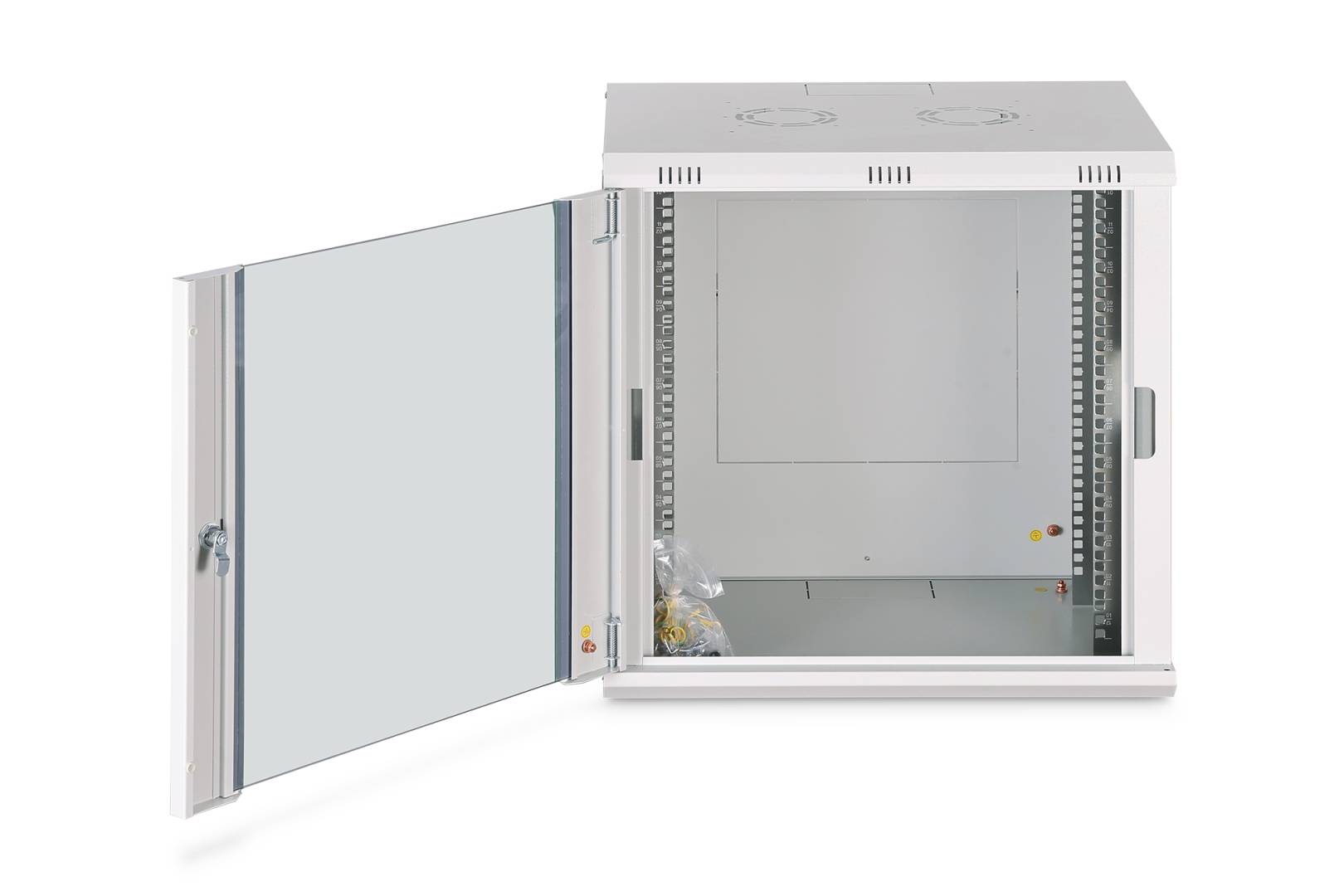

Safety-glass door with steel frame and 1-point lock, opening 230°; the side panels lift off for access.
Ready for cables and cooling

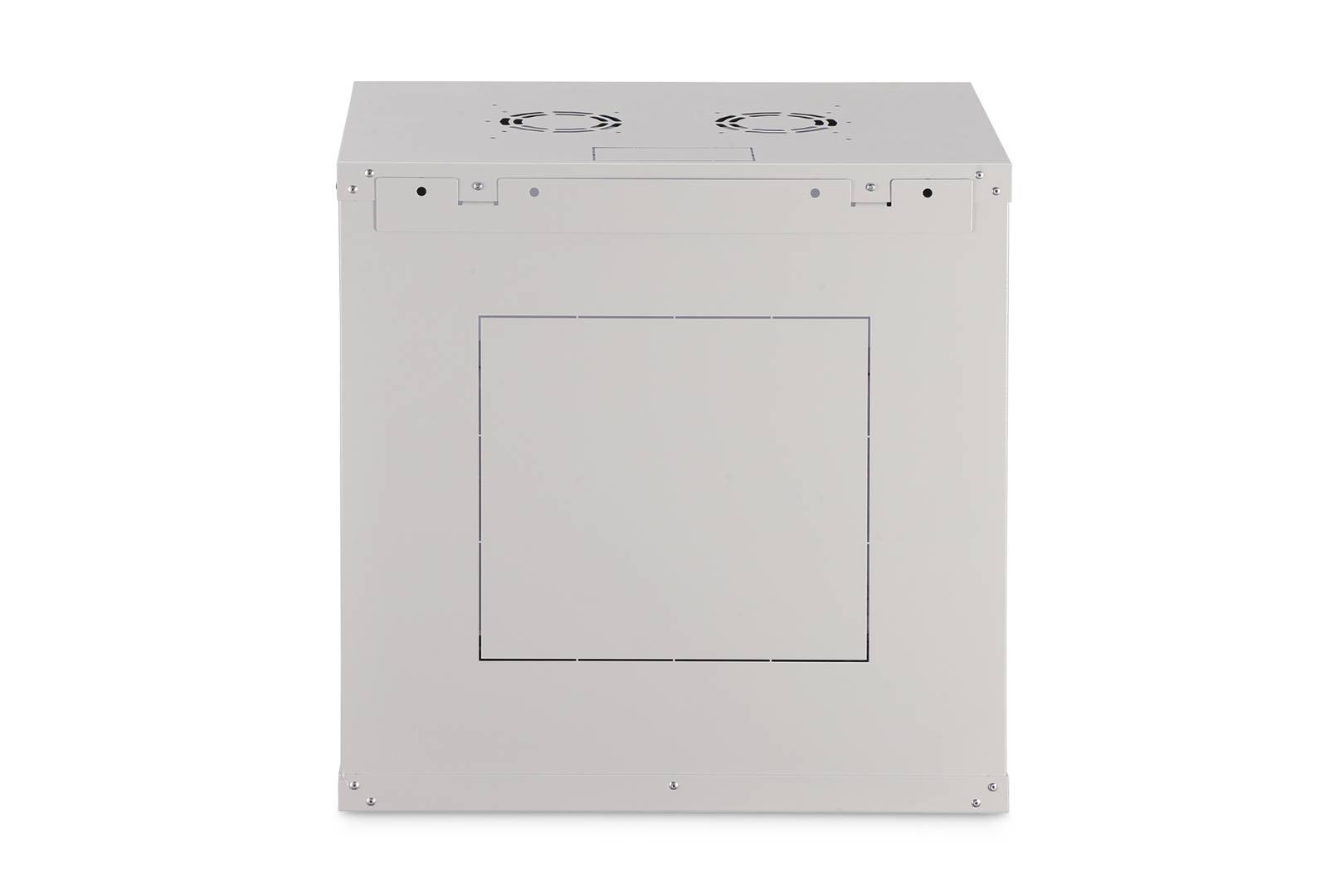

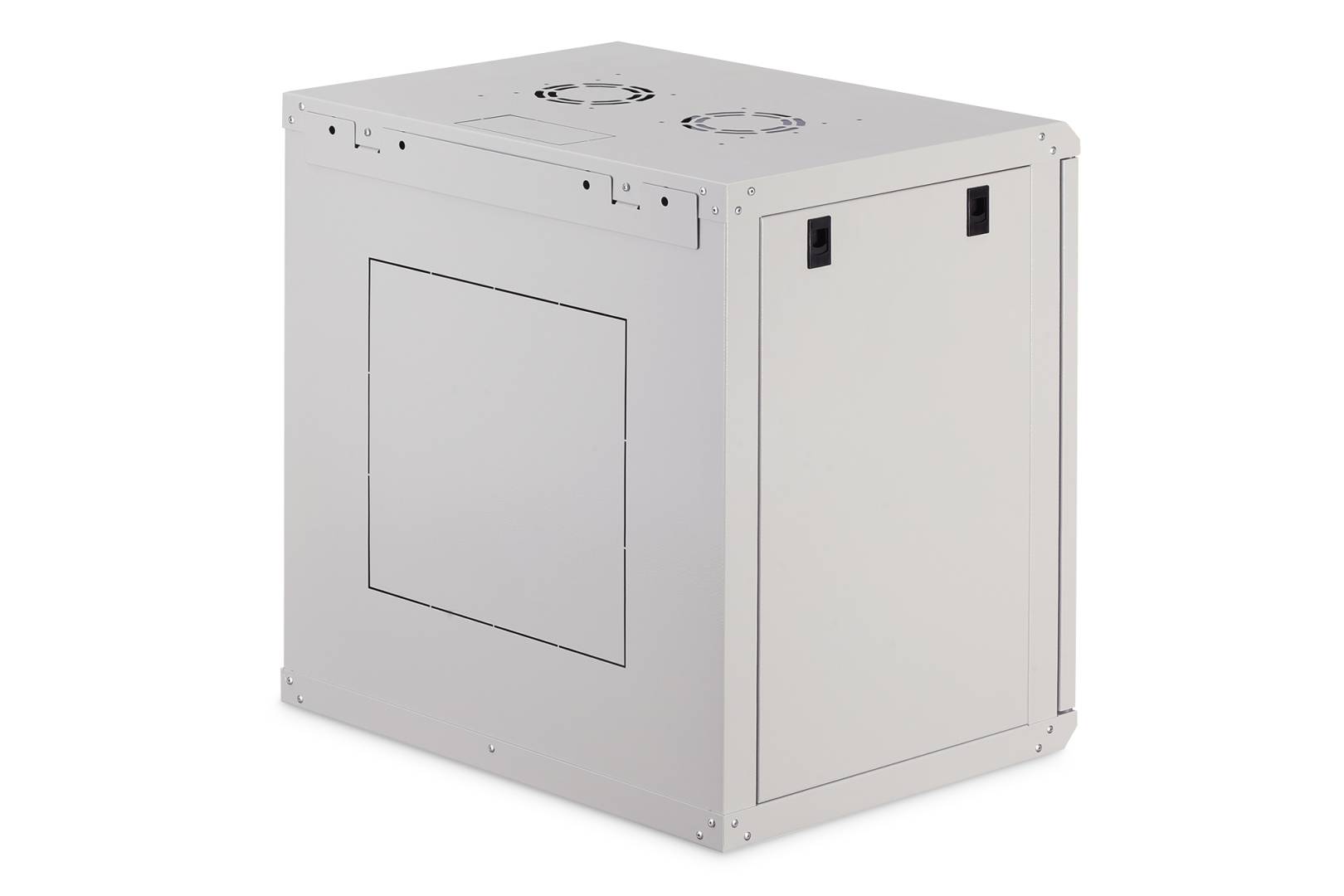

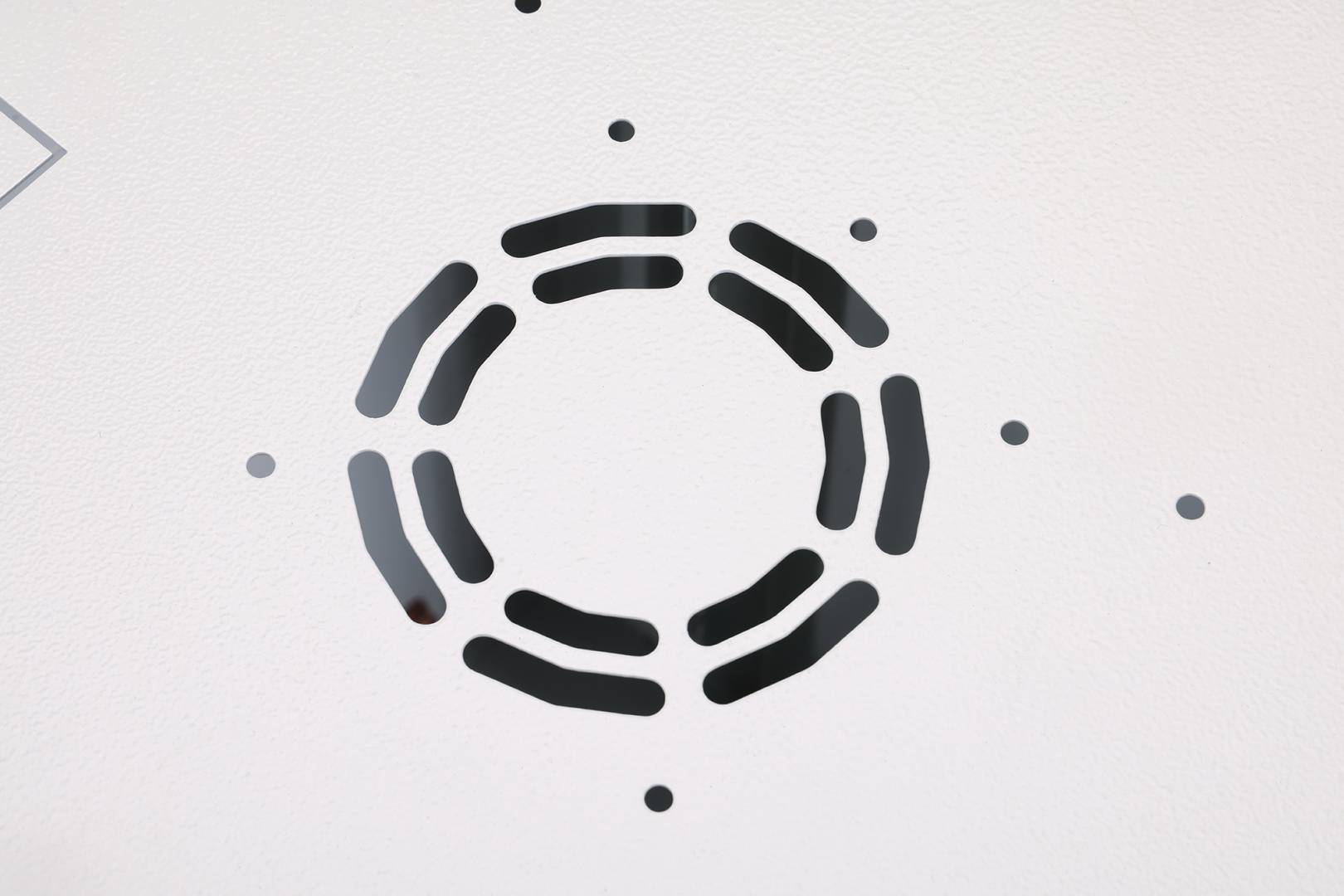

Cable entries at the rear, roof and base, ventilation slots and a roof prepared for a fan unit.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Measure the depth of your deepest device first: in this cabinet it must be 219–320 mm, and patch cords need a little room in front too. Plan the 12U with about a third spare for growth, and use anchors rated for the loaded weight — plasterboard alone will not do. If you expect heavier equipment, the Unique Series takes 100 kg. More cabinets are in our racks and cabinets range and switches in our network switches.
Buyer’s Guide
Buy it if
you need a lockable 12U 19" wall cabinet for equipment up to 320 mm deep and 60 kg.
Skip it if
your equipment is deeper than 320 mm, or you need to mount full-size rack servers.
Also consider
DIGITUS DN-19 12-U-EC-SW (black) or DN-19 12U-6/6-EC (600 mm deep).
Features - Digitus - DN-19 12-U-EC
Colour
grey
More Details
Product Code
5090373
EAN Code
4016032221715
Manufacturer
Digitus
