Digitus 19-inch Shelf with Variable Rails, 1U, for 800 mm Cabinets
1U · 19-inch800 mm cabinets50 kg loadBlack RAL 9005

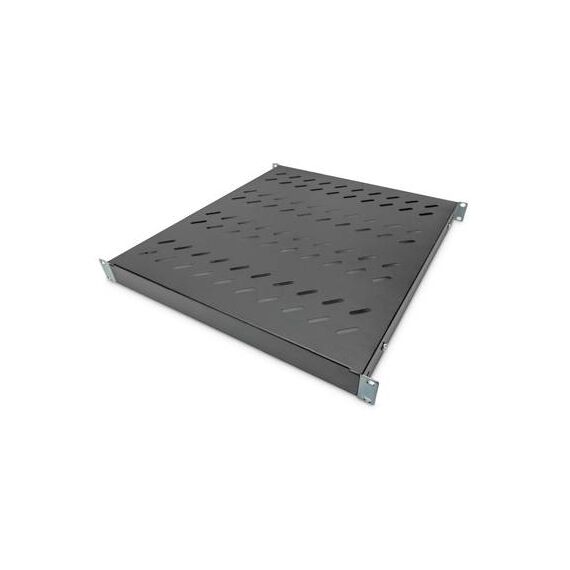

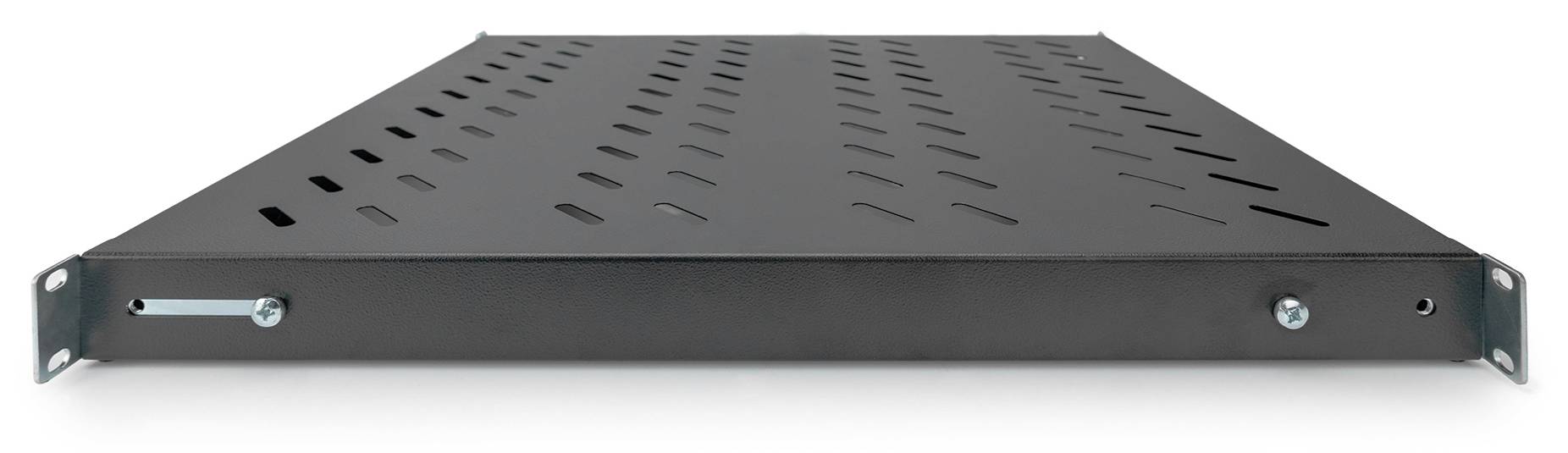

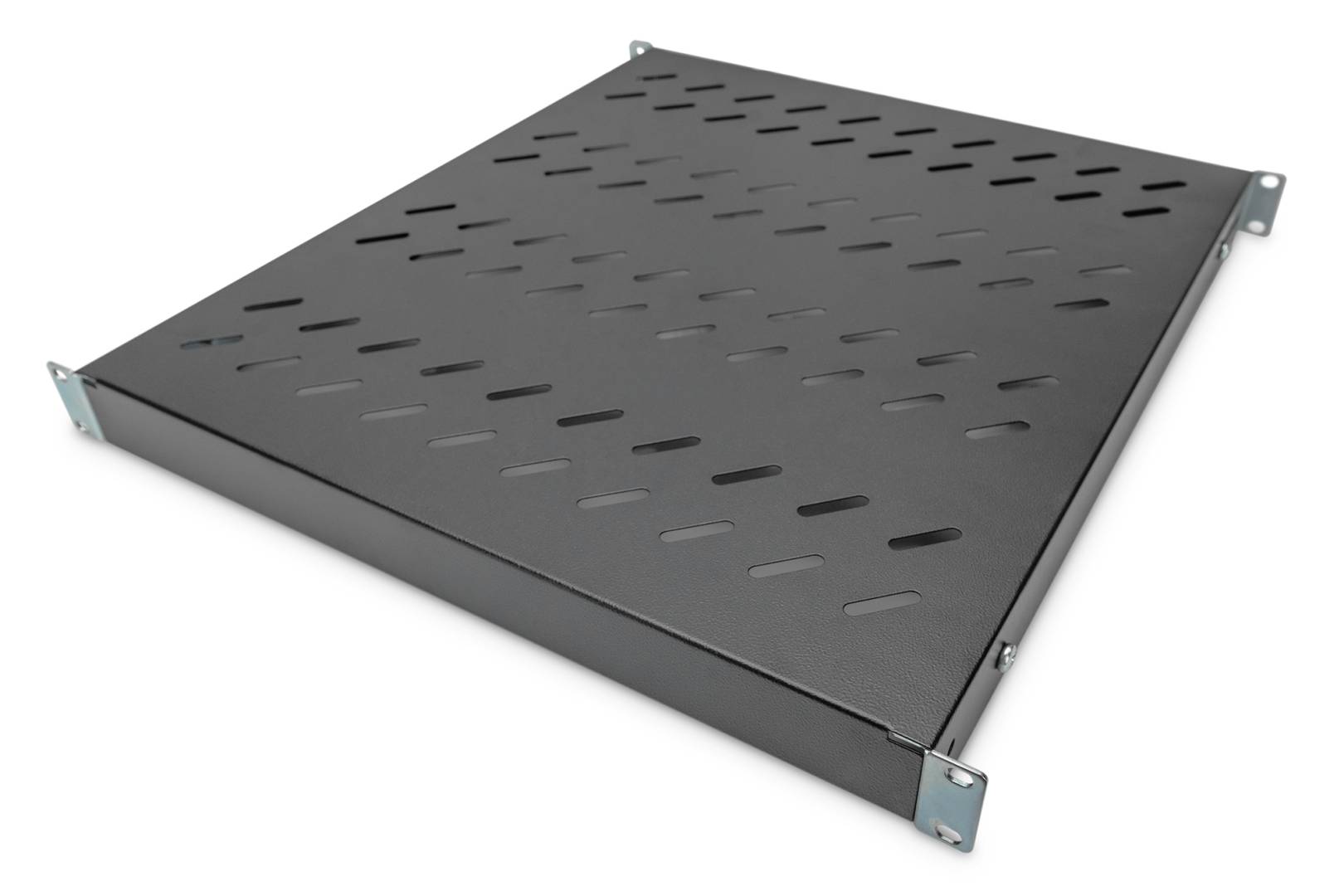

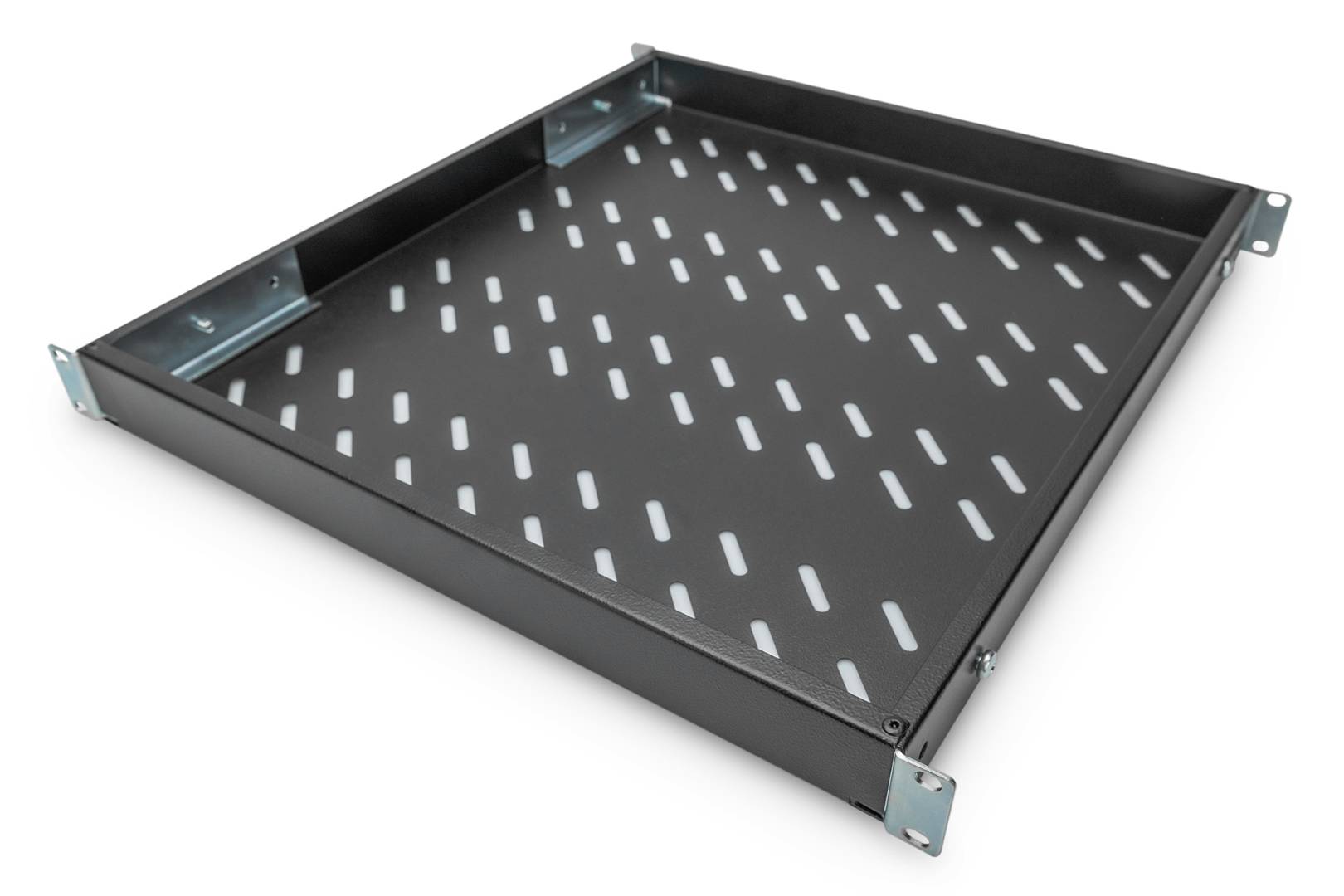

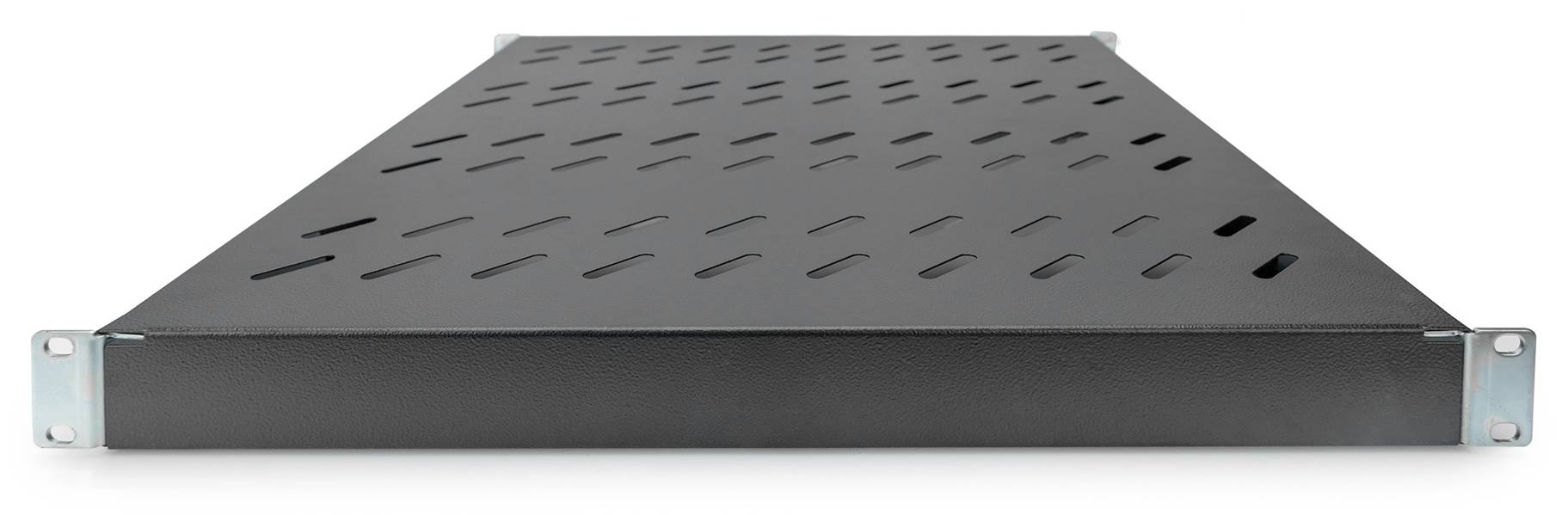

The Digitus DN-97647 is a 1U 19-inch shelf with variable rails for fixed 4-point mounting in 800 mm deep network and server cabinets, rated for a 50 kg load — the solid option for non-rackable equipment such as desktop routers, NAS units, small UPSs or mini PCs.
Because it is fixed to both the front and the rear 19-inch profiles, the shelf carries heavier equipment than a front-only cantilever shelf. The rails adjust in depth (up to 700 mm per Digitus) to match the profile spacing of your cabinet, and the 508 mm perforated steel tray lets air flow through.
Before you order: Made for 800 mm deep cabinets with front and rear 19-inch profiles. For 600 mm cabinets use DN-97645 (black) or DN-97644 (grey); for 1000 mm and deeper use DN-97649. It does not suit 2-post open racks.
What's in the Box
- DN-97647 shelf with variable rails
- Installation set: screws, cage nuts and washers
What It Means in Practice
- Holds up to 50 kg evenly distributed — enough for a small UPS or a stack of desktop devices.
- 4-point fixing stops the shelf from tilting when you pull cables or slide equipment.
- The perforated surface helps ventilation of the devices on the shelf.
- Uses 1U of rack space.
What Will Not Work
- 600 mm or 1000 mm deep cabinets — choose the matching Digitus model.
- 2-post racks or wall cabinets with front profiles only.
- Sliding out for service — this is a fixed shelf.
- Cabinets with non-standard (non-M6 square hole) profiles without suitable hardware.
Key Features
50 kg load
Fixed 4-point mounting for heavy equipment.
Adjustable rails
Depth adjustment to match the cabinet profiles.
Perforated steel
Ventilated 508 mm deep tray.
Cabinet black
RAL 9005 to match black Digitus cabinets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most shelf returns are a depth mismatch: measure the distance between the front and rear profiles of your cabinet, not just the cabinet depth. Find matching shelves for other depths in our rack accessories.
✓ Buy it if you need a strong 1U shelf in an 800 mm deep cabinet for non-rackable equipment.
✕ Skip it if your cabinet is 600 mm or 1000 mm deep, or you need a sliding shelf.
→ Also consider a 1U sliding shelf when equipment needs regular access.
Send us the model of your cabinet or its profile spacing and we will confirm the right shelf before you order.
Features - Digitus - DN-97647
More Details
Product Code
04:217774
EAN Code
4016032364993
Manufacturer
Digitus
