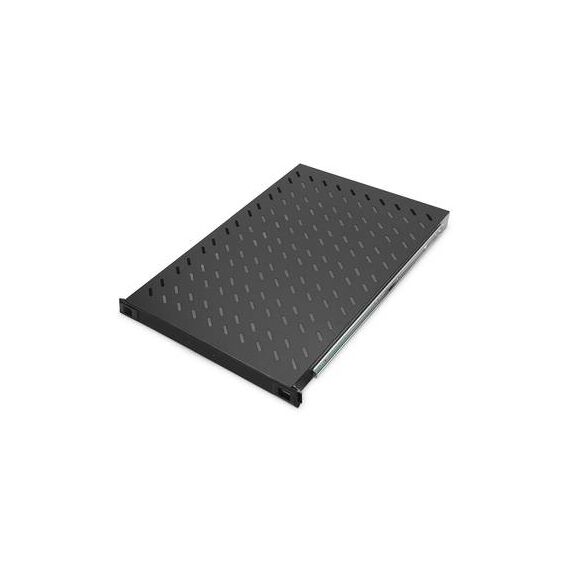

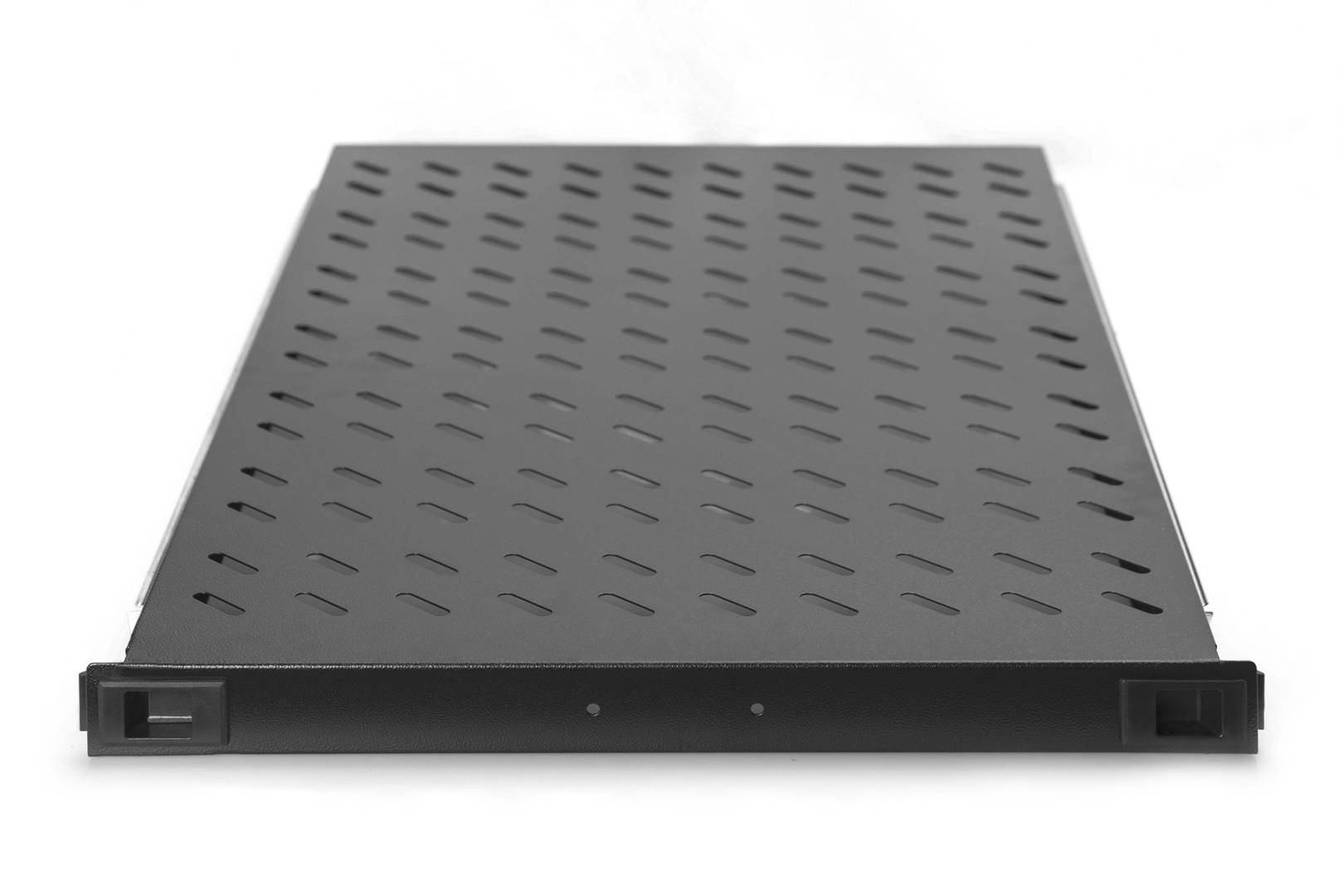

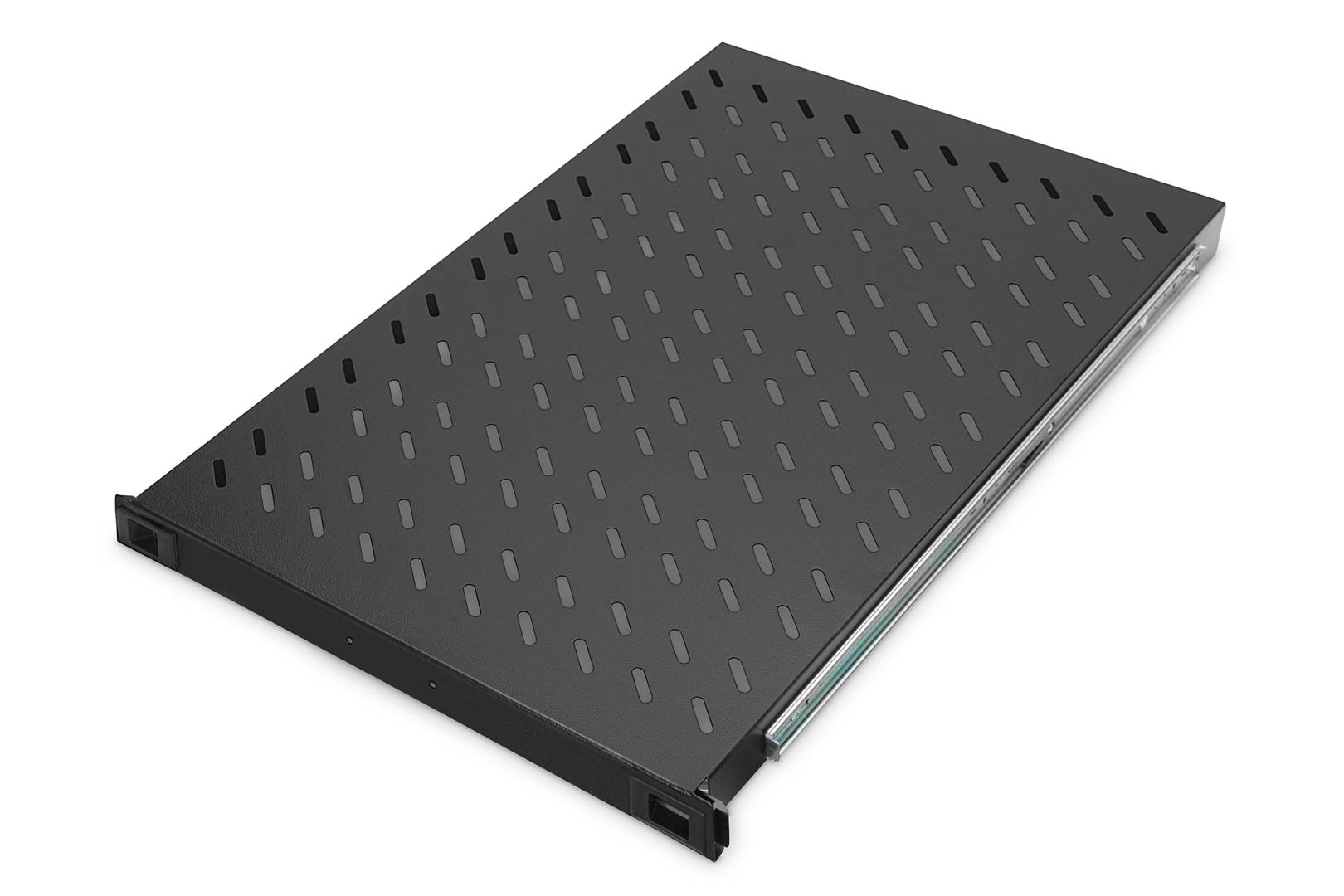

DIGITUS Professional DN-19 TRAY-2-1000SW 1U 19 inch Extendible Rack Shelf for 1000 mm Deep Cabinets 65 kg Black RAL 9005
Brand:
Digitus
DIGITUS Professional DN-19 TRAY-2-1000SW 1U 19 inch Extendible Rack Shelf for 1000 mm Deep Cabinets 65 kg Black RAL 9005
€242.75 inc. VAT
DN-19 TRAY-2-1000SW
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-19 TRAY-2-1000SW — 1U Pull-Out Shelf for 1000 mm Cabinets
1U extendible65 kg loadFor 1000 mm depthBlack RAL 9005
The DIGITUS Professional DN-19 TRAY-2-1000SW is a 1U, 19 inch extendible shelf for 1000 mm deep network and server cabinets that carries up to 65 kg and slides out up to 54 cm. It is meant for non-rackable equipment — desktop PCs, NAS units, small UPSs, modems or monitors — that still needs to be serviced from the front.
The shelf is made of perforated sheet steel for airflow, has a handle bar at the front, and is fixed at four points to the front and rear 19 inch rails. The adjustable mounting brackets span 665 to 770 mm between the front and rear profiles.
Before you order: Your cabinet must be 1000 mm deep with 19 inch front and rear rails 665–770 mm apart. For 600 or 800 mm cabinets, DIGITUS sells separate TRAY-2 lengths, and a fixed (non-extendible) shelf exists under TRAY-1.

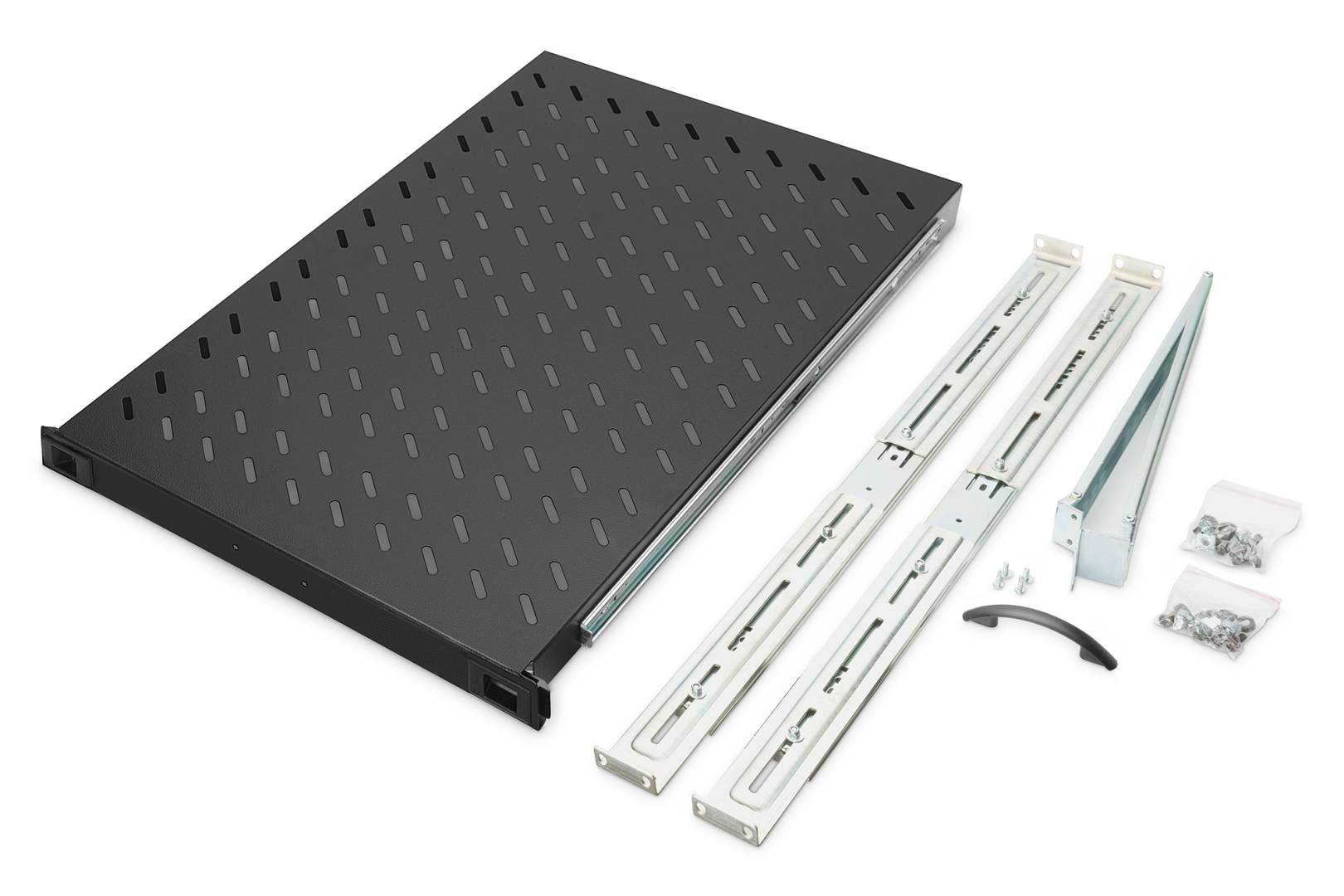

What's in the Box
- 1 × DIGITUS 1U extendible shelf, black RAL 9005
- Handle bar
- Installation set: screws, cage nuts and washers
What It Means in Practice
- Pull the shelf out to reach cables and ports at the back of a desktop device without unplugging it.
- Perforation lets heat rise through the shelf instead of trapping it under the equipment.
- Four-point fixing spreads the 65 kg load across all four rails.
- Uses only 1U of rack height.
What Will Not Work
- It will not fit 600 mm or 800 mm deep cabinets, or 2-post open frames.
- Not rated above 65 kg — do not put a large UPS on it when extended.
- No cable management arm or lock is included.
- It is not a keyboard drawer; there is no retaining lip for a keyboard.
Key Features
65 kg rated
Heavy enough for a tower PC, NAS or small UPS.
Extends 54 cm
Full service access to the rear of mounted equipment.
4-point fixing
Front and rear mounting with adjustable brackets 665–770 mm.
Ventilated
Perforated sheet steel for airflow.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
An extendible shelf is worth the extra cost over a fixed one whenever you will ever need to reach the back of the device on it. Confirm the 1000 mm depth before ordering — it is the most common reason shelves do not fit. For shelves in other depths and blanking panels, see our rack accessories.
✓ Buy it if you have a 1000 mm deep 4-post cabinet and need a pull-out shelf for non-rack equipment up to 65 kg.
✕ Skip it if your cabinet is 600/800 mm deep or a 2-post frame.
→ Also consider DIGITUS DN-19 TRAY-1 fixed shelves if you do not need the slide-out.
Tell us your cabinet model or measured rail spacing and we will confirm the right shelf.
Features - Digitus - DN-19 TRAY-2-1000SW
Colour
black
More Details
Product Code
04:61219
EAN Code
4016032180401
Manufacturer
Digitus
