DIGITUS 19-Inch Shelf with Variable Rails 1U, 4-Point Fixed Mounting, Depth 350-550 mm, 50 kg, Perforated, Grey RAL 7035
Brand:
Digitus
DIGITUS 19-Inch Shelf with Variable Rails 1U, 4-Point Fixed Mounting, Depth 350-550 mm, 50 kg, Perforated, Grey RAL 7035
€50.82 inc. VAT
DN-97644
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS 19-Inch 1U Shelf with Variable Rails — 4-Point Mounting, 50 kg, Grey RAL 7035
1U4-point mountingRails 350-550 mmMax 50 kg

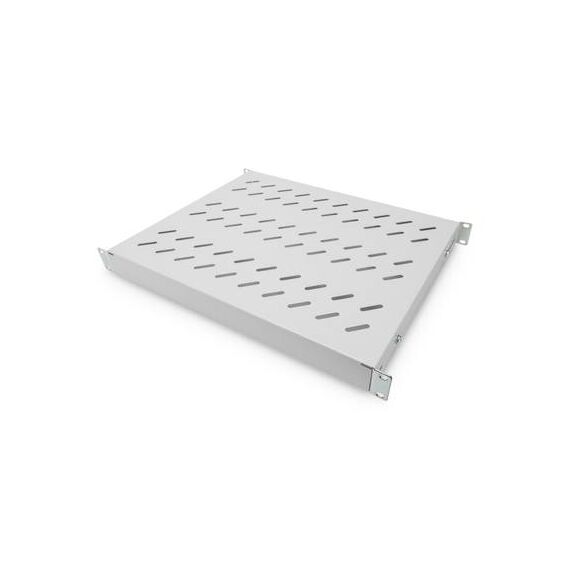

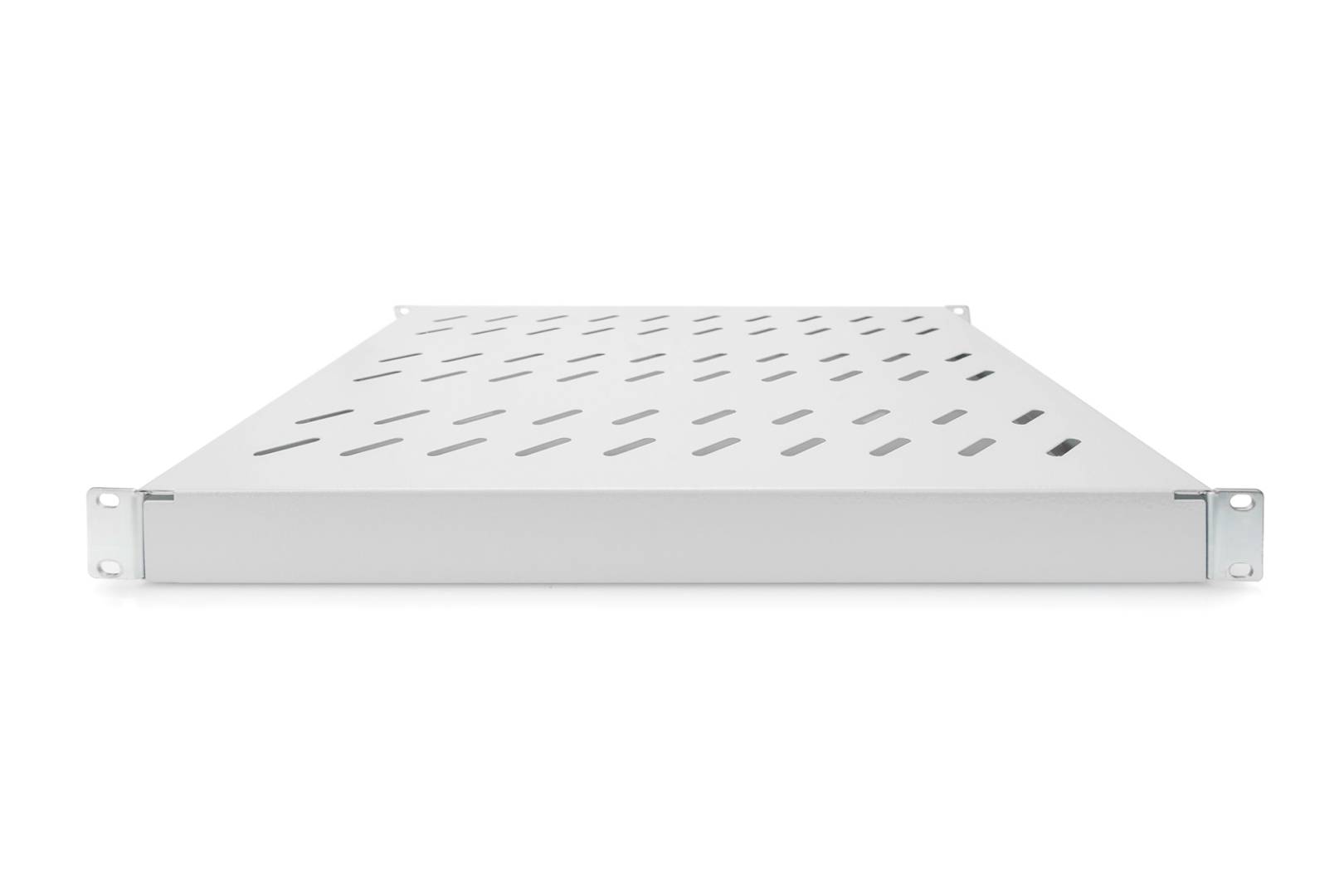

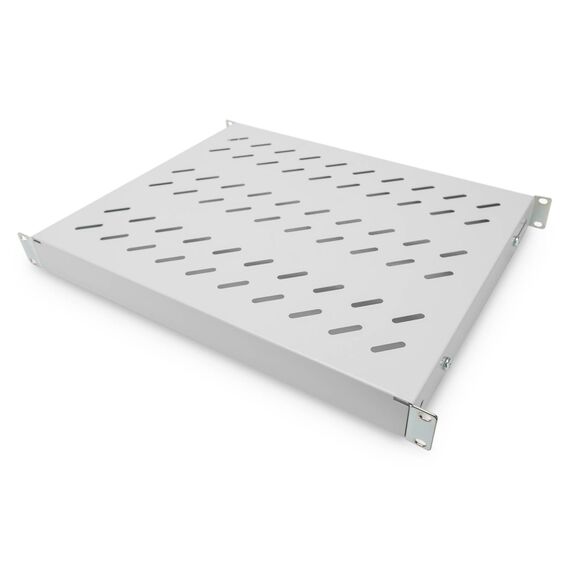

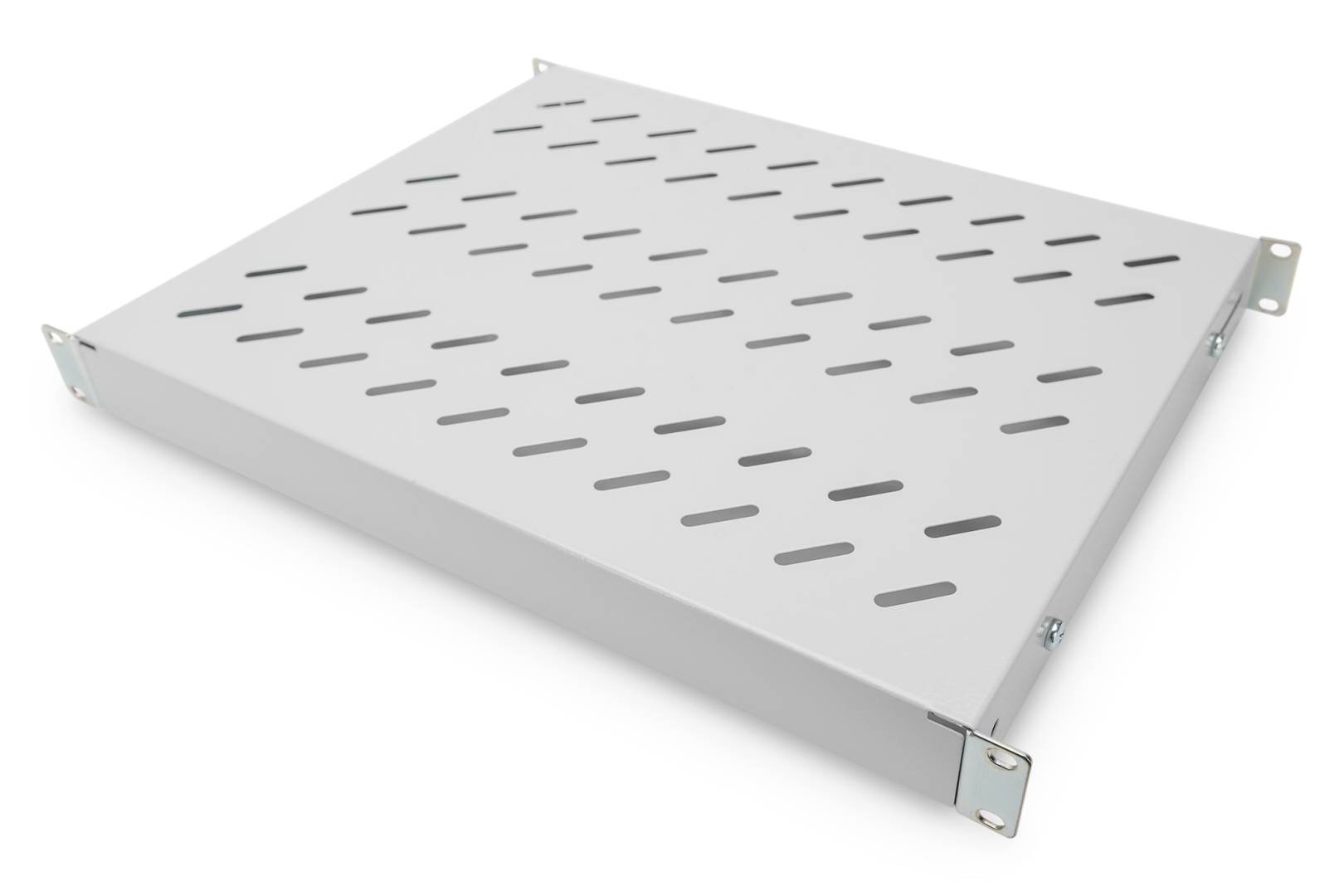

The DIGITUS DN-97644 is a 1U 19-inch fixed shelf with variable fastening rails from 350 to 550 mm, fixed at four points to the front and rear 19-inch rails and rated for 50 kg, for carrying heavier non-rackable equipment such as small servers, NAS units and UPS systems in 600 mm deep cabinets.

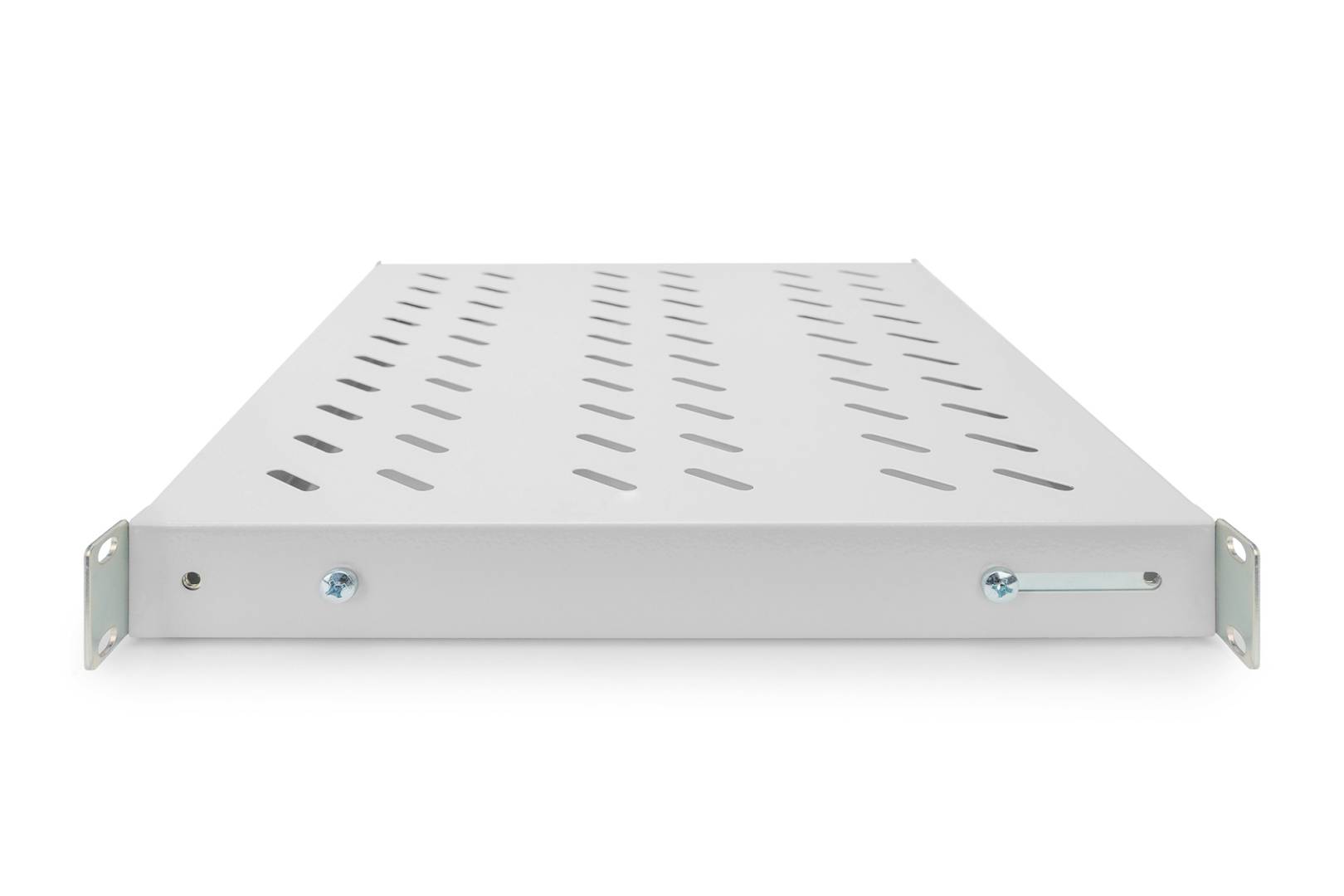

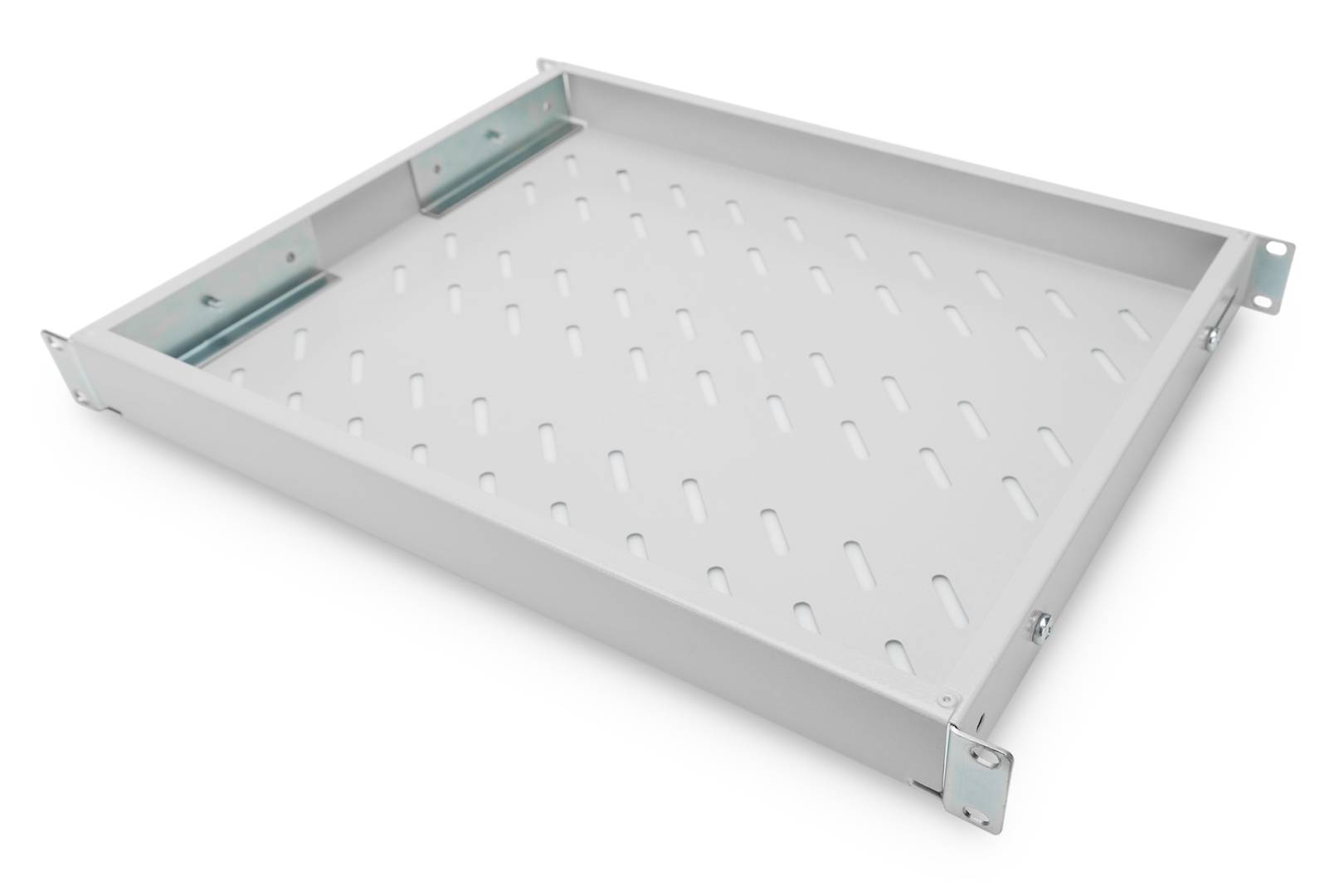

The load rating is the key difference to a front-mounted shelf: because the tray hangs on both rail planes, it carries more than three times the weight of a 2-point DIGITUS shelf. The rails slide to meet the rear profile rails wherever they sit between 350 and 550 mm, and the sturdy perforated steel sheet lets heat escape from the devices on top. The grey RAL 7035 finish matches standard light grey network cabinets.
Before you order: This shelf needs front and rear 19-inch rails spaced 350 to 550 mm apart; DIGITUS specifies a cabinet depth of 600 mm. In a wall cabinet with front rails only it cannot be installed.
What's in the Box
- 1 x 19-inch 1U shelf with variable rails, grey RAL 7035
- Installation set: screws, cage nuts and washers (M6)
What It Means in Practice
- 50 kg on one shelf: enough for a small UPS, a tower NAS or a mini server.
- Variable rails from 350 to 550 mm meet the rear rails of typical 600 mm cabinets.
- Four-point fixing keeps the tray level and takes the strain off the front rails.
- Perforated tray for airflow under devices with bottom vents.
What Will Not Work
- Cabinets with front rails only, or with the rear rails outside the 350 to 550 mm range.
- Loads above 50 kg.
- Pull-out use: this is a fixed shelf.
- Black cabinets if colour matching matters — this model is light grey RAL 7035.
Key Features
50 kg capacity
Four-point fixing carries heavy devices safely.
Variable rails
Adjustable from 350 to 550 mm depth.
Perforated steel
Sturdy sheet with ventilation for airflow.
M6 fixing set
Screws, cage nuts and washers included.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
When a device weighs more than a few kilograms, a shelf fixed to both rail planes is the safe choice — the front rails alone were never meant to hold a UPS. The DN-97644 does that in the most common 600 mm cabinet depth. More options in our 19-inch rack accessories range.
✓ Buy it if you have a 600 mm deep cabinet with front and rear rails and need a shelf for devices up to 50 kg.
✕ Skip it if your cabinet has no rear rails or they sit outside 350 to 550 mm, or you need a black shelf.
→ Also consider the DIGITUS DN-97614 front-mount shelf for light devices in cabinets without rear rails.
Not sure your cabinet depth matches? Send us the cabinet model or the distance between front and rear rails and we will check before you order.
Features - Digitus - DN-97644
Colour
grey
More Details
Product Code
04:173517
EAN Code
4016032364962
Manufacturer
Digitus
