DIGITUS DN-93901-10 Cat 5e Class D Shielded RJ45 Female-to-Female Couplers, 1:1, 10-Pack

Brand:
Digitus

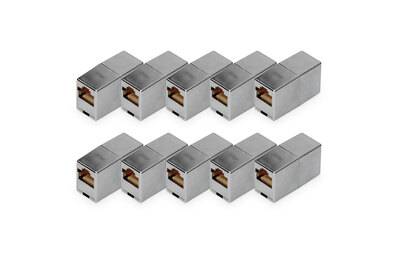

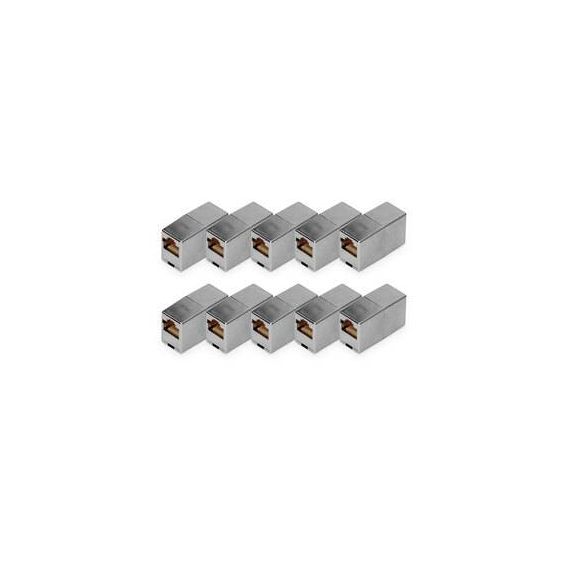

DIGITUS DN-93901-10 Shielded Cat 5e RJ45 Female Couplers, 10-Pack
DIGITUS DN-93901-10 Cat 5e Class D Shielded RJ45 Female-to-Female Couplers, 1:1, 10-Pack
€22.87 inc. VAT
Buy
DN-93901-10
€19.22
€22.87 inc. VAT
Ships from EU stock: 25 item(s)
+ −
Add to wish list Ask a question
Product Code
04:514863
EAN Code
4016032495055
Manufacturer
Digitus

Quick Specs

Category
Cat 5e, Class D
Connections
RJ45 female to female
Wiring
1:1 straight-through
Pack size
10 pieces
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Join terminated RJ45 cables with a 1:1 connection

Cat 5eShieldedRJ45 F/F10-pack

The DIGITUS DN-93901-10 pack contains ten shielded Cat 5e Class D modular couplers. Each joins two terminated RJ45 cables through female sockets with straight-through 1:1 pin assignment. This lets you connect existing patch cables without reterminating their plugs.

Key Features


Straight-through joining
The 1:1 assignment keeps corresponding pins connected across the two RJ45 sockets.

Shielded construction
Tinned-bronze shielding surrounds an ABS UL94V-0 housing and FR4 board.

Ten couplers for multiple points
The pack provides ten separate couplers, with contacts specified for at least 750 mating cycles.

Technical Specifications

Model / EAN DN-93901-10 / 4016032495055
Category Cat 5e, Class D
Ports / wiring 2 shielded RJ45 female sockets per coupler; 1:1
Quantity 10 couplers
Housing ABS UL94V-0
Contact material Phosphor bronze
Contact coating Nickel; 0.5µm gold plating
Shield material Tinned bronze
PCB FR4, UL94V-0
Mating cycles At least 750 (ISO/IEC 11801, IEC 60603-7-5)
Maximum insertion force 30N (IEC 60603-7-5)
Retention strength 7.7kg between jack and plug

Frequently Asked Questions

Do I terminate bare wires into this coupler?
No. Both ends are RJ45 female sockets for cables with fitted RJ45 plugs. This is not an IDC or LSA wire-termination module.
Is it a crossover adapter or an active extender?
Neither. It is a passive 1:1 coupler. It does not regenerate the signal or remove the length limits of the complete cable link.
How many couplers are included?
DN-93901-10 is the ten-piece pack. Each coupler has two shielded female RJ45 ports.
Singular Expert Insight
Keep the joint accessible for inspection and protect it from moisture. Check both patch cables and the complete channel length when diagnosing a connection; adding a coupler adds another contact point. Ask about joining network cables

Buyer’s Guide

Buy it if

You need ten passive shielded Cat 5e RJ45 joins for terminated patch cables.

Skip it if

You need bare-wire termination, a crossover adapter or an active long-distance extender.

Also consider

Check plug fit, complete channel requirements and whether replacing two short leads with one cable is more suitable.

Features - Digitus - DN-93901-10

Colour
silver
Interface
  • Ethernet
Standard
CAT5e
More Details
Product Code
04:514863
EAN Code
4016032495055
Manufacturer
Digitus
