Digitus Fibre Patch Cable SC-SC Duplex OM4 Multimode 50/125 LSZH 2m Erika Violet

Brand:
Digitus
Digitus SC-SC OM4 Duplex Fibre Cable 2m

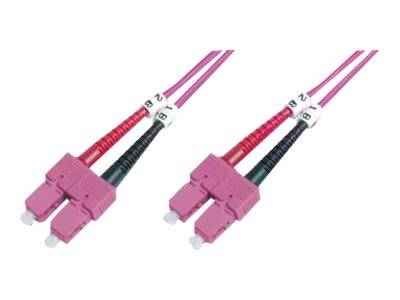

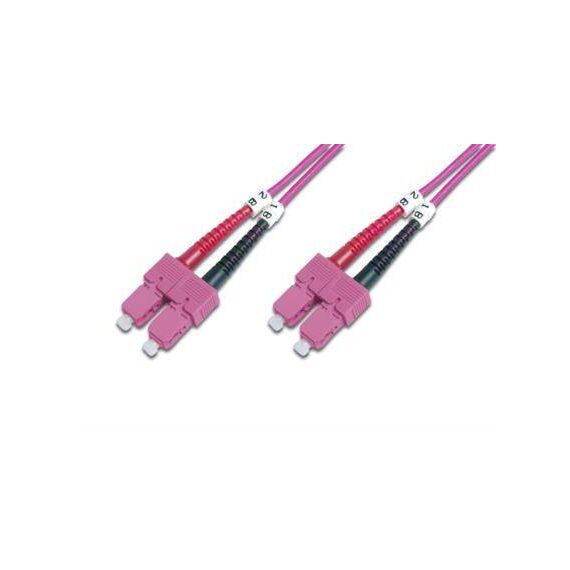

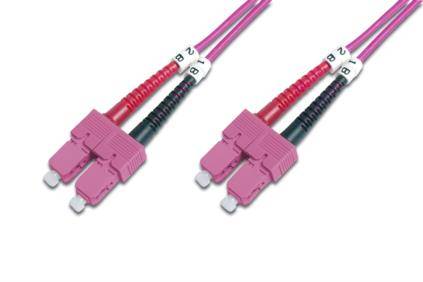

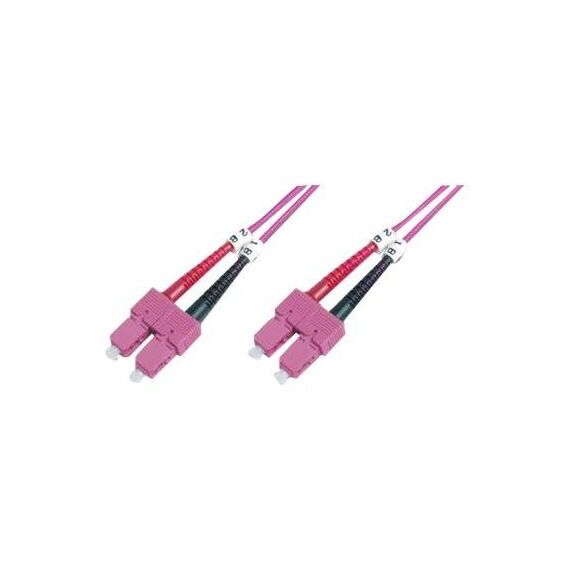

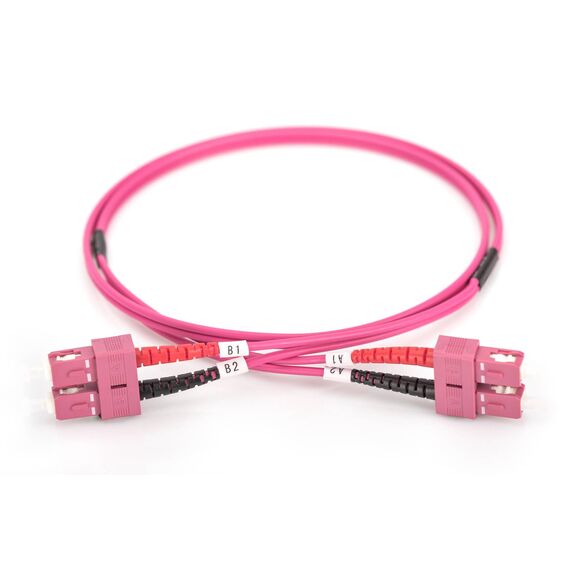

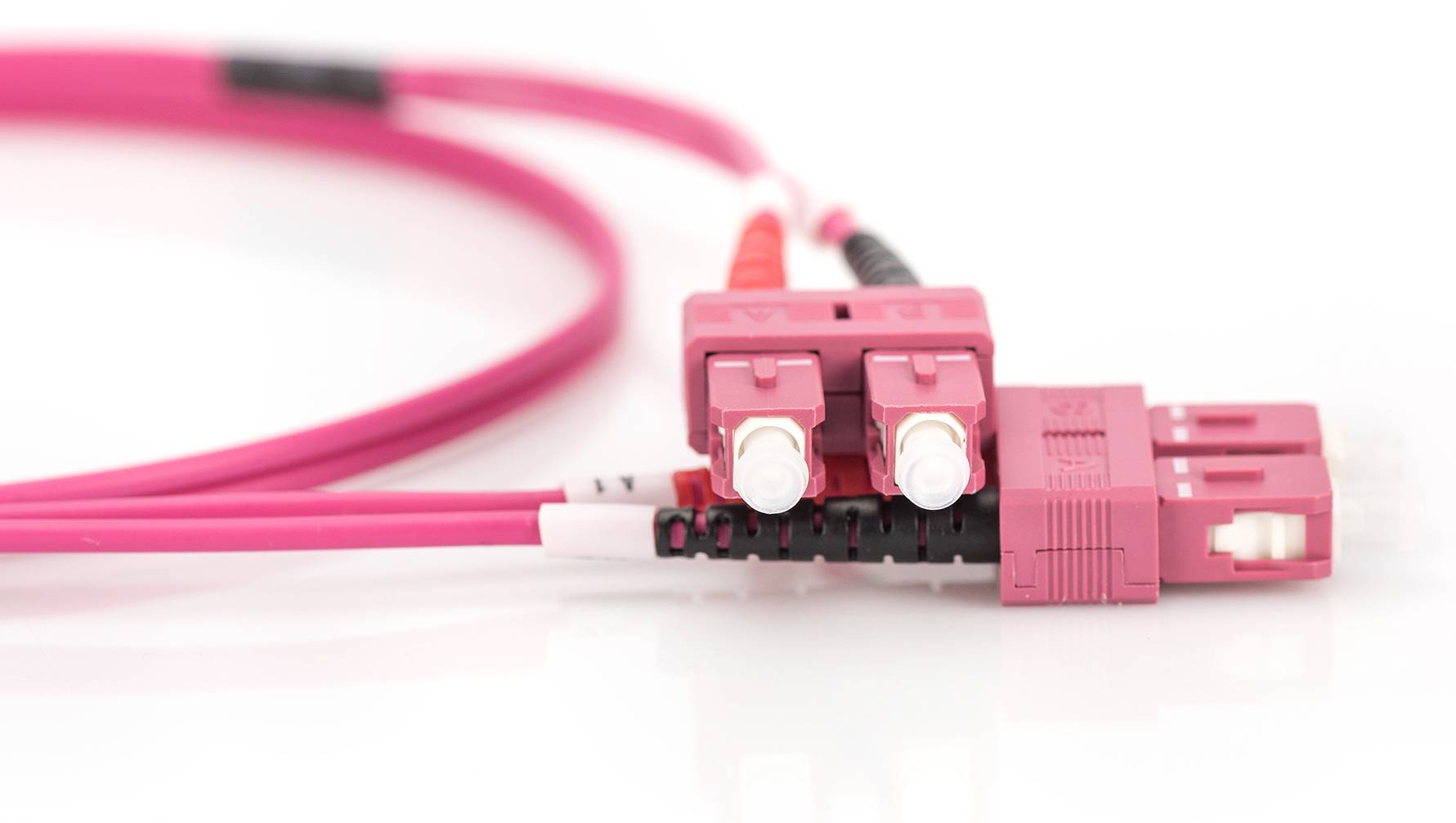

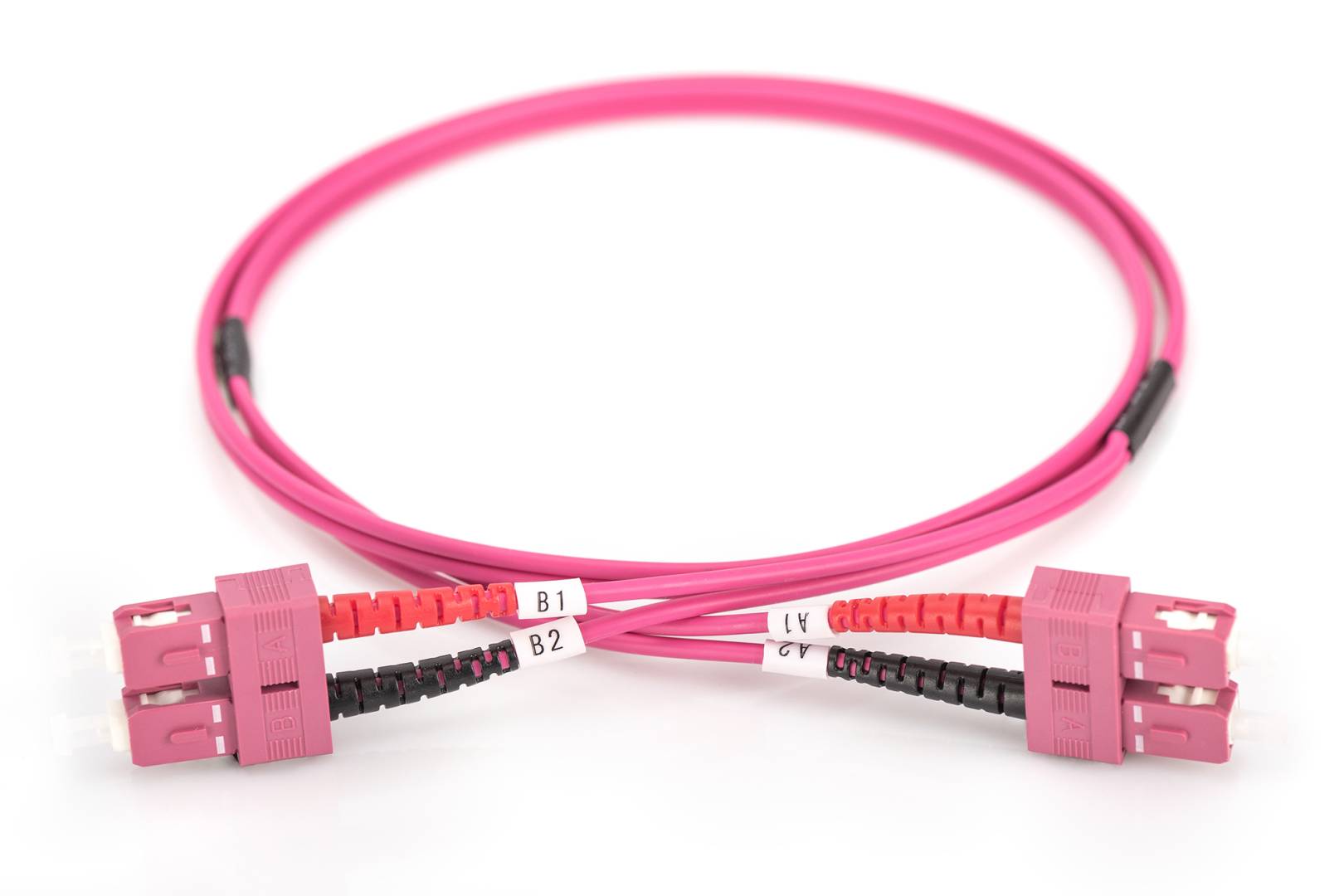

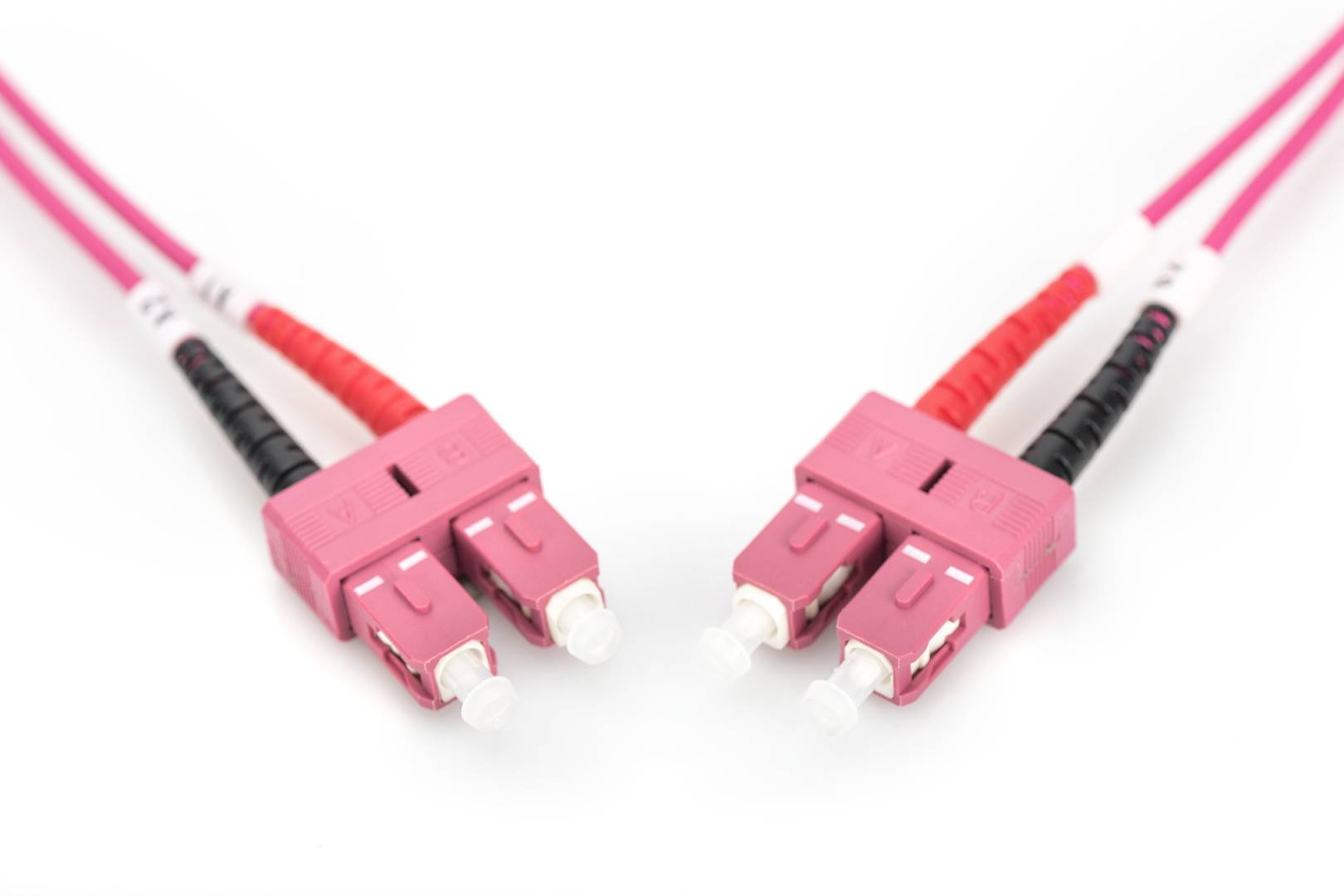

Digitus Fibre Patch Cable SC-SC Duplex OM4 Multimode 50/125 LSZH 2m Erika Violet
€8.23 inc. VAT
Buy
DK-2522-02-4
€6.92
€8.23 inc. VAT
Ships from EU stock: 31 item(s)
+ −
Add to wish list Ask a question
Product Code
04:155265
EAN Code
4016032308867
Manufacturer
Digitus

Quick Specs

Fibre type
OM4 multimode 50/125 µm
Length
2 m
Connectors
SC – SC duplex
Jacket
LSZH 2 mm erika violet (RAL 4003)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Digitus SC-SC OM4 Duplex Fibre Patch Cable — 2 m

OM4 MultimodeSC – SC2 mLSZH 2 mm

The Digitus DK-2522-02-4 is a 2 m duplex fibre optic patch cable with SC and SC connectors on OM4 multimode fibre (50/125 µm), for connecting multimode SFP/SFP+ transceivers, media converters and patch panels in racks, offices and server rooms.

OM4 is the higher-bandwidth grade of laser-optimised 50/125 µm multimode fibre. It runs the same short-reach optics as OM3 (1G, 10G, 25G, 40G, 100G SR) over longer distances, and the violet (heather / erika) jacket marks it as OM4 in the rack.

Before you order: This is OM4 multimode cable. It only works with multimode optics (SR/SX, 850 nm) and multimode panels, not with LX/LR singlemode transceivers.

What's in the Box

  • 1 × Digitus DK-2522-02-4 duplex fibre patch cable, SC – SC, 2 m
  • Individual test report (each cable is tested before shipping)
  • Supplied in a polybag

What It Means in Practice

  • 2 m covers patching inside a rack or between neighbouring racks, or from a wall outlet to a desk-side device.
  • Duplex means two fibres (transmit and receive) in one cable, which is exactly what a standard duplex SFP, SFP+ or QSFP transceiver needs.
  • LSZH jacket, 2 mm outer diameter, erika violet (RAL 4003): halogen-free, the usual requirement for cabling inside offices, public buildings and data rooms.

What Will Not Work

  • Both ends are SC. Most SFP/SFP+ transceivers use LC, so this cable is for SC panels, media converters and SC-equipped devices, not for plugging straight into an LC transceiver.
  • It is not a copper cable: it does not connect to RJ45 ports or copper (RJ45) SFP modules.

Key Features


Connectors
SC to SC with ceramic ferrules.

Fibre
OM4 multimode, 50/125 µm, 2 fibres.

Jacket
LSZH, 2 mm, erika violet (RAL 4003).

Quality
Each cable is tested and supplied with its own measurement report.

Technical Specifications

Identification
Part Number DK-2522-02-4
EAN / GTIN 4016032308867
Brand Digitus
Connectivity
Connector A SC
Connector B SC
Fibre count Duplex (2 fibres)
Ferrule Ceramic
Fibre
Fibre type OM4 Multimode
Core / cladding 50/125 µm
Physical
Length 2 m
Jacket material LSZH (halogen-free)
Jacket diameter 2 mm
Colour erika violet (RAL 4003)
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer does not publish a warranty term — claims handled through Singular

Frequently Asked Questions

Will it work with my SFP/SFP+ transceiver?
Yes if the transceiver is multimode (SR/SX, 850 nm) and you connect through a panel or device with SC/ST ports, since SFP/SFP+ modules use LC. LR/LX singlemode optics need an OS2 cable.
The link does not come up. What should I check?
First clean both connector end-faces and check that the transceivers on both sides are the same type and wavelength. Then check polarity: transmit on one side must reach receive on the other.
Can I join two cables to make a longer run?
Yes, with a matching SC coupler, but every mated pair adds loss. For a permanent longer link it is better to order the right length in one piece; ask us and we will check which lengths of this series we can supply.
Singular Expert Insight · Buyer's Guide
Most fibre problems we see come from three mismatches: multimode vs singlemode, UPC vs APC, and LC vs SC. This Digitus cable is OM4 multimode, SC-SC, so match it to your optics and panel first. If you are building the link from scratch, pick the transceivers and switches with SFP ports first, then choose the cable that matches them.
✓ Buy it if your equipment uses OM4 multimode fibre with SC and SC ports and 2 m covers the distance.
✕ Skip it if your transceivers are singlemode (LR/LX), or your ports are APC.
→ Also consider the same cable in other lengths, or an LC-SC hybrid version if your ports differ; matching SFP/SFP+ transceivers.
Not sure which cable you need? Send us the model of your switch, transceiver or panel and we will check connectors and fibre type before you order.
