DIGITUS DN-19 09-U-S-SW — 9U SOHO Wall Mount Cabinet
9U / 19-inch540 x 400 mm60 kg loadBlack RAL 9005

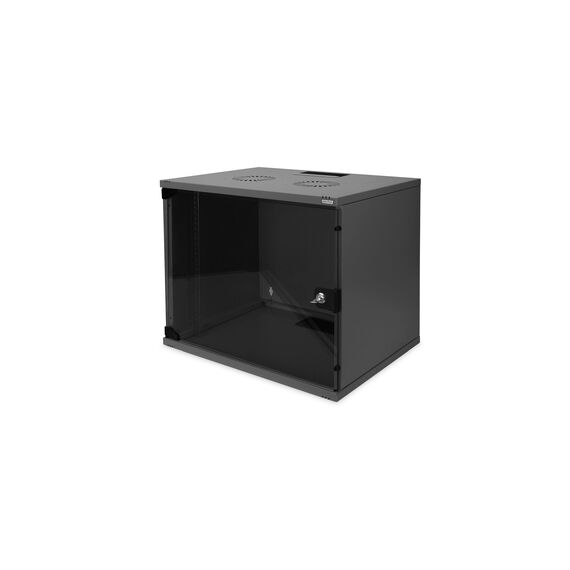

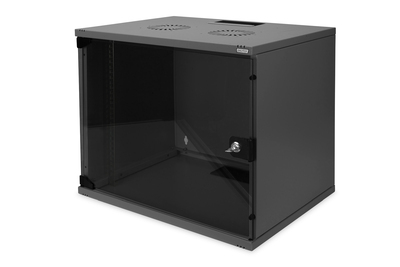

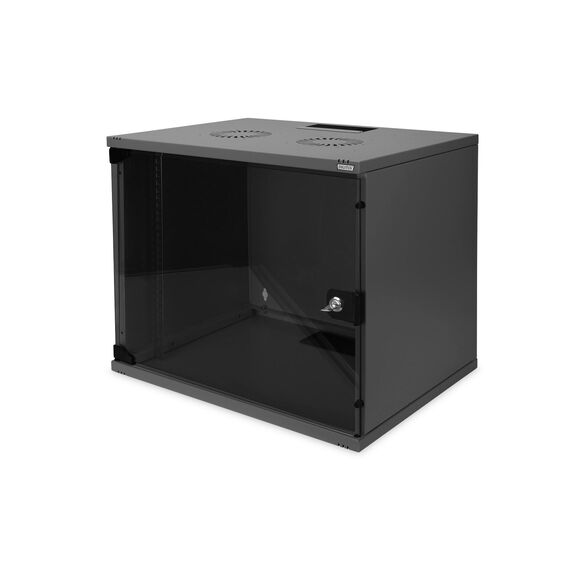

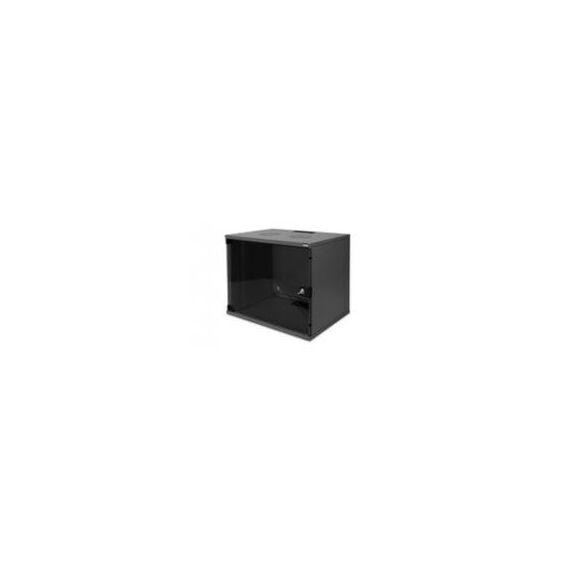

The DIGITUS DN-19 09-U-S-SW is a 9U 19-inch wall-mount network cabinet from the SOHO series, supplied unassembled in a flat-pack format. It measures 460 x 540 x 400 mm and combines a lockable safety-glass front door, adjustable front and rear 19-inch profile rails, cable entry points and ventilation provisions for compact network installations.
Compatibility — check before buying:
The usable equipment mounting depth is adjustable from approximately 170 to 270 mm. Check the depth of switches, patch panels, shelves and other rack equipment before ordering. The cabinet is supplied unassembled and is intended for protected indoor wall-mount installations.
Best For
✓ Small and medium network installations
✓ Patch panels and compact switches
✓ SOHO and branch-office network distribution
✓ Wall-mounted 19-inch equipment
Key Features
9U 19-inch rack format
Two pairs of galvanized 483 mm profile rails are installed at the front and rear of the cabinet and can be adjusted in depth to suit compatible equipment.
Lockable safety-glass door
The single-opening safety-glass front door uses a one-point locking mechanism, opens up to 200 degrees and has reversible hinges for flexible installation.
Ventilation-ready enclosure
Ventilation slots support passive airflow, while punched roof openings are prepared for optional fan units when active ventilation is required.
Flexible cable entry
Cable entry is provided through a brush strip at the top and a plastic-covered opening at the base, helping simplify cable routing into the enclosure.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The important sizing figure is not simply the cabinet's 400 mm external depth. DIGITUS specifies an adjustable 170–270 mm equipment mounting depth, so deeper switches or appliances may not fit even though the enclosure itself is 400 mm deep. For a compact wall-mounted patching and switching installation, the 9U capacity, front-and-rear adjustable rails and 60 kg load rating make this a flexible SOHO cabinet. Remember that this exact SKU is delivered flat-packed rather than pre-assembled.
Buyer’s Guide
Buy it if
You need a compact 9U black wall cabinet for 19-inch patching, switching and network equipment with adjustable front and rear rails.
Skip it if
Your equipment needs more than 270 mm mounting depth, you need an outdoor-rated enclosure, or you specifically require a cabinet supplied fully assembled.
Check first
Measure device depth including power and network connectors, confirm wall load capacity and allow enough ventilation around installed equipment.
