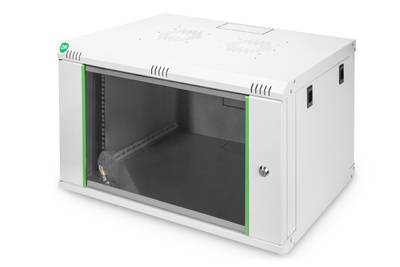

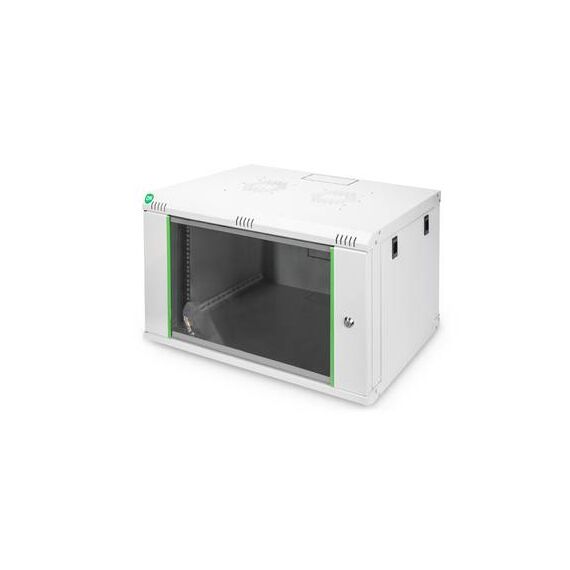

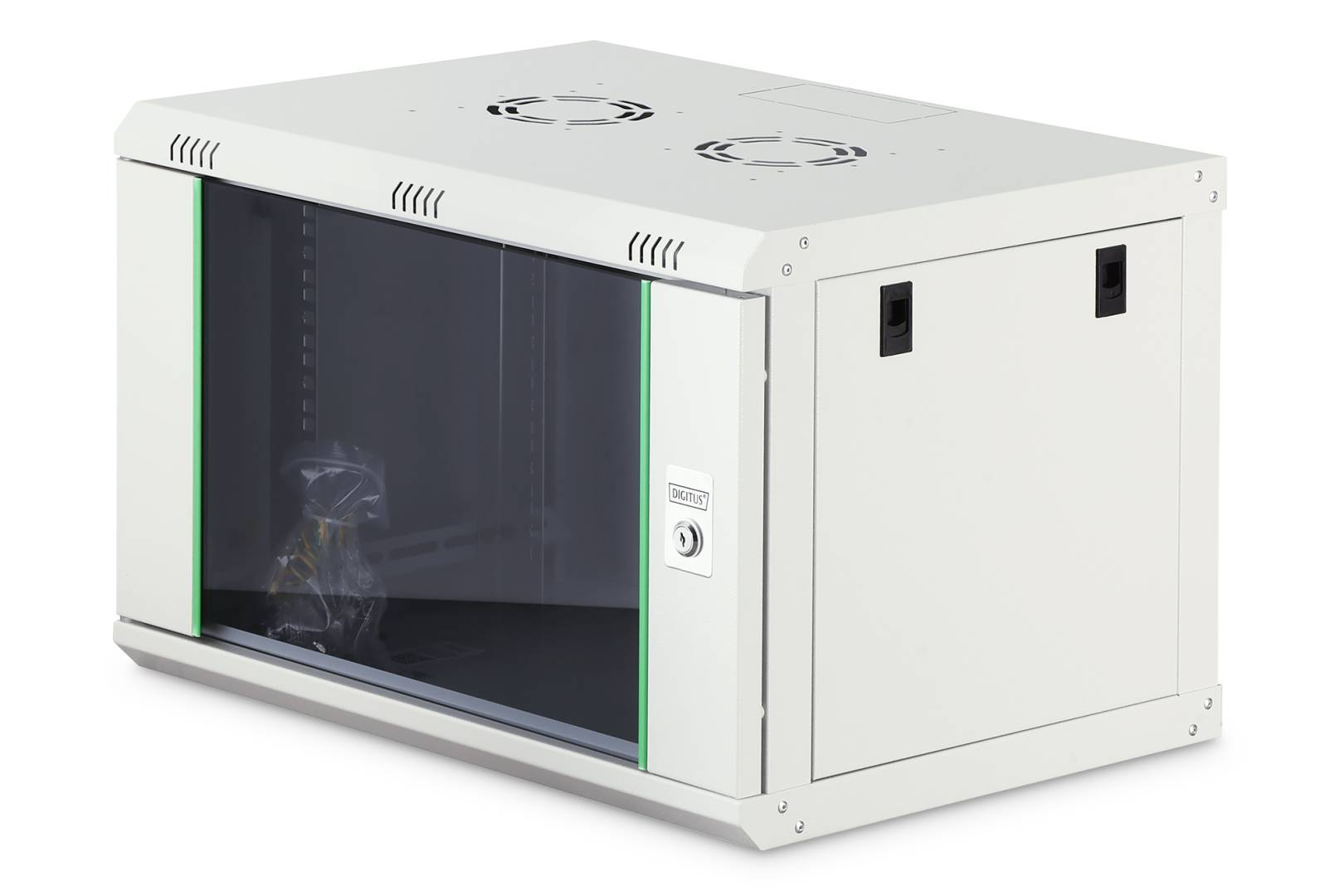

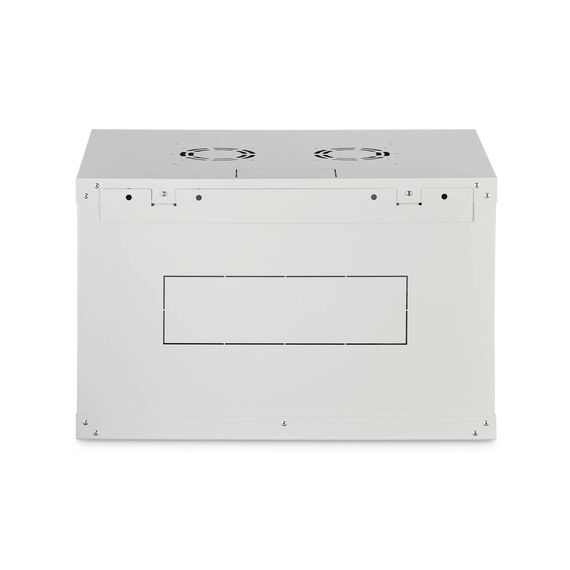

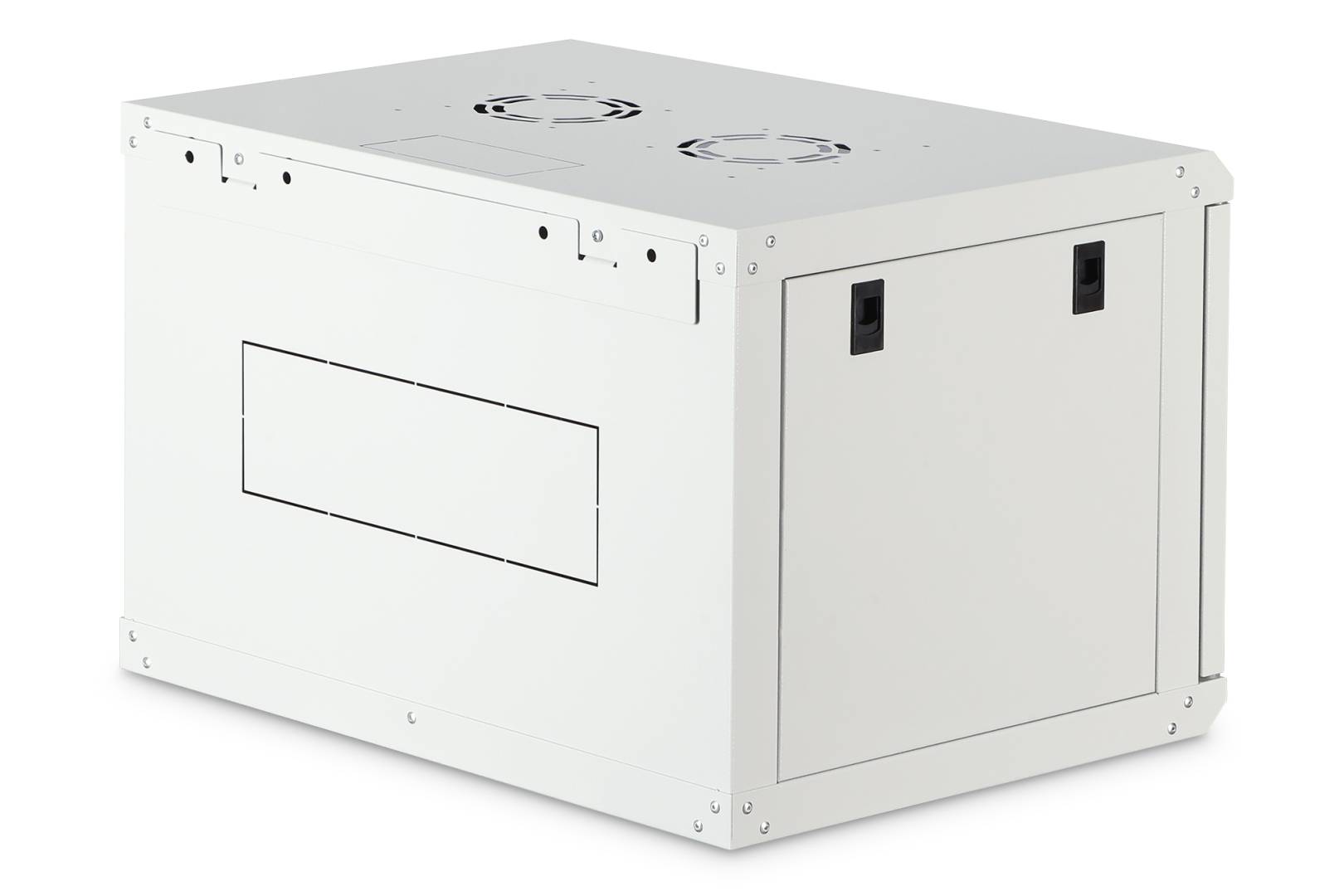

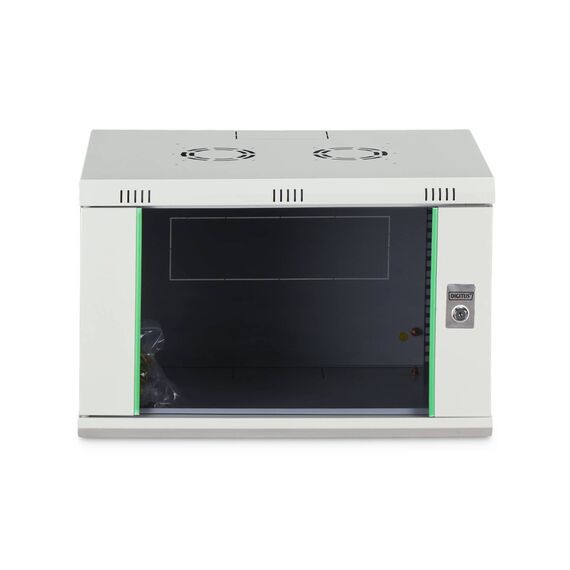

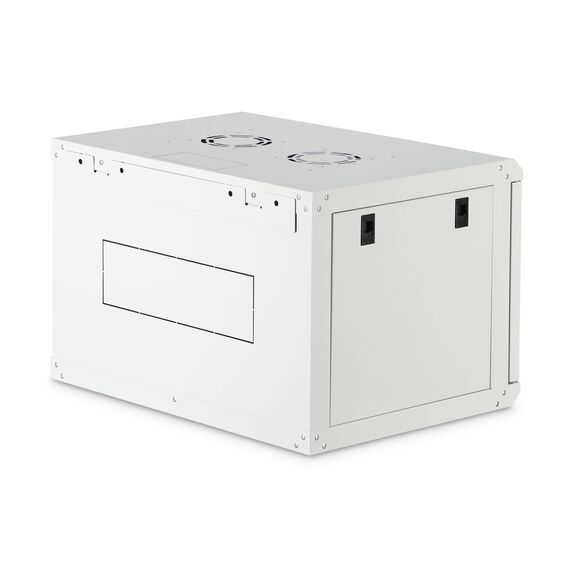

DIGITUS SoHoline DN-19 07-U-EC / Cabinet / wall mountable / grey, RAL 7035 / 7U / 19" | DN-19 07-U-EC

Product Features

· Safety class rating IP20

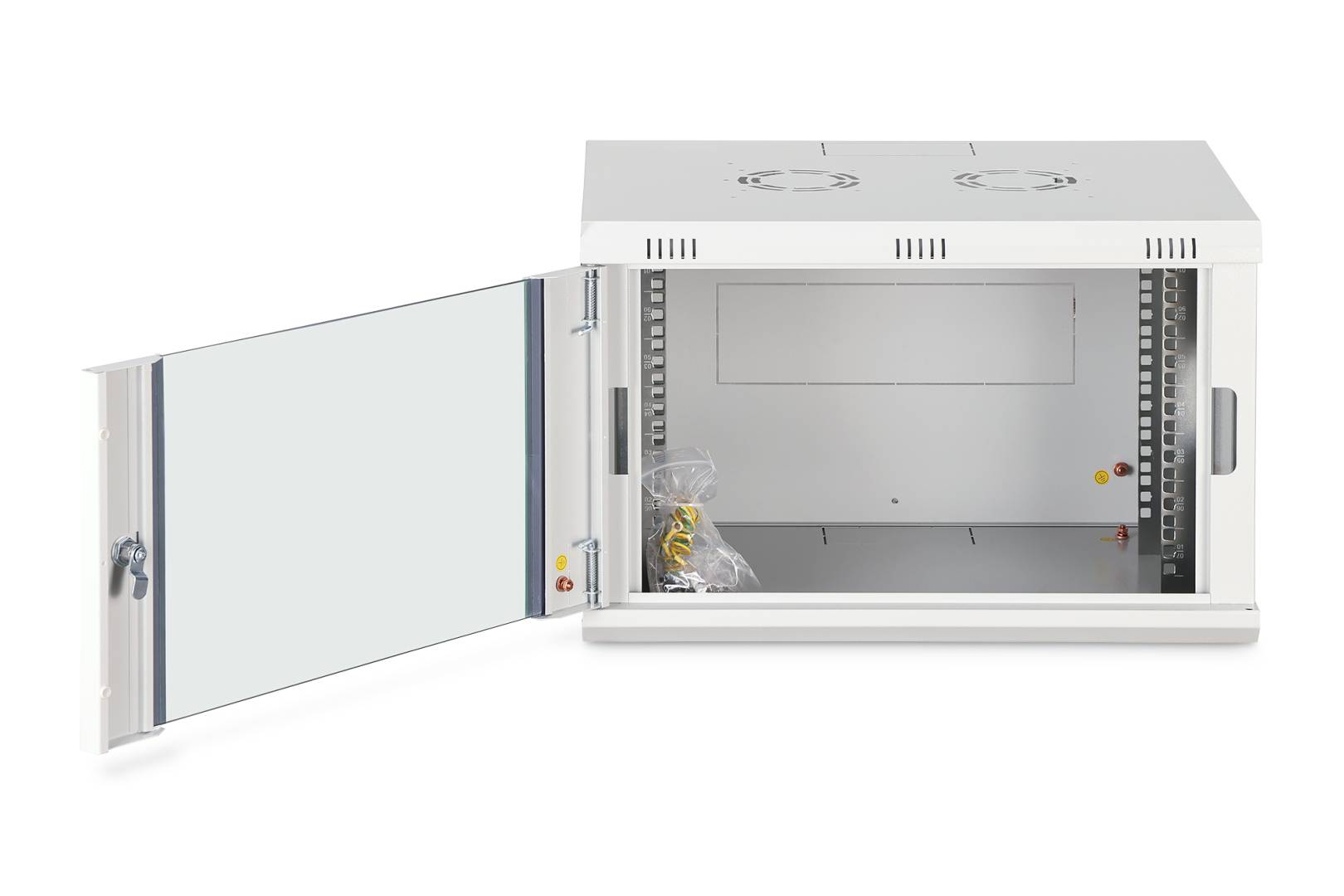

· Lockable safety-glass door with steel frame
· 235° door opening angle
· 1-point-locking-mechanism on the front door
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
· Cable entry on the rear side, roof and base (pre-punched break-outs)
· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· 4 earthing points (base, side panel and front door) with protection cap
· Equipment mounting depth min.-max.: 335 -380 mm

Special Features

· 450 mm depth provides a space saving installation
· Optimized air ventilation and exhaustion
· Lockable safety-glass door with steel frame

Product Specification

Product Type	Cabinet
Placing / Mounting	Wall mountable
Product Material	Steel
Rack Size	19"
Height (Rack Units)	7U
Width	60 cm
Depth	45 cm
Height	40.2 cm
Colour	Grey, RAL 7035
Miscellaneous	Miscellaneous
Mounting Kit	Included
Features	Lockable front door, powder coated, glass door
Compliant Standards	IEC 60529 IP20
