DIGITUS DN-95334 16-Port Gigabit PoE+ Switch 120W
Brand:
Digitus
DN-95334
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

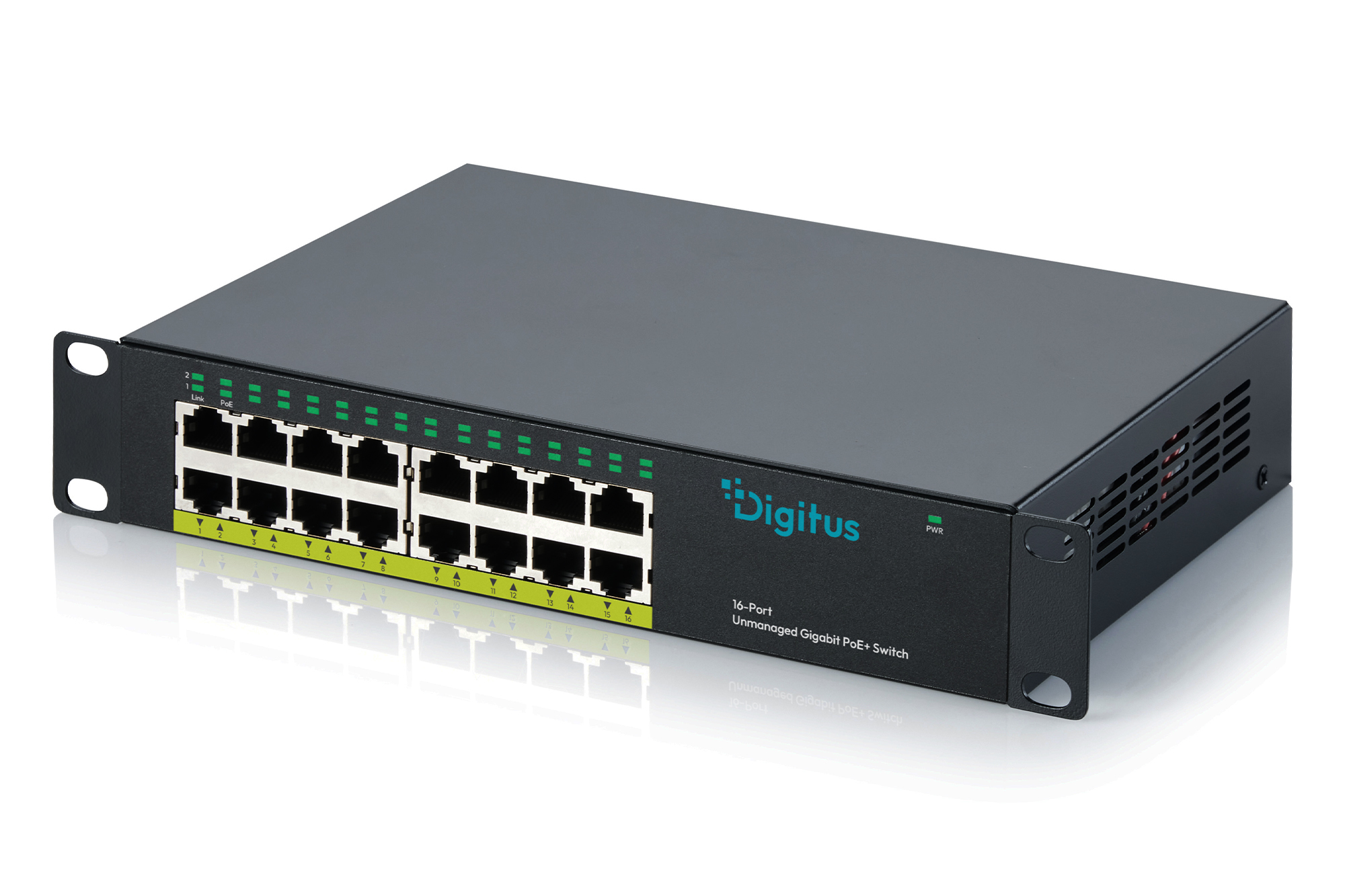

Sixteen Gigabit PoE+ connections in a compact 10-inch switch
16 Gigabit RJ45 ports120W shared PoE30W per portFanless / unmanaged
The DIGITUS DN-95334 combines 16 Gigabit Ethernet ports with IEEE 802.3af/at PoE+ power for compatible cameras, access points and VoIP devices. Its 120W total PoE budget is shared across the ports. The unmanaged switch uses a fanless black metal enclosure, a 10-inch rack format and an external power adapter.
Best For: Indoor offices, retail sites and compact network cabinets that need several Gigabit PoE devices with simple plug-and-play switching.
Before you order: Add the power demand of all connected PoE devices before installation: 120W is the total shared budget, with up to 30W per port. One of the 16 RJ45 ports is also used if you connect an upstream network; there is no separate SFP uplink. Provide cabinet fit, ventilation and grounding as described in the guide.

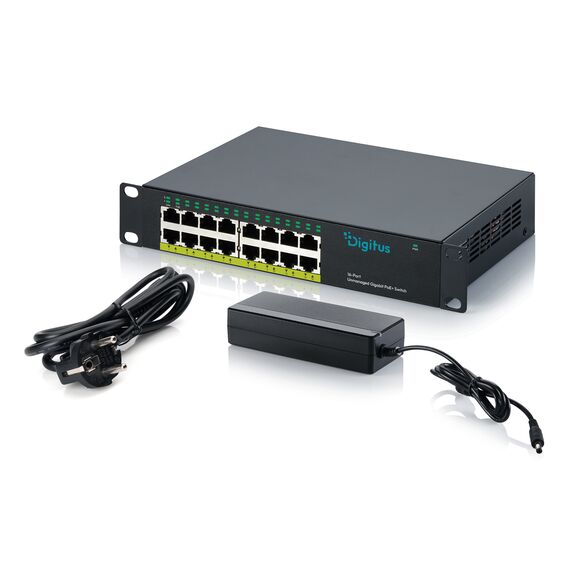

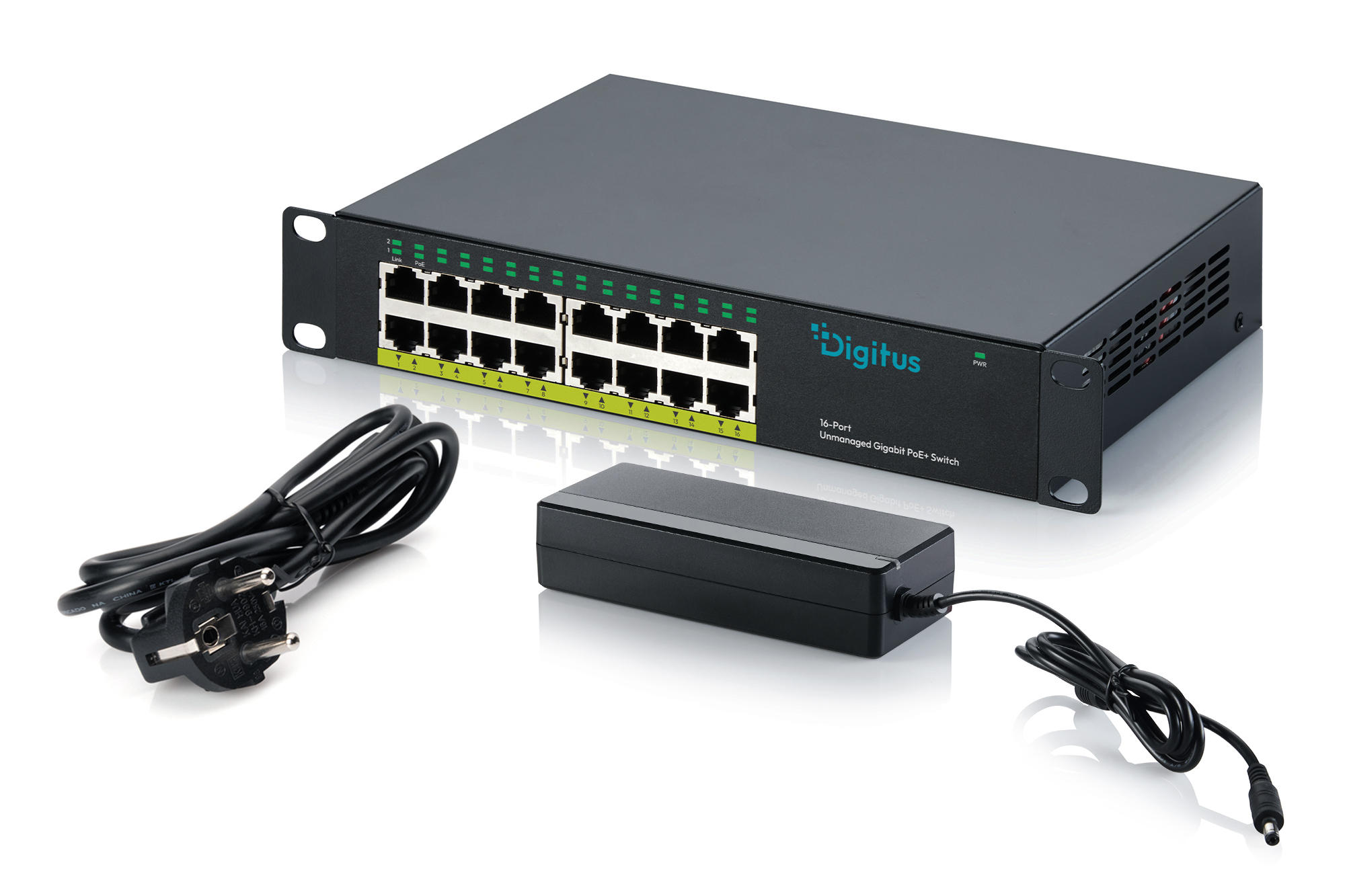

What's in the Box
- DIGITUS DN-95334 switch.
- External power adapter, AC power cord and quick start guide.
- Rubber feet are listed on the product page. The pictured EU mains plug can vary by regional supply.
- Use suitable M6 mounting screws supplied with the cabinet, as described in the guide.
What It Means in Practice
- Connect compatible IEEE 802.3af/at powered devices while keeping the combined load within 120W.
- Use 10/100/1000Mbps RJ45 links with supported copper network cabling.
- Connect to an existing router or upstream switch through an available RJ45 port.
- Place the fanless enclosure in a ventilated indoor location and follow grounding instructions.
What Will Not Work
- Sixteen 30W port ratings do not provide 480W total output; the shared PoE budget is 120W.
- No 2.5GbE, 10GbE or SFP uplink is specified for this model.
- This unmanaged wired switch does not provide Wi-Fi, routing or a configurable VLAN management interface.
- Not specified for outdoor or industrial use. Class A equipment may require interference measures in a home environment.
Key Features
Sixteen PoE+ ports
All 16 RJ45 ports support IEEE 802.3af/at, subject to per-port and total power limits.
120W power allocation
Size the combined camera, phone and access-point load against the shared budget.
Gigabit switching
32Gbps switching capacity and a rated 23.8Mpps forwarding rate.
Compact fanless housing

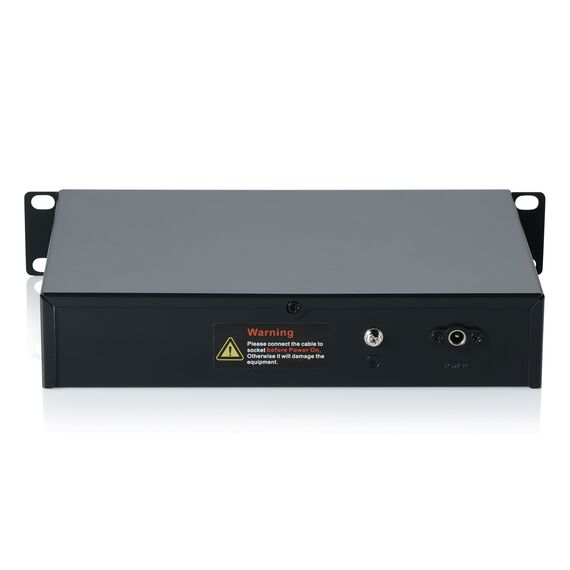

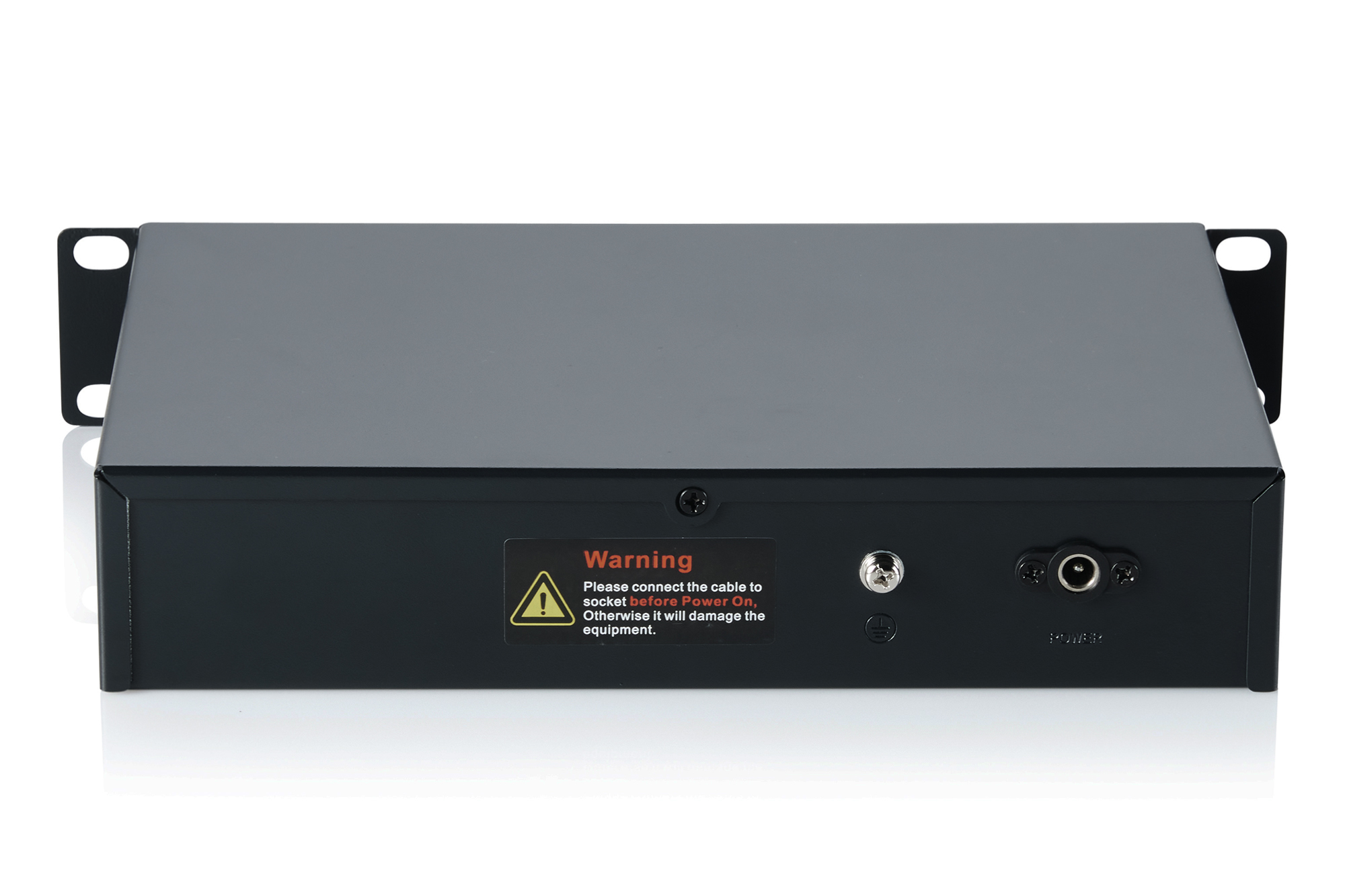

10-inch rack installation with an external DC power adapter and no fan noise.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For a compact PoE installation, count power as carefully as ports. Sixteen connectors offer flexibility, but the attached device mix must fit the 120W budget and any upstream connection uses one of the same Gigabit ports.
Buyer’s Guide
✓ Buy it if You need a compact sixteen-port Gigabit PoE+ switch with a combined load within 120W.
✕ Skip it if You need multi-gigabit access, an optical uplink, managed VLANs or more than 120W total PoE.
→ Also consider Connected-device wattages, upstream port allocation, cabinet depth, ventilation and grounding.
Features - Digitus - DN-95334
Colour
black
Interface
- Ethernet
Standard
16-Port
Port Speed
- 10/100 Mbps,
- 1 Gbps
More Details
Product Code
04:605155
EAN Code
4016032508625
Manufacturer
Digitus
