Eight multi-gigabit access ports and one 10G uplink in a compact switch
8×2.5G RJ451×10G SFP+60Gbps switchingFanless /10-inch

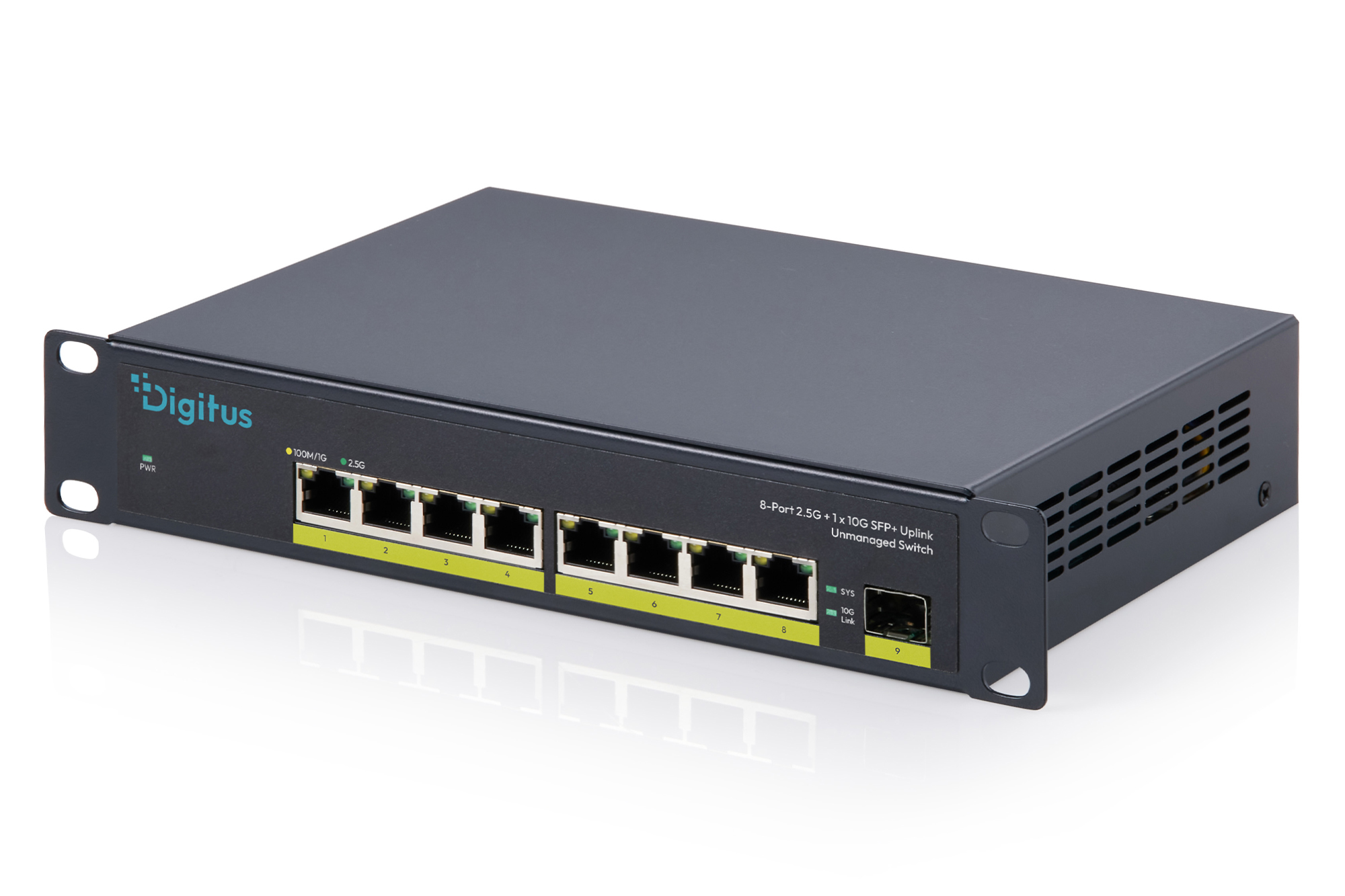

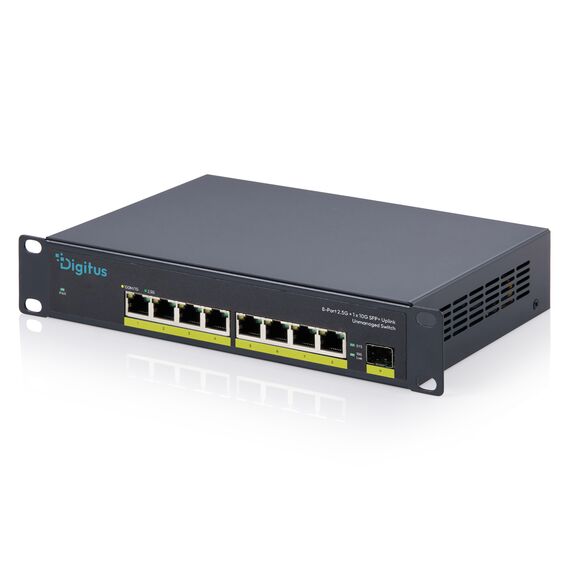

The DIGITUS DN-80122 is an unmanaged Ethernet switch with eight 2.5G RJ45 access ports and one dedicated 10G SFP+ uplink. It provides 60Gbps switching capacity, 44.64Mpps forwarding and a fanless metal enclosure. The compact 10-inch format suits a planned mini-rack or desktop installation connecting compatible workstations, NAS devices or access points.
Best For: Small offices, studios and compact network cabinets needing several multi-gigabit copper connections and a suitable faster uplink.
Before you order: Use compatible 2.5G endpoints and cabling, and choose an appropriate separately supplied SFP+ transceiver or DAC for the 10G connection. Plan power for connected access points and other devices separately. This is an unmanaged switch; if PoE delivery or configurable VLANs are required, confirm a suitable model before purchase. Follow the guide’s grounding and ventilation instructions.
What's in the Box

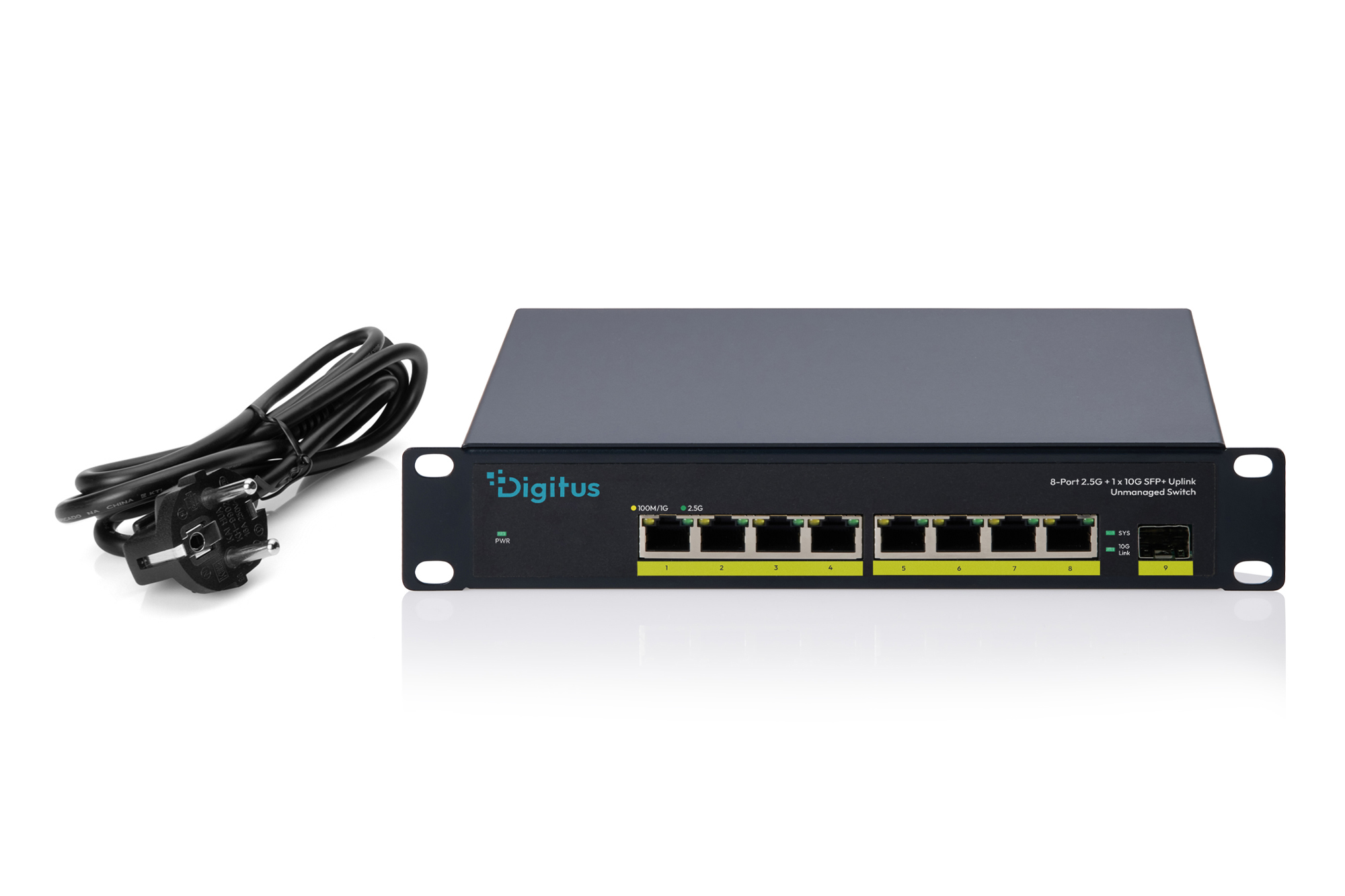

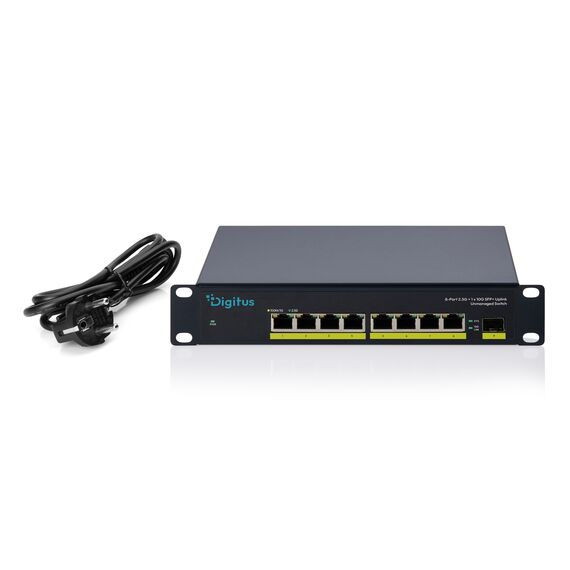

- DIGITUS DN-80122 switch,AC power cord and quick-start guide.
- Rubber feet are additionally listed on the manufacturer product page.
- The photographed EU mains plug can vary by regional supply.
- SFP+ module/DAC,patch cables and cabinet M6 fixing screws are not listed as included; the guide uses screws supplied with the cabinet.
What It Means in Practice
- Connect compatible multi-gigabit workstations or storage through the eight copper access ports.
- Link to a compatible backbone through the single 10G SFP+ port, selecting matching optics or DAC separately.
- Use Plug & Play operation where advanced configuration is not needed.
- Check the compact cabinet fit and leave ventilation clear even though cooling is fanless.
What Will Not Work
- There is one dedicated SFP+ uplink, not two. Eight RJ45 ports plus the uplink make nine physical data ports.
- No configurable management or routing functions are claimed.
- Do not select this model on an assumption of PoE output; powered endpoints need a verified separate power plan.
- A 10G uplink does not make each 2.5G copper connection run at 10G.
Key Features
Multi-gigabit access
Eight RJ45 ports support the confirmed 100/1000/2500Mbps link modes.
Dedicated 10G uplink
One SFP+ port connects to suitable higher-speed equipment.
Quiet operation
The fanless metal enclosure avoids fan noise while requiring adequate airflow.
Compact installation
The10-inch format includes rack ears,with an internal AC power supply.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Match access and uplink requirements first. This switch gives eight copper access links and one faster backbone connection in a small enclosure. Confirm the powered-device plan,modules,cabinet fit and cabling before treating it as a complete network upgrade.
Buyer’s Guide
✓ Buy it if You need simple multi-gigabit access with a single 10G SFP+ uplink and a compact fanless enclosure.
✕ Skip it if You need configurable VLANs,routing or a confirmed PoE switch for powered devices.
→ Also consider Endpoint speeds,SFP+/DAC compatibility,power for connected devices,grounding and 10-inch cabinet fit.
Features - Digitus - DN-80122
Colour
black
Interface
- Ethernet
Standard
8-Port
Port Speed
- 1 Gbps,
- 2.5 Gbps,
- 10 Gbps
More Details
Product Code
04:605158
EAN Code
4016032508700
Manufacturer
Digitus
