DIGITUS DN-651130 Industrial 4-Port Fast Ethernet Switch + 1 SFP Uplink — Unmanaged, DIN Rail, -40 to 80°C, IP40
Brand:
Digitus
DIGITUS DN-651130 Industrial 4-Port Fast Ethernet Switch + 1 SFP Uplink — Unmanaged, DIN Rail, -40 to 80°C, IP40
€67.56 inc. VAT
DN-651130
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
4-Port Fast Ethernet + Fibre SFP — Industrial, Fanless, Rugged
4× 10/100 RJ451× 100Base-FX SFPUnmanagedDIN Rail-40 to 80°C

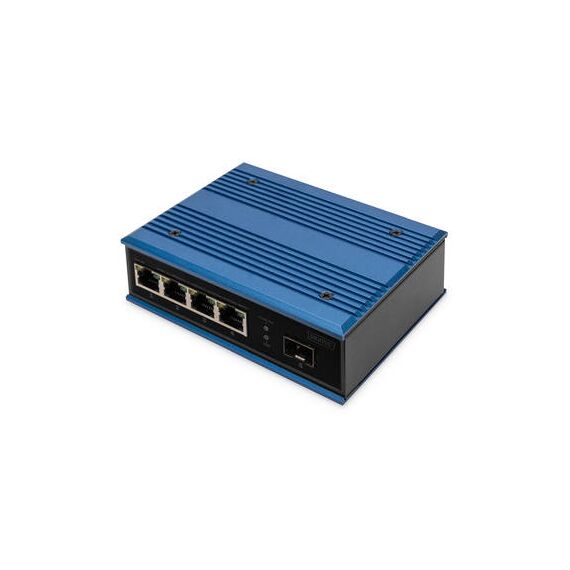

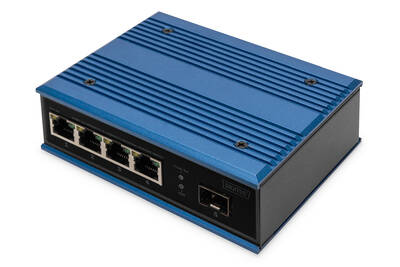

The DIGITUS DN-651130 is a rugged, unmanaged industrial switch that links four 10/100 Fast Ethernet devices and adds a 100Base-FX SFP fibre uplink for long-distance runs. It's built for the field: an IP40 aluminium housing, a fanless design, a wide -40 to 80°C range and dual 12–48V DC redundant power inputs keep the network alive in cabinets, on machinery and outdoors where standard switches fail. Everything is plug-and-play, with auto-negotiation and auto MDI/MDI-X on every copper port.
Compatibility — check before buying:
Requires a 12–48V DC power source (not AC mains); the terminal block accepts two feeds for redundancy. The SFP slot takes a 100Base-FX (Fast Ethernet) fibre module — not a Gigabit SFP. Copper ports connect any 10/100 device with a standard RJ45 cable.
Best For
✓Connecting machines, sensors or cameras on a factory floor
✓Extending a link over fibre with the SFP uplink
✓Outdoor cabinets and control enclosures (DIN rail, IP40)
✓Installs needing redundant DC power and wide temperature range
Key Features
4× 10/100 + 100Base-FX SFP Uplink
Four 10/100Base-TX RJ45 ports for local devices plus one 100Base-FX SFP slot to run a fibre uplink over long distances or through electrically noisy environments.
-40 to 80°C, IP40 Aluminium
A fanless IP40 aluminium housing rated -40°C to 80°C, with 6KV ESD and vibration/shock protection, stands up to heat, cold, dust and industrial abuse.
Dual Redundant 12–48V DC Power
A terminal block takes two independent DC feeds (12–48V). If one supply drops, the second keeps the switch running — no downtime, under 3W draw.
Plug-and-Play, Store-and-Forward
Unmanaged and effortless: auto-negotiation, auto MDI/MDI-X and store-and-forward switching (1.6 Gbps, 1.2 Mpps) mean you connect devices and it just works.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For industrial jobs where you need a few Fast Ethernet ports plus a fibre run, the DN-651130 is a dependable, rugged pick — the redundant DC power and wide temperature range remove the two things that kill switches in the field. Two things to check: the SFP is 100Base-FX, so pair it with a matching Fast Ethernet fibre module (not Gigabit), and if your endpoints need power over the cable you'll want the PoE version or a separate PoE switch instead. Browse the full networking range to match it with the right SFP module, DC supply and cabling.
Buyer’s Guide
Buy it if
You need rugged 10/100 switching plus a fibre uplink,You're wiring a cabinet, machine or outdoor enclosure,You need redundant DC power and -40 to 80°C tolerance
Skip it if
Your devices are Gigabit and need >100 Mbps,You need PoE to power cameras or access points,You want a managed switch with VLANs/QoS
Also consider
A 100Base-FX SFP fibre module for the uplink,The PoE version (DN-651131) to power devices,A DIN-rail 24/48V DC power supply to drive it
Features - Digitus - DN-651130
Colour
black
Standard
5-Port
Port Speed
- 10/100 Mbps
More Details
Product Code
04:427098
EAN Code
4016032485490
Manufacturer
Digitus
