DIGITUS DN-49207 SOHO Pro 12U 19-inch Wall Mount Network Cabinet 540 x 400 mm Glass Door Black RAL 9005
Brand:
Digitus
DIGITUS DN-49207 SOHO Pro 12U 19-inch Wall Mount Network Cabinet 540 x 400 mm Glass Door Black RAL 9005
€215.59 inc. VAT
DN-49207
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-49207 — 12U SOHO Pro Wall Mount Cabinet
12U / 19-inch540 x 400 mm60 kg loadIP20

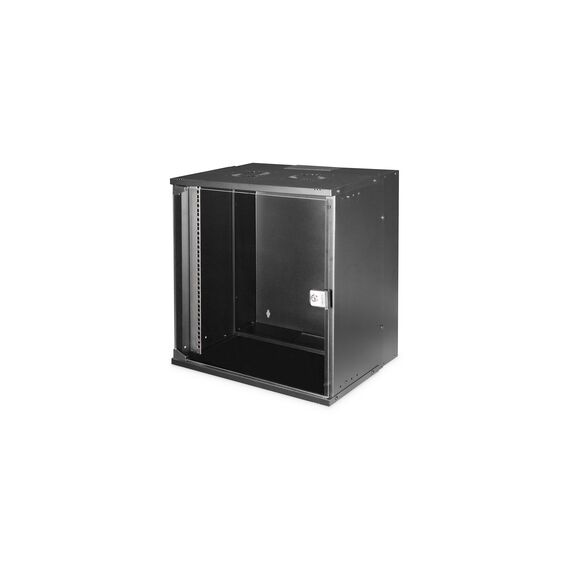

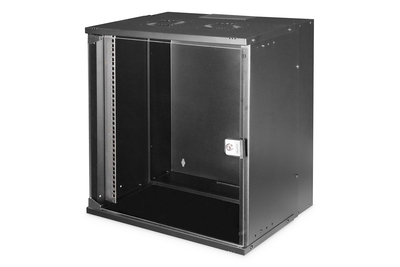

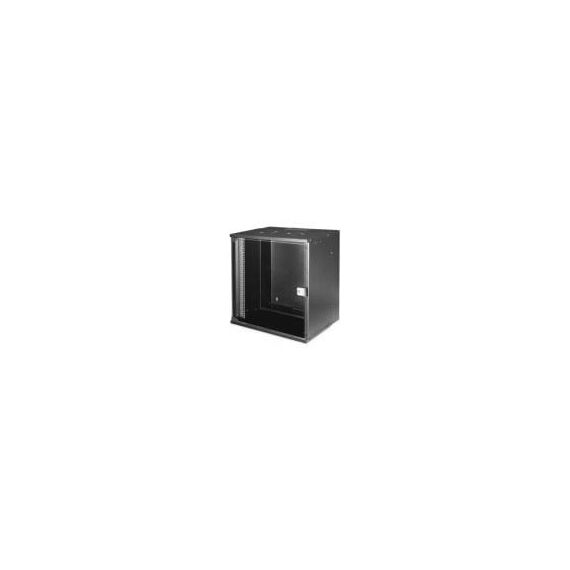

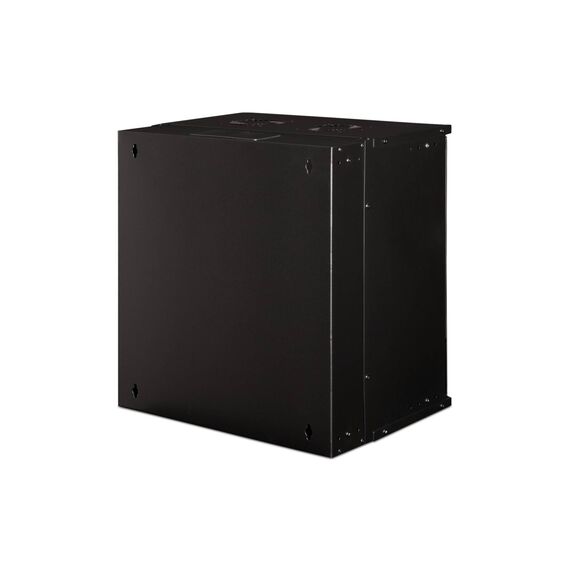

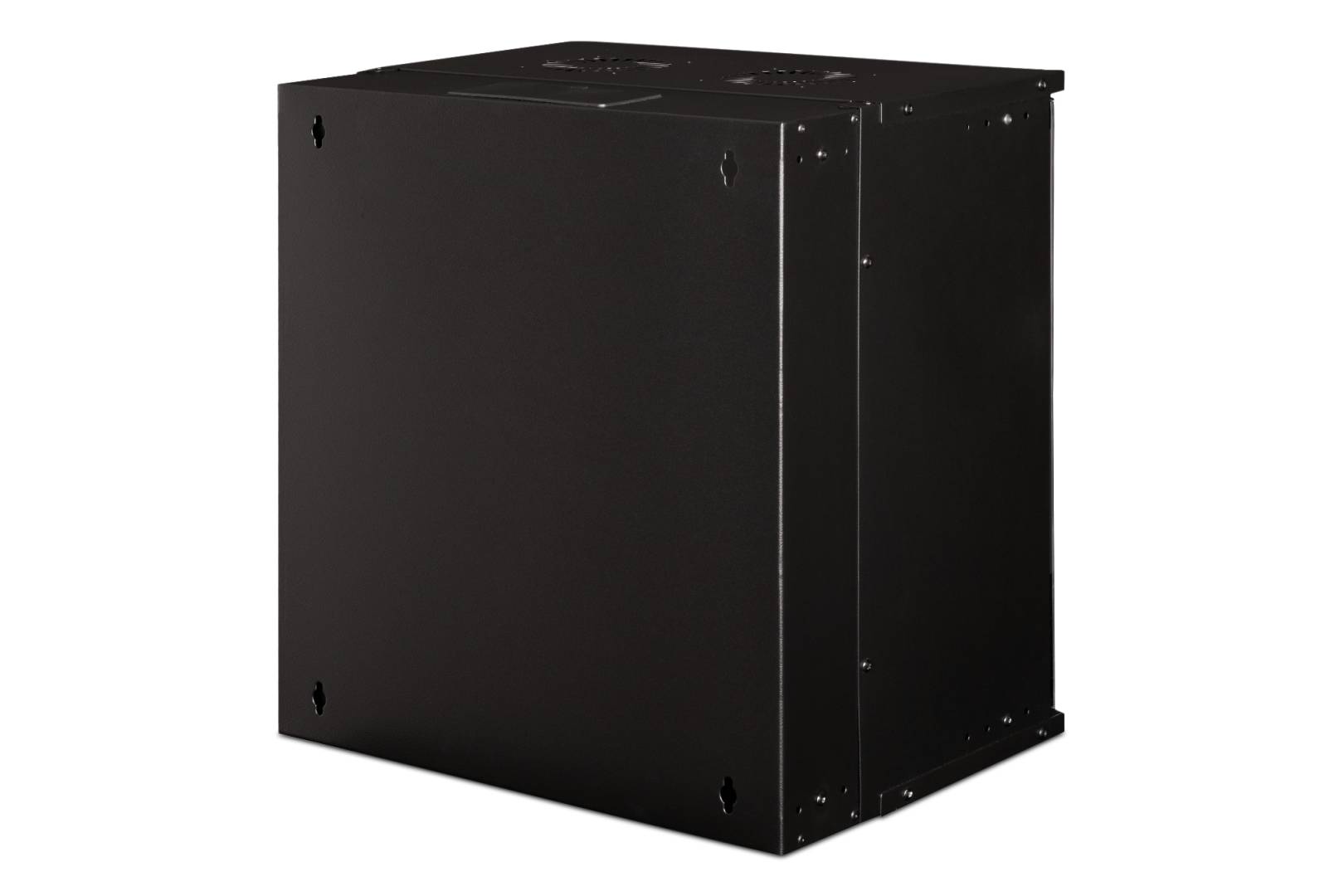

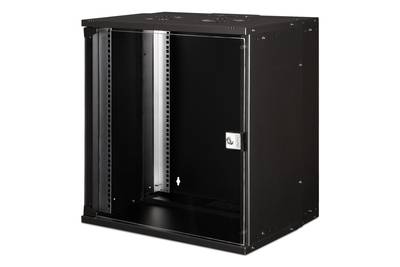

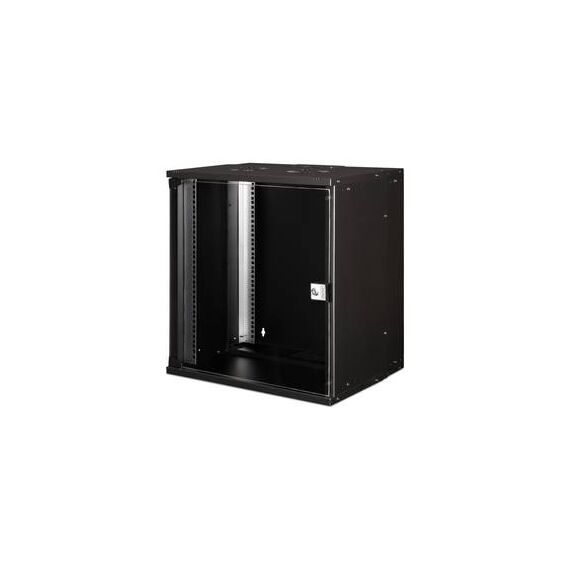

The DIGITUS DN-49207 is a 12U 19-inch SOHO Pro wall mounting network cabinet for compact network installations in homes, offices and distribution areas. The black RAL 9005 steel enclosure measures 595 x 540 x 400 mm and provides front and rear adjustable 19-inch profile rails, a lockable full safety-glass door and a maximum load capacity of 60 kg.
Check before buying:
This exact version is the 12U, 400 mm deep, black RAL 9005 model and is supplied unassembled in a flat pack. DIGITUS specifies a maximum component installation depth of 319.25 mm, so allow for rear connectors and cable bend space when checking compatibility with switches, shelves and other rack equipment.
Best For
✓ Small office and SOHO networks
✓ 19-inch switches and patch panels
✓ Structured cabling installations
✓ Space-limited wall installations
Key Features
12U 19-inch rack format
Two pairs of galvanized 483 mm (19-inch) profile rails are fitted at the front and rear of the enclosure. The rails are marked with rack units and can be adjusted in depth for compatible equipment.
Lockable safety-glass front door

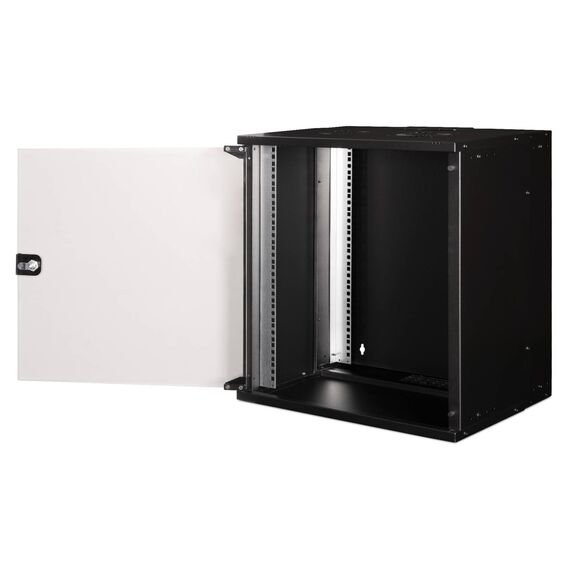

The single-opening safety-glass door uses a one-point lock and opens through approximately 200 degrees. The door hinges can be changed to suit the installation layout.
Robust steel construction
The enclosure uses powder-coated sheet steel approximately 1.1 to 1.5 mm thick and is specified for a maximum load of 60 kg when correctly installed.
Cable entry and ventilation
Cable entry points with plastic covers are provided in the roof and floor. Integrated ventilation slots support passive airflow and installations that use active ventilation.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For this cabinet, the most important compatibility number is the 319.25 mm maximum component installation depth, not simply the cabinet's 400 mm external depth. That distinction matters with deeper switches and other equipment because room is still needed for connectors and cable routing. The 12U capacity provides useful expansion space for patching and switching hardware, while front and rear adjustable rails make equipment positioning more flexible. The lockable glass door is useful where equipment should remain visible without being openly accessible.
Buyer’s Guide
Buy it if
You need a compact 12U wall cabinet for 19-inch networking equipment, want a lockable glass door and your hardware fits within the specified installation depth.
Check first
Measure the chassis depth of every rack device and include rear plug and cable clearance. The verified maximum component installation depth is 319.25 mm.
Remember
This exact DN-49207 version is black RAL 9005, 12U and 400 mm deep. It is supplied unassembled, and similar SOHO Pro variants differ in size and colour.
Features - Digitus - DN-49207
More Details
Product Code
04:472587
EAN Code
4016032493761
Manufacturer
Digitus
