DIGITUS Wireless Collaboration System / 2 Transmitters + 1 Receiver / wireless video/audio extender / 802.11a, 802.11b/g/n, Wi-Fi 5 / up to 50 m | DS-55317

Product Features

· Share, present and collaborate from your notebook, tablet or smartphone
· Easy installation - No software or app required
· Transmission distance: up to 50 m (unrestricted view)
· Present simultaneously from up to 4 participants in split screen
· Up to 30 participants (simultaneous connection to receiver)
· Share notebook via HDMI transmitter or via wireless screen (Windows)/screen sync (macOS)
· Share from a tablet/smartphone using the screen sync (iOS, iPadOS/Android) of your mobile device
· Touch Panel Back Control - the touch back function of the receiver unit allows finger gestures/controls on a large touch screen to be sent back wirelessly to a Windows PC
· Integrated Whiteboard - the main menu of the receiver provides a whiteboard function and in combination with a touchscreen, allows quick notes during the meeting, the presentation directly on the display
· UHD 4K/60Hz (3840x2160p) on the receiver side - Connection of 4K displays
· Supports Windows, macOS, iOS, iPadOS, Android
· Supports HDR (High Dynamic Range)
· BYOD System - Bring Your Own Device

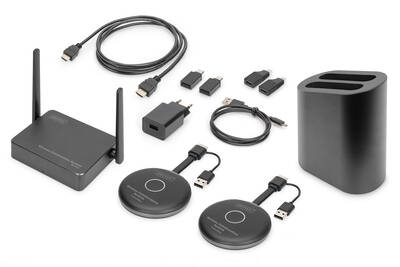

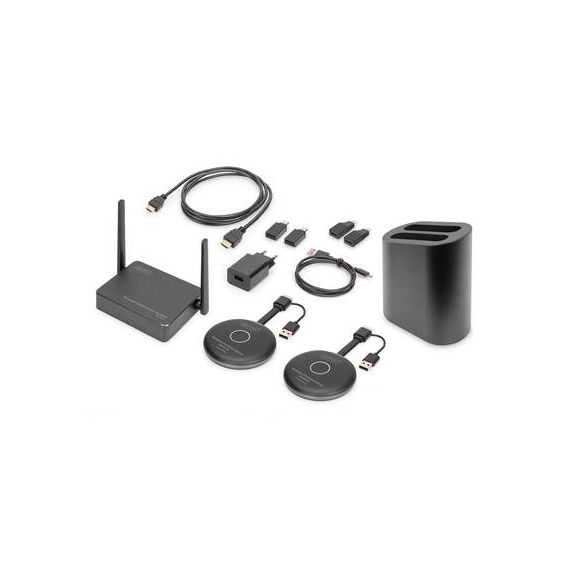

· Set comprising 2x TX (transmitter) and 1x RX (receiver)
· Expandable with additional HDMI transmitters - DS-55322
· Transmitter connections:
· 1x HDMI, plug (Full HD (1080p) - Connection to notebook, video output, cable length: 5 cm
· 1x USB-A, plug - Connection to notebook, power supply, cable length: 12 cm
· 1x Connection button - Easy sharing
· 1x LED status display
· Receiver connections:
· 1x HDMI, jack (UHD, 4K2K/60Hz) - Connection to output device
· 1x RJ45, jack (Fast Ethernet, 10/100 Mbps) - Connection to network/internet
· 2x USB-A, jack (USB 2.0) - Connection of mouse & keyboard / Connection of touch display
· 1x Micro USB, jack - Power supply (10W, 5V/2A)
· 1x LED status display
· 2x Radio antennas
· Wireless standard: IEEE 802.11 b/g/n/ac, 2,4G/5GHz, 2T2R
· AES 128 bit encryption
· WPA2/WPA-PSK/WPA2-PSK authentication
· Latency: approx. 100 ms
· Housing: Transmitter - ABS / Receiver - Aluminum
· Dimensions: Transmitter L 8.0 x W 8.0 x H 1.4 cm / Receiver L 8.5 x W 10.4 x H 2.3 cm
· Color: grey/black
· Note:
· The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
· Walls, glass etc. shorten the signal range or cause signal losses

Special Features

· Share, present and collaborate from your notebook, tablet or smartphone - Transmission distance of up to 50 m
· Easy installation - No software or app required
· Present simultaneously from up to 4 participants in split screen
· Up to 30 participants (simultaneous connection to receiver)
· Share notebook via HDMI transmitter or via wireless screen (Windows)/screen sync (macOS)
· Share from a tablet/smartphone using the screen sync (iOS, iPadOS/Android) of your mobile device
· Touch Panel Back Control - the touch back function of the receiver unit allows finger gestures/controls on a large touch screen to be sent back wirelessly to a Windows PC
· Integrated Whiteboard - the main menu of the receiver provides a whiteboard function and in combination with a touchscreen, allows quick notes during the meeting, the presentation directly on the display
· Supports Windows, macOS, iOS, iPadOS, Android
· Expandable with additional HDMI transmitters - DS-55322

Product Specification

Device Type	Wireless video/audio extender
Form Factor	External
Colour	Grey, black
Networking	Networking
Connectivity Technology	Wireless
Data Link Protocol	802.11a, 802.11b/g/n, Wi-Fi 5
Max Resolution	3840 x 2160 @ 60 Hz
Max Transfer Distance	50 m
Features	4K resolution support, HDR support, Touch Panel Back Control, BYOD System
Encryption Algorithm	WPA2, WPA-PSK, WPA2-PSK
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x HDMI (transmitter) - 19 pin HDMI Type A ¦ 1 x USB 2.0 (transmitter) - Type A ¦ 1 x Ethernet 1000 (receiver) - RJ-45 ¦ 2 x USB 2.0 (receiver) - Type A
Miscellaneous	Miscellaneous
Included Accessories	HDMI transmitter storage tray
Cables Included	Micro-USB cable - 1.5 m ¦ HDMI cable - 1.5 m ¦ USB-C to USB-A adapter
Power	Power
Power Device	External power adapter
Dimensions & Weight	Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Transmitter: 8 cm x 8 cm x 1.4 cm ¦ Receiver: 8.5 cm x 10.4 cm x 2.3 cm
