DIGITUS 19-inch 1U Sliding Fiber Splice Box, Equipped with 6x LC/APC Duplex Couplers, OS2 Single-mode, Light Grey
Brand:
Digitus
DIGITUS 19-inch 1U Sliding Fiber Splice Box, Equipped with 6x LC/APC Duplex Couplers, OS2 Single-mode, Light Grey
€101.34 inc. VAT
DN-96330/9APC
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS 1U Fiber Splice Box — 6x LC/APC duplex, OS2, pre-assembled
19" · 1U sliding6x LC/APC duplexOS2 Single-modePre-assembled with pigtails
The DIGITUS DN-96330/9APC is a 19-inch, 1U fiber optic splice box that arrives equipped with 6 LC/APC duplex couplers, OS2 single-mode (9/125 µm) colour-coded pigtails and a splice cassette, so the only job left on site is to fusion-splice your incoming installation cable to the pigtails. It is aimed at installers and IT teams terminating a 12-fibre OS2 cable in a network or server cabinet.
The tray slides forward out of the housing, which gives you room to splice, store fibre overlength in the cassette and re-patch later without dismantling the rack. The carrier housing is 1.0 mm sheet steel, powder-coated light grey (RAL 7035), with M20/M25 cable glands and strain relief for the incoming cable.
Before you order: This box is OS2 single-mode with APC polish. Your trunk cable and every patch cord must match: single-mode cannot be spliced or patched to multimode, and the green APC couplers only accept APC (angled, green) connectors.
What's in the Box
- 1x 19" 1U fiber optic splice box, sliding, light grey RAL 7035

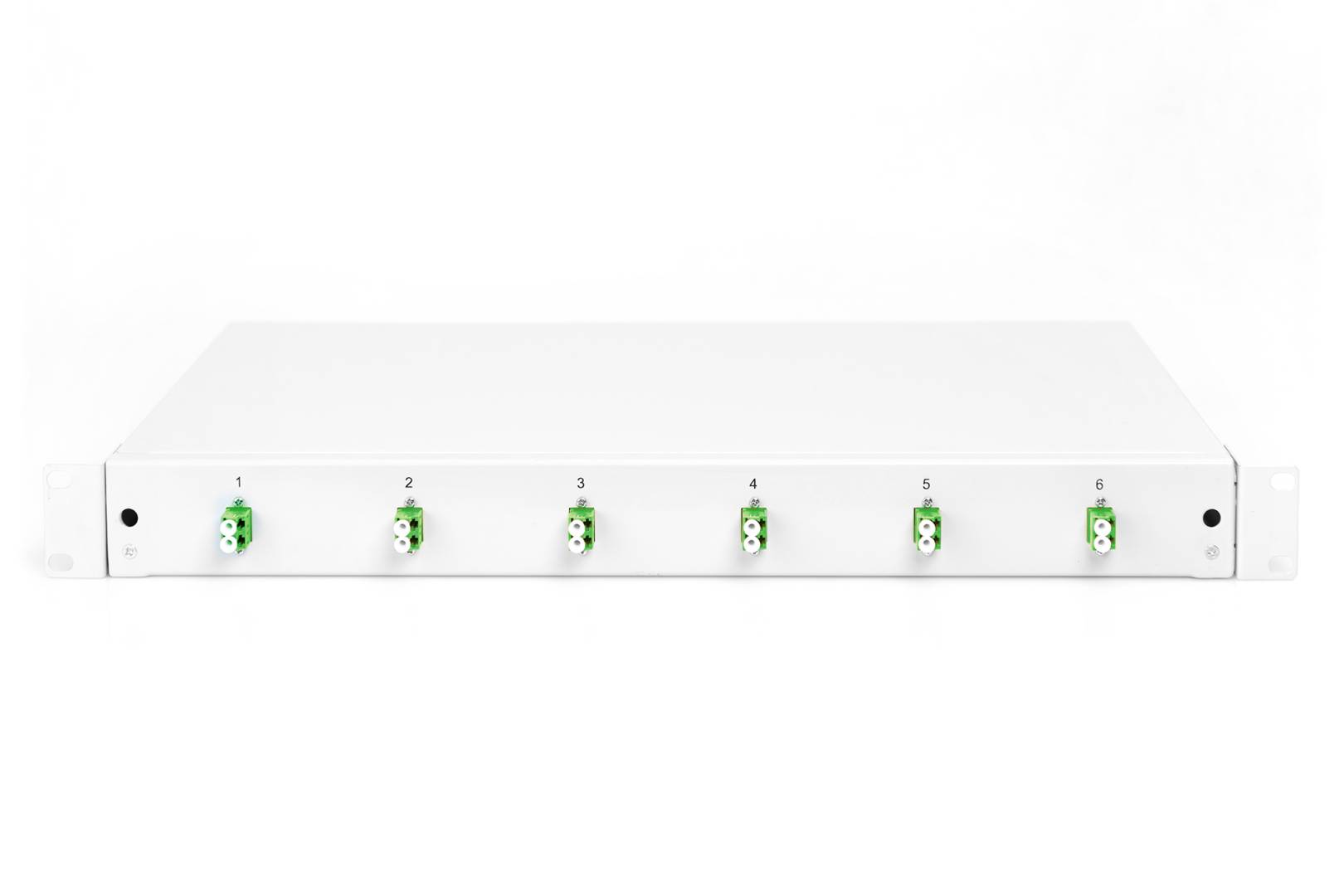

- Equipped: 6x LC/APC duplex couplers (ceramic sleeve) on the front panel
- Colour-coded OS2 pigtails, already routed and inserted into the splice cassette
- Splice cassette with cassette cover

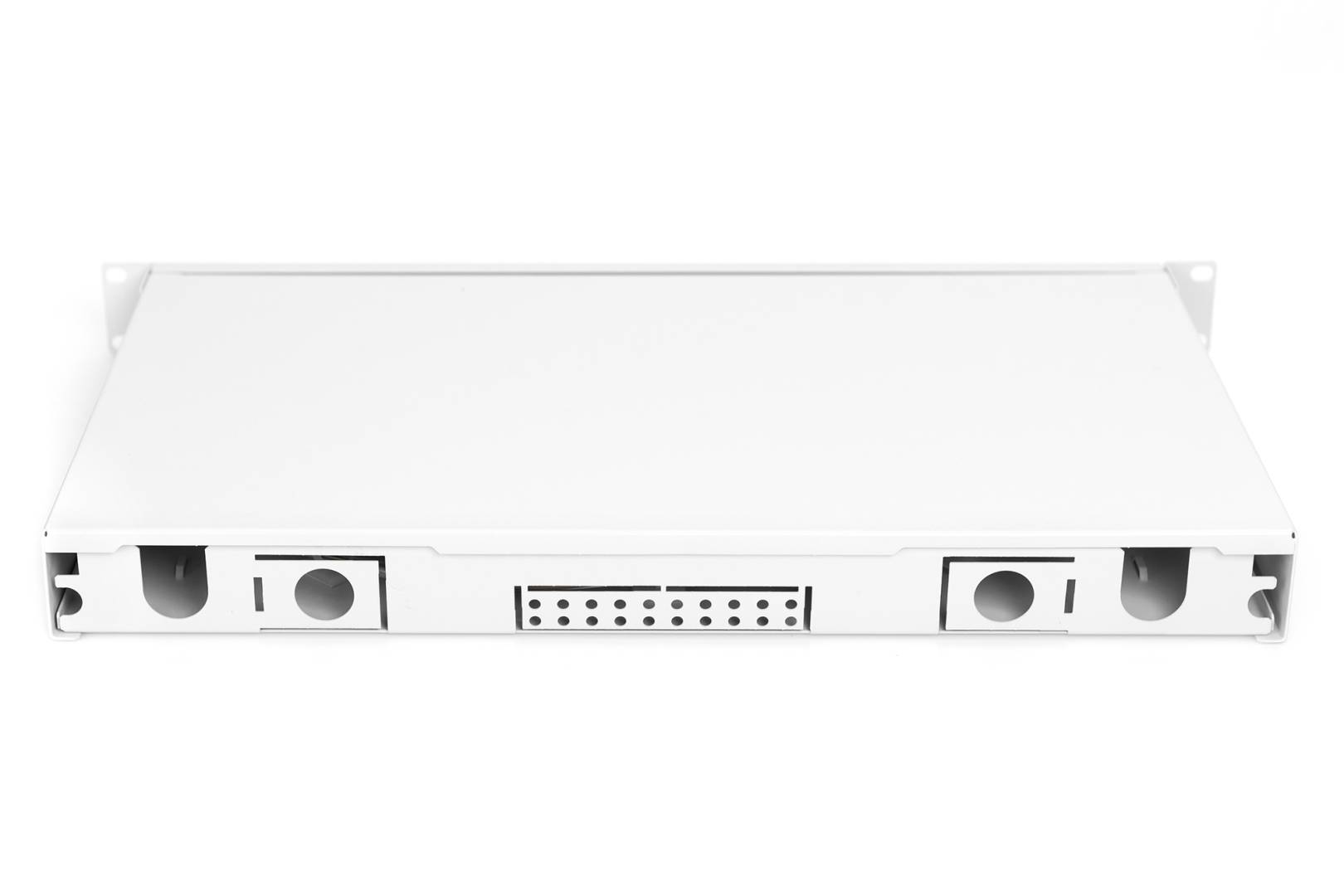

- M20/M25 cable glands and strain relief for the incoming cable
What It Means in Practice
- Capacity is 6 duplex ports = 12 fibres. Size it to the fibre count of the cable you are bringing in, plus any spares you want to land.
- Typical use: long-distance links between buildings, campus backbones and carrier or FTTx hand-over points.
- You need a fusion splicer, splice protection sleeves and a cleaver on site — or an installer who has them. The box itself is passive and needs no power.
- Front-side patching uses standard LC/APC duplex patch cords in OS2 (APC); order them separately in the lengths you need.

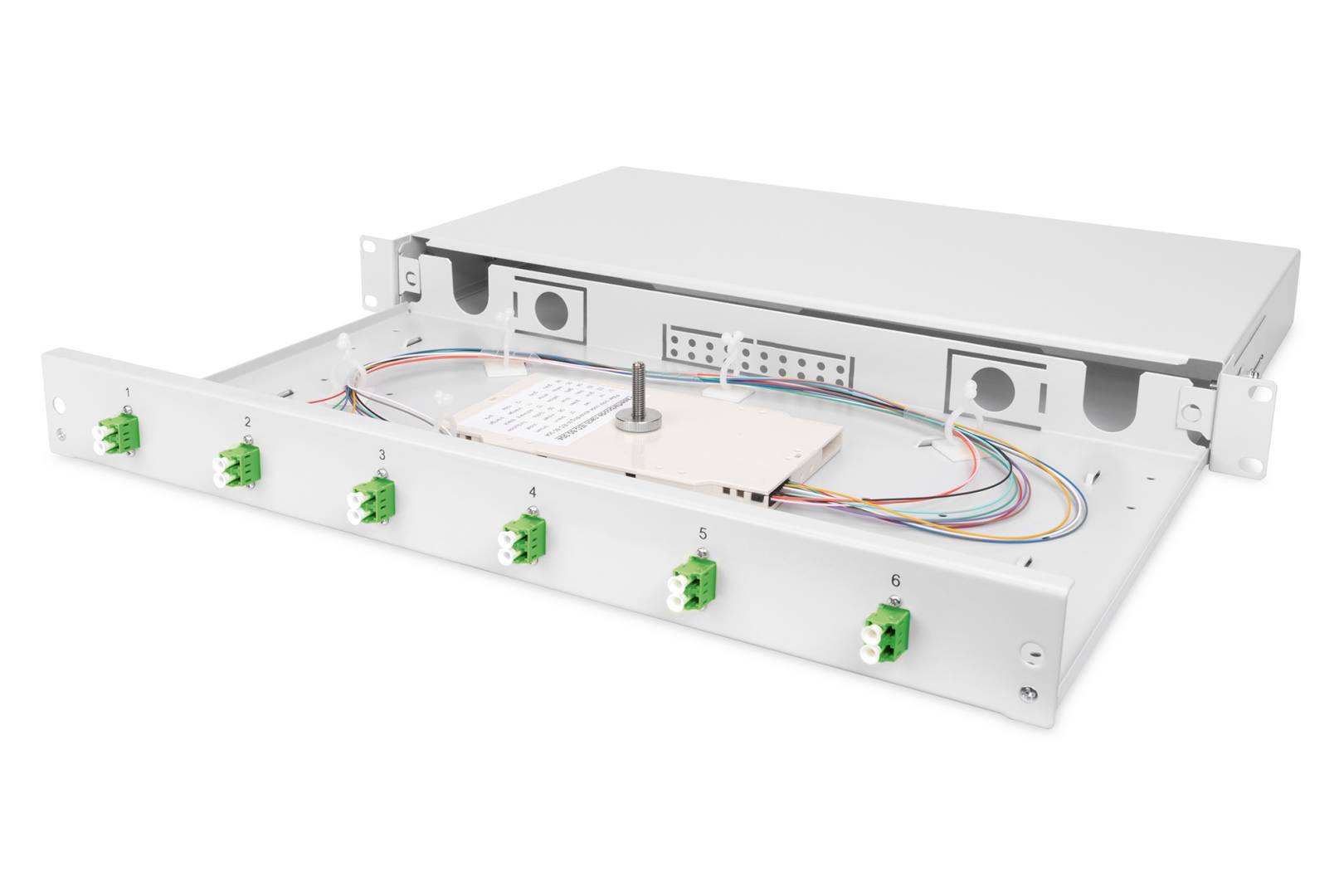

- Sliding tray: pull the box forward for splicing and service, push it back to close — no need to remove it from the rack.
What Will Not Work
- It will not terminate a multimode (OM1–OM4) cable — fibre type must match end to end.
- UPC (blue or beige) connectors will not mate with the APC couplers.
- No patch cords, installation cable, splice sleeves or tools are included.
- It does not fit 10-inch racks or wall boxes — it needs a 19-inch rack with at least 240 mm usable depth behind the mounting rails.
- It is not a pre-terminated plug-and-play panel: without splicing, the pigtails are not connected to anything.
Key Features
Ready to splice
Pigtails are already fitted to the couplers and laid into the cassette, which cuts installation time and removes connector polishing from the job.
Sliding 1U chassis
The tray pulls forward for splicing and re-work while the box stays mounted in the cabinet.
Cable entry with strain relief
M20/M25 glands and strain relief hold the incoming cable so the splices are not loaded.
Steel housing
1.0 mm sheet steel, powder-coated light grey RAL 7035, with ceramic-sleeve couplers in polymer housings.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Pre-assembled splice boxes save the most time on jobs with a single trunk cable per rack: splice once, patch from the front. Mount it next to the switch it feeds and keep patch-cord runs short. Planning the active side as well? Browse our network switches with fiber uplinks, or rack shelves and cable managers in rack accessories.
✓ Buy it if you are terminating a OS2 cable of up to 12 fibres in a 19-inch cabinet and can fusion-splice on site.
✕ Skip it if your cable is multimode or your equipment uses UPC connectors, or you want pre-terminated plug-and-play cabling without splicing.
→ Also consider DN-96330/9 — the UPC version of this 6x LC duplex OS2 box. Do not order it by mistake if your equipment or carrier hand-over uses APC.
Not sure which fibre class or connector your cable uses? Send us the cable label or the switch/SFP model and we will check before you order.
Features - Digitus - DN-96330/9APC
Colour
grey
More Details
Product Code
04:591650
EAN Code
4016032432258
Manufacturer
Digitus
