Shuttle DIR01 DIN-Rail Mounting Kit for XPC slim 1.3-litre barebones, Grey, 4046047103447

Brand:
Shuttle
Shuttle DIR01 DIN-Rail Mounting Kit
Shuttle DIR01 DIN-Rail Mounting Kit for XPC slim 1.3-litre barebones, Grey, 4046047103447
€41.3 inc. VAT
Buy
DIR01
€34.71
€41.30 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:320360
EAN Code
4046047103447
Manufacturer
Shuttle

Quick Specs

Plate dimensions
164 x 134 x 7 mm (W x H x D)
DIN-rail mounting mechanism
Clamping mounting clip for standard 35 mm
Required VESA mount
100 x 100 mm VESA mount may be required
Additional VESA mount requirement
PV04 is separately required for DH110SE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Shuttle DIR01 DIN-Rail Mounting Kit for XPC slim 1.3-litre barebones, Grey, 4046047103447

164 x 134 x 7 mm (W x H x D) Clamping mounting clip for standard 35 mm 100 x 100 mm VESA mount may be required PV04 is separately required for DH110SE

The Shuttle DIR01 is a DIN-rail mounting kit for compatible Shuttle XPC slim 1.3-litre barebones. Its stainless-steel plate and clamping clip are designed for installation on a standard 35 mm DIN rail; check your XPC model's VESA mounting requirements before ordering.

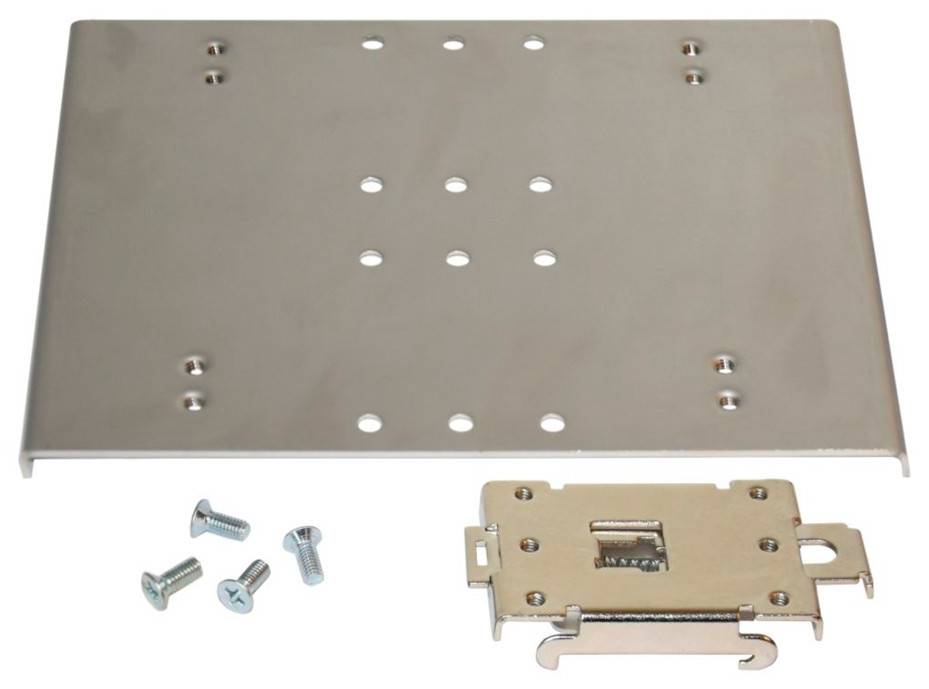

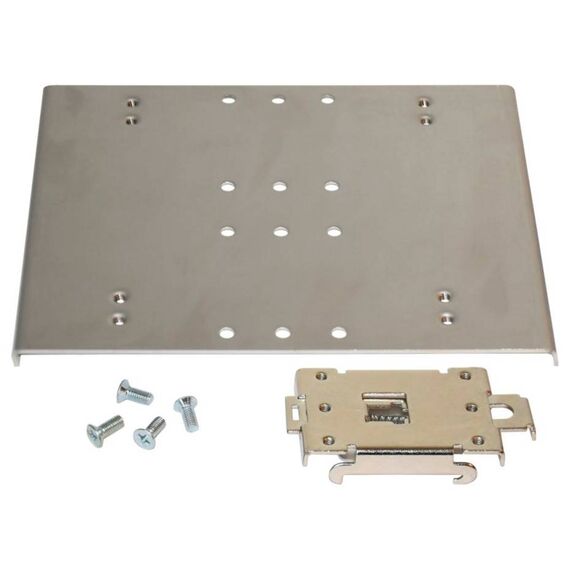

What's in the Box

  • Stainless-steel mounting plate
  • DIN-rail clamping clip
  • 4 countersunk-head screws, M4 x 8 mm
  • Quick Guide

What It Means in Practice

  • The clamping clip is specified for standard 35 mm DIN rails.
  • Allow for the mounting plate's 164 x 134 x 7 mm dimensions when checking space at the installation point.
  • Check whether the compatible XPC model needs a separate 100 x 100 mm VESA mount before installation.

What Will Not Work

  • The kit is specified for compatible Shuttle XPC slim 1.3-litre barebones, not as a universal computer mount.
  • A 100 x 100 mm VESA mount may need to be obtained separately, depending on the XPC model.
  • PV04 is separately required for DH110SE, DH310S, DH410S and DH610S; their required VESA mount is not included.
Best For
✓ Its VESA mounting arrangement before choosing the kit

Key Features


Standard 35 mm DIN rail
The clamping clip is designed to mount compatible systems on a standard 35 mm rail.

Stainless-steel plate
The 1.5 mm-thick plate measures 164 x 134 x 7 mm.

Technical Specifications

Product type DIN-rail mounting kit / computer mounting accessory
Compatible device family Shuttle XPC slim 1.3-litre barebones
DIN-rail compatibility Standard 35 mm DIN rail
Mounting mechanism Clamping mounting clip
Plate material Stainless steel
Plate thickness 1.5 mm
Plate dimensions 164 x 134 x 7 mm (W x H x D)
VESA mount requirement A 100 x 100 mm VESA mount may be required separately, depending on the compatible XPC model
Additional VESA mount requirement PV04 is separately required for DH110SE, DH310S, DH410S and DH610S | the required VESA mount is not included with those systems | PV04 is separately required for DH110SE, DH310S, DH410S and DH610S because the required VESA mount is not included with those systems
Compatible fanless XPC slim barebones DX30(V2), DL10J, DL20N(6), DL30N, DL40N, DS47, DS407(T), DS437(T), DS57Ux, DS67Ux, DS68U, DS77Ux, DS10Ux, DS20Ux, DS50Ux, DN11H
Compatible fan-equipped XPC slim barebones DH02Ux, DH32Ux, DS61, DS81, DS81L, DH110, DH110SE, DH170, DQ170, DH270, DH310, DH310V2, DH310S, DH370, DH410, DH410S, DH470, DH610, DH610S, DH670(V2), DH770, DH810, DB860
Included hardware 4 countersunk-head screws, M4 x 8 mm
Included documentation Quick Guide
Colour Grey
Model DIR01
Manufacturer part number POZ-DIR01
Manufacturer Shuttle Computer Handels GmbH
Country of origin China
Product name Shuttle XPC accessory DIR01 DIN-Rail Mounting Kit for Shuttle XPC slim series in 1.3-litre format
DIN-rail mounting mechanism Clamping mounting clip for standard 35 mm DIN rail
Required VESA mount 100 x 100 mm VESA mount may be required separately, depending on the compatible XPC model
Product colour Grey
EAN 4046047103447
SKU / EAN DIR01 | 4046047103447

Frequently Asked Questions

Which Shuttle systems are compatible?
The DIR01 is for listed Shuttle XPC slim 1.3-litre barebones. Check the compatible fanless and fan-equipped model lists in the specifications against your system.
Do I need a separate VESA mount?
It depends on the XPC model. A 100 x 100 mm VESA mount may be required separately. For DH110SE, DH310S, DH410S and DH610S, PV04 is specifically required because the needed mount is not included.
Singular Expert Insight
The DIR01 provides a purpose-made clamping mount for standard 35 mm DIN rails, with a stainless-steel plate sized for compatible Shuttle XPC slim systems.

Buyer’s Guide

Buy it if
For buyers installing a compatible Shuttle XPC slim 1.3-litre barebone on a standard 35 mm DIN rail. Confirm the exact XPC model and its VESA mounting arrangement before choosing the kit.
Skip it if
Compatibility is limited to the listed Shuttle XPC slim 1.3-litre models. Depending on the system, a 100 x 100 mm VESA mount may be needed separately; PV04 is specifically required for DH110SE, DH310S, DH410S and DH610S because those systems do not include the required VESA mount.
