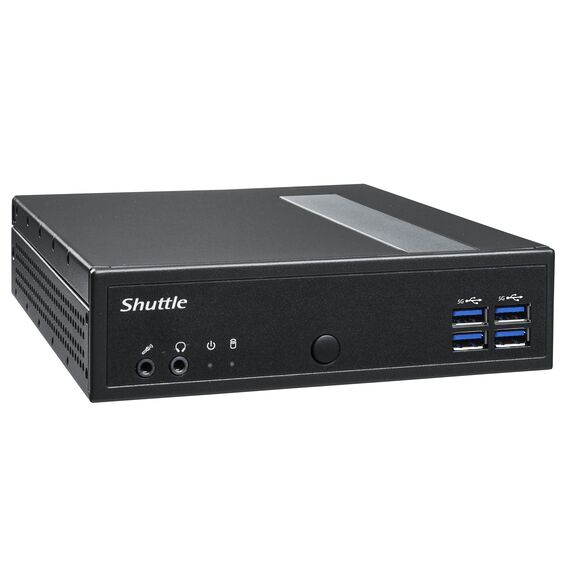

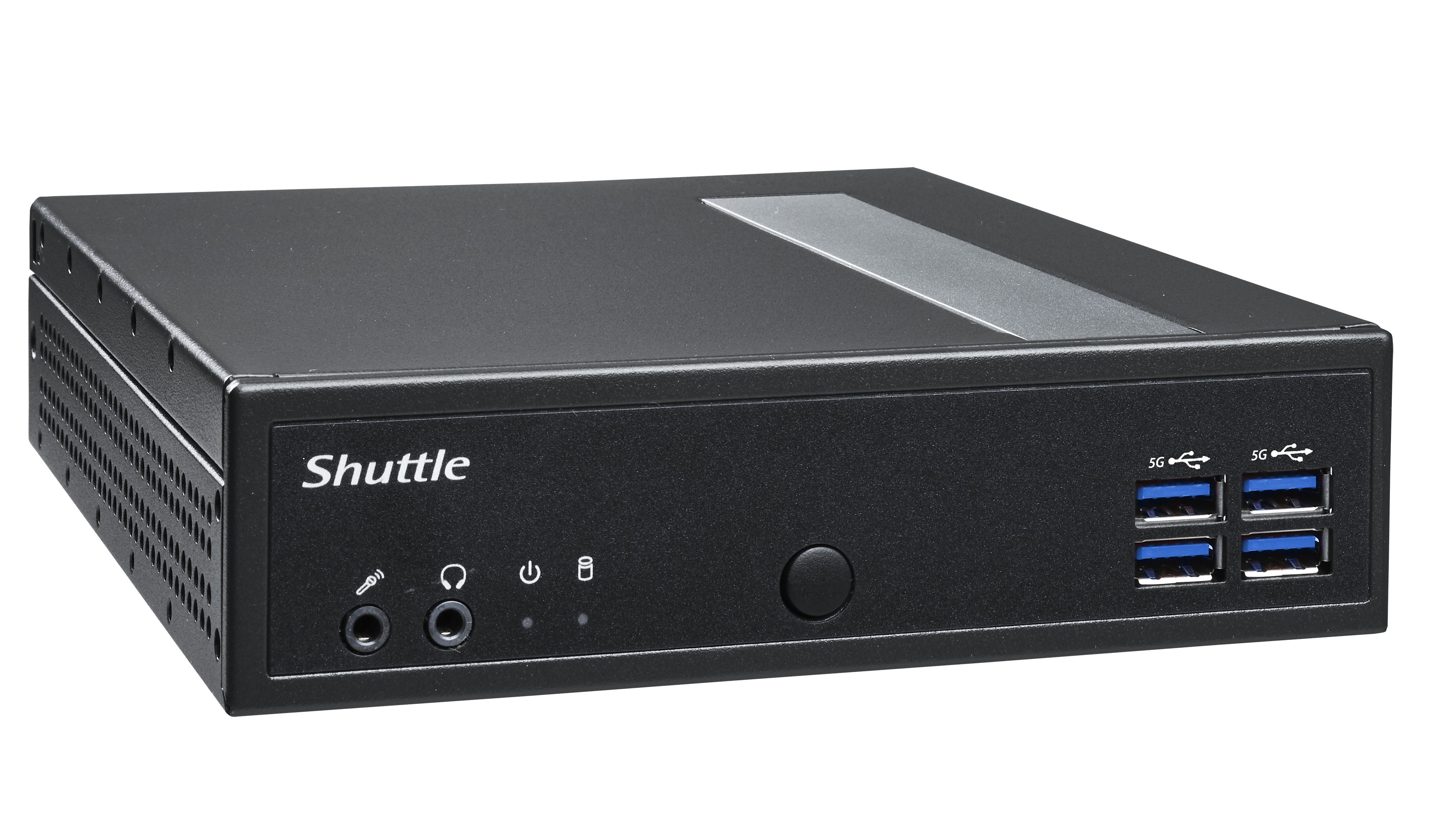

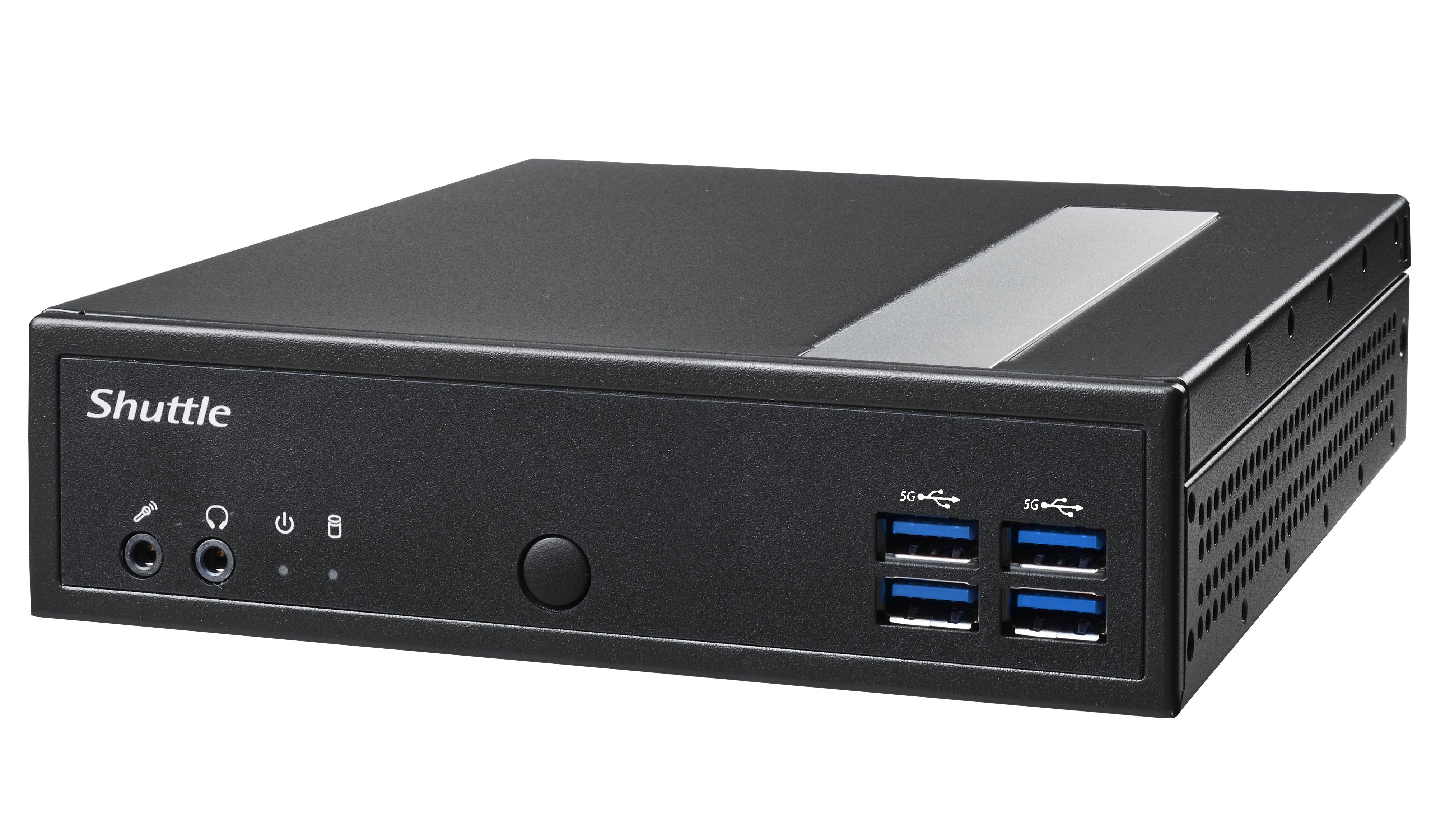

Shuttle XPC slim DL40N Barebone Mini PC, Intel N150, No RAM, No SSD, No OS

Brand:
Shuttle
Shuttle XPC slim DL40N N150 Barebone Mini PC No RAM No SSD No OS
Shuttle XPC slim DL40N Barebone Mini PC, Intel N150, No RAM, No SSD, No OS
€324.49 inc. VAT
Buy
DL40N
€272.68
€324.49 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
CQ89886
EAN Code
0887993008066
Manufacturer
Shuttle

Quick Specs

Processor
Intel N150, 4 cores
Configuration
Barebone No RAM No SSD No OS
Memory Support
DDR5-4800, up to 16 GB
Storage Support
M.2 SSD + 2.5" SATA
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Shuttle XPC slim DL40N Barebone Mini PC - Intel N150 No RAM No SSD No OS

Intel Processor N150 Barebone Platform 8 x USB 3.2 Gen 1 Type-A 2 x RJ45 M.2-2230E slot for optional WLAN card

The Shuttle XPC slim DL40N is a compact, fanless barebone mini PC with a soldered Intel Processor N150. Its 1.35-litre steel chassis, dual 2.5G Ethernet and support for two digital displays plus one analogue display make it suitable for space-conscious installations. Add compatible memory, storage and an operating system before use.

Compatibility Note: This is a barebone system, not a ready-to-use complete PC: RAM, storage and an operating system are not included. Wi-Fi, Bluetooth, LTE and the PS02 vertical stand require optional accessories. For 24/7 use, keep ventilation clear and use a drive approved by its manufacturer for continuous operation.

What's in the Box

  • Multi-language user guide
  • VESA mount for 75/100 mm standard
  • Mounting screws for the PC, VESA mount, 2.5-inch storage and M.2 cards
  • Thermal pad for DDR5 SO-DIMM module
  • Thermal pad for M.2-2280 SSD
  • Windows 64-bit driver DVD
  • External 65 W power adapter with AC power cord

What It Means in Practice

  • The M.2 slot accepts supported SATA or NVMe SSDs in 2242, 2260 or 2280 lengths; there is also space for one 2.5-inch SATA drive up to 9.5 mm high.
  • HDMI and DisplayPort each support up to 4096 x 2160 at 60 Hz. The system can drive two digital displays and one analogue display simultaneously; VGA supports up to 1920 x 1200 at 60 Hz.
  • There are four USB Type-A ports on both the front and rear, providing eight in total. Two serial ports are also available, with the left port switchable to RS422/RS485.
  • The included VESA mount supports 75/100 mm mounting. For vertical placement on the feet, the optional PS02 stand is required; keep ventilation openings clear and, when vertical, point the front USB ports upwards.

What Will Not Work

  • RAM and storage are not included; install a compatible DDR5-4800 SO-DIMM up to 16 GB and a supported M.2 SSD and/or 2.5-inch SATA drive before use.
  • An operating system is not included. Windows 11 64-bit and Linux 64-bit are listed as compatible.
  • Wi-Fi and Bluetooth require the optional WLN-M12 module; LTE requires the optional WWN03 kit and a compatible M.2 LTE module and nano SIM card.
  • The D-Sub/VGA connector does not support hot plugging.
  • For approved 24/7 operation, ensure free air circulation, keep ventilation holes unobstructed and use a drive approved by its manufacturer for permanent operation.
  • Vertical freestanding use requires the optional PS02 feet. In vertical placement, the front USB ports should point upwards.
Best For
✓ A fit for installations that need a compact
✓ fanless PC with dual 2.5G LAN
✓ serial ports or multiple display outputs. It is a configurable barebone platform
✓ so plan to add compatible RAM

Key Features


Fanless passive cooling
The system has no fan, making it suitable for noise-sensitive installations.

Dual 2.5G LAN
Two RJ45 ports support 100, 1000 and 2500 Mbit/s Ethernet and Wake-on-LAN.

Three display outputs
HDMI, DisplayPort and VGA allow up to two digital displays and one analogue display to be connected simultaneously.

Serial connectivity
Two RS232 ports are provided; the left port can be switched to RS422 or RS485.

Technical Specifications

Product Type Barebone mini PC | XPC Barebone
Model XPC slim DL40N
Processor Intel Processor N150 | 4 cores / 4 threads | up to 3.6 GHz | 6 MB L2 cache | 6 W TDP | Model: Intel® Processor N150 Max. Turbo clock frequency: 3.6 GHz Code name: "Twin Lake-N" Intel7/10 nm structure CPU cores / Threads: 4 / 4 L2 Cache: 6 MB Thermal Design Power (TDP): 6 W Soldered System-on-Chip processor (SoC) with integrated graphics processor, no chipset required
Processor Platform Twin Lake-N | soldered system-on-chip with integrated graphics
Graphics Intel Graphics integrated in processor
Memory Support 1 x SO-DIMM slot | DDR5-4800 | maximum 16 GB | non-ECC | 1x SO-DIMM slots with 262 pins Supports DDR5-4800 (PC5-38400U) SDRAM at 1.1V Supports one RAM module with max. 16 GB capacity Supports two unbuffered DIMM modules (no ECC)
Storage Support M.2-2280 M-key slot: PCIe Gen 3.0 x2 or SATA | supports 2242, 2260 and 2280 SATA or NVMe SSDs | One 2.5" SATA III drive | maximum 9.5 mm height | pre-installed SATA data/power cable
Display Outputs HDMI 2.0b | DisplayPort 1.4a | D-Sub/VGA
Display Support Up to two digital displays and one analogue display simultaneously | Two digital displays and one analog display simultaneously
HDMI Resolution Up to 4096 x 2160 at 60 Hz
DisplayPort Resolution Up to 4096 x 2160 at 60 Hz
VGA Resolution Up to 1920 x 1200 at 60 Hz
Networking 2 x RJ45 | 100/1000/2500 Mbit/s | Intel i226-LM controllers | Wake-on-LAN
USB 8 x USB 3.2 Gen 1 Type-A | 4 front and 4 rear | up to 5 Gbps
Serial Ports 2 x RS232 | left port switchable to RS422/RS485 | auxiliary 5/12 V support | 2 x RS232, 9-pin D-Sub | supports auxiliary 5/12 V
Wireless Expansion M.2-2230E slot for optional WLAN card
Optional Wireless Accessory WLN-M12 supports Wi-Fi 6E and Bluetooth 5.2
Optional Mobile Network Accessory WWN03 LTE kit supports one M.2 LTE module and one nano SIM card
Audio Realtek ALC888S | 3.5 mm line-out/headphones and microphone input
Cooling Completely fanless passive cooling | Completely fanless | passive cooling through convective heat transfer
Operating System Not included | compatible with Windows 11 64-bit and Linux 64-bit
24/7 Operation Approved for permanent operation subject to free airflow, clear ventilation openings and a drive rated by its manufacturer for permanent operation
Chassis Black steel | 1.35 litres | Slim PC with black chassis made of steel Dimensions: 190 x 165 x 43 mm (LWH) = 1.35-litre Weight: 0.8 kg net and 2.1 kg gross Two holes for Kensington Lock and numerous threaded holes (M3) at both sides of the chassis | Slim PC with black steel chassis
Dimensions 190 x 165 x 43 mm (L x W x H)
Weight 0.8 kg net
Mounting Horizontal or vertical VESA mounting | optional PS02 feet required for freestanding vertical operation
Security Two Kensington lock holes | embedded Firmware TPM 2.0
Power Adapter Fanless external 65 W AC/DC adapter | 19 V output
Power Input Supports external 12 V or 19 V input
Included Accessories VESA mount for 75/100 mm standard, mounting screws, thermal pads, driver DVD, user guide and 65 W power adapter with AC cord
Digital audio output Via HDMI and DisplayPort
Rear video connectors HDMI 2.0b | DisplayPort 1.4a | D-Sub/VGA 15-pin
Integrated Graphics The Graphics Processing Unit (GPU) is integrated in the processor Intel® Graphics, GPU frequency: max. 1000 MHz Supports DirectX 12.1, OpenGL 4.6, OpenCL 3.0, Intel Quick Sync Video Execution Units (EU): 24 Triple Display Support via three video outputs: - HDMI 2.0b: max. 4096 x 2160 @ 60 Hz - DisplayPort 1.4a: max. 4096 x 2160 @ 60 Hz - D-Sub/VGA: max. 1920 x 1200 resolution @ 60 Hz Supports two digital displays and one analog display simultaneously. The D-Sub/VGA connector does not support the Hot Plug feature. | Intel Graphics integrated in processor
Integrated Audio Realtek ALC888S Audio Codec Two analog audio connectors (3.5 mm): 1) Line out (head-phones) 2) Microphone input Digital multi-channel audio output: via HDMI and DisplayPort

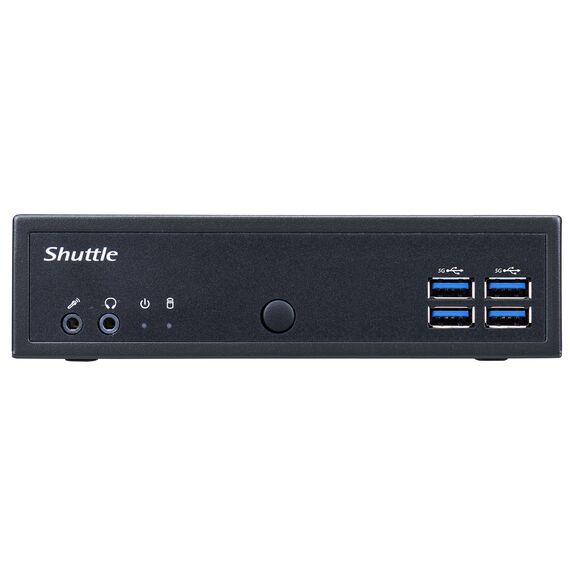

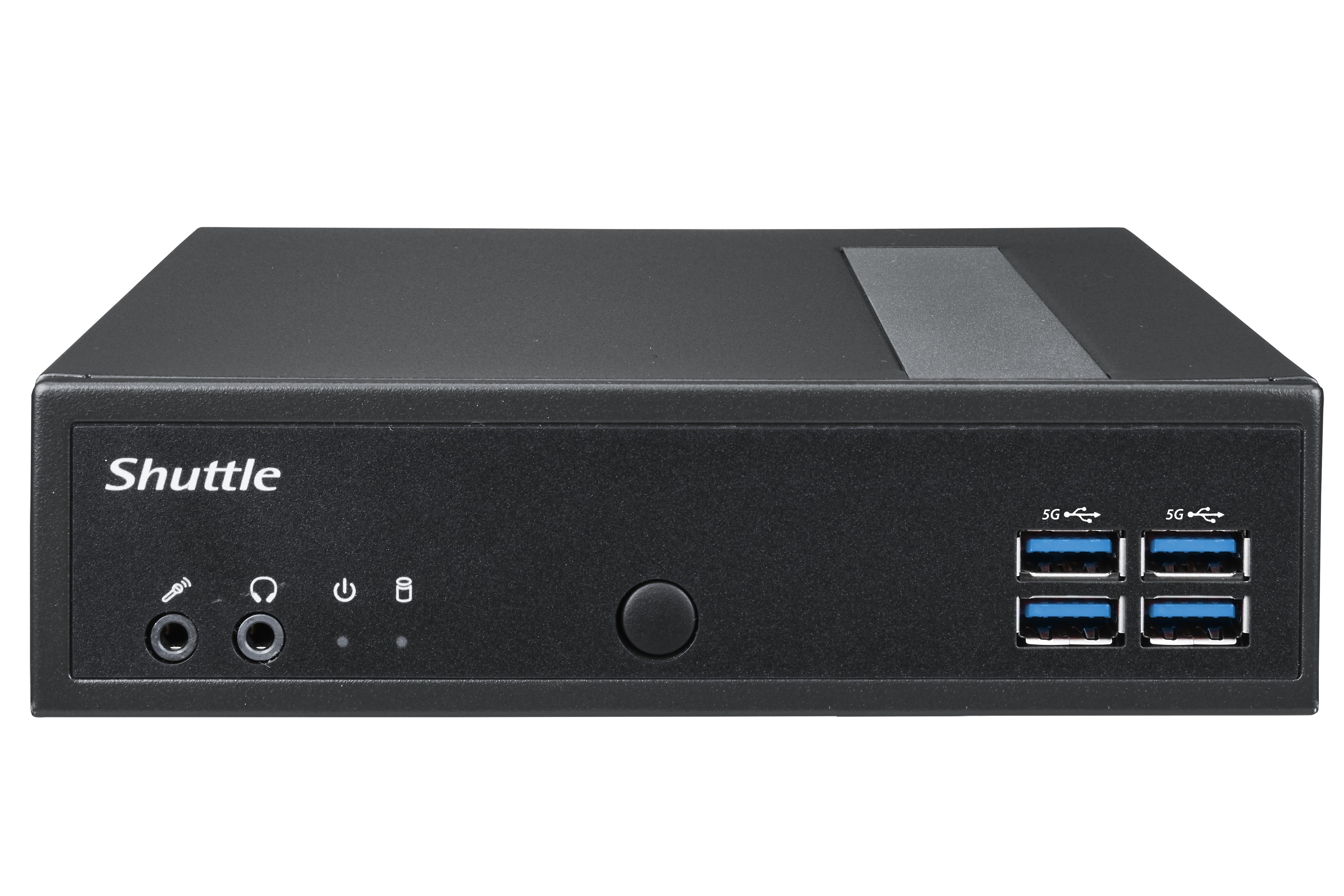

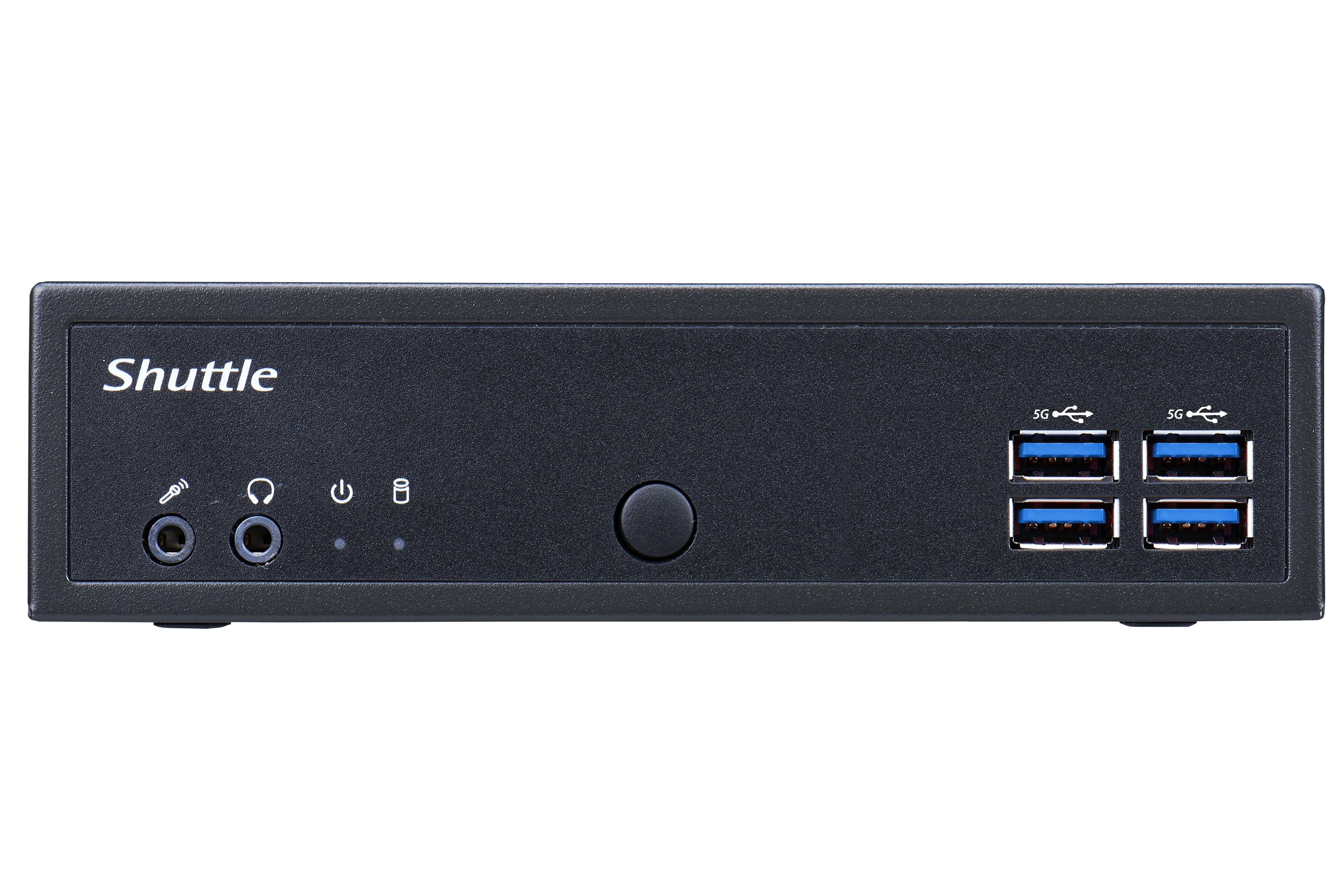

Front Panel Connectors 4x USB 3.2 Gen 1 Type A (blau, max. 5 Gbps) Audio 3.5 mm line-out (headphones) Microphone 3.5 mm input

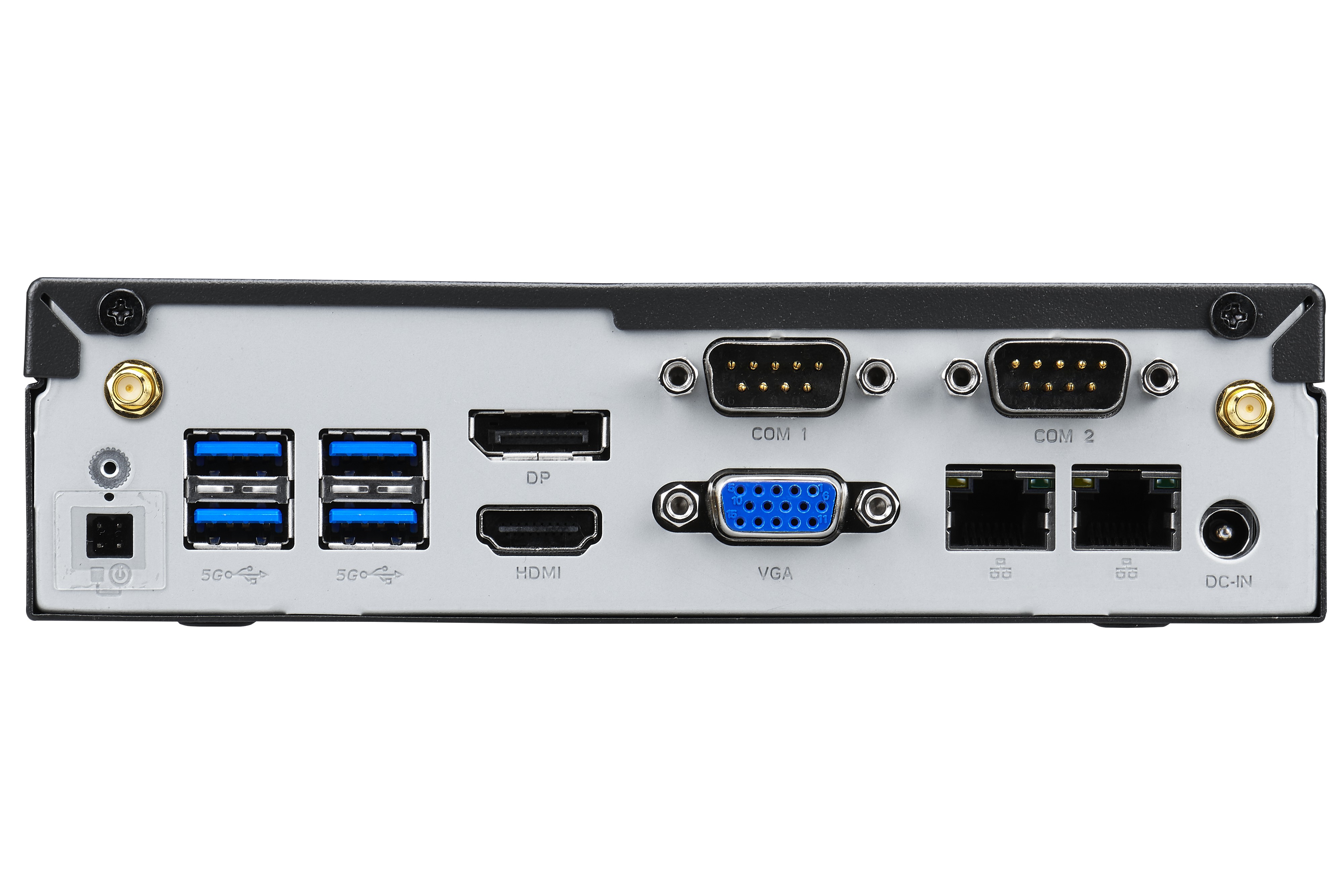

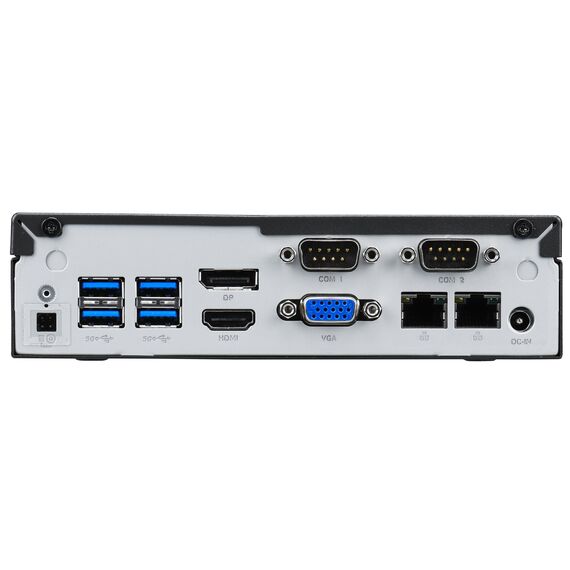

Back Panel Connectors HDMI 2.0b digital video and audio output DisplayPort 1.4a digital video and audio output D-Sub/ VGA analog video output (15-pin) - no hot plug 4x USB 3.2 Gen 1 Type A (blue, max. 5 Gbps) 2x LAN port 2.5 Gbps (Intel i226-LM, RJ45) 2x RS232 serial port, 9-pin D-Sub (support of an auxiliary voltage of 5/12 V, the left port is switchable to RS422 / RS485) [4] DC input for the external power adapter (supports 12V and 19V) 4-pin connector (2.54 mm pitch) supports - external power-on button - Clear CMOS function - +5V DC voltage for external components 2x perforation for optional Wireless LAN antennas
Audio codec Realtek ALC888S
Audio connectors 3.5 mm line-out/headphones | 3.5 mm microphone input
Processor model Intel Processor N150
Processor code name Twin Lake-N
Max. Turbo clock frequency 3.6 GHz
CPU cores / threads 4 / 4
L2 cache 6 MB
Processor process Intel7/10 nm
Processor type Soldered System-on-Chip processor with integrated graphics processor | no chipset required
GPU frequency Max. 1000 MHz
Firmware features Power-fail-resume | AC power-on state | always-on | Wake-on-LAN from S3, S4 and S5 ACPI states | boot from external flash memory cards
Memory slots 1 x 262-pin SO-DIMM slot
Memory type DDR5-4800 (PC5-38400U) SDRAM, 1.1 V
Maximum memory capacity 16 GB
Memory modules One unbuffered DIMM module | no ECC
Supplied accessories Multi-language user guide | VESA mount for 75/100 mm standard | M3 and M4 mounting screws | 2.5" storage mounting screws | M.2 mounting screws | DDR5 SO-DIMM thermal pad | M.2-2280 SSD thermal pad | Windows 64-bit driver DVD | external 65 W power adapter with AC power cord | Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC) VESA mount for 75 / 100 mm standard (two metal brackets) Four screws M3 x 5 mm (screws together VESA mount and PC) Four screws M4 x 10 mm (to affix VESA mount on the PC) Four screws M3 x 4 mm (to mount a 2.5" storage into the bay) Two screws M3 x 5 silver colour (to mount some M.2 cards) Thermal Pad 50 x 15 x 2.25 mm (for the DDR5 SO-DIMM module) Thermal Pad 50 x 20 x 12.0 mm (for the M.2-2280 SSD card) Driver DVD (Windows 64-bit) External 65 W power adapter with AC power cord (with protective-earth contacts)
UEFI Firmware 32 MB Flash ROM with AMI's Aptio UEFI BIOS Firmware Based on the Unified Extensible Firmware Interface (UEFI) Supports Power-fail-resume / AC power-on state / always-on [3] Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states Supports boot up from external flash memory cards With embedded Firmware TPM v2.0 (fTPM) [5] CMOS battery (type CR2032) | 32 MB Flash ROM with AMI Aptio UEFI BIOS Firmware
2.5" Bay for Hard disk drive/SSD Supports one drive in 6.35 cm / 2.5" format (hard disk or SSD) Serial ATA III Interface with up to 600 MB/s transfer speed Max. height 9.5 mm Pre-installed SATA cable (data / power) Supports Unified Extensible Firmware Interface (UEFI)
VGA hot plug Not supported
2.5-inch drive bay Supports one 2.5" / 6.35 cm hard disk or SSD
2.5-inch drive interface Serial ATA III, up to 600 MB/s
M.2 SSD interfaces PCI Express Gen 3.0 x2 and SATA v3.0, maximum 6 Gbit/s
Supported M.2 SSDs SATA SSDs (B-M key) or NVMe PCIe SSDs (M key)
M.2 WLAN interfaces PCI Express Gen 3.0 x1 and USB 2.0
Supported WLAN card size M.2 2230, width 22 mm and length 30 mm
LAN ports 2 x RJ45, 100/1000/2500 Mbit/s
Front USB ports 4 x USB 3.2 Gen 1 Type-A, maximum 5 Gbps
Rear USB ports 4 x USB 3.2 Gen 1 Type-A, maximum 5 Gbps
DC input 5.5 / 2.5 mm connector
Supported external input voltage 12 V ±5% (maximum 5.33 A) or 19 V ±5% (maximum 3.42 A)
External 4-pin connector Supports external power-on button, Clear CMOS and +5 V DC for external components
Internal connectors COM1/COM2 for serial ports occupied | USB 2.0 header CN1 required for WWN03 accessory | JP1 jumper for power-on-after-power-fail
Optional accessory WLN-M12 M.2 WLAN module supporting Wi-Fi 6E (IEEE 802.11ax) and Bluetooth 5.2, including two external antennas and cables
Optional accessory WWN03 LTE kit with adapter card, two antennas and antenna cables | supports one M.2 LTE module and one nano SIM card
Operation Position 1) Horizontal 2) Vertical with mounted feet. These feet can be purchased as optional accessory PS02. 3) Vertical (e.g. VESA-mounted behind an appropriate monitor) In vertical position, the front USB ports should point upward. Ventilation holes must not be blocked to ensure sufficient cooling.
M.2 expansion slot for SSD card M.2-2280 M-key slot Interfaces: PCI-Express Gen. 3.0 X2 and SATA v3.0 (max. 6 Gbit/s) Supports M.2 cards with a width of 22 mm and a length of 42, 60 or 80 mm (type 2242, 2260, 2280) Supports SATA SSDs (BM-Key) or NVMe PCIe SSDs (M-Key)
M.2-2230E slot for WLAN cards Interfaces: PCI-Express Gen. 3.0 X1 und USB 2.0 Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230) Supports WLAN expansion cards (optional Shuttle accessory: WLN-M12)
Dual 2.5G LAN Two RJ45 connectors support LAN at 100/1000/2500 Mbit/s. 2x Intel i226-LM Ethernet Controller Supports Wake-on-LAN
Other Onboard Connectors Connectors COM1/COM2 for serial ports (occupied) Jumper JP1 for power-on-after-power-fail (hardware solution) [3] USB 2.0 header CN1 (4-pin) required for WWN03 accessory
DC Input connector DC Connector: 5.5 / 2.5 mm (outer/inner diameter) The DC-input of the computer supports an external power source with either 12 V ±5% (max. 5.33 A) or 19 V ±5% (max. 3.42 A).
Optional Accessories: - PS02: optional stand for vertical operation - CXP01: adapter cable for external power button - PRM01: 2U rack-mount front plate for two Shuttle XPC slim PCs - DIR01: DIN-Rail mounting kit - WLN-M12: WLAN module in M.2 format supports Wi-Fi 6E (IEEE 802.11ax) and Bluetooth 5.2 including two external antennas and cables - WWN03: LTE kit with adapter card, 2 antennas and antenna cables. Supports one M.2 LTE module and one nano SIM card [1]
M.2 WLAN slot M.2-2230E slot
Optional WLAN accessory WLN-M12
Ethernet controllers 2 x Intel i226-LM
LAN feature Wake-on-LAN
Wireless antenna provision 2 perforations for optional WLAN antennas
Manufacturer documentation language English, German, French, Spanish, Japanese, Korean, Simplified Chinese and Traditional Chinese
Thermal Design Power (TDP) 6 W
CMOS battery CR2032
Drive cabling Pre-installed SATA data/power cable
External power adapter Fanless 65 W AC/DC adapter
Power adapter cables DC cable approximately 180 cm | AC cable approximately 180 cm | 3-pin Micky MM C6 and Schuko earthed safety plug
Buttons and indicators Power button | blue power LED | yellow HDD LED
Button cell battery Built-in 3 V button cell battery | The product contains a built-in 3V button cell battery. For further information see footnote [6]
Optional accessory CXP01 Adapter cable for external power button
LEDs and Buttons Power button Power LED (blue) HDD LED (yellow)
Power Supply External 65 W AC/DC power adapter (fanless) AC Input: 100 ~ 240 V AC, 50 ~ 60 Hz, max. 1.6 A DC Output: 19 V, max. 3.42 A, max. 65 W Automatic AC voltage adjust DC cable length: ca. 180 cm AC cable length: ca. 180 cm (3-pin Micky MM C6 and Schuko earthed safety plug)
Certification and Compliance EMI: CE, UKCA, FCC, RCM, VCCI, BSMI Safety: CB IEC 60950-1/62368-1, cTUVus (UL 62368-1), BSMI Other: RoHS, Energy Star, ErP This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives: (1) 2004/108/EC relating to electromagnetic compatibility (EMC), (2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD), (3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)
Weight, net 0.8 kg
Weight, gross 2.1 kg
Chassis mounting Threaded M3 holes on both sides
Operation positions Horizontal | vertical with optional PS02 feet | vertical VESA-mounted behind an appropriate monitor
2.5-inch drive height Maximum 9.5 mm
M.2 SSD card sizes 2242, 2260 and 2280 | width 22 mm
Optional accessory PRM01 2U rack-mount front plate for two Shuttle XPC slim PCs
Optional accessory DIR01 DIN-Rail mounting kit
Operating temperature 0-40 °C
Relative humidity 10-90%, non-condensing
Other compliance RoHS, Energy Star, ErP
Installation environment Living room and office
Fanless and silent Completely fanless, virtually noiseless Passive cooling through convective heat transfer Perfect to be used in noise-sensitive environments Fanless means less dust and thus virtually no maintenance required
Environmental Specifications Operating temperature range: 0 ~ 40 °C Relative humidity range: 10 ~ 90 % (non-condensing)
TPM Embedded Firmware TPM v2.0 (fTPM)
Manufacturer part number DL40N
Operating mode Approved for 24/7 permanent operation
Volume 1.35 litre
Compatible operating systems Windows 11 64-bit | Linux 64-bit
Graphics APIs DirectX 12.1 | OpenGL 4.6 | OpenCL 3.0 | Intel Quick Sync Video
Graphics execution units 24 EU
M.2 SSD slot M.2-2280 M-key slot
AC input 100-240 V AC, 50-60 Hz, maximum 1.6 A
DC output 19 V, maximum 3.42 A, maximum 65 W
Optional accessory PS02 Stand for vertical operation
EMI certifications CE, UKCA, FCC, RCM, VCCI, BSMI
Safety certifications CB IEC 60950-1/62368-1 | cTUVus (UL 62368-1) | BSMI
Equipment class Technical information equipment (ITE), class B
24/7 Nonstop Operation This device is approved for 24/7 permanent operation. Requirements: - Free air circulation around the PC must be guaranteed. - Ventilation holes must be kept clear. - Any installed disk must also be approved for permanent operation by its manufacturer
Operation System This system comes without operating system. It is compatible with - Windows 11 (64-bit) - Linux (64-bit)
SKU / EAN DL40N | 0887993008066

Frequently Asked Questions

Does the DL40N include RAM, storage or an operating system?
No. It is a barebone system; RAM, storage and an operating system must be supplied separately.
Can it be mounted behind a monitor?
The box includes a VESA mount for the 75/100 mm standard. Check the monitor's mounting compatibility and keep the PC's ventilation openings clear.
Is Wi-Fi built in?
No wireless module is listed as included. The M.2-2230E slot supports an optional WLAN card; Shuttle lists the WLN-M12 accessory for Wi-Fi 6E and Bluetooth 5.2.
Can it run continuously?
It is approved for 24/7 operation provided there is free airflow, ventilation holes remain clear and any installed drive is rated by its manufacturer for permanent operation.
Singular Expert Insight
The practical appeal is the combination of fanless cooling, two 2.5G Ethernet ports and three different display outputs in a 1.35-litre chassis. It also provides RS232 ports for setups that need serial connections.

Buyer’s Guide

Buy it if
A fit for installations that need a compact, fanless PC with dual 2.5G LAN, serial ports or multiple display outputs. It is a configurable barebone platform, so plan to add compatible RAM and storage and install an operating system.
Skip it if
This is a barebone system, not a ready-to-use complete PC: RAM, storage and an operating system are not included. Wi-Fi, Bluetooth, LTE and the PS02 vertical stand require optional accessories. For 24/7 use, keep ventilation clear and use a drive approved by its manufacturer for continuous operation.
