ICY BOX Heart Dock 2255 IB-DK2255AC USB-C DisplayLink Dock, Dual 4K 60Hz HDMI/DisplayPort, 96W PD, Gigabit LAN, Black
Brand:
Icy Box
ICY BOX Heart Dock 2255 IB-DK2255AC USB-C DisplayLink Dock, Dual 4K 60Hz HDMI/DisplayPort, 96W PD, Gigabit LAN, Black
€301.69 inc. VAT
IB-DK2255AC
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
One USB-C connection for a dual-display desk
DisplayLinkDual 4K/60HzUp to 96W PDGigabit LAN

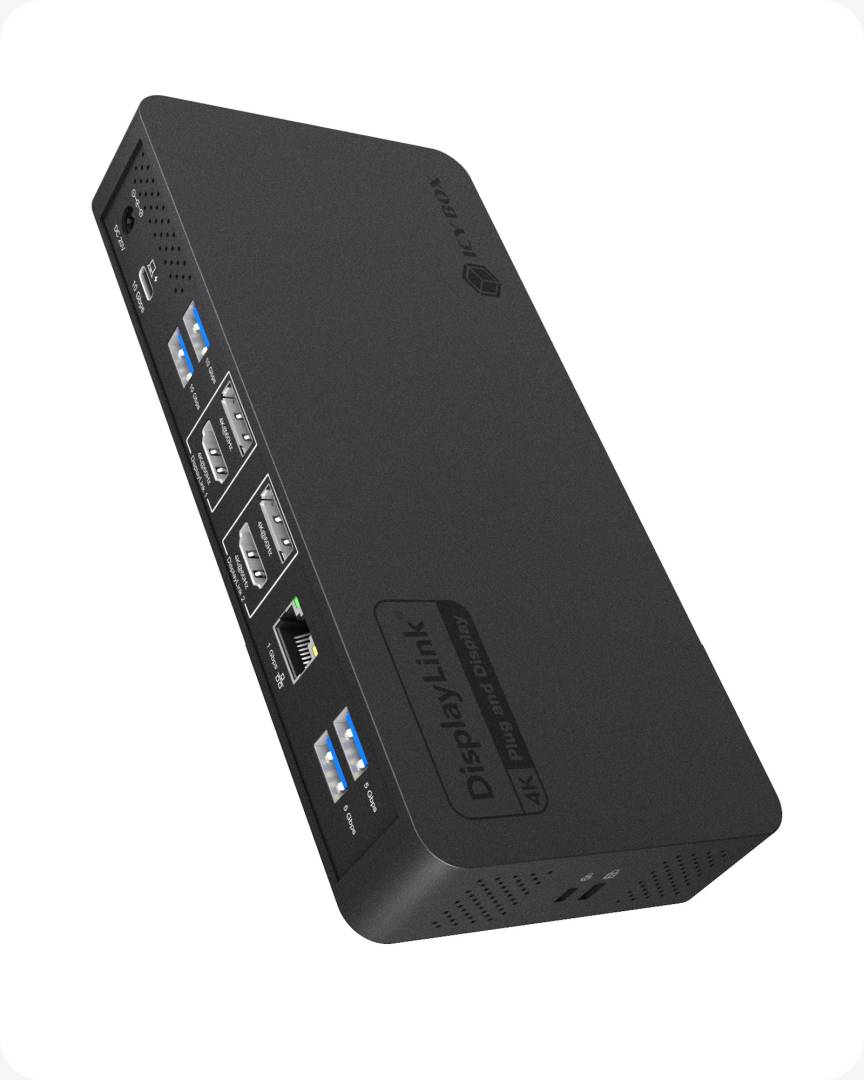

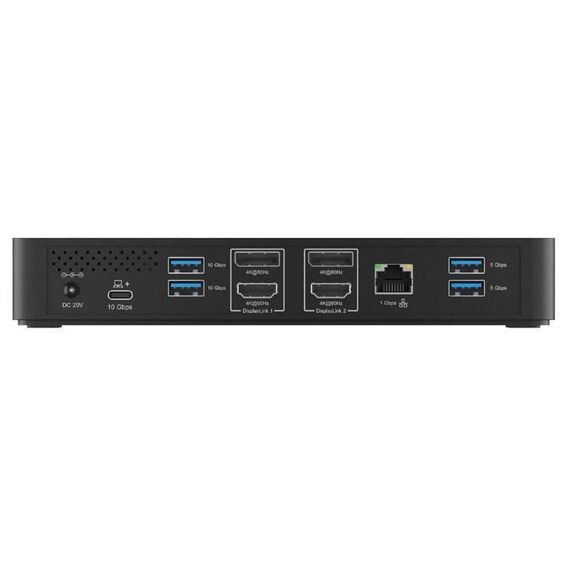

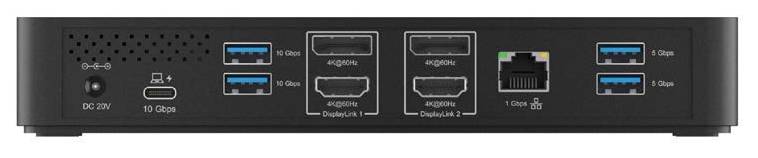

Heart Dock 2255 connects a suitable notebook to two external displays, USB devices, wired networking and a headset through one USB-C host connection. It uses DisplayLink graphics and includes its 135W power adapter, AC lead and 100cm USB-C cable. The four video sockets offer a choice of HDMI or DisplayPort for each of two display channels; they support a maximum of two monitors at once.
Before you order:
Install the appropriate DisplayLink software and check support for your exact Windows, macOS or ChromeOS release. Up-to-96W charging requires a notebook that accepts USB-C Power Delivery; match the notebook’s power requirements. The optional VESA mounting bracket, computer and monitors are not part of the listed package.
What's in the Box
- IB-DK2255AC docking station
- USB-C to USB-C cable, 100cm
- AC power cord
- 135W power adapter, 20V/6.75A, 150cm DC cable
- Manual
What It Means in Practice
- For example, connect one HDMI monitor and one DisplayPort monitor to separate display channels, attach your keyboard and Ethernet cable, install the supported DisplayLink driver and connect the notebook by USB-C. The same host connection carries your workstation data and up-to-96W notebook charging.
- The physical HDMI/DisplayPort alternatives let you match different monitors without implying four independent display outputs. Peripheral USB-C charging and the front PD-IN-labelled port are separate from the rear notebook host connection.
What Will Not Work
- Four video sockets do not support four monitors: the manufacturer limit is two simultaneously.
- Do not expect notebook charging if the notebook does not accept USB-C Power Delivery.
Key Features
Dual 4K with DisplayLink
Supports up to two 4K/60Hz monitors through suitable DisplayLink software, with HDMI, DisplayPort or mixed output choices.
Data, network and audio at the desk

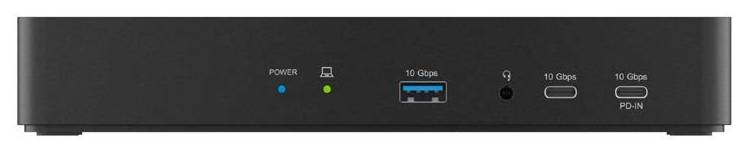

Five USB-A ports, two front USB-C peripheral ports, Gigabit Ethernet and a headset jack consolidate everyday connections.
Included power equipment
The 135W adapter supplies the dock; notebook Power Delivery is specified separately at up to 96W.
Fixed-workspace options
The power button, status LEDs, Kensington slot and optional VESA mounting support help organise a shared or permanent desk.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose this dock for an office workflow that needs two displays and DisplayLink deployment is acceptable. Confirm driver availability first, then allocate one connection per display channel and compare the 96W host limit with the notebook’s power needs. Check your notebook and monitor setup
Buyer’s Guide
✓
Buy it if
You want two 4K/60Hz monitors, mixed HDMI/DP choices and up-to-96W notebook charging through a DisplayLink dock.✕
Skip it if
Your environment cannot install supported DisplayLink software or you need more than two external displays from this dock.→
Also consider
A native-video or Thunderbolt dock when that architecture better suits the verified capabilities of your notebook.Tell us your notebook model, OS and both monitor models so we can check the requirements.
Features - Icy Box - IB-DK2255AC
Colour
black
Interface
- USB3.2,
- USB Type-C,
- Ethernet
Port Speed
- 1 Gbps
More Details
Product Code
04:601053
EAN Code
4250078175551
Manufacturer
Icy Box
